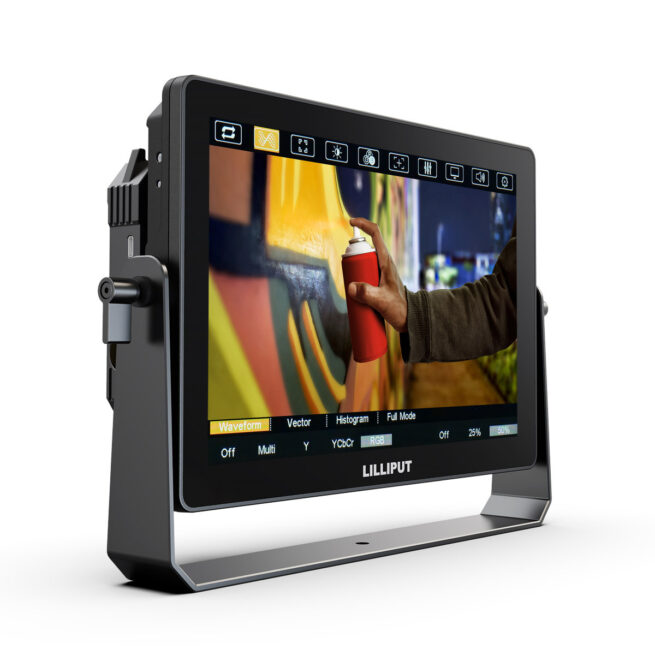

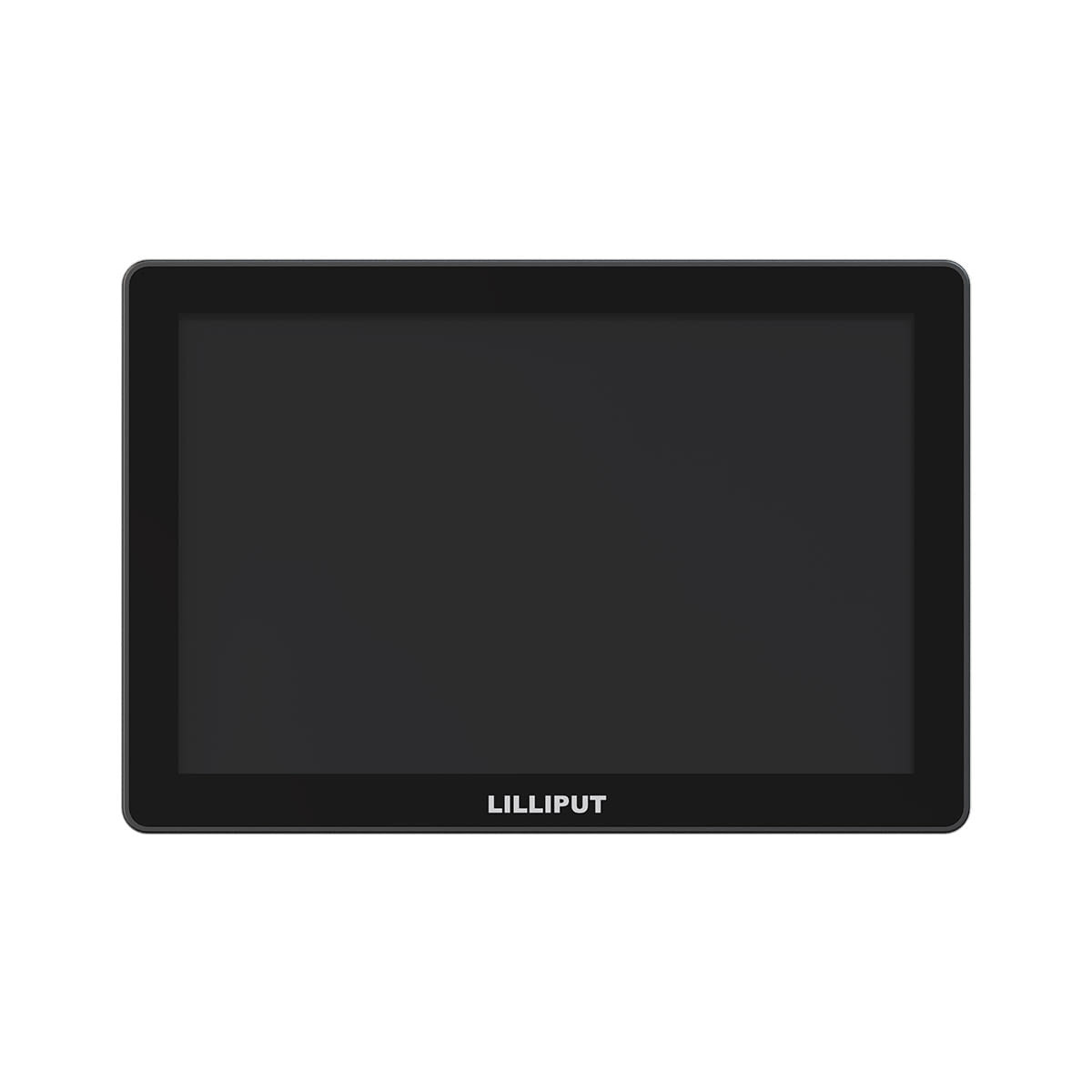

Lilliput HT10S 10.1 inch High-Bright On-Camera Touchscreen Monitor

Key Features

10.1" 1920 x 1200 Touchscreen Display
Auto-Dimming, HDR & 3D LUT Support
3G-SDI & HDMI 2.0 Inputs
HDMI Input up to 4K60, SDI up to 1080p60
FIZ & Start/Stop Camera Control via LANC
Includes L-Series Battery Plate
Optional VESA, V-Mount Battery Plates
Includes Sun Hood, Adjustable Shoe Mount

General Details
Specification
Product Enquiry
Related Products

General Details

Lilliput HT10S Overview:

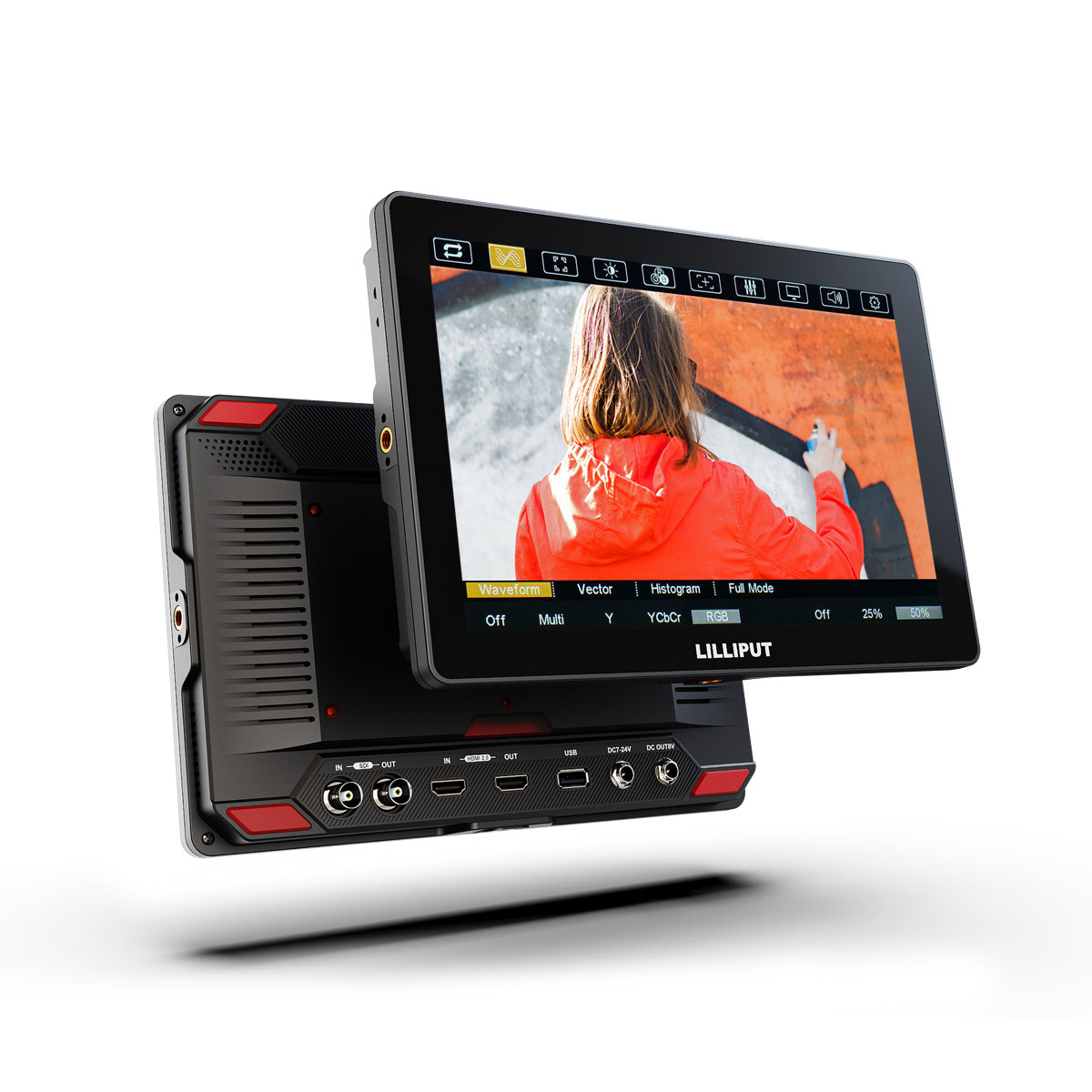

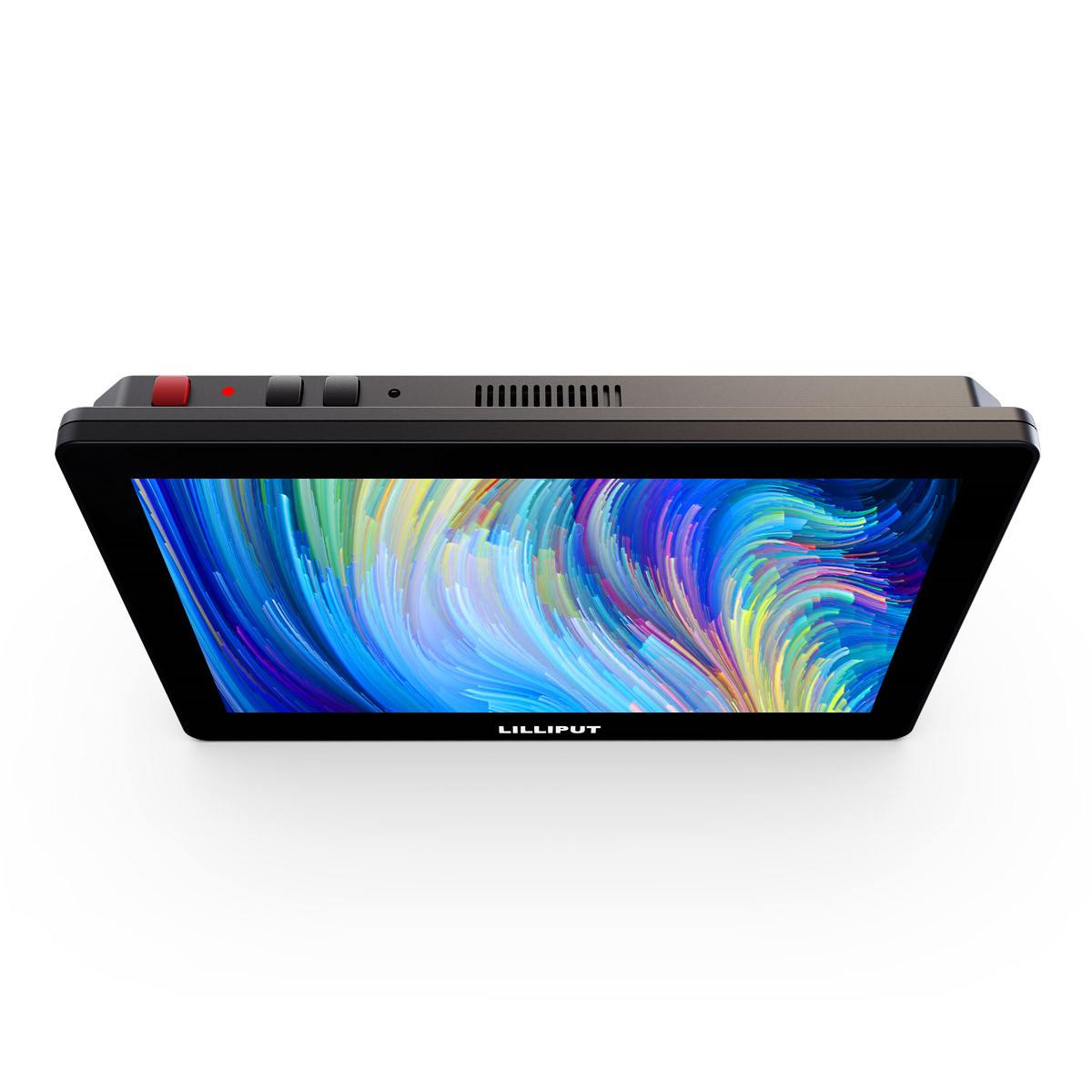

Input, pass through, and display 4K and Full HD on this Lilliput HT10S 10.1″ High-Bright 1500 cd/m² On-Camera Touchscreen Monitor. With a high 1500 cd/m² maximum brightness and an auto-dimming function, you can use this monitor on exterior shoots with or without the included sun hood, as well as on interior shoots. The touchscreen monitor supports HDMI 2.0 input/output up to UHD 4K60 and 3G-SDI input/output up to 1080p60.

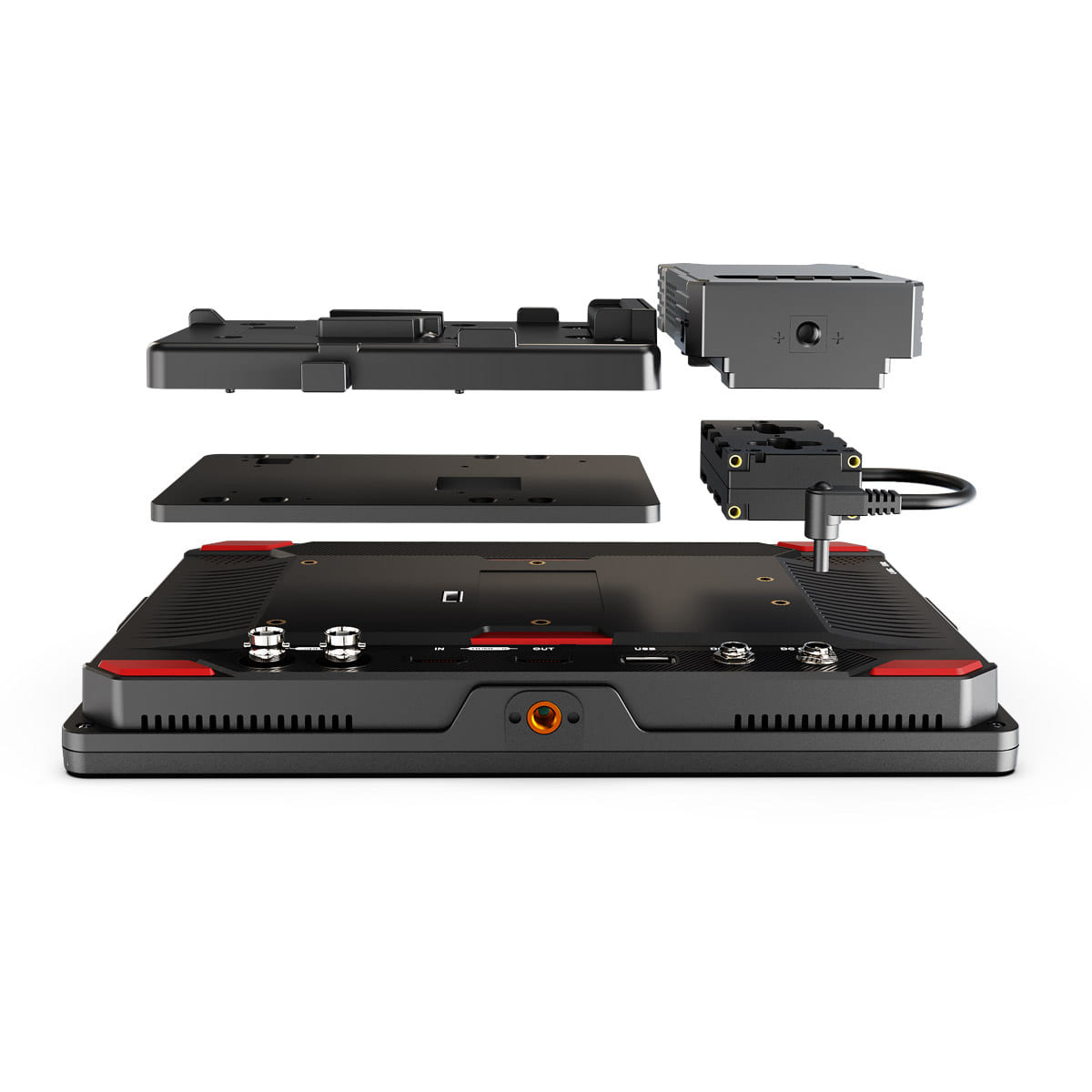

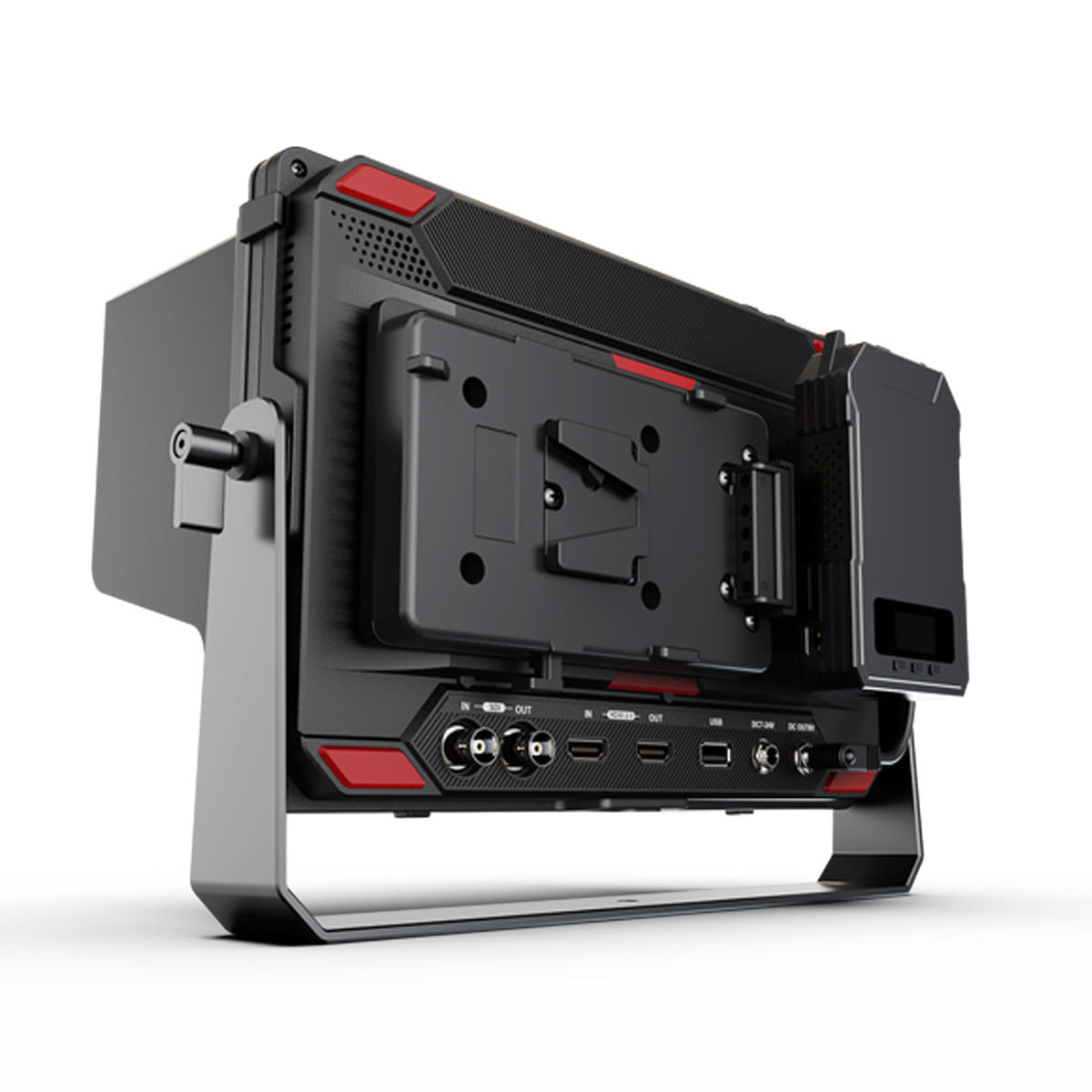

The monitor supports 170° H/V viewing angles for good color and contrast, even when viewed from off-center. The monitor powers using the included L-series battery plate or via a separately available DC power adapter or optional V-mount battery plate. The included LANC cable provides the ability to control the record, focus, iris, and zoom on a LANC-enabled camera directly from the touchscreen display UI.

Items Included

Lilliput HT10S 10.1″ High-Bright 1500 cd/m² On-Camera Touchscreen Monitor
LANC Cable
Adjustable Shoe Mount
HDMI Type A to Type D Cable (31.5″)
Sun Hood
L-Series Battery Plate
Limited 1-Year Manufacturer Warranty

Specification

Display Size	10.1″ / 25.6 cm
Native Resolution	1920 x 1200
Touchscreen	Yes
HDR Support	Yes: Hybrid Log Gamma
Video I/O	HDMI / BNC
Media/Memory Card Slot	No
Video Format	HDMI UHD 4K: 60/50/30/25/24 1080p: 60/50/30/25/24 1080i: 60/50 720p: 60/50 SDI 1080p: 60/50/30/25/24 1080PsF: 30/25/24 1080i: 60/50 720p: 60/50
Battery	1x L-Series Mount on Included, Interchangeable Plate
Power Consumption	23 W (Maximum)

Display

Panel Type	LCD
Display Size	10.1″ / 25.6 cm
Native Resolution	1920 x 1200
Aspect Ratio	16:10
Viewing Angle	Horizontal: 170° Vertical: 170°
Touchscreen	Yes
Maximum Brightness	1500 nits/cd/m2
Contrast Ratio	1000:1
HDR Support	Yes: Hybrid Log Gamma
LUT Support	Yes
Image Controls	False Color, Focus Peaking, Histogram, Pixel Zoom, Pixel-to-Pixel Zoom, Vectorscope, Waveform, Zebra

Inputs/Outputs

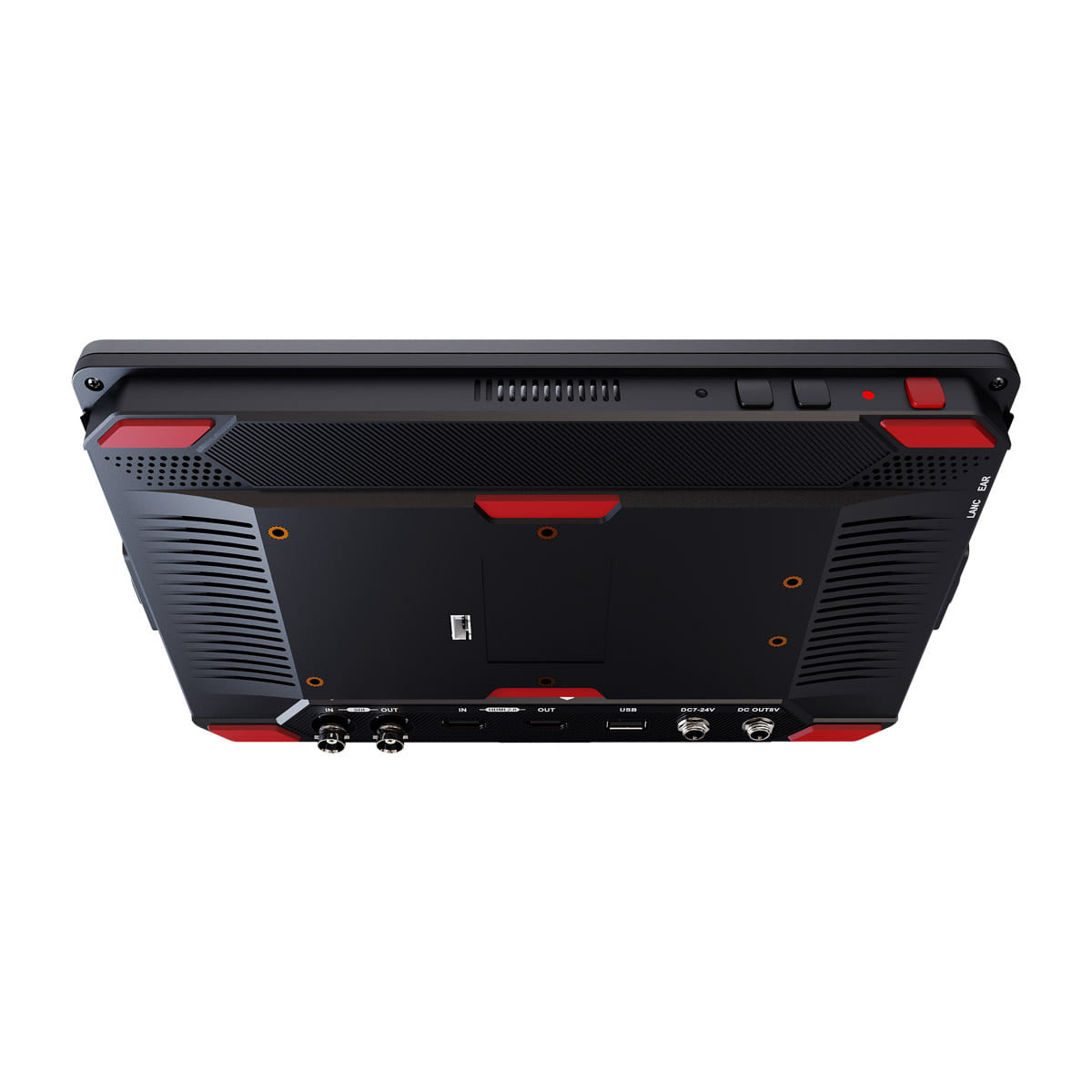

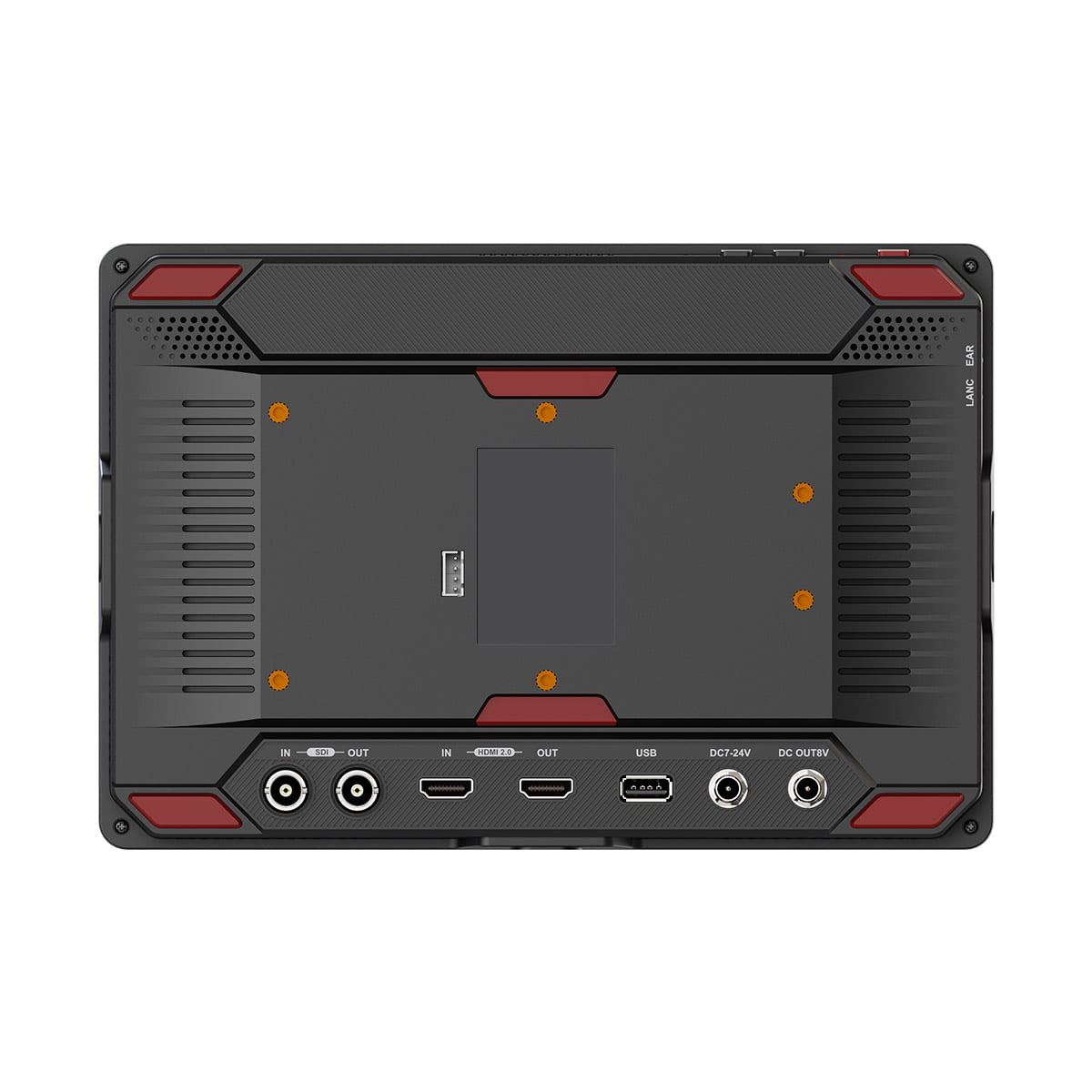

Video I/O	1x BNC (3G-SDI) Input 1x HDMI 2.0 Input 1x BNC (3G-SDI) Output 1x HDMI 2.0 Output
Embedded Audio	HDMI
Audio I/O	1x 1/8″ / 3.5 mm Headphone Output
Built-In Speaker	Mono
Power I/O	1x Barrel Input
Media/Memory Card Slot	No

Wireless

Wi-Fi	No
Bluetooth	No
Mobile App Compatible	No

Format Support

Video Format

HDMI
UHD 4K: 60/50/30/25/24
1080p: 60/50/30/25/24
1080i: 60/50
720p: 60/50
SDI
1080p: 60/50/30/25/24
1080PsF: 30/25/24
1080i: 60/50
720p: 60/50

Power

Input Power	7 to 24 VDC
Battery	1x L-Series Mount on Included, Interchangeable Plate
Power Consumption	23 W (Maximum)

General

Operating Conditions	32 to 122°F / 0 to 50°C
Storage Conditions	-4 to 140°F / -20 to 60°C
Material of Construction	Metal
Dimensions	9.9 x 6.7 x 1″ / 251 x 170 x 26.5 mm
Weight	1.87 lb / 850.00 g

Packaging Info

Package Weight	4.29 lb
Box Dimensions (LxWxH)	11.7 x 8.7 x 4.2″
