Lilliput PVM220S 21.5 inch Live Stream Quad-Split Broadcast Monitor

Key Features

21.5" 1920 x 1080 LCD Display
3G-SDI & HDMI In/Out, USB Type-C In
Quad-Split Multiview + Program Out

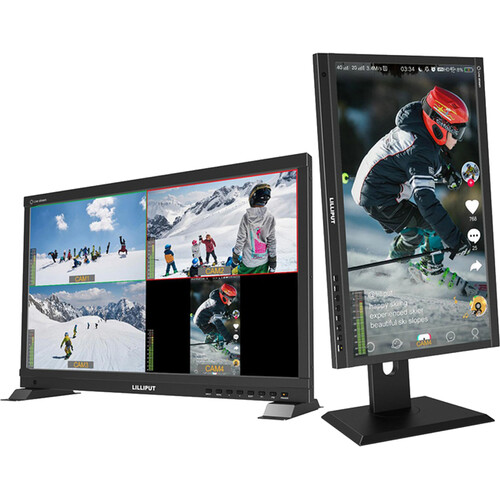

Horizontal & Vertical Display Modes
500 cd/m² Brightness
1500:1 Contrast Ratio, 16:9 Aspect
2-Ch Audio Level Monitoring
1 x 3.5mm Headphone Jack, 1 x Speaker
Histogram / Zebra / Peaking / Markers
75 x 100 VESA & Tabletop Mounting

General Details
Specification
Product Enquiry
Related Products

General Details

Lilliput PVM220S Overview:

The Lilliput PVM220S 21.5″ 3G-SDI/HDMI Broadcast Monitor features a quad-split display, preview and program output, and both horizontal and vertical display modes suitable for social media content. This 1920 x 1080 resolution monitor provides 3G-SDI, HDMI, and USB Type-C audio input and 3G-SDI and HDMI outputs. It offers 500 cd/m2 brightness, 1500:1 contrast, 2-channel on-screen audio monitoring, and multiple imaging tools for creating an accurate display.

Versatile Video Input and Output

Dual 3G-SDI inputs, dual 3G-SDI outputs
Dual HDMI inputs, single HDMI program output
Single USB Type-C input

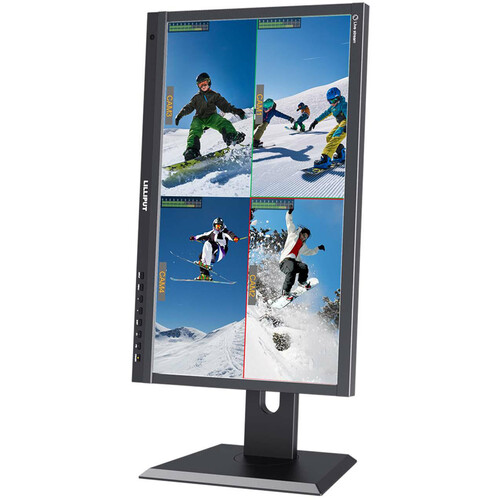

Quad-Split Multiview

Input and view up to four 1080p60 signals

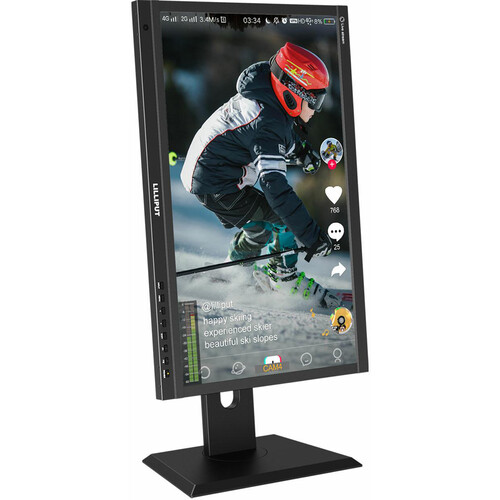

USB Vertical Display

USB Type-C input can be displayed vertically for social media-oriented content

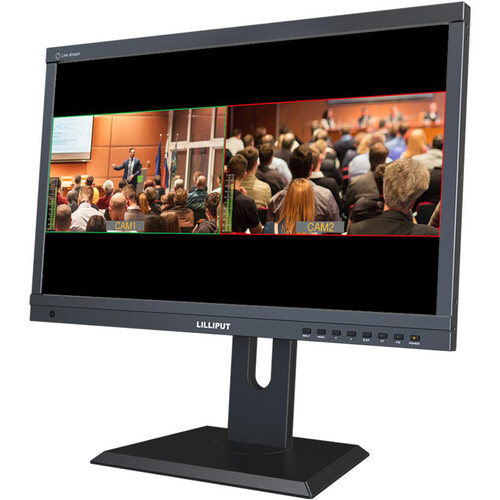

Workflow

Cut between preview and program for live mixing
Pair with a router and your computer or phone for streaming

Audio

Selectable audio monitoring enables you to keep an eye on your audio levels
Supports 2-channel embedded audio

Imaging Tools

Multiple tools for creating an accurate display include:

Center and safety markers
Focus peaking
Histogram, zebra, and false color
Color temperature selection
Check field and freeze frame

Function Buttons

Two front-panel buttons can be assigned to your most-used functions

Versatile Mounting

Wall-mountable using its 75 x 100mm VESA pattern
Tabletop support using the included feet

Items Included

Lilliput PVM220S 21.5″ 3G-SDI/HDMI Quad-Split Broadcast Monitor
15 VDC Power Adapter
USB Type-C Cable
2 x Base Foot
Limited 1-Year Manufacturer Warranty

Specification

Display Size	21.5″ / 54.6 cm
Native Resolution	1920 x 1080
Touchscreen	No
HDR Support	No
Video I/O	HDMI / BNC / USB-C
Media/Memory Card Slot	No
Video Format	HDMI 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 SDI 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50
Battery	No
Power Consumption	33 W

Display

Panel Type	LCD
Display Size	21.5″ / 54.6 cm
Native Resolution	1920 x 1080
Aspect Ratio	16:9
Viewing Angle	Horizontal: 170° (85/85) Vertical: 170° (85/85)
Touchscreen	No
Maximum Brightness	500 nits / cd/m2
Contrast Ratio	1500:1
HDR Support	No
Color Gamut	101% Rec. 709
Image Controls	Check Field, Color Temperature Selection, False Color, Focus Peaking, Histogram, Zebra

Inputs/Outputs

Video I/O	2x BNC (3G-SDI) Input 2x HDMI Input 1x USB-C Input 2x BNC (3G-SDI) Output 1x BNC (3G-SDI) Monitor Output
Embedded Audio	SDI: 2-Channel HDMI: 2-Channel
Audio I/O	1x 1/8″ / 3.5 mm Headphone Output
Built-In Speaker	Mono
Power I/O	1x Barrel (24 VDC) Input
Media/Memory Card Slot	No

Wireless

Wi-Fi	No
Bluetooth	No
Mobile App Compatible	No

Format Support

Video Format

HDMI
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
SDI
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50

Video Signal Conversion

SDI to HDMI

HDMI to SDI

Power

Input Power	12 to 24 VDC
Battery	No
Power Consumption	33 W

Mounting

VESA Mounting-Hole Pattern

75 x 100 mm

General

Environmental Resistance	No
Operating Conditions	12 to 92°F / -20 to 60°C
Storage Conditions	-22 to 158°F / -30 to 70°C
Dimensions	20 x 12.6 x 1.9″ / 508 x 321 x 47 mm
Weight	11.88 lb / 5.39 kg

Packaging Info

Package Weight	18 lb
Box Dimensions (LxWxH)	25.2 x 19.5 x 5.6″
