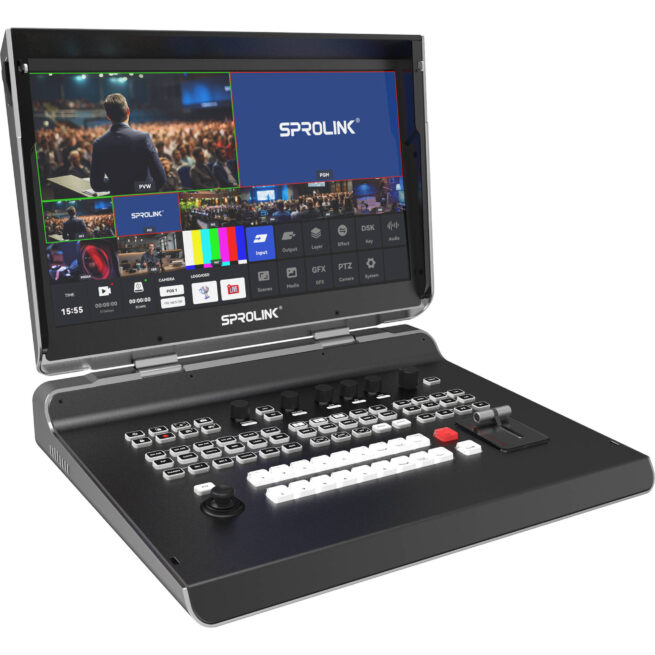

Sprolink NeoLIVE N7S All-in-One 7-Channel Live Streaming HDMI/SDI Switcher
Key Features
- 7-Source Multiview Live Stream Switcher
- Four UHD 4K & Two 1080p HDMI Inputs
- Six 3G-SDI & Two USB/UVC 1080p Inputs
- HDMI PGM/PVW, 3G-SDI & UVC Outputs
- Up to UHD 4K60 Input, 1080p60 Output
- Laptop-Style 15.6" Display Screen
- Video Streaming, PTZ Camera/LAN Control
- Landscape & Portrait Mode Switch
- T-Bar, Dial & Button Controls
The Sprolink NeoLIVE N7S is a professional 7-channel all-in-one live production and streaming switcher designed to bring multi-source video switching, live production, and streaming control into a single integrated system. Built for modern broadcast and live production workflows, the N7S combines HDMI and SDI connectivity with an integrated hardware control interface for efficient operation during live events and productions.
Multi-Channel Video Switching
With support for multiple video sources, the N7S provides flexible HDMI and SDI input connectivity, allowing operators to bring cameras and other professional video sources into a centralized live production workflow. This makes it suitable for productions where fast and reliable source switching is essential.
All-in-One Live Production
The NeoLIVE N7S brings key live production functions together in one system, reducing the need for multiple separate devices. Its integrated design helps operators manage the production workflow from a single workstation while maintaining direct access to essential switching and control functions.
Professional Multiview Monitoring
A built-in multiview monitoring system allows operators to monitor connected sources and the live program output during production. This provides a clear overview of the active production workflow and helps operators make accurate switching decisions in real time.
HDMI & SDI Workflow
The combination of HDMI and SDI interfaces provides flexibility when working with different types of cameras and professional video equipment. This makes the N7S adaptable to a wide range of existing video production setups and signal workflows.
Designed for Live Streaming & Broadcast Production
The N7S is designed around the requirements of live streaming, broadcast, event production, and multi-camera video production, providing a centralized platform for managing multiple video sources and producing a live program output.
Practical Professional Production Solution
With its combination of multi-channel switching, HDMI/SDI connectivity, integrated monitoring, and all-in-one production design, the Sprolink NeoLIVE N7S provides a streamlined solution for professional teams looking to simplify their live video production workflow without relying on a collection of separate production devices.
Items Included
- 1 × Sprolink NeoLIVE N7S All-in-One 7-Channel Streaming Switcher
- Power Supply / Power Cable*
- User Documentation*

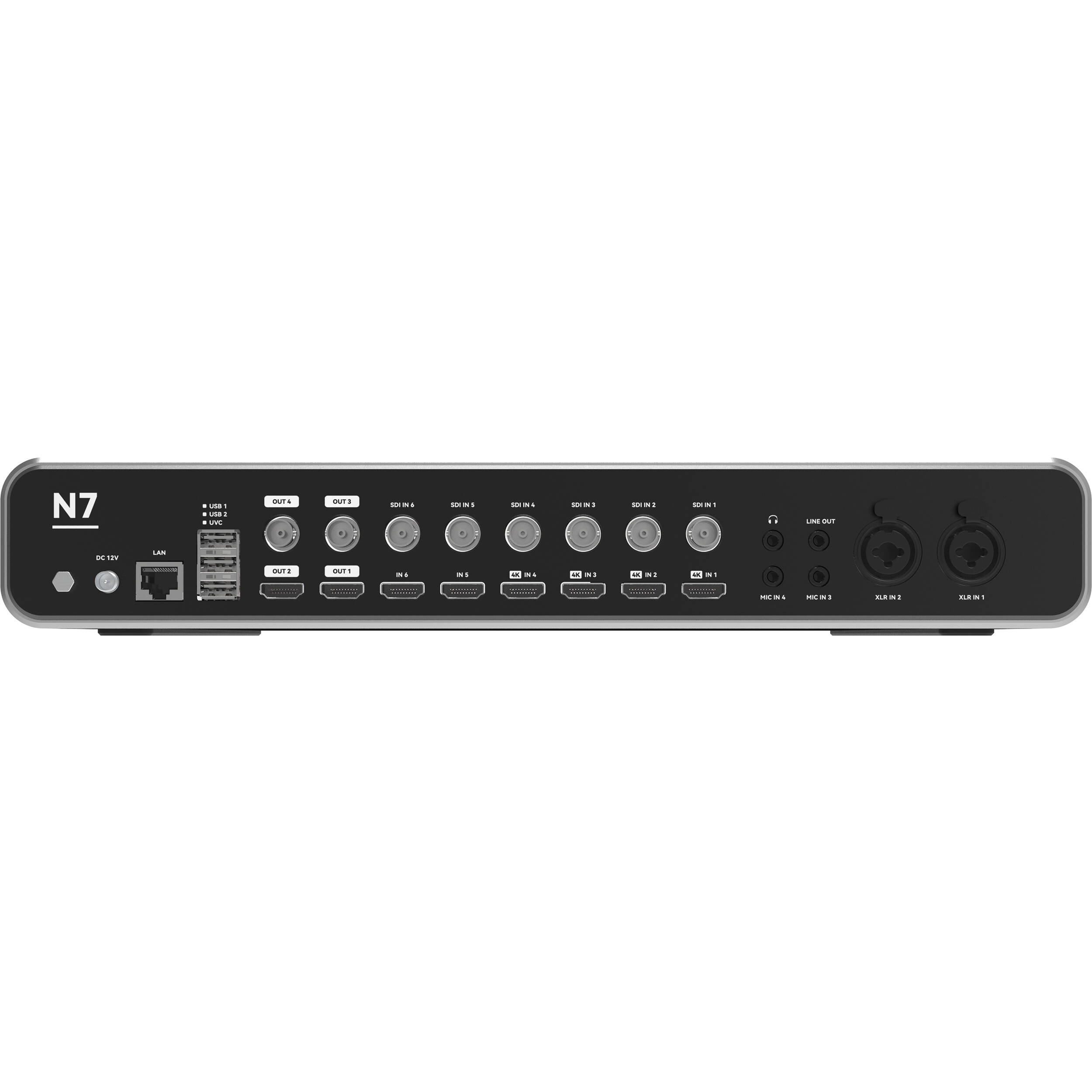

Video Input
| HDMI Inputs | HDMI 2.0 x 4 (4K) HDMI 1.3 x 2 (1080p) |
| SDI Inputs | 3G-SDI x 6 (1080p) |
| USB Inputs | USB 2.0 Type-A x 2 (Video Playback, Image Loading, UVC Input) |
Video Output
| HDMI Outputs | HDMI Type-A x 2 (PVW/PGM/PST) |
| SDI Outputs | 3G-SDI x 2 |
| USB Output | USB 3.0 Type-A x 1 (UVC Output) |
Video Standards
| HDMI Input Resolution |
720p 50/59.94/60 1080i 50/59.94/60 1080p 23.98/24/25/29.97/30/50/59.94/60 3840 x 2160 30/50/60 (HDMI IN 1-4) |
| SDI Input Resolution |
720p 50/59.94/60 1080i 50/59.94/60 1080p 23.98/24/25/29.97/30/50/59.94/60 |
| HDMI Output Resolution | 1080p 24/25/30/48/50/60 |
| SDI Output Resolution | 1080p 24/25/30/48/50/60 |
| USB Streaming Resolution | 720p 50/59.94/60 1080p 24/25/30/50/59.94/60 |
| Video Sampling | YUV 4:4:4 |
| Latency | <3 Frames |
Streaming & Control
| Streaming Protocols | RTMP, SRT, NDI |
| Network Interface | RJ45 x 1 |
| Network Functions | LAN Control / Streaming / PTZ Control |
| Remote Control | Built-in Web Server / Browser Control |
Audio
| Microphone/Line Inputs | 3.5mm Stereo Jack x 2 XLR/6.35mm Combo Input x 2 |
| Headphone Output | 3.5mm Stereo Jack x 1 |
| Line Output | 3.5mm x 1 |
| Audio Delay | 0-500ms |
Display & Switching
| Built-in Display | 15.6-inch HD Display |
| Switching Control | T-Bar and Crystal Buttons |
| Multiview | Built-in Multiview Monitoring |
| Super Source | One-Click Super Source |
| Orientation Switching | One-Click Landscape / Portrait Switching |
| AI Subtitle | Real-Time Speech Recognition and AI Subtitles |
General
| Power Input | 12V / 2A |
| Power Consumption | 24W |
| Operating Temperature | 0°C to 70°C |
| Operating Humidity | 10% to 85% |
| Dimensions (LWD) | 382 x 303.5 x 62 mm |
| Weight | Approx. 5.85 kg |
