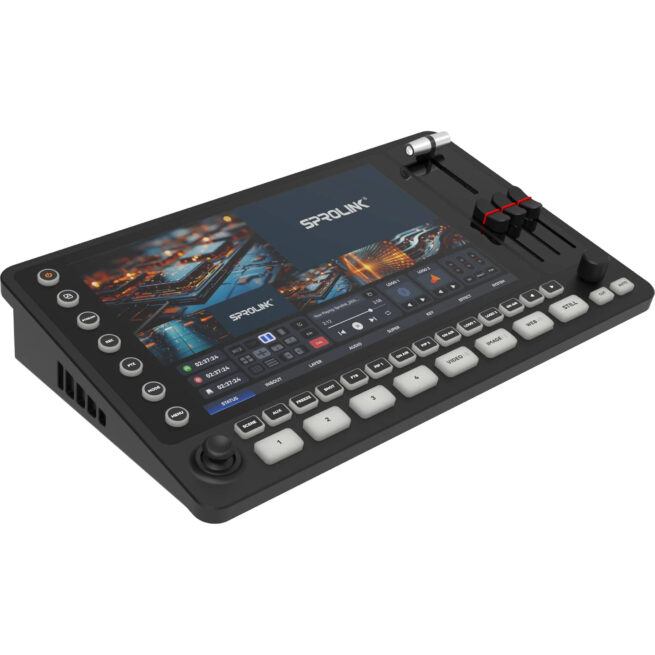

Sprolink NeoLIVE ME5 10.1″ Touchscreen Multifunctional Live Streaming Switcher
Key Features
- Professional All-in-One Switcher
- Integrated 10.1" Touchscreen
- 4 x HDMI Inputs, 4 x SDI Inputs
- HDMI & SDI PGM Outputs, HDMI AUX Output
- Supports up to UHD 4K60 Resolution
- AI Speech-to-Text for Captioning
- Dual RTMP Streaming
General Details
Sprolink NeoLIVE ME5 Overview

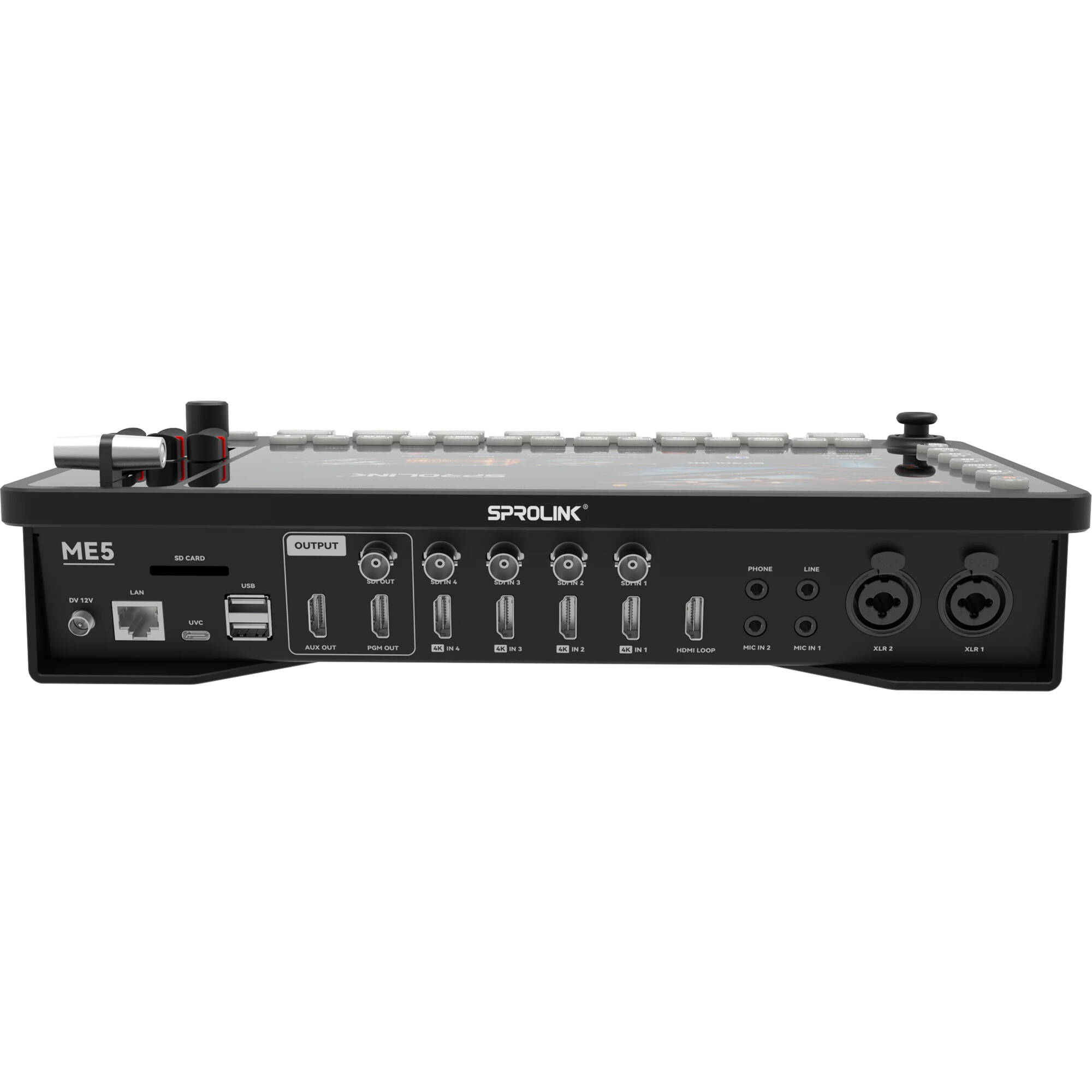

Elevate your live production sessions with the NeoLIVE ME5 10.1″ Touchscreen Multifunctional Live Streaming Switcher from Sprolink. This professional all-in-one live streaming switcher is equipped with an integrated 10.1″ touchscreen, four HDMI and four SDI inputs, single HDMI and SDI program outputs, and one HDMI AUX output. It supports resolutions up to UHD 4K60, AI speech-to-text for captioning, and dual RTMP streaming.

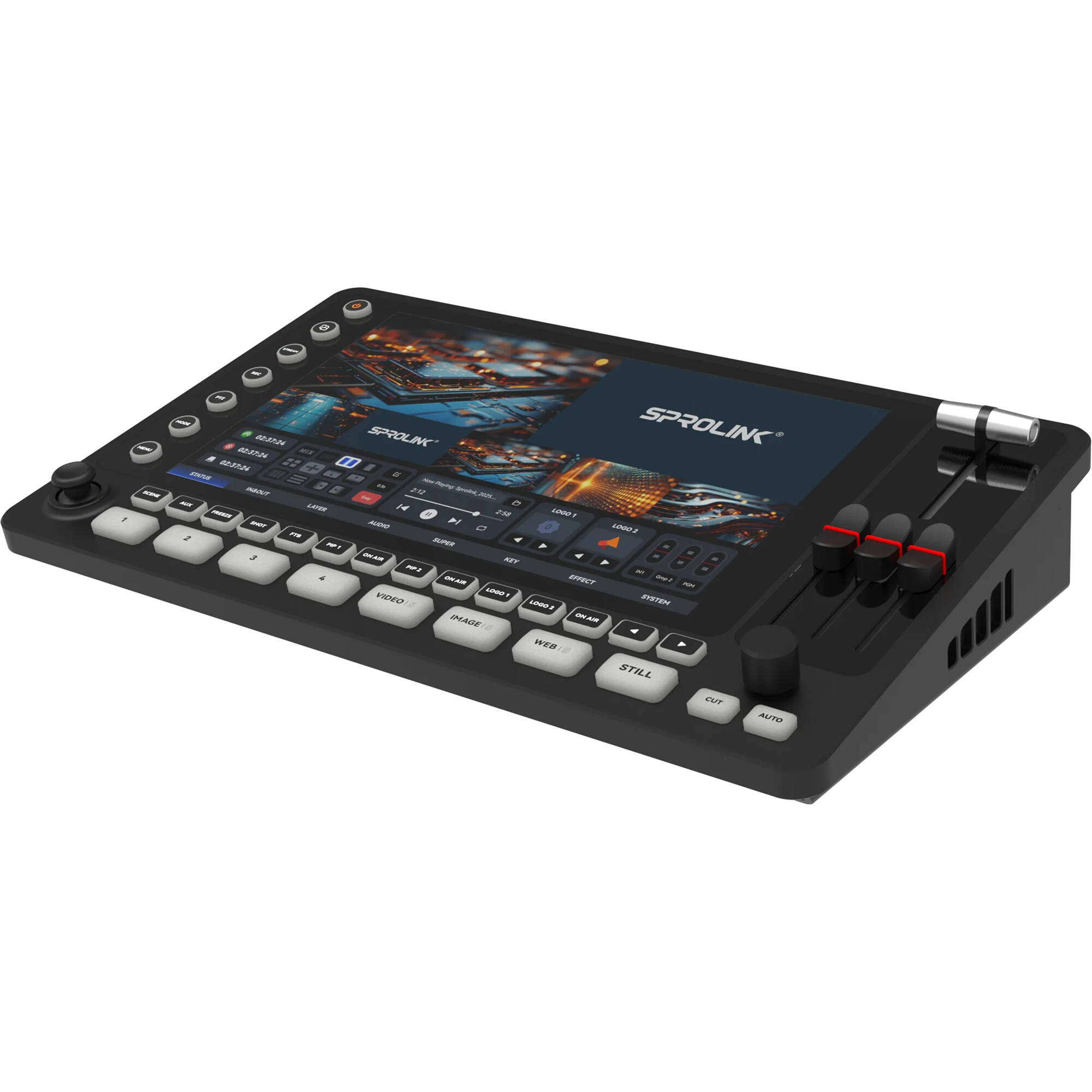

- A 10.1″ touchscreen ensures easy navigation and control during live sessions.
- All HDMI interfaces support 4K input, with an additional 4K loop output for direct connection to external displays.
- Dual RTMP streaming enables simultaneous streaming via Ethernet, expanding your reach across platforms.
- Equipped with three-channel audio faders and a dual XLR audio interface, compatible with mics and professional mixers for precise sound control.
- AI speech-to-text for captioning allows you to capture live audio and generate real-time subtitles, enhancing accessibility for global audiences.
- Supports simultaneous USB recording (via USB flash drive or HDD) and USB feed.
- A built-in web server allows control via web browsers across all platforms.
- Versatile layouts support both landscape and portrait orientations, adapting to various scenarios.
Items Included
- Sprolink NeoLIVE ME5 10.1″ Touchscreen Multifunctional Live Streaming Switcher
- Limited 3-Year Manufacturer Warranty
Specification
Video Input
| SDI Inputs | 3G-SDI x 4 |
| HDMI Inputs | HDMI 2.0 x 4 |
| USB Inputs | USB 2.0 Type-A x 2 |
| SDI Input Format | 1080p up to 60fps 720p 50/60fps |
| HDMI/USB Input Format | UHD 4K up to 60fps 1080p 24/30/50/60fps 720p 50/60fps |
| Video Sampling | YUV 4:4:4 |
Video Output
| SDI Output | 3G-SDI x 1 (Program) |
| HDMI Outputs | HDMI x 2 Program / Monitor Output |
| USB Output | USB Type-C x 1 (USB Video) |
| Output Video Format | HDMI / SDI / USB-C, YUV 4:4:4 |
| Output Resolution | 1080p 24/30/50/60fps 720p 50/60fps |
Audio
| Audio Inputs | XLR 3-Pin Analog x 2 3.5mm TRS Analog x 3 |
| Embedded Audio Input | HDMI / SDI / USB-A |
| Audio Output | 3.5mm TRS Stereo Analog x 1 |
| Embedded Audio Output | HDMI / SDI / USB-C |
| Audio Faders | 3-Channel Audio Faders |
| Audio Delay | 0-500ms |
Streaming & Control
| Streaming Protocol | RTMP |
| Streaming | Dual RTMP Streaming |
| Network Interface | RJ45 x 1 |
| Network Control | Web Browser Control |
| PTZ Control | RS-232 / LAN |
| Other I/O | RS-232 Input/Output (Shared PTZ Control) |
Switching & Processing
| Switching Control | Pushbutton / T-Bar / Touchscreen |
| Processing Resolution | UHD 4K at 60fps |
| Touchscreen | 10.1-inch Integrated Touchscreen |
| Screen Orientation | Landscape / Portrait |
| AI Subtitle | AI Speech-to-Text for Real-Time Captioning |
| USB Recording | Supports USB Flash Drive / HDD Recording |
| Media Playback | Built-in Media Playback |
| HDMI Loop-Out | 4K HDMI Loop Output |
General
| Power Input | 12V DC / 2A |
| Power Consumption | 20W |
| Operating Temperature | 0°C to 70°C |
| Operating Humidity | 10% to 85% |
| Dimensions (LWD) | 340 x 212 x 80 mm |
| Weight | 3 kg |
