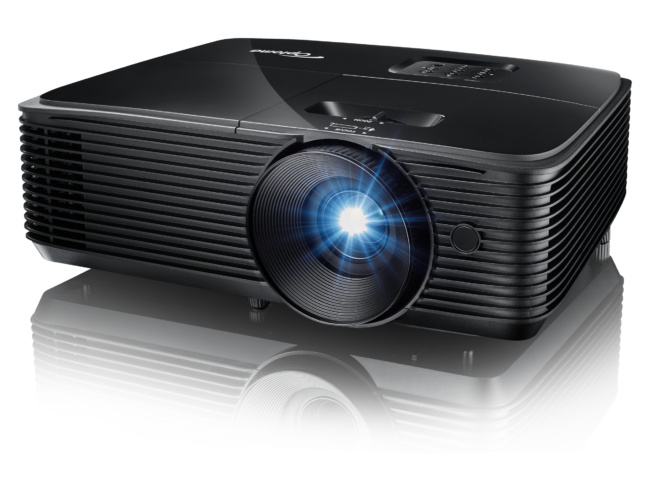

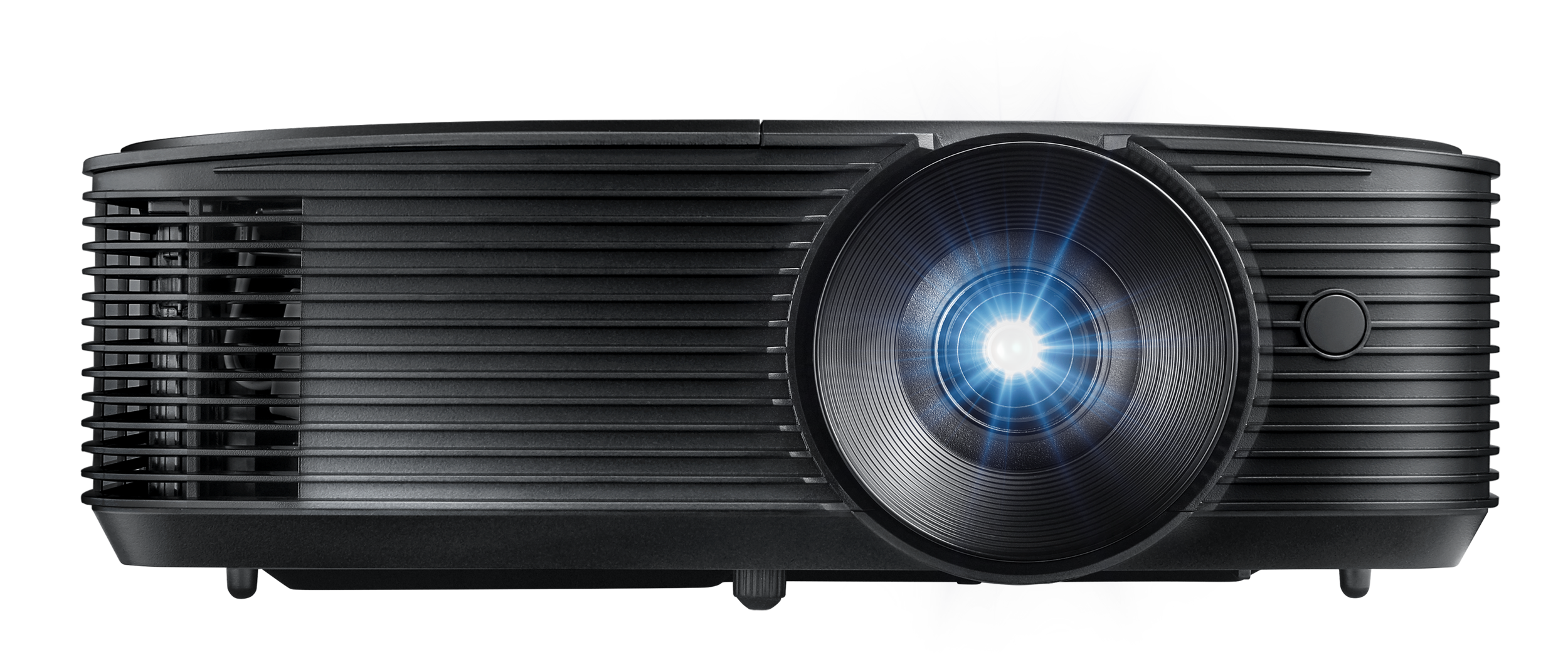

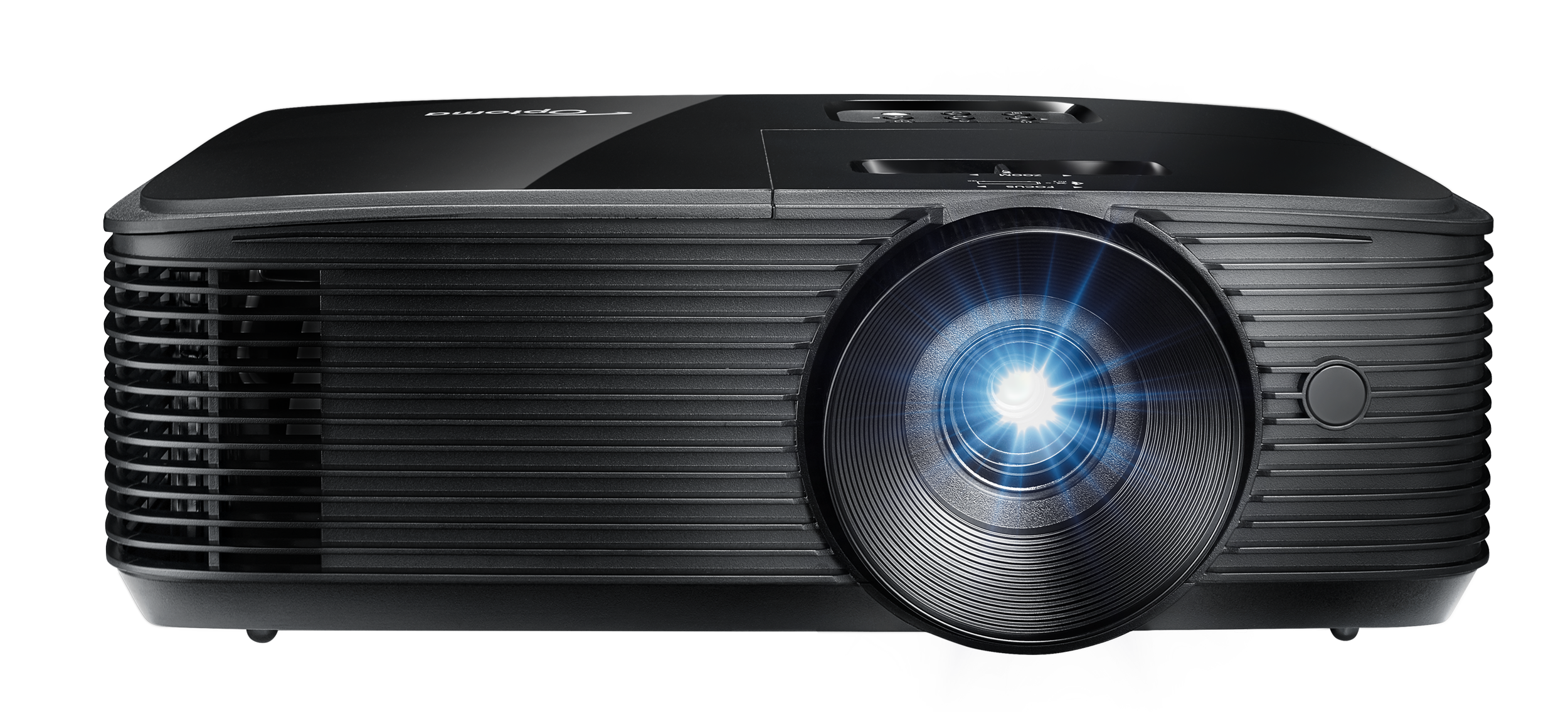

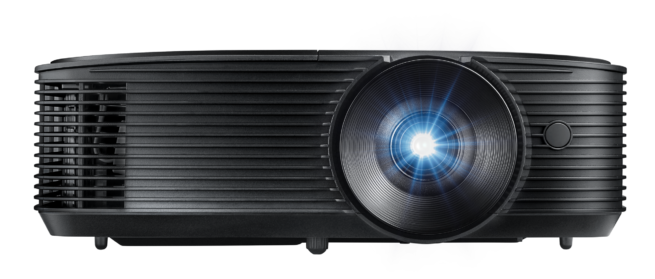

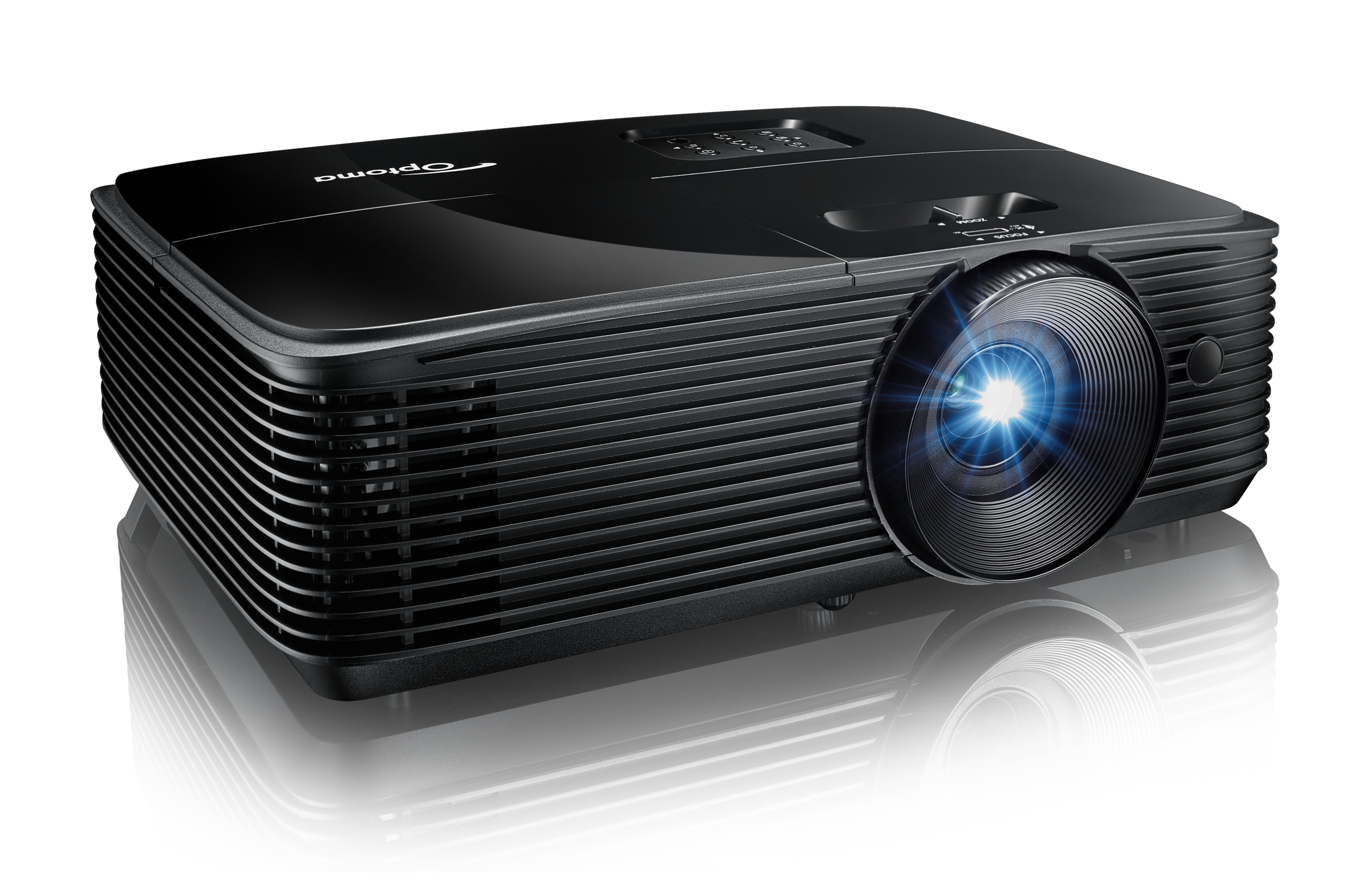

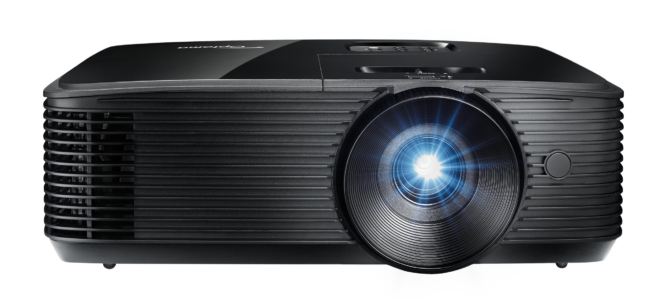

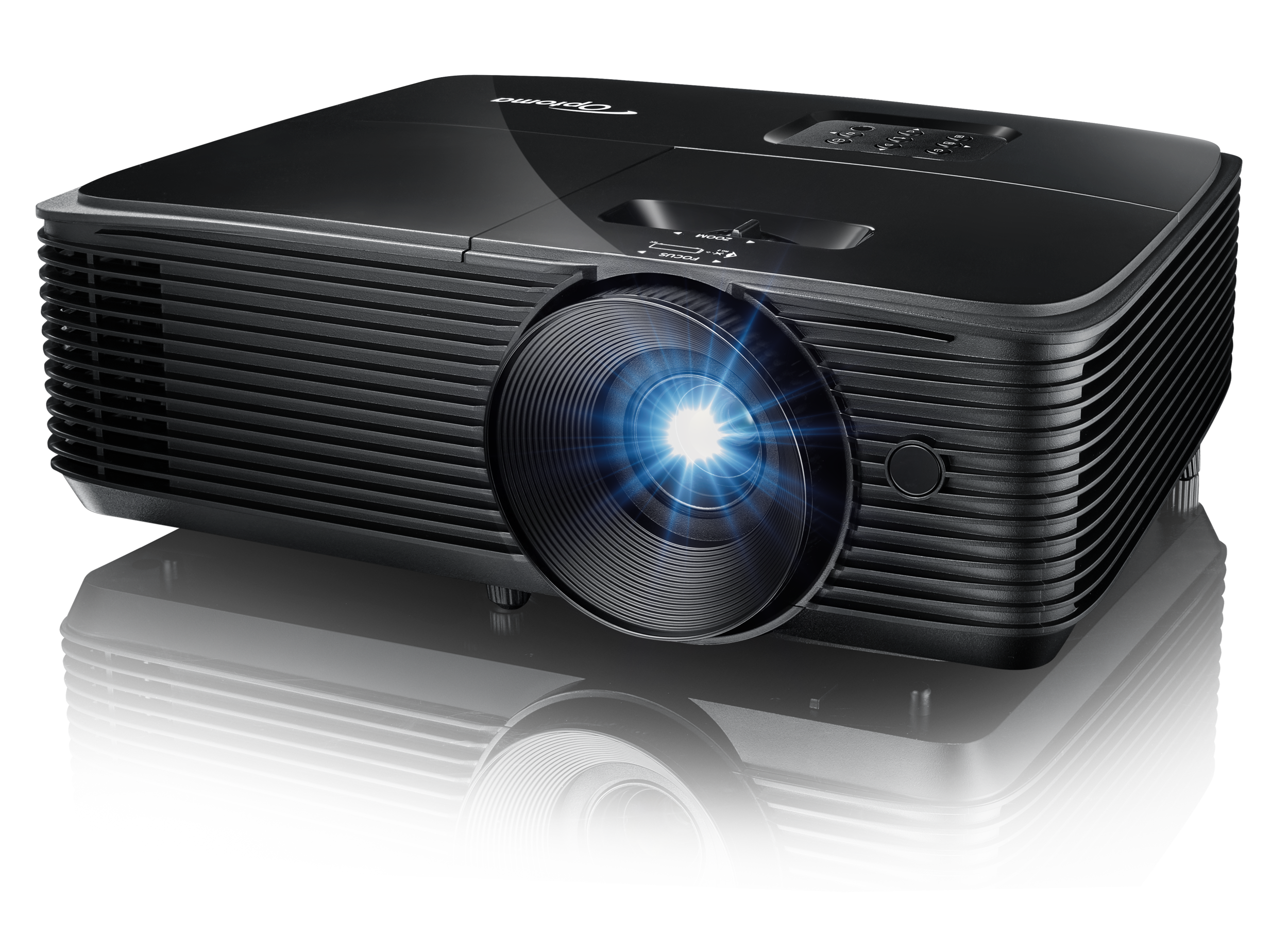

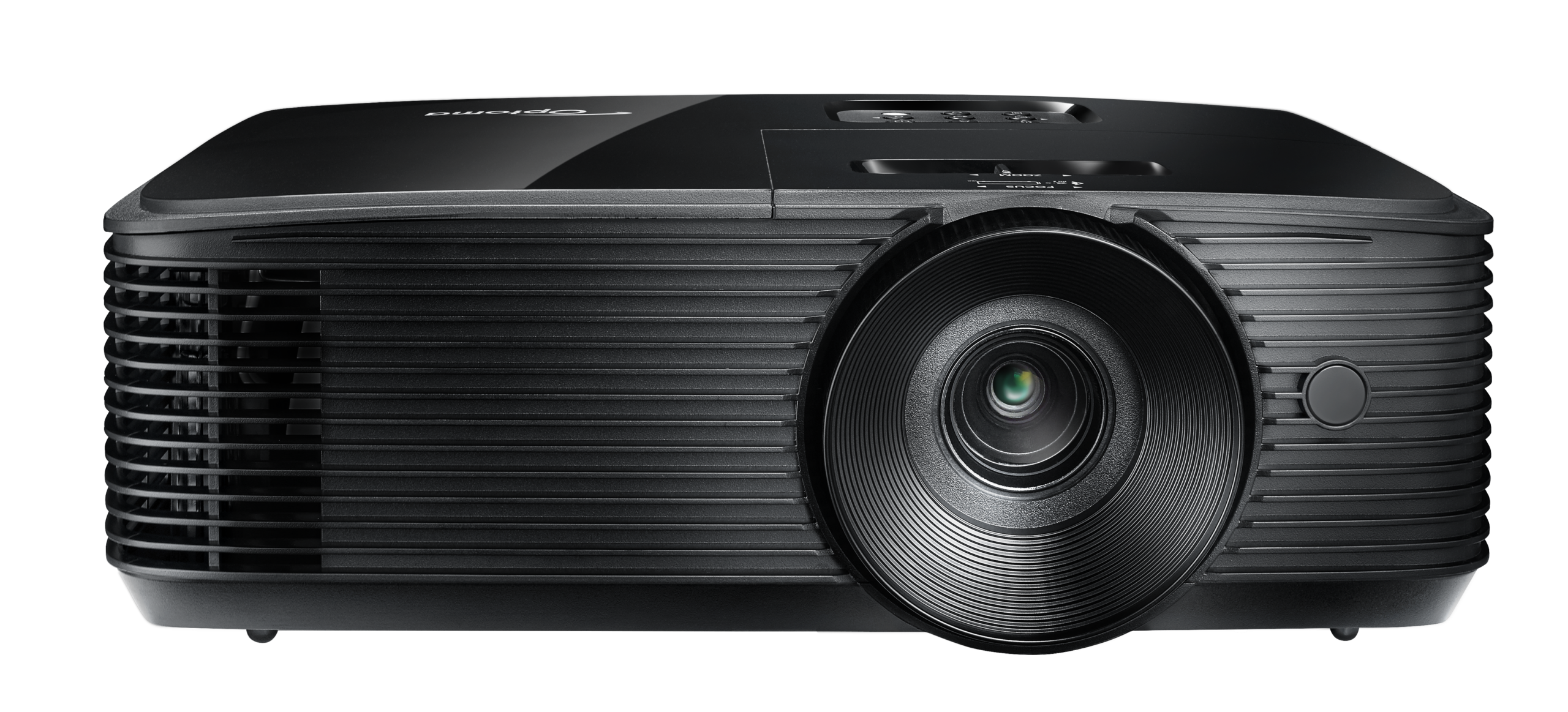

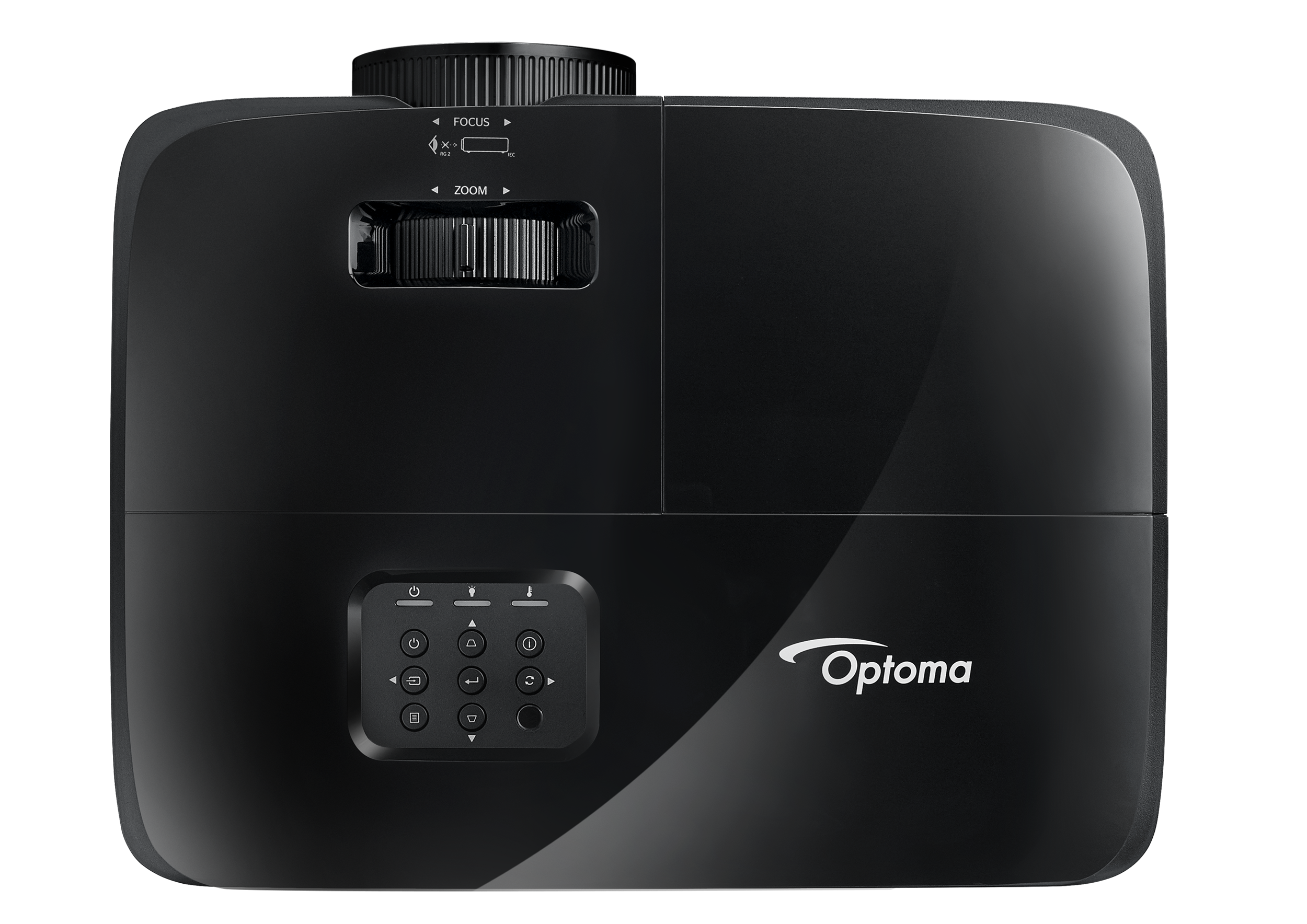

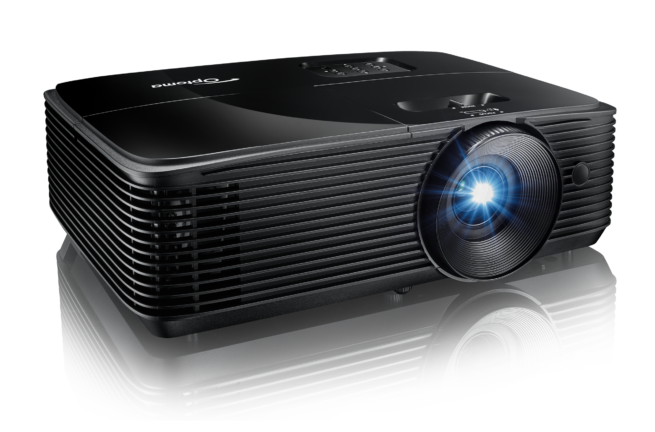

Optoma W3350 WXGA DLP® Business Projector

Key Features

  • Featuring Texas Instruments DLP projection technology and the latest WXGA DMD chip
  • brightness up to 3800 lumens & contrast ratio 22000:1
  • with Texas Instruments BrilliantColor™ technology
  • fully enclosed integrated design of the optical engine and color wheel
  • for enhanced dust resistance; six-segment color wheel for perfect color
  • HDMI input interface, perfectly supporting 1080P Blu-ray 3D
  • external filter design with filter replacement reminder
  • multiple display modes and automatic aspect ratio adjustment
  • fast recovery function
  • lamp supports intelligent power saving mode and high dynamic energy saving mode
  • individual color tone (red/green/blue/cyan/magenta/yellow) hue, gain, and saturation adjustment functions;
  • built-in multiple Gamma modes for different environments;
  • supports direct power-on function with power detection
  • dual automatic shutdown countdown reminder function (no signal/automatic shutdown in sleep mode)
  • built-in Kensington lock and safety latch for safety;
  • RS232 interface for remote control.

Category:
General Details

The Optoma W3350 WXGA DLP® Business Projector is designed to deliver bright and clear presentations for classrooms, meeting rooms, training environments, and business applications. Featuring WXGA (1280×800) resolution with 3,800 lumens brightness and a high 22,000:1 contrast ratio, it produces vivid images, sharp text, and excellent visibility even in well-lit spaces. Its DLP® display technology and Rec.709 color support help ensure accurate and vibrant color performance for presentations, videos, and multimedia content.



Easily project a large screen

Employing high-efficiency bulbs, combined with a high-brightness color wheel and precise optomechanical design, the brightness reaches 3800 lumens, meeting the brightness requirements of general conference rooms and classrooms; utilizing the latest generation of high-end integrated image processors, the images are more detailed, and the picture performance is smoother and more stable.



Color wheel optical engine fully enclosed design

The color wheel and optical engine feature a fully enclosed design for better dust protection. Even after prolonged use in dusty and smoky environments, the color wheel and optical engine will not be affected by dust accumulation, thus maintaining the projector’s color performance and light response.



Supports Full 3D

It features an HDMI input interface, perfectly supports 1080P Blu-ray 3D, and can be directly connected to common 3D devices such as Blu-ray players/TV boxes and game consoles to achieve 1080P 3D projection.



Wall color compensation function

It has six built-in wall colors (blackboard/light yellow/light green/light blue/pink/gray), and the projector automatically adjusts the displayed image color to compensate for the color deviation of the projected image caused by the wall color, thereby displaying the correct image color.



Built-in multiple Gamma modes

It has multiple built-in Gamma grayscale adjustment schemes (movie/video/picture/standard (2.2)/1.8/2.0/2.4). Different settings can be selected for different usage environments to easily achieve a good display effect



Color adjustment function

It features unique color adjustment functions, allowing you to adjust the hue, gain, and saturation of red, green, blue, cyan, cyan-red, and yellow separately. It can also adjust the concentration of the three primary colors of red, green, and blue in a white image to meet the color needs of different customers in different environments.



power saving mode

It uses a high-efficiency bulb and supports four modes: Bright, Energy Saving, Smart Energy Saving, and High Dynamic Energy Saving.

  • Bright: The bulb operates at full power, providing the highest brightness.
  • Energy Saving: The bulb operates in low-power mode, the most energy-efficient mode.
  • High Dynamic Energy Saving Mode: The bulb dynamically adjusts its output power (30%~100%) based on the display brightness, maximizing bulb lifespan.
  • Smart Energy Saving Mode: Selecting “Smart Energy Saving Mode” utilizes the latest Eco+ technology, which boasts superior performance and improves bulb lifespan while saving energy.
  • Bulb Lifespan: 12000 hours in Dynamic Energy Saving Mode / 6000 hours in Energy Saving Mode.



External dust filter design

  • Equipped with a dust filter design: effectively prevents dust and smoke from entering the projector, extending its lifespan and allowing for extended use even in dusty environments.
  • External clip-on design: simple and convenient replacement and cleaning of the dust filter without removing the projector.
  • automatic filter replacement and cleaning reminder function: records filter usage time and promptly reminds users to replace and clean the filter, preventing excessive dust accumulation that could affect projector performance.



Items Included


  • 1× Optoma W3350 WXGA DLP® Business Projector
  • 1× IR Remote Control with Battery
  • 1× AC Power Cable
  • 1× Basic User Manual / Quick Start Guide
  • 1× User Manual CD (region dependent)
  • 1× Warranty Card (region dependent)
Specification
Display technologyTexas Instruments DLP® Technology / Latest Generation WXGA DMD Chip
ResolutionTrue resolution: 1280×800 (WXGA), supports PC signals up to 1920×1200 at 60Hz
Output brightness (high brightness mode) / contrast3800 ISO21118 lumens/22000 :1
Can display colors1073.4 million colors (30-bit)

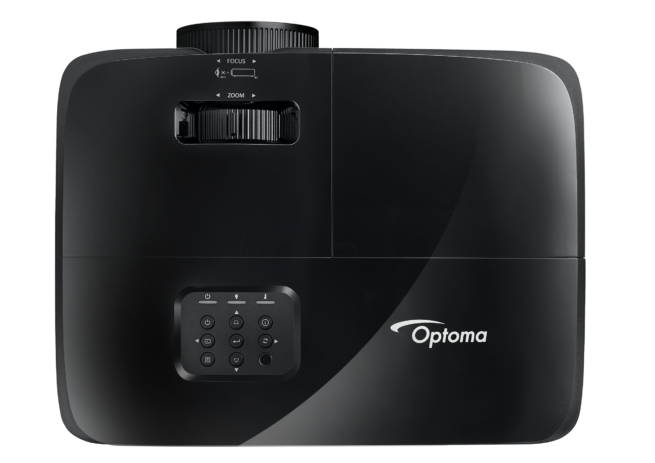

Projection lensf=21.85~24mm, F#2.41~2.53, 1.1x manual zoom/focus
Projected size (diagonal)29.69~300.69 inches
Projection distance/projection ratio/offset1~12 m /1.55~1.73:1/ 112.4%±5%
Digital keystone correctionVertical ±40°
Image format16:10 is compatible with 4:3 and 16:9.
Scan frequencyHorizontal: 15.375 ~91.146 KHz / Vertical: 50~85 Hz (120Hz for 3D)
Computer compatible formatUXGA,SXGA,WXGA,720P,XGA,SVGA, 1080p
Video compatible formatsNTSC, PAL, SECAM, SDTV, HDTV
3D compatibilityComputer:1280×720/1024×768/800×600@120Hz

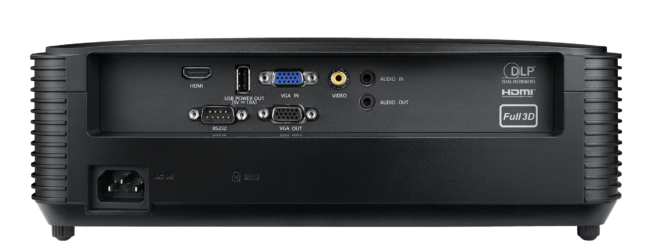

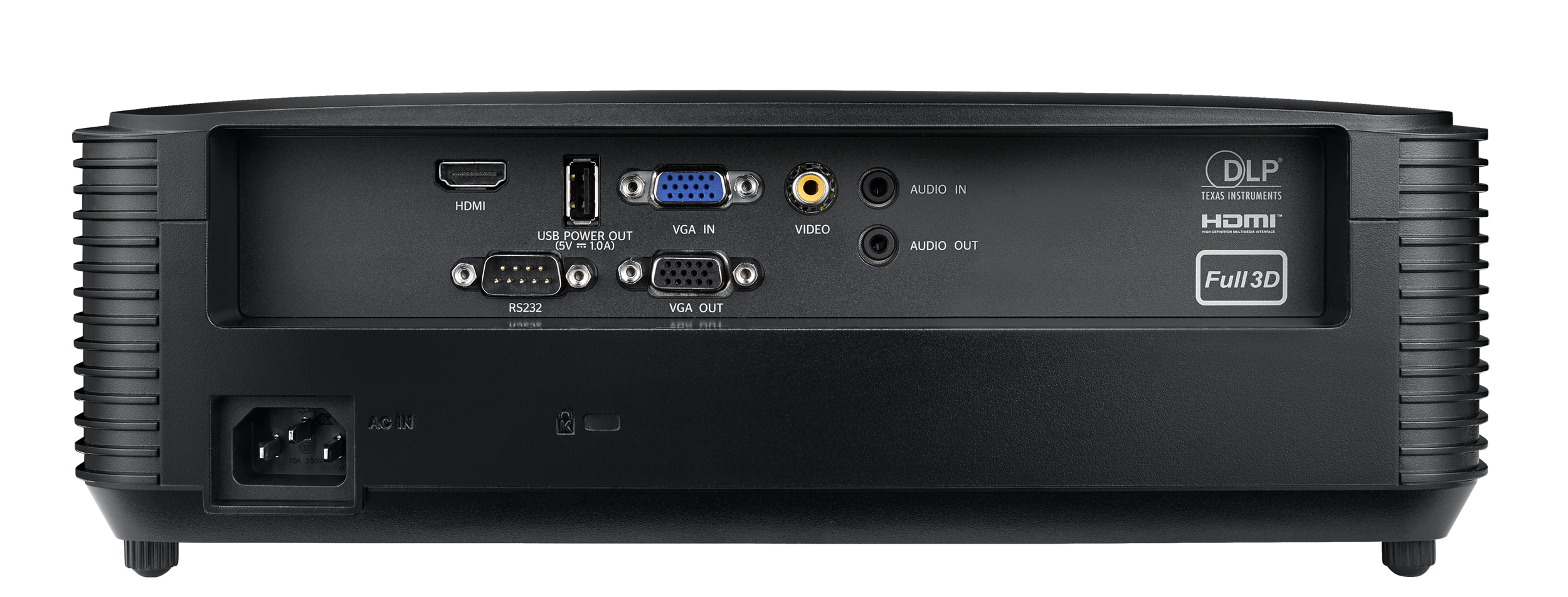

Signal input/output interfaceHDMI x 1, VGA In x1, VGA out x1, Composite video x 1, Audio In x1, Audio out x 1, USB Ax 1 (FW upgrade/Mouse/ Power), RS232 x 1
Uniformity85%
Trumpet10W
Operating noise27dB (Energy Saving Mode)
Bulb SpecificationsOsram 203W
Bulb Lifespan12,000 hours (Dynamic Energy Saving Mode) / 6,000 hours (ECO Mode)
Rated voltageAC 100 ~ 240V±10%, 50/60Hz
Overall power consumptionMax 225W @ 220VAC (Bright Mode) / ≤0.5W (Standby)
Volume (width x depth x height) / Weight316X243.5X98mm (w/o feet) / 2.5 kg
Lifting boltsM4 x10mm x3 pieces
