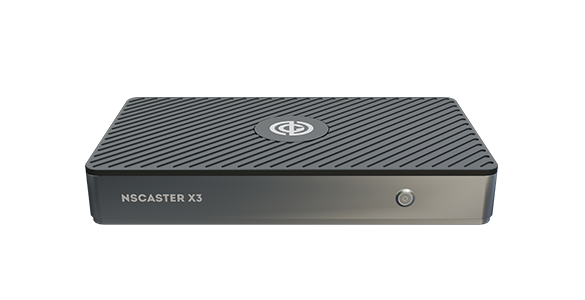

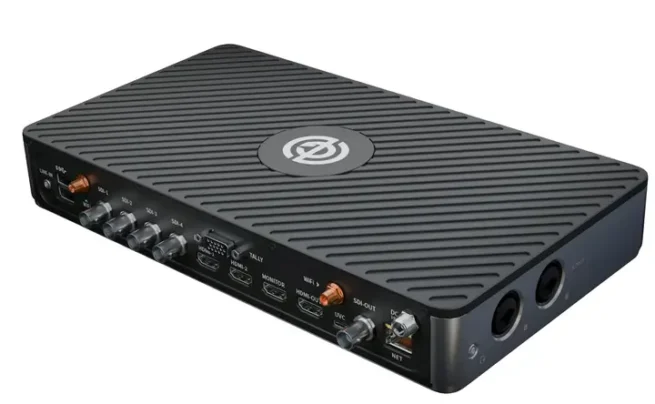

NAGASOFT NSCaster X3 BOX 12 Channel Switcher For Streaming and Recording
Key Features
- Compact 12-channel live production system

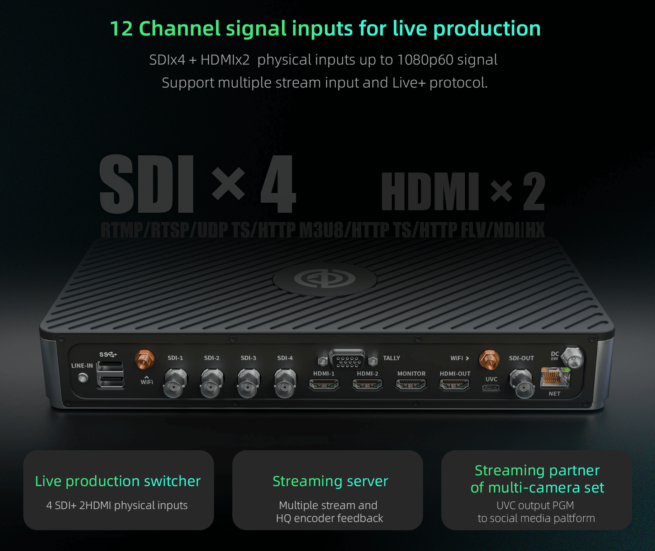

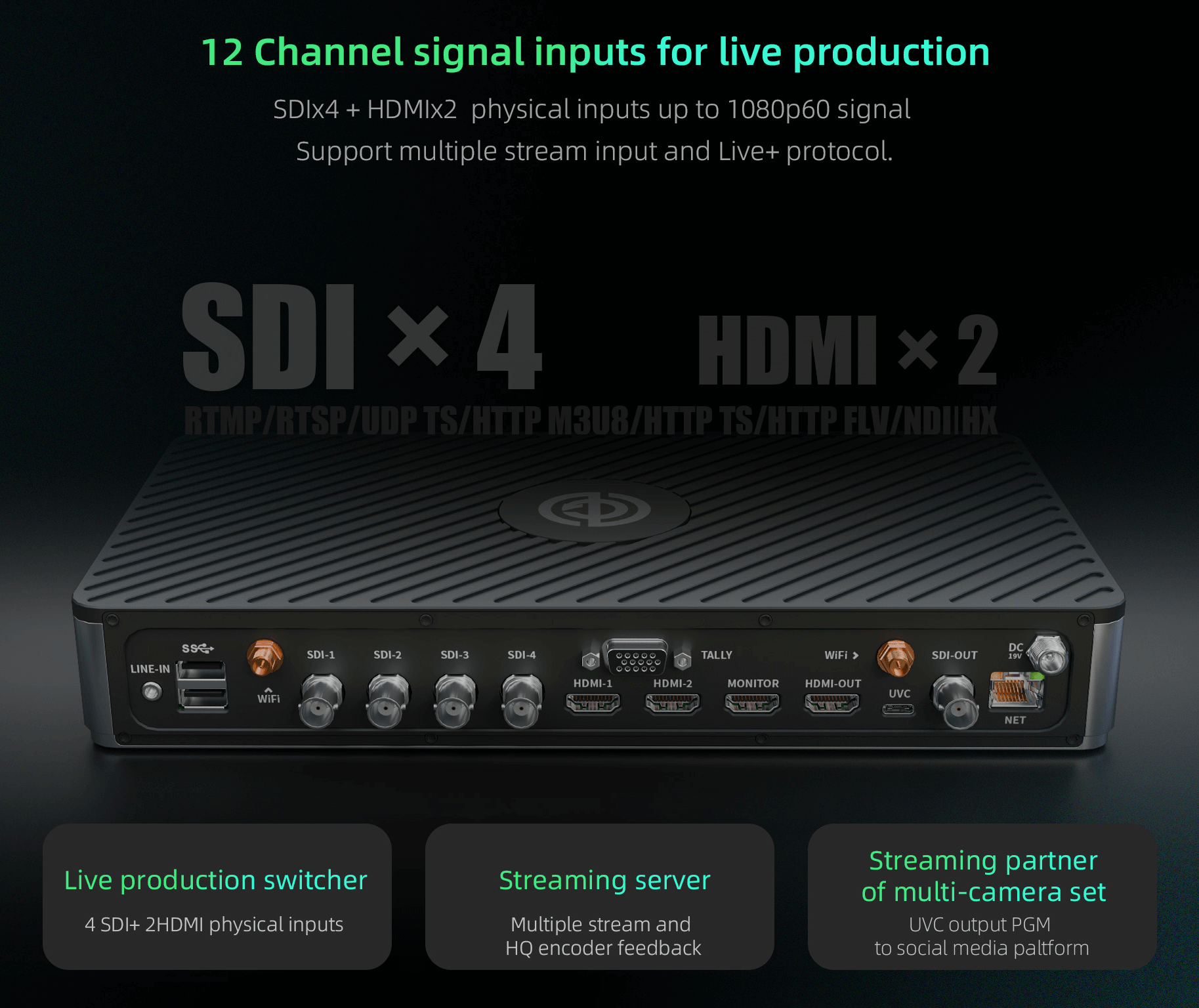

- Supports 4× SDI and 2× HDMI inputs
- USB UVC and IP stream input support
- Up to 1080p60 live production capability
- H.264 / H.265 professional encoding
- RTMP, RTSP, SRT, NDI|HX & Live+ support
- Built-in CG overlay, subtitles & scoreboard tools
- Multi-channel and ISO recording support
- Multiview monitoring with real-time switching
- Portable Linux-based design for mobile production
Category: Switchers & Controllers
- General Details
- Specification
- Product Enquiry
General Details
Nagasoft NSCaster X3 BOX is a compact professional live production switcher designed for streaming, recording, and real-time broadcast production. Built on a stable Linux-based system, it combines live switching, graphics, streaming, and recording into one portable solution for broadcasters, event production, education, sports, and AV applications. It supports multiple SDI, HDMI, USB, and IP stream inputs with professional H.264/H.265 encoding for high-quality live streaming and recording. Advanced production tools such as CG overlays, subtitles, scoreboards, transitions, Multiview monitoring, and ISO recording make it ideal for professional multi-camera productions.
Items Included
- 1× Nagasoft NSCaster X3 BOX
- 1× Power Adapter With Power Cable
- Warranty Card

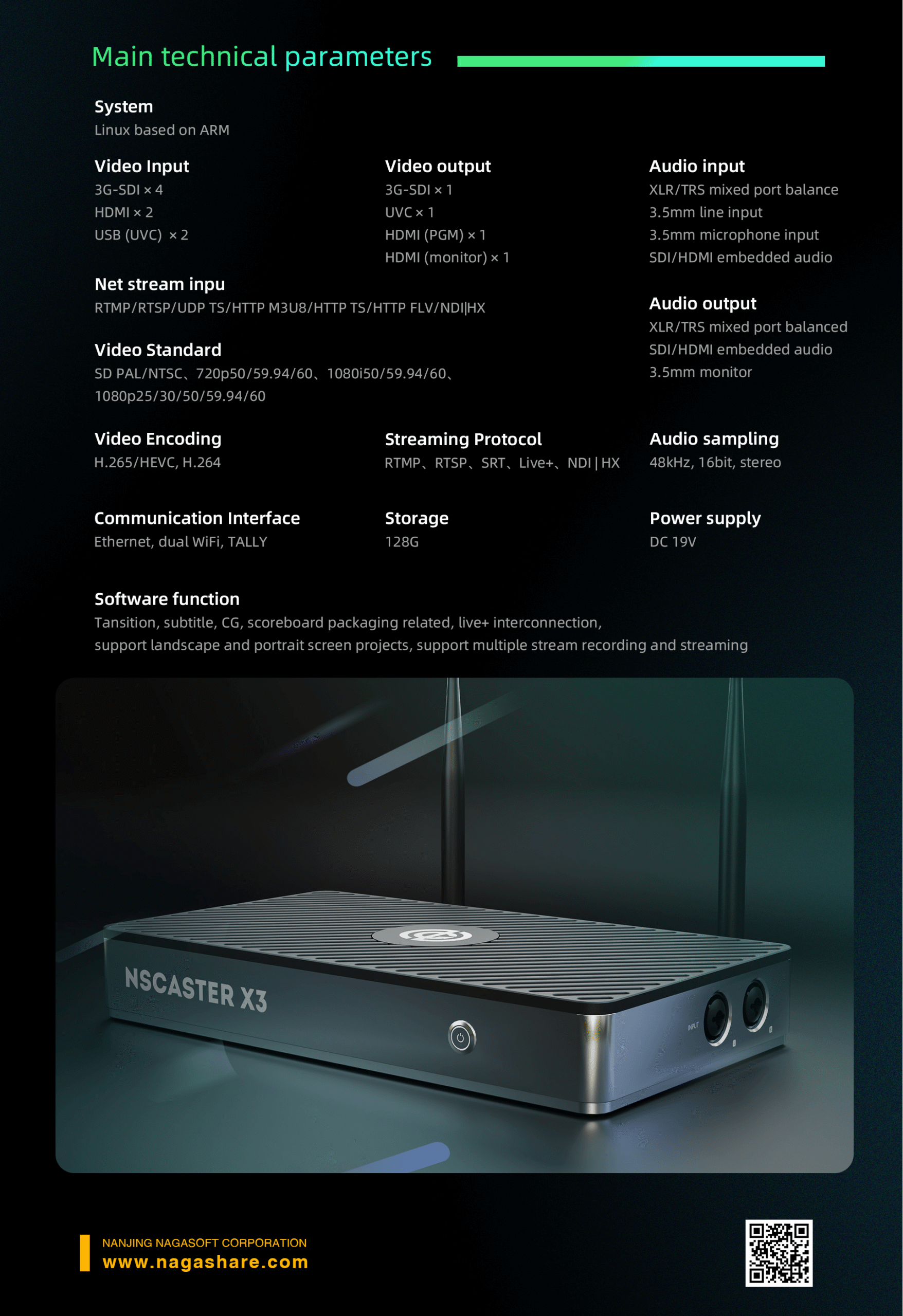

Specification
| System | Linux based on ARM | |

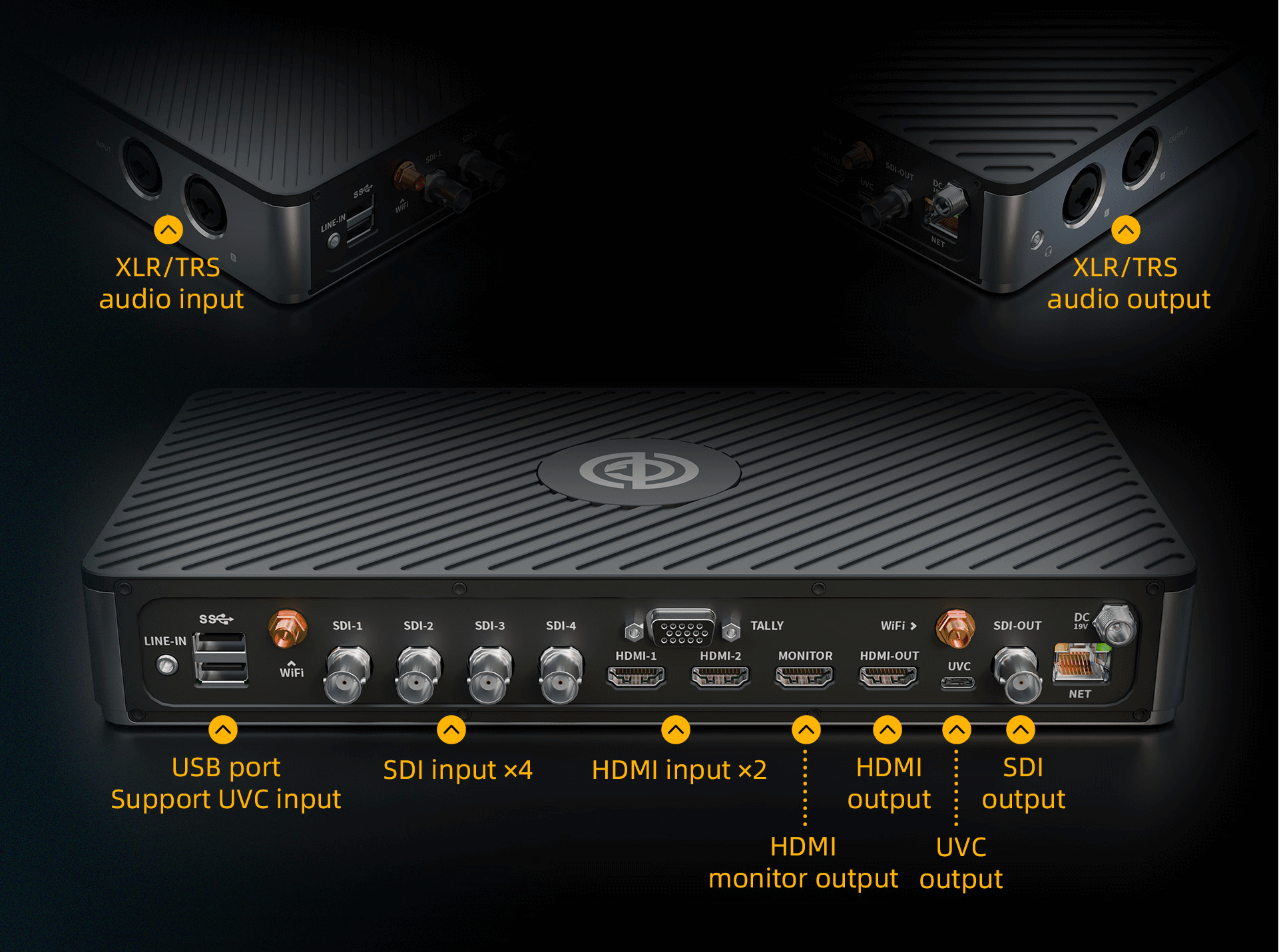

| Video Input | 3G-SDI × 4 HDMI x 2 USB (UVC) × 2 | |
| Video output | 3G-SDI × 1 UVC × 1 HDMI (PGM) × 1 HDMI (monitor) × 1 | |
| Video Standard | SD PAL/NTSC, 720p50/59.94/60, 1080i50/59.94/60, 1080p25/30/50/59.94/60 | |
| Video Encoding | H.265/HEVC, H.264 | |
| Audio input | XLR/TRS mixed port balance 3.5mm line input 3.5mm microphone input SDI/HDMI embedded audio | |
| Audio output | XLR/TRS mixed port balanced SDI/HDMI embedded audio 3.5mm monitor | |
| Audio sampling | 48kHz, 16bit, stereo | |
| Net stream input | RTMP/RTSP/UDP TS/HTTP M3U8/HTTP TS/HTTP FLV/NDI | HX |
| Streaming Protocol | RTMP, RTSP, SRT, Live+, NDI | HX |
| Communication Interface | Ethernet, dual WiFi, TALLY | |
| Storage | 128G | |
| Power supply | DC 19V | |
| Software function | Transition, subtitle, CG, scoreboard packaging related, live+ interconnection, support landscape and portrait screen projects, support multiple stream recording and streaming |
