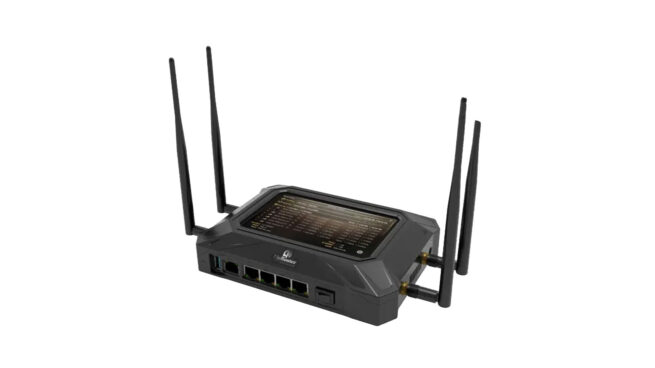

NAGASOFT LipRouter H7 8 Channel 4G Bonding Router
Key Features
- Supports 8-link network bonding
- Up to 7× 4G SIM connections
- Gigabit Ethernet WAN support
- Stable high-speed bonded transmission
- Dual-band 2.4GHz & 5.8GHz Wi-Fi
- 4× Gigabit LAN ports
- 5-inch touchscreen display
- Dynamic encrypted data transmission
- Public IP mapping support
- Compact design for mobile live production
- General Details
- Specification
- Product Enquiry
NAGASOFT LipRouter H7 8 Channel 4G Bonding Router is a professional multi-network bonding router designed for stable, high-speed internet transmission in live streaming, broadcasting, remote production, and emergency communication environments. Featuring advanced 8-link bonding technology, the LipRouter H7 combines up to 7× 4G connections with 1× Gigabit Ethernet connection to deliver reliable and uninterrupted network performance even in weak or congested network conditions.
Advanced Bonding Technology with Smart Control

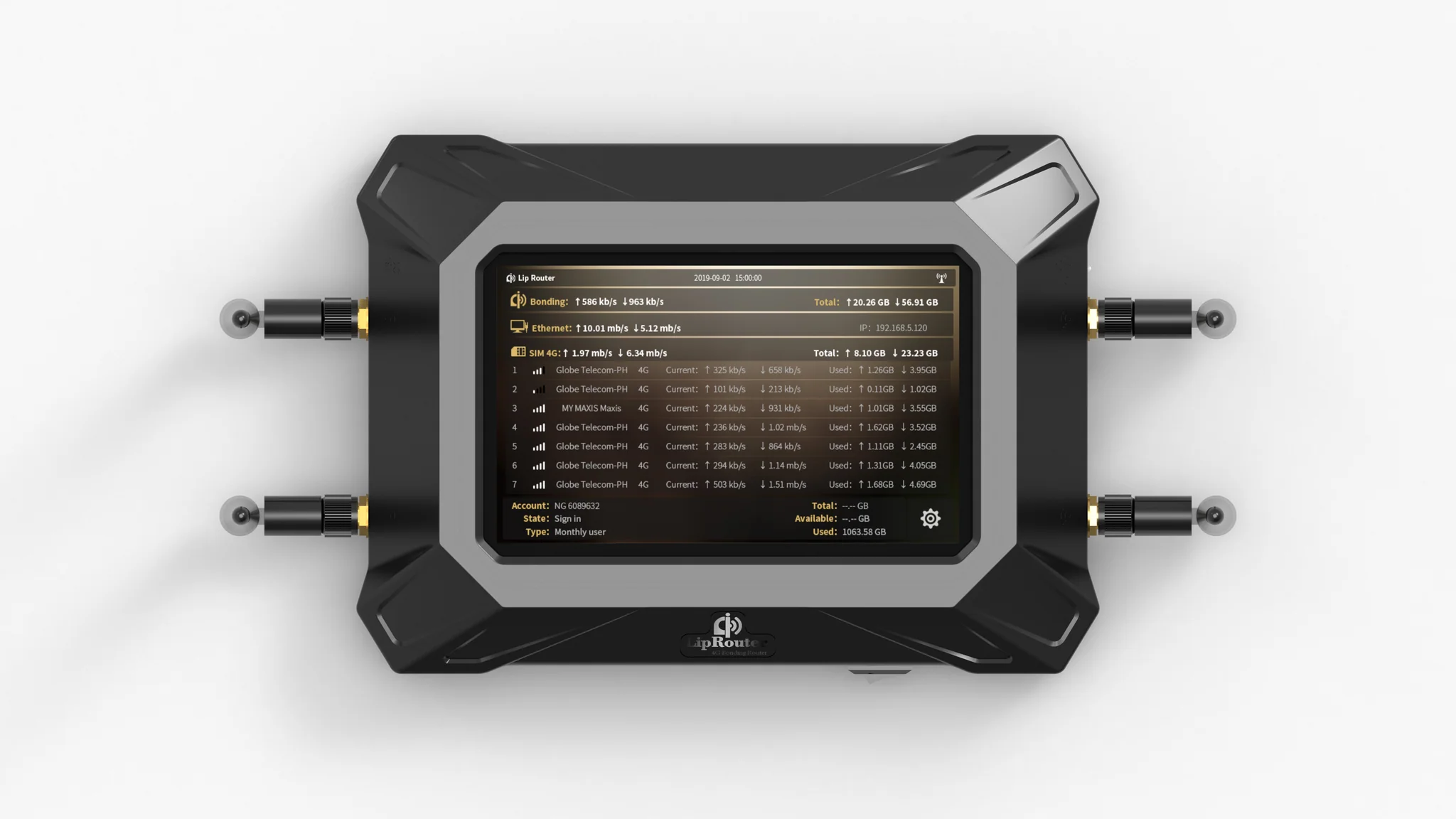

Built with a powerful kernel-level bonding algorithm, LipRouter H7 intelligently manages bandwidth, congestion control, and encrypted data transmission to ensure secure and efficient connectivity. The integrated 5-inch touchscreen allows real-time monitoring and easy configuration without requiring a computer connection.
Portable Router for Live Production & Remote Streaming

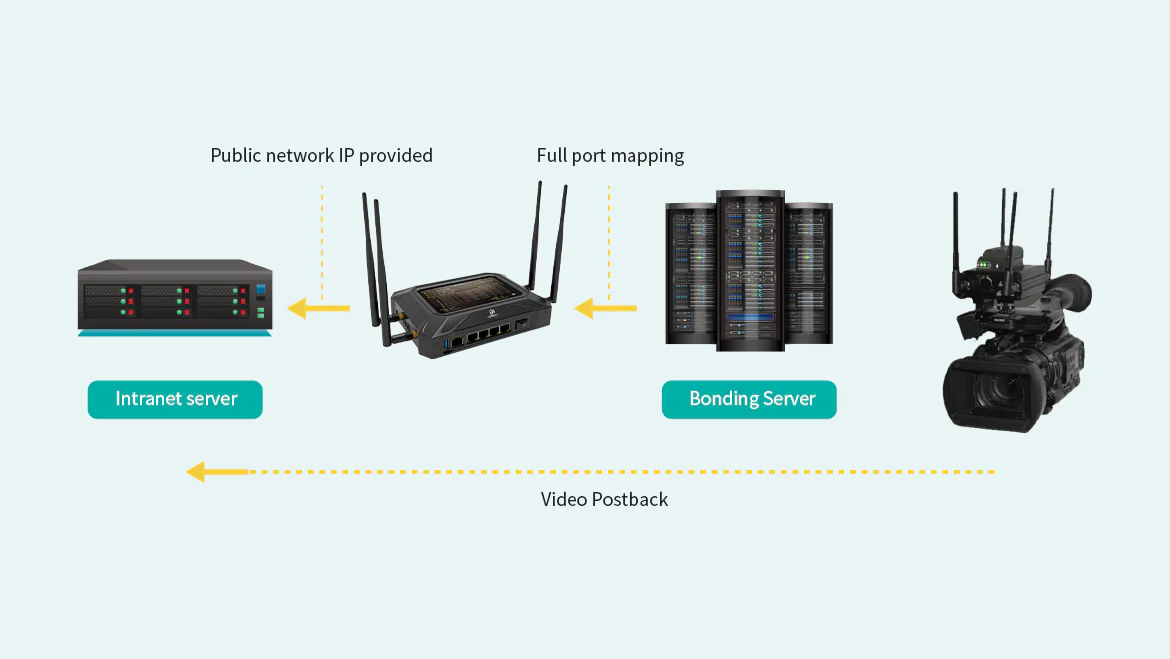

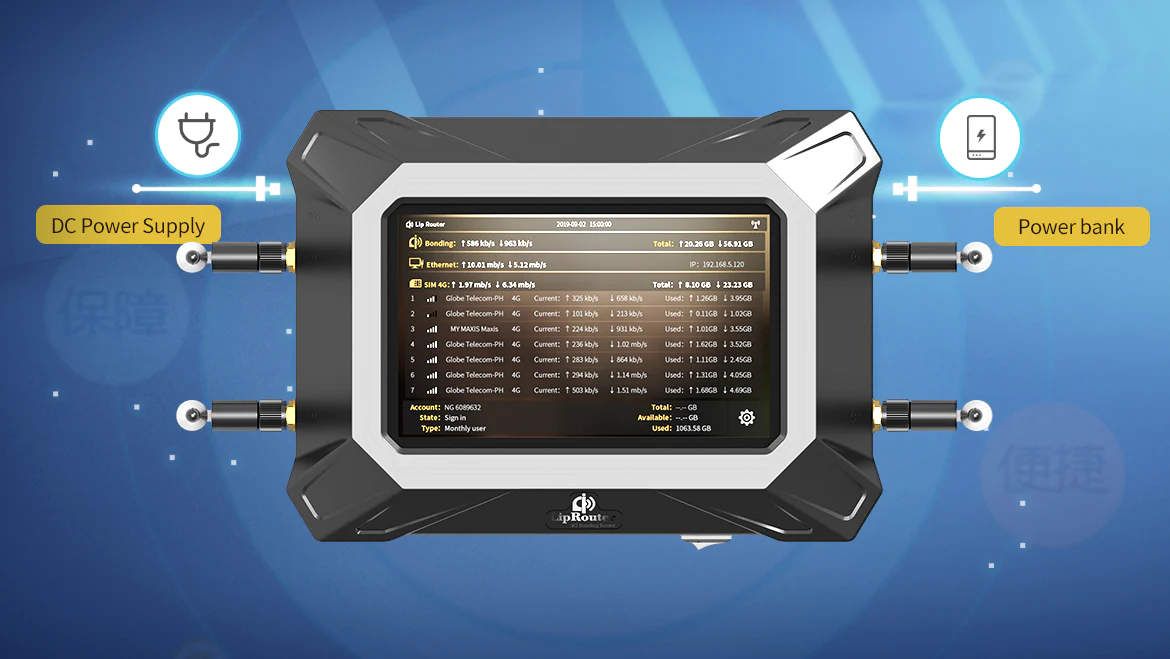

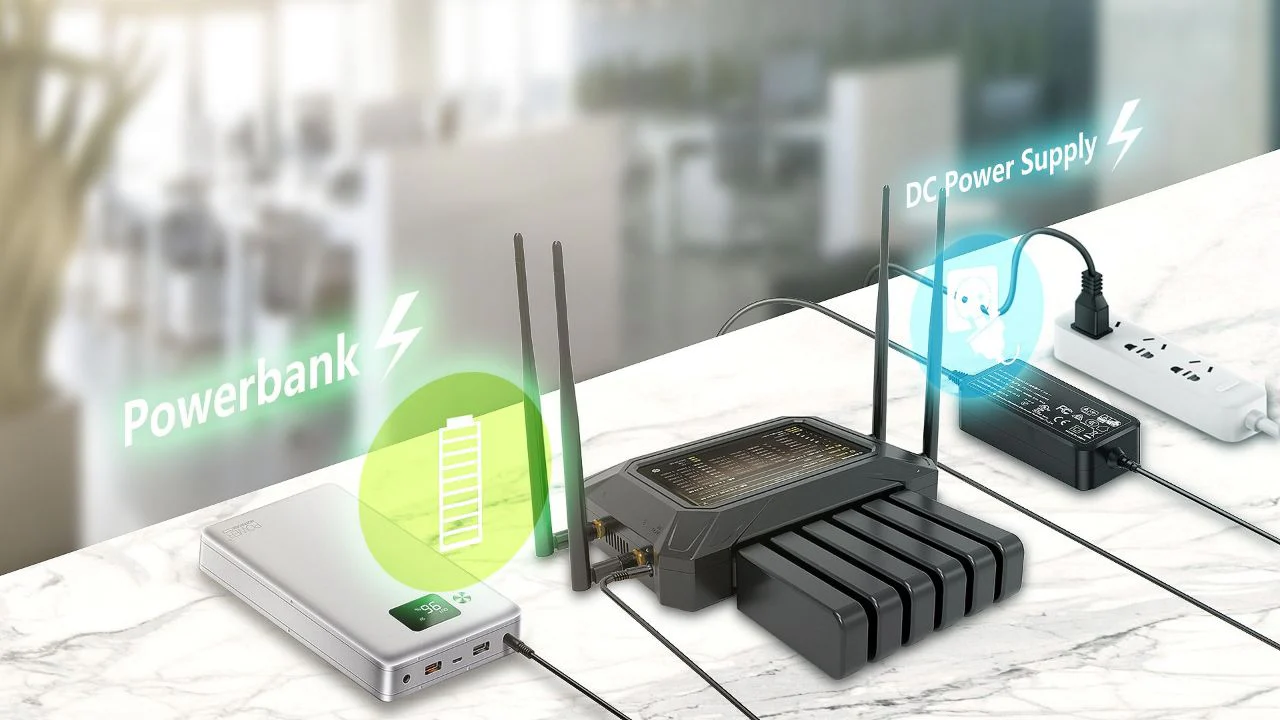

The router supports dual-band 2.4GHz and 5.8GHz Wi-Fi, multiple Gigabit LAN ports, public IP mapping, and flexible power options including batteries and power banks, making it ideal for mobile productions and field operations. Its compact portable design and robust performance provide a complete networking solution for live events, outdoor streaming, temporary offices, and remote broadcasting applications.
Items Included
- 1 x NAGASOFT LipRouter H7
- 4 x Antena
- Power Adapter
- Power Cable
- Warranty Card
| Network Bonding | 8-link bonding |
| Supported Connections | 7× 4G + 1× Gigabit Ethernet |
| Bonding Speed | Up to 300 Mbps |
| Wi-Fi | 4×4 MIMO 802.11ac |
| Wi-Fi Frequency | 2.4GHz + 5.8GHz |
| LAN Ports | 4× Gigabit LAN |
| WAN Port | 1× Gigabit WAN |
| SIM Support | Up to 7 SIM cards |
| Display | 5-inch capacitive touchscreen |
| Power Supply | Dual DC 10–20V |
| Power Consumption | Max 18W |
| Mounting | 1/4″-20 mounting support |
| Security | Dynamic encrypted transmission |
| Features | Public IP mapping, congestion control, online firmware updates |
| Applications | Live streaming, mobile office, emergency communication |
| Weight | Approx. 0.6 kg |
