NAGASOFT LipEncoder HQ ( 5G Bonding Encoder )
Key Features
- Nagasoft intelligent bonding system
- Supports 8-link network bonding
- Multi-network support: 5G, 4G, USB, Wi-Fi & Ethernet
- Stable and reliable live transmission
- 1080p60 SDI input/output support
- 4K30 HDMI input support
- Built-in touchscreen control and switching
- PIP and picture overlay live production features
- H.264/H.265 encoding & decoding support
- RTMP, SRT & Live+ streaming protocol compatibility

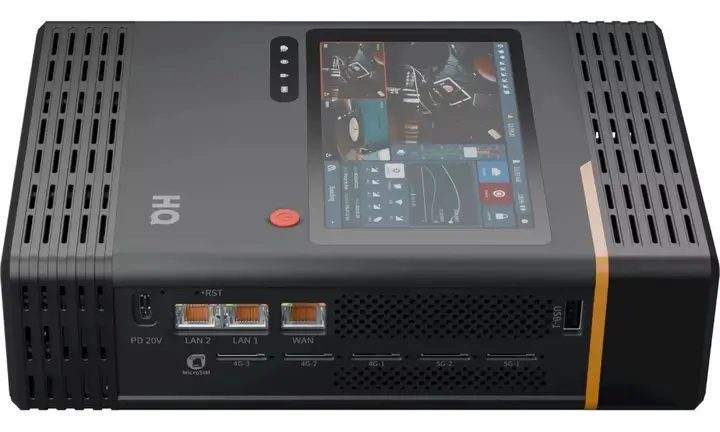

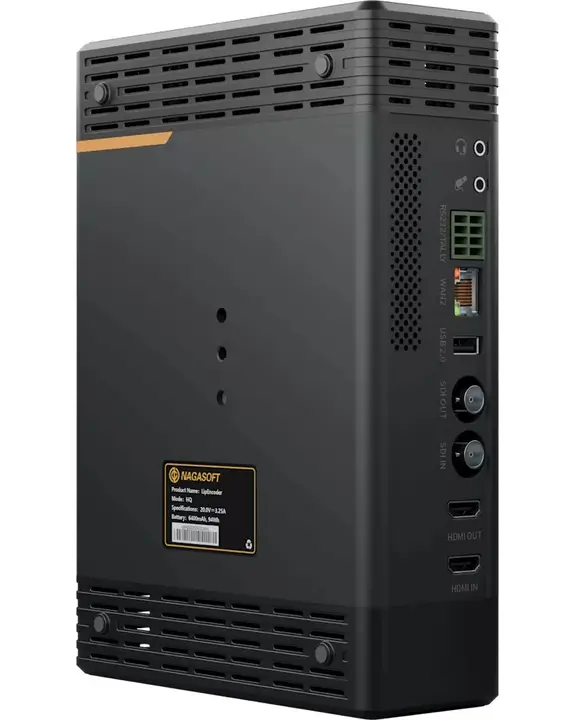

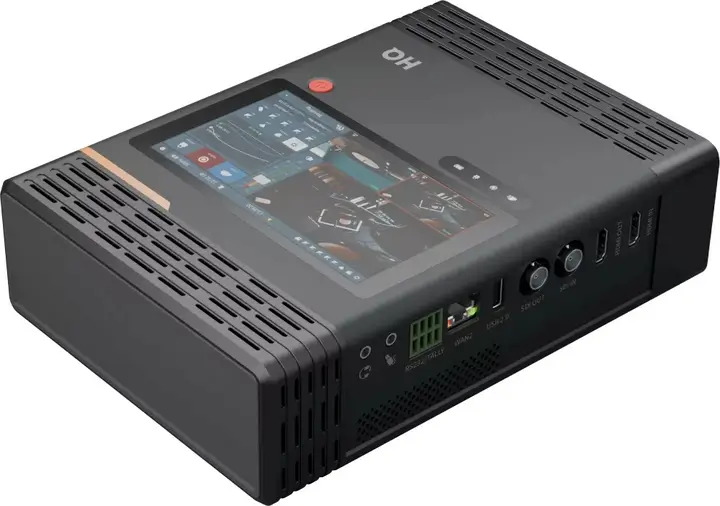

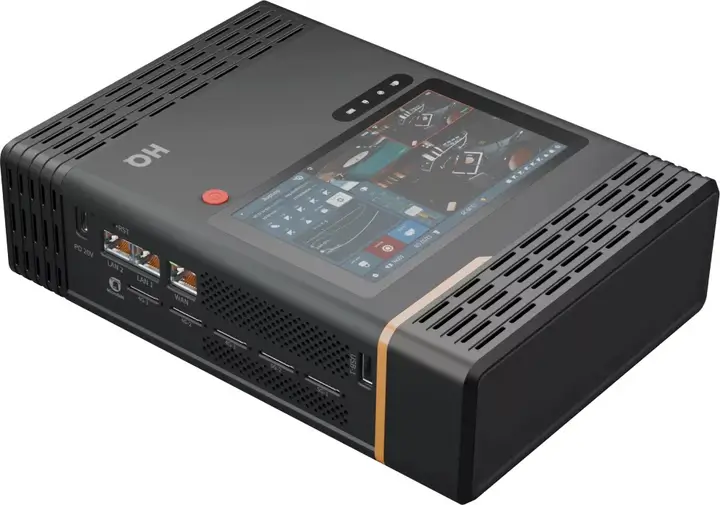

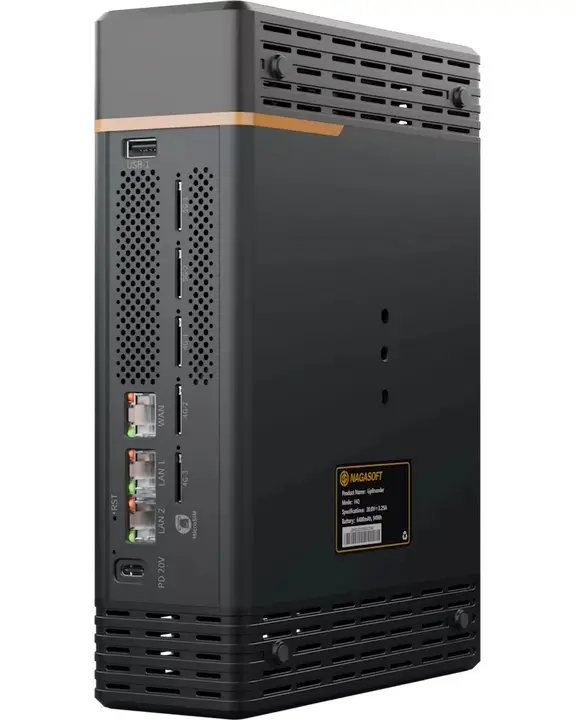

NAGASOFT LipEncoder HQ ( 5G Bonding Encoder ) is a professional 5G bonding encoder designed for reliable live streaming and remote production in any environment. Powered by the advanced Nagasoft bonding system, it supports up to 8-link network bonding using dual 5G, multiple 4G connections, USB modem, Wi-Fi, and Ethernet to deliver stable and uninterrupted transmission.
Built for broadcasters, content creators, and live production teams, NAGASOFT LipEncoder HQ supports both SDI and HDMI inputs with up to 1080p60 SDI and 4K30 HDMI video support. The integrated touchscreen interface allows direct monitoring, channel switching, and easy operation during live events.
The device features built-in H.264/H.265 encoding and decoding with support for RTMP, SRT, and Live+ streaming protocols, ensuring compatibility with major streaming platforms and remote production workflows. Advanced production tools including PIP, picture overlay, and stream decoding make it a complete all-in-one solution for professional live broadcasting.
With its compact design, bonding router capability, and flexible multi-network connectivity, NAGASOFT LipEncoder HQ provides dependable high-quality streaming without location limitations.
Items Included
- 1 x NAGASOFT LipEncoder HQ ( 5G Bonding Encoder )
- 1 x Power Adapter with power Cable
- Warranty Card
Specifications and parameters
| System architecture | Based on ARM embedded Linux |
| Display | 5.5 inches MIPI LCD, 1920×1080, touchscreen interface operation, image monitoring, audio VU. |
| Video input | 3G-SDI 1080p60 HDMI 4Kp30 Live dual input |
| Video output | 3G-SDI 1080p60 HDMI 4Kp30 |
| Video standard | SD PAL/NTSC, 720p50/59.94/60, 1080i50/59.94/60, 1080p25/30/50/59.94/60, 4Kp30 |
| Video coding | H.265/HEVC, H.264 |
| Audio input | SDI/HDMI embedded audio 3.5mm line input 3.5mm microphone Mix |
| Audio output | SDI/HDMI embedded audio 3.5mm monitoring |
| Audio sampling | 48kHz, 16 bit, stereo |
| Communication and control interface | RS232 x 1 (PTZ control, phoenix contract) / 3.5mm headphone x 1 (call, connection) / Tally signal (phoenix contract) |
| Bonding Network | 5G NSA/SA X2, 4G Network x3 + USB 3.0 extend x1+ giga Ethernet+ 2.4G/5.8G WiFi dual frequency |
| Software function | Transition, subtitles, CG, PIP and other packaging functions, Live+ interconnection, video return and monitoring, support vertical and horizontal projects with multiple protocol streaming and recording. |
| Storage | 256GB |
| Power supply | 65W type C PD20 power supply/embedded lithium battery 6400mAh/14.8V, 4-5 hours power supply for endurance |
