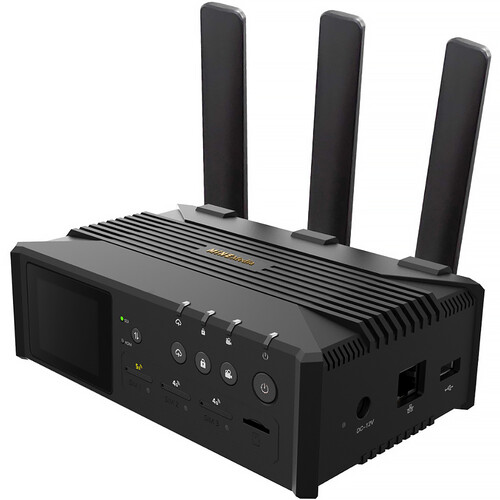

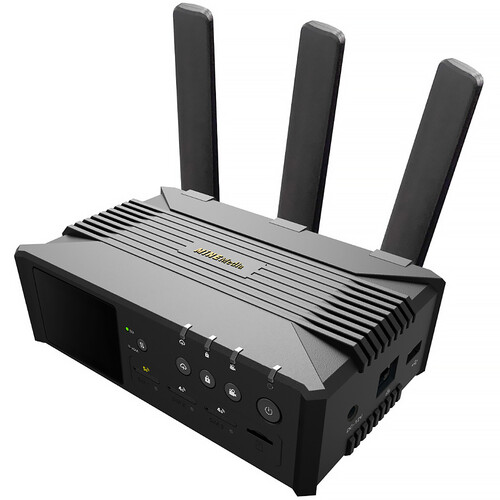

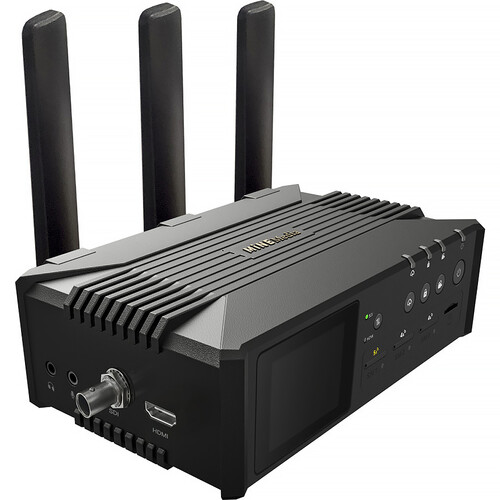

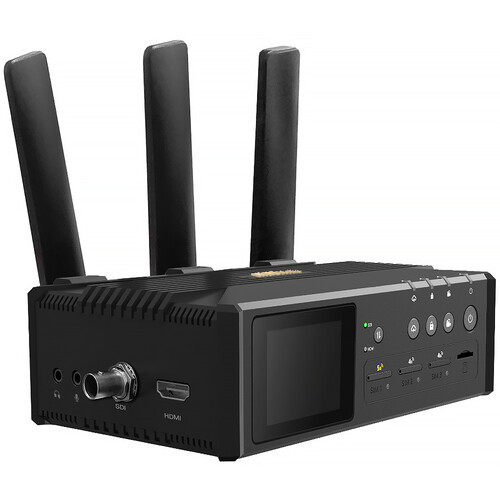

MiNE Media Q8 5G Live Streaming Bonding Video Encoder
Key Features
- Encode HDMI/SDI Video for HD Streaming
- HD Over Bonded Cellular Networks
- Stream via 5G SIM/Wi-Fi/Ethernet/USB
- H.265/H.264 Video Compression
- RTMP/RTMPS/RTSP/SRT Streaming Support
- M Live App Control
- Built-In Rechargeable 6-Hour Battery
The Q8 5G Live Streaming Bonding Video Encoder from MiNE Media adds redundancy and reliability to your remote video streaming setup by sending your signal over bonded cellular networks. Featuring HDMI and 3G-SDI inputs, the versatile encoder supports up to 1080p60 resolutions with seamless source switching using the remote M Live app or a local source button. The Q8 5G employs multiple output methods, including Wi-Fi, Ethernet, a USB wireless dongle, and three SIM slots, with one that supports 5G LTE and two with 4G LTE cellular destinations.
The unit’s internal 7200mAh rechargeable battery can power it for up to 6 hours, but you can also use the included 12 VDC power adapter to power the device without pause. Support for H.264 and H.265 video compression enables you to send your live stream to servers and social media sites such as Facebook, YouTube, or Twitter using RTMP/RTMPS/RTSP and SRT protocols. Up to 192 kHz / 24-bit audio data is supported, along with AGC (automatic gain control), and your stream can be easily previewed from the unit’s front panel 2″ HD display.
Note:
SIM cards, dongles, and streaming data plans are available separately.
Key Features
Integrate 3G-SDI and HDMI inputs for a maximum of two 1080p60 inputs with seamless source switching
Output via 1 x optional 5G LTE SIM and 2 x 4G LTE SIM cards, Wi-Fi, Ethernet, or a wireless USB dongle
M Live mobile app control support
HD live video streaming through RTMP/RTMPS/RTSP to social media sites such as Facebook, YouTube, Twitter, and more
Support for H.264, H.265, and SRT streaming protocols
Stereo audio support up to 24-bit 192 kHz with AGC
Built-in rechargeable battery offers 4-6 hours of streaming time
| IP Video | H.264/H.265: 1920 x 1080 Encoding 1280 x 720 Encoding 640 x 360 Encoding 480 x 270 Encoding |
| IP Audio | AAC/MP3: Encoding |
| Video I/O | 1x BNC (3G-SDI) Input 1x HDMI Input |
| Embedded Audio | HDMI/LAN (RJ45)/USB/Wireless |
| Recording Media | 1x microSD (Unspecified Type) |
| Recording Modes | 1920 x 1080p (MP4) |
| Power Consumption | (18 W) |
| Display | Yes |
IP Encoding/Decoding
| IP Video | H.264/H.265: 1920 x 1080 Encoding 1280 x 720 Encoding 640 x 360 Encoding 480 x 270 Encoding |
| IP Audio | AAC/MP3: Encoding |
| Transport Protocols | RTMP, RTMPS, RTSP, SRT |
| Compatible Services | Facebook Live, YouTube Live |
Wireless
| Wi-Fi | Yes |
| Cellular Support | 5G NR / 4G LTE via 3-Slot Standard-Sized SIM |
| SIM Card Slots | 3x Standard SIM |
| Compatible Services | Facebook Live, YouTube Live |
Interfaces
| Video I/O | 1x BNC (3G-SDI) Input 1x HDMI Input |
| Audio I/O | 1x 1/8″ / 3.5 mm TRS Analog Input 1x 1/8″ / 3.5 mm TRS Analog Output |
| Other I/O | 1x RJ45 Gigabit Ethernet Input/Output 1x USB-A Output |
| Embedded Audio | HDMI/LAN (RJ45)/USB/Wireless |
Internal Recording
| Recording Media | 1x microSD (Unspecified Type) |
| Recording Modes | 1920 x 1080p (MP4) |
Power
| Built-In Battery | 7200 mAh |
| Power I/O | 1x Barrel (12 VDC at 3 A) Input |
| Power Consumption | (18 W) |
General
| Operating Conditions | 32 to 72°F / 0 to 40°C up to 95% Humidity |
| Storage Conditions | 41 to 104°F / 5 to 40°C |
| Display | Yes |
| Dimensions | 6.4 x 4 x 2.1″ / 162 x 102 x 53.4 mm |
| Weight | 1.6 lb / 735 g |
Packaging Info
| Package Weight | 4.11 lb |
| Box Dimensions (LxWxH) | 11.7 x 9 x 4.2″ |
