LINK-MI LM-TV04U 4K60Hz 2×2 Video Wall Controller
Key Features
- Supports 4K@60Hz HDMI 2.0 input with HDCP 2.2 support
- Creates seamless 2x2 video wall display across 4 screens

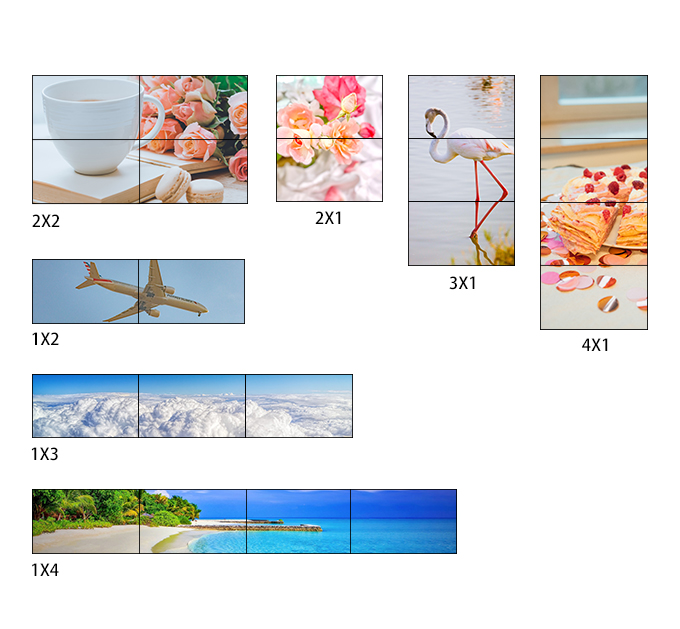

- Multiple wall layouts: 1x2, 1x3, 1x4, 2x1, 2x2, 3x1, 4x1
- Features 4 HDMI outputs with synchronized video processing
- Supports USB multimedia playback for video, image, music, and text
- Includes image rotation & mirror modes (90° / 180° / 270°)
- Built-in bezel correction & image cropping for seamless display

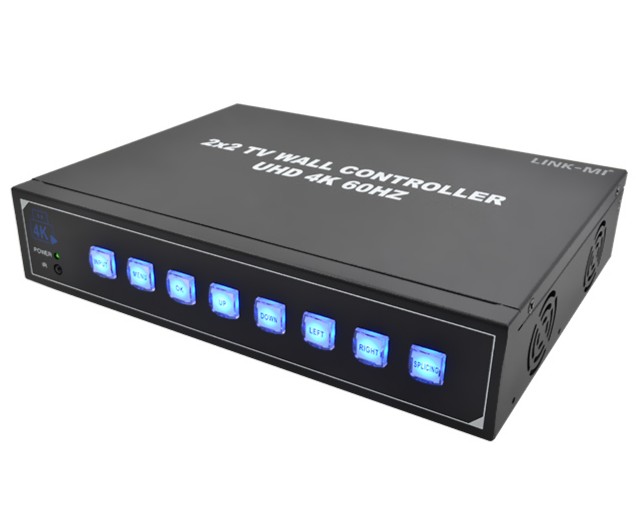

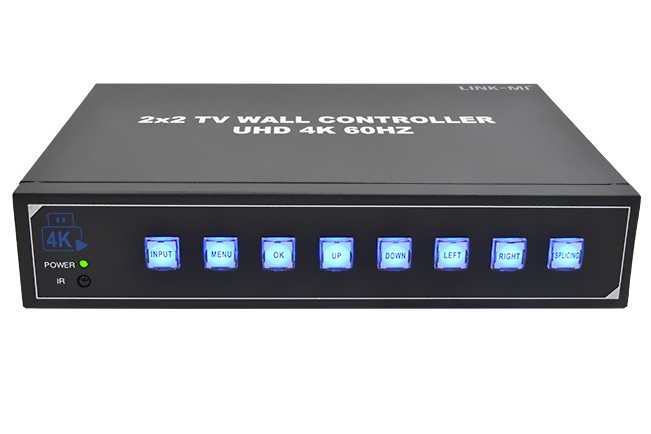

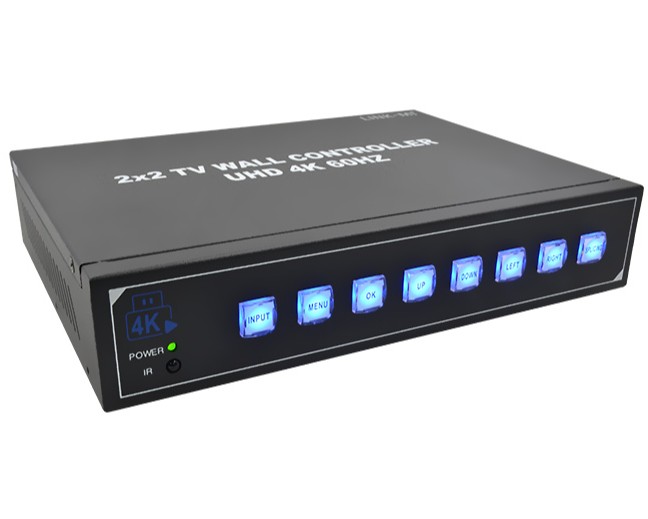

- Easy operation via front panel buttons and IR remote control
- Equipped with smart cooling system & silent fan design
- Supports 3.5mm analog audio output for external audio systems
The LINK-MI LM-TV04U 4K60Hz 2×2 Video Wall Controller is a powerful 4K@60Hz 2×2 Video Wall Controller designed for professional multi-screen display applications. With HDMI 2.0 and HDCP 2.2 support, it delivers ultra-high-definition video quality with smooth and stable performance, making it ideal for digital signage, exhibitions, retail stores, control rooms, and commercial display environments.
Flexible Multi-Screen Display Modes

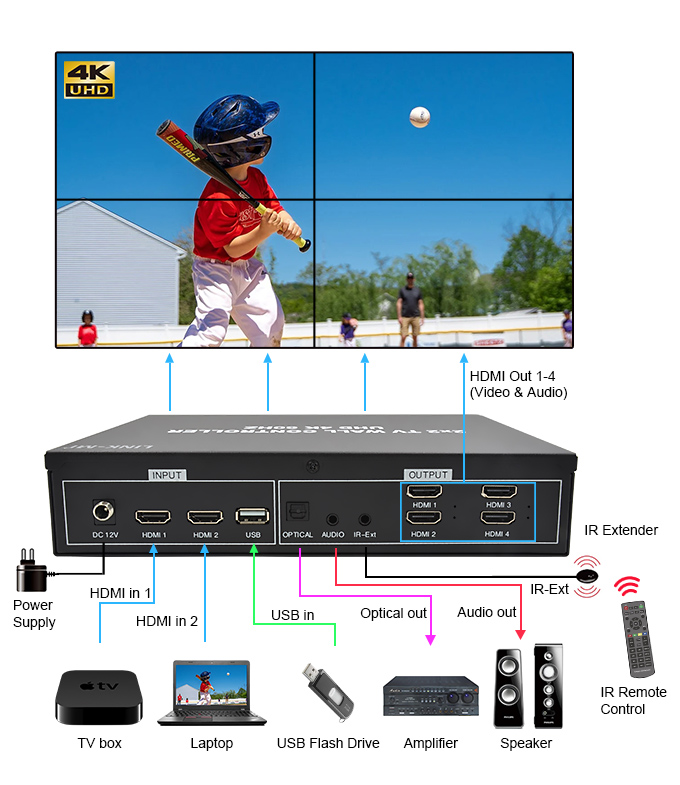

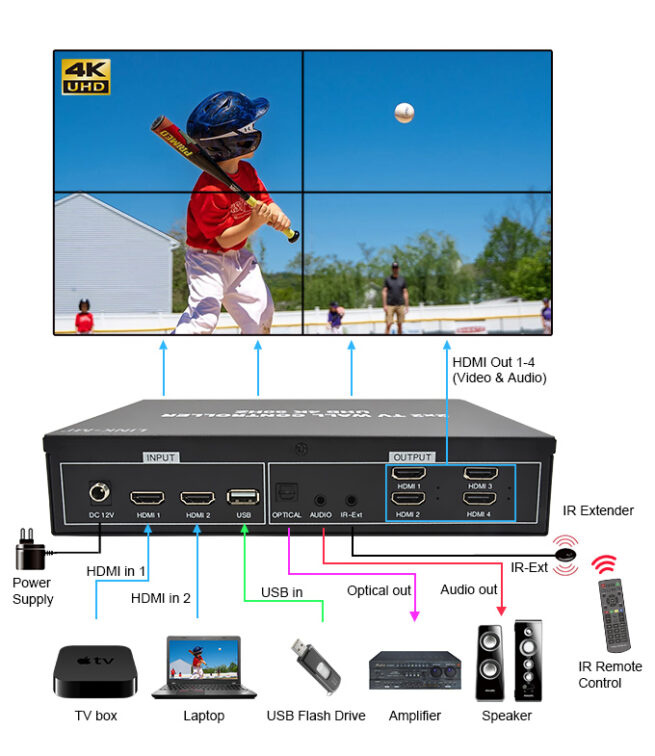

Equipped with multiple HDMI outputs and USB multimedia playback support, the LINK-MI LM-TV04U allows users to create various video wall layouts including 1×2, 1×4, 2×2, and more. Advanced features such as bezel correction, image rotation, cropping, and audio output provide greater flexibility for creating seamless and visually impressive display systems.
Reliable Design for Continuous Operation

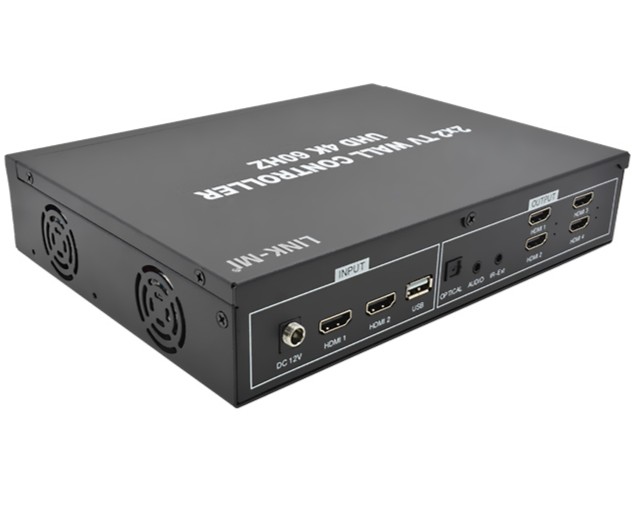

Built for long-term professional use, the LINK-MI LM-TV04U features an intelligent cooling system with silent fan operation to ensure stable performance during extended operation. Its durable metal housing, easy control options, and simple installation make it a reliable solution for modern UHD video wall installations.

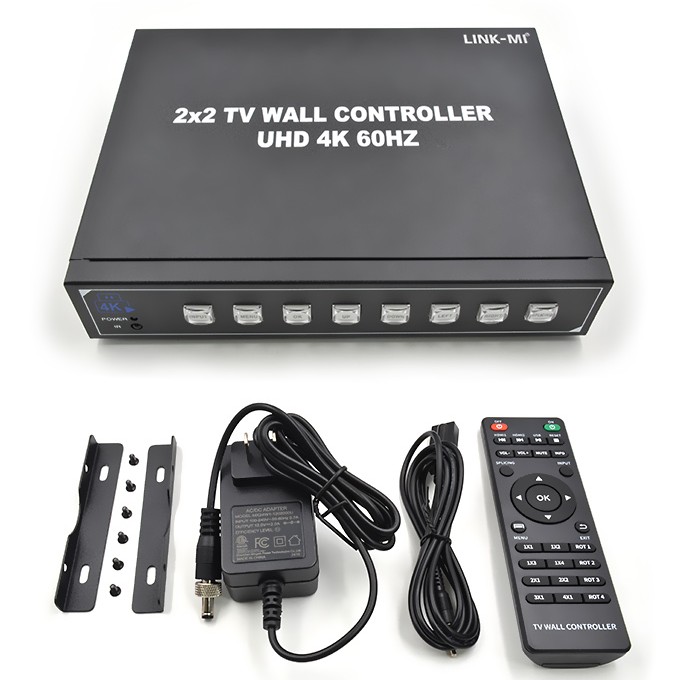

Items Included
- 1× LINK-MI LM-TV04U 4K60Hz 2×2 Video Wall Controller
- 1× DC 12V / 2A Locking Power Adapter

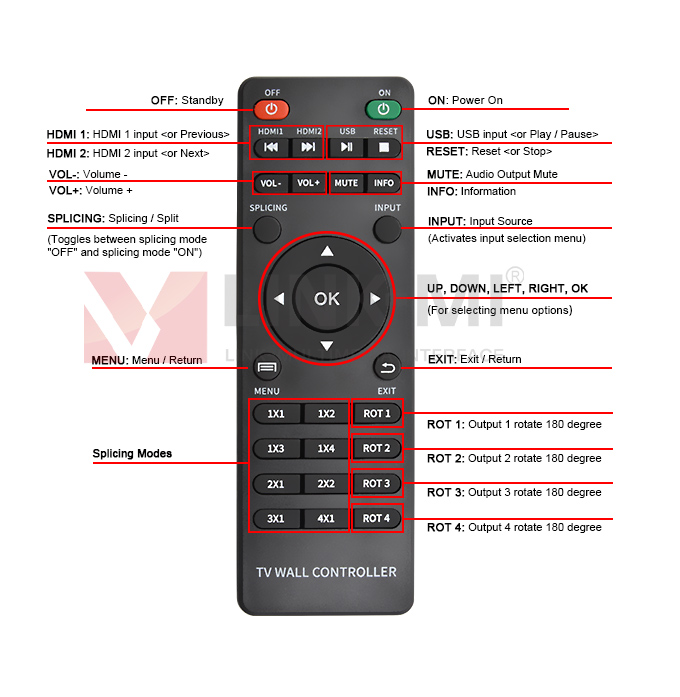

- 1× IR Remote Control
- 1× IR Extension Cable
- 2× Mounting Brackets with Screws
- 1× User Manual

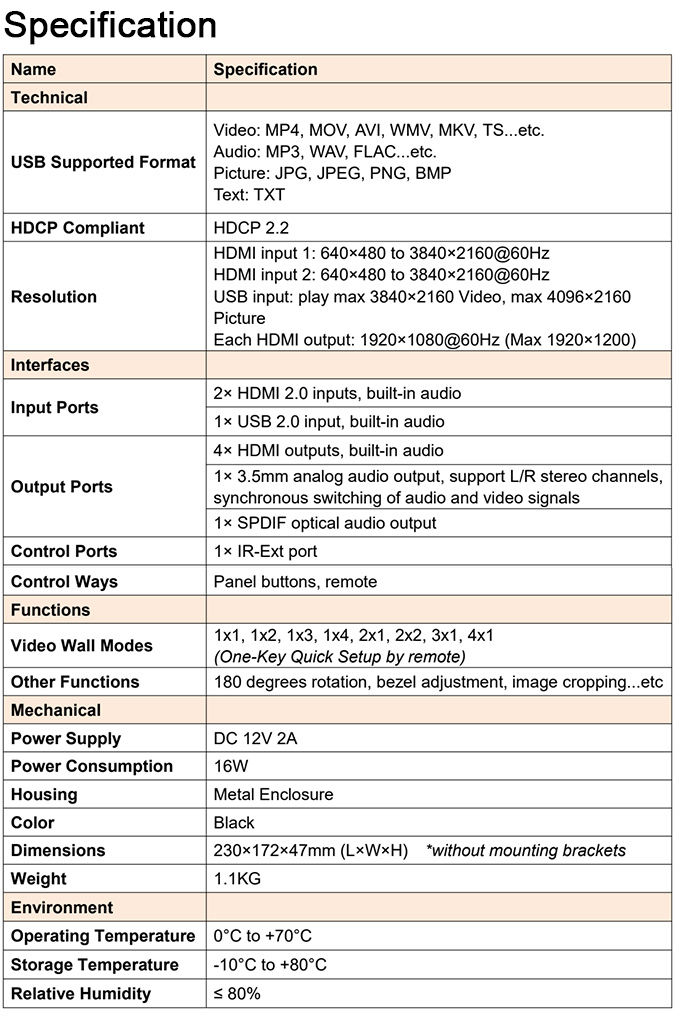

Technical
| USB Supported Format | Video: MP4, MOV, AVI, WMV, MKV, TS…etc. Audio: MP3, WAV, FLAC…etc. Picture: JPG, JPEG, PNG, BMP Text: TXT |
| HDCP Compliant | HDCP 2.2 |
| Resolution | HDMI input 1: 640×480 to 3840×2160@60Hz HDMI input 2: 640×480 to 3840×2160@60Hz USB input: play max 3840×2160 Video, max 4096×2160 Picture Each HDMI output: 1920×1080@60Hz (Max 1920×1200) |

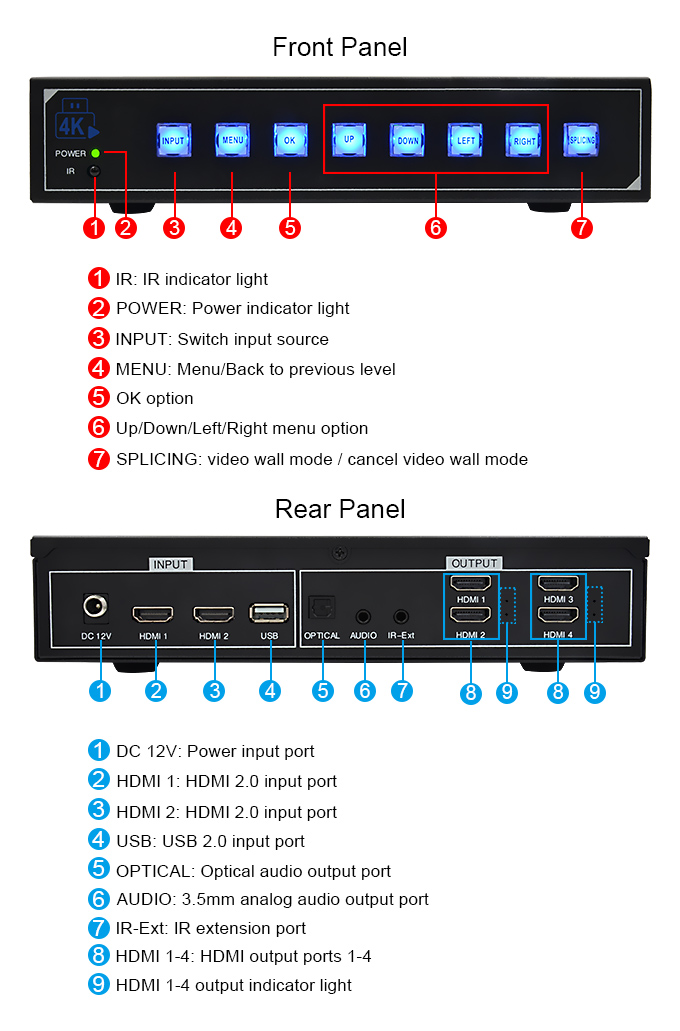

Interfaces

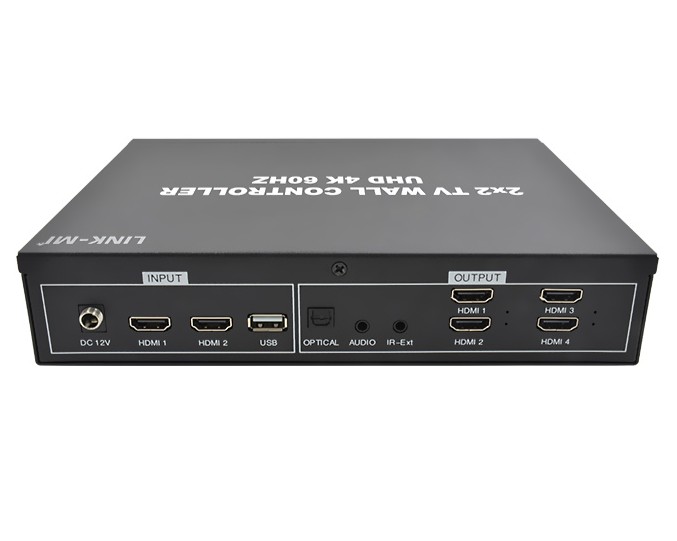

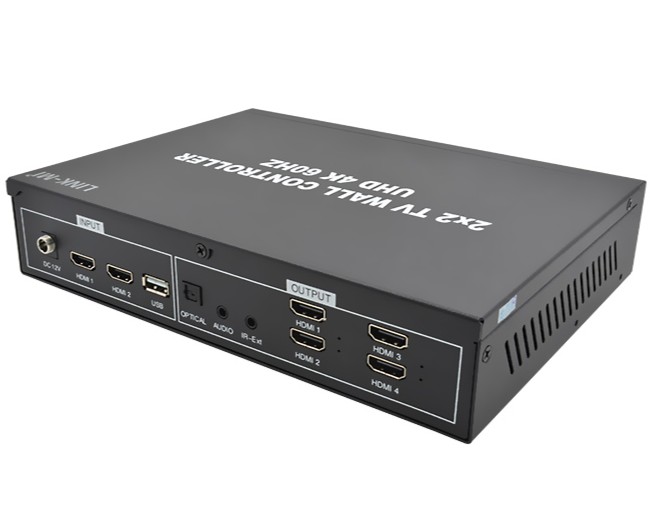

| Input Ports | 2× HDMI 2.0 inputs, built-in audio 1x USB 2.0 input, built-in audio |
| Output Ports | 4× HDMI outputs, built-in audio 1x 3.5mm analog audio output, support L/R stereo channels, synchronous switching of audio and video signals 1x SPDIF optical audio output |
| Control Ports | 1x IR-Ext port |
| Control Ways | Panel buttons, remote |
Functions
| Video Wall Modes | 1×1, 1×2, 1×3, 1×4, 2×1, 2×2, 3×1, 4×1 (One-Key Quick Setup by remote) |
| Other Functions | 180 degrees rotation, bezel adjustment, image cropping…etc |
Mechanical
| Power Supply | DC 12V 2A |
| Power Consumption | 16W |
| Housing | Metal Enclosure |
| Color | Black |
| Dimensions | 230×172×47mm (LxWxH) *without mounting brackets |
| Weight | 1.1KG |
Environment
| Operating Temperature | 0°C to +70°C |
| Storage Temperature | -10°C to +80°C |
| Relative Humidity | ≤ 80% |
