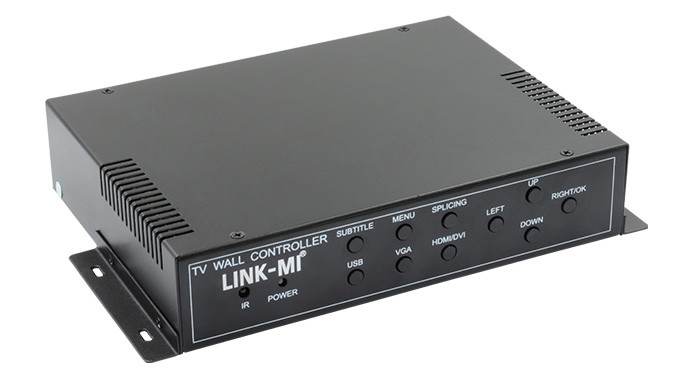

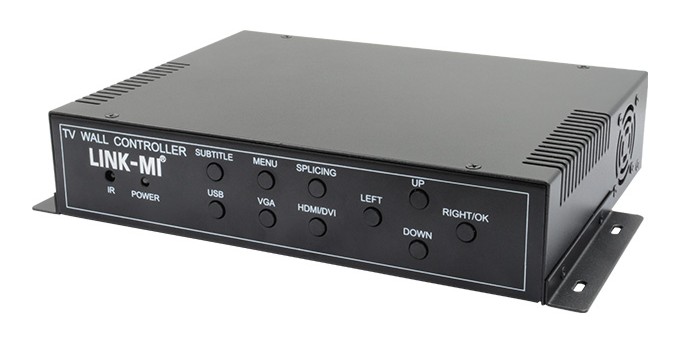

LINK-MI LM-TV04M TV splicing box
Key Features
- Supports 1080P Full HD input and output resolution
- 2x2, 1x4, and 4x1 video wall display modes
- 4 HDMI outputs for multi-screen splicing
- HDMI, DVI, VGA, and USB multimedia inputs
- USB playback for video, image, MP3, and TXT files
- Built-in image zoom, crop, and bezel correction functions
- Supports 180° screen rotation and flipping
- RS-232, IR remote, and front panel control support
- Built-in scrolling subtitle (flying caption) function
- Cascading support for larger video wall systems
The LINK-MI LM-TV04M TV Splicing Box is a professional HD video wall controller designed for LCD TVs, ultra-narrow bezel displays, projectors, and commercial display systems. It supports multiple signal inputs including HDMI, DVI, VGA, and USB, allowing users to create seamless multi-screen video wall displays with high-quality 1080P output performance. The controller is ideal for digital signage, control rooms, exhibitions, retail stores, and advertising applications.

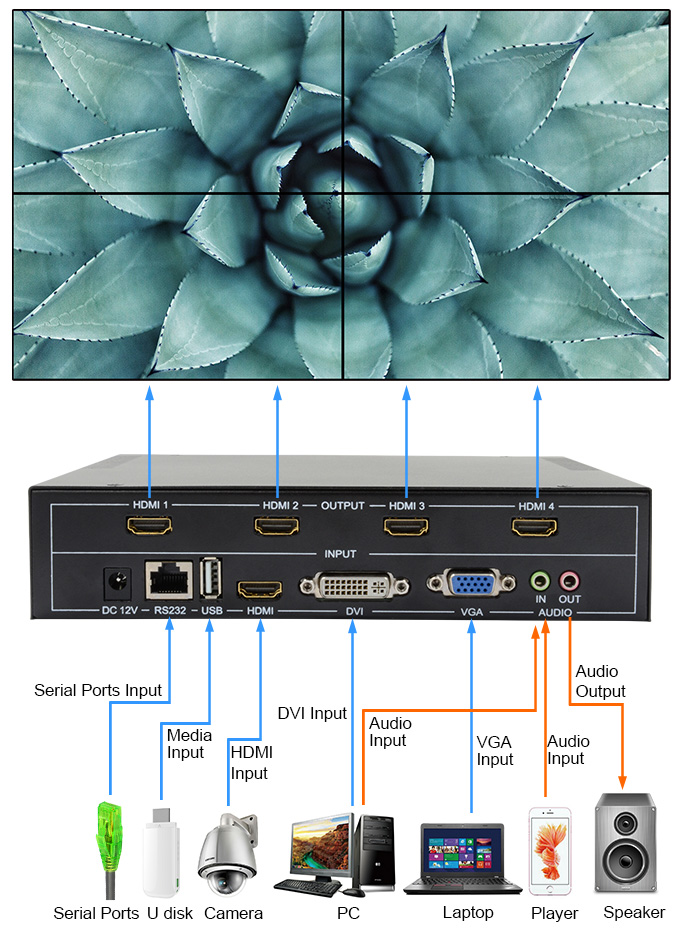

Flexible Multi-Screen Display & Advanced Features
The LINK-MI LM-TV04M supports multiple splicing modes such as 2×2, 1×4, and 4×1 configurations with up to 4 HDMI outputs. It features image zooming, image cutting, bezel correction, 180° screen rotation, and built-in scrolling subtitle functions for more dynamic and customizable display setups. With USB multimedia playback support, users can directly play videos, images, MP3 files, and documents without additional external devices.

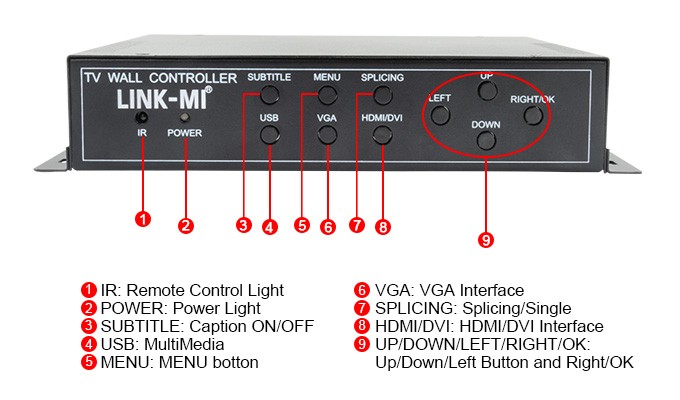

Easy Control & Reliable Operation
Designed for convenient operation, the LM-TV04M can be controlled through front panel buttons, IR remote control, or RS-232 centralized control systems. Its durable metal chassis, stable 1080P signal processing, synchronized audio output, and cascading capability for larger video wall systems make it a reliable solution for professional commercial installations and continuous operation environments.

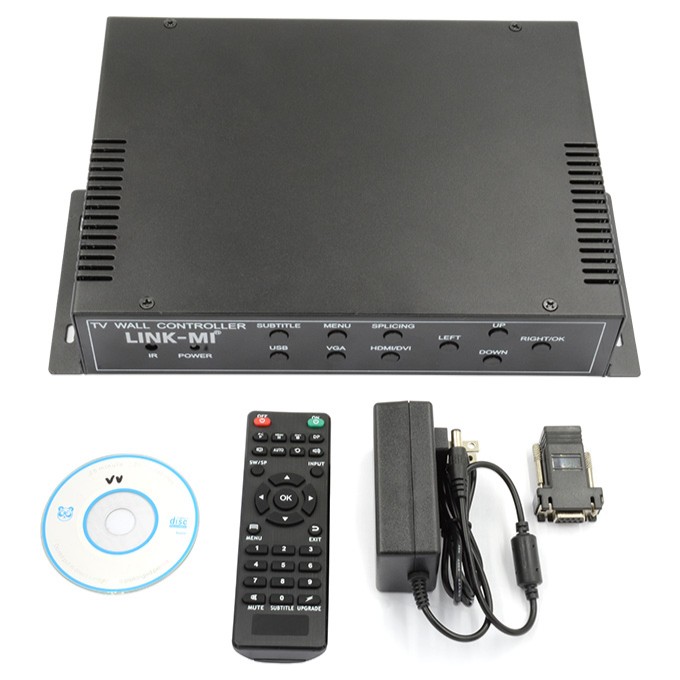

Items Included
- 1× LINK-MI LM-TV04M TV Splicing Box
- 1× DC Power Adapter
- 1× IR Remote Control
- 1× RS-232 Serial Cable
- 2× Mounting Brackets with Screws
- 1× User Manual

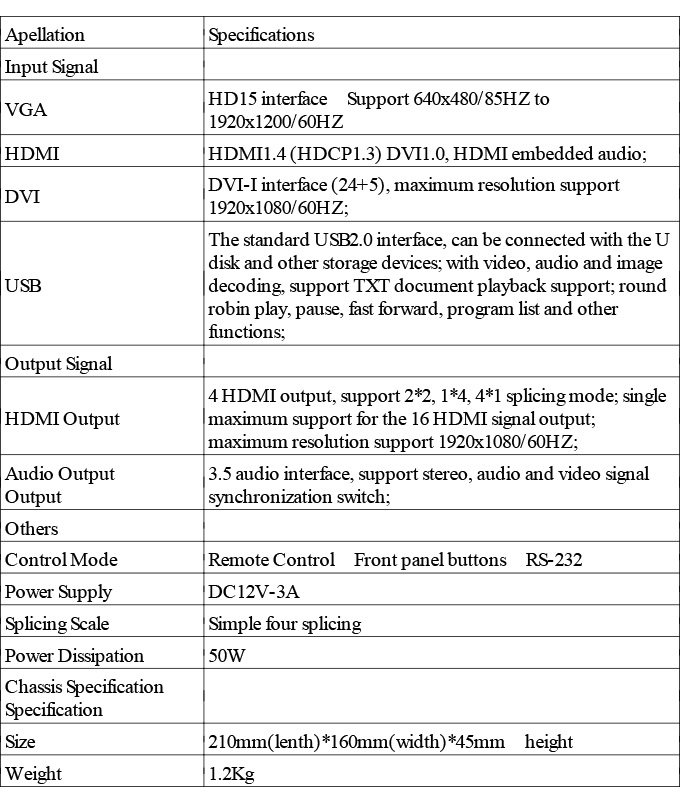

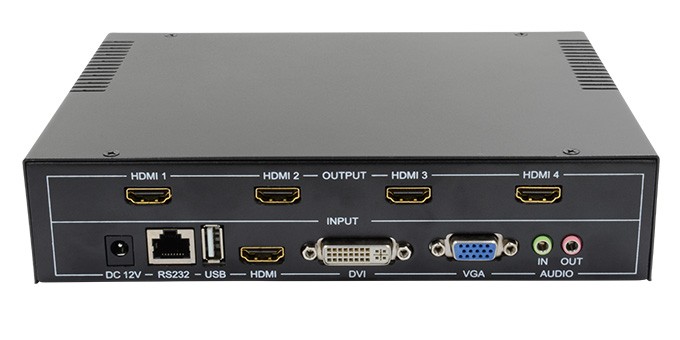

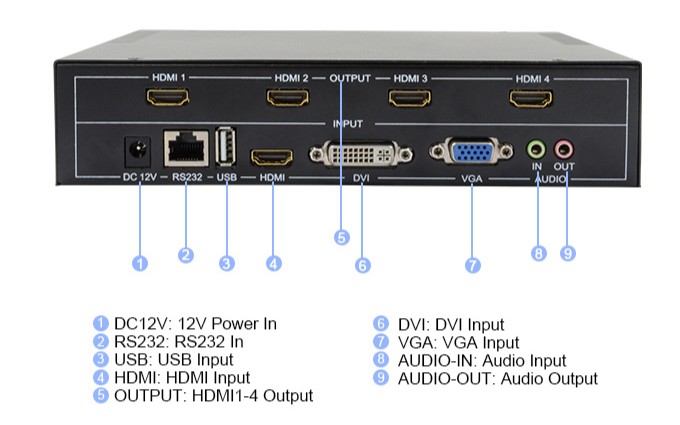

Input Signal
| VGA | HD15 interface Support 640×480/85HZ to 1920×1200/60HZ |
| HDMI | HDMI1.4 (HDCP1.3) DVI1.0, HDMI embedded audio |
| DVI | DVI-I interface (24+5), maximum resolution support 1920×1080/60HZ |
| USB | The standard USB2.0 interface, can be connected with the U disk and other storage devices; with video, audio and image decoding, support TXT document playback support; round robin play, pause, fast forward, program list and other functions |

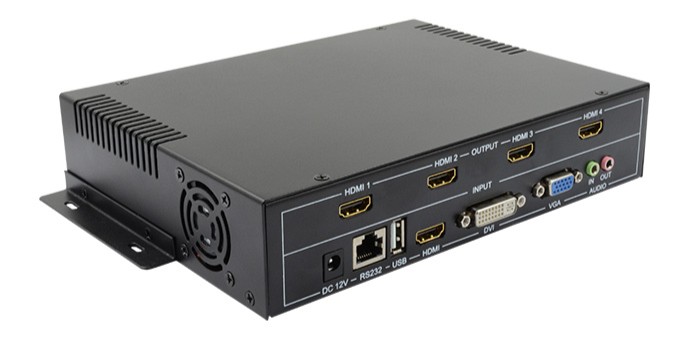

Output Signal
| HDMI Output | 4 HDMI output, support 22, 14, 4*1 splicing mode, Single maximum support for the 16 HDMI signal output, Maximum resolution support 1920×1080/60HZ. |
| Audio Output | 3.5 audio interface, support stereo, audio and video signal synchronization switch |
Others
| Control Mode | Remote Control, Front panel, buttons RS-232 |
| Power Supply | DC12V-3A |
| Splicing Scale | Simple four splicing |
| Power Dissipation | 50W |
Physical
| Size | 210mm(lenth) x 60mm(width) x 45mm height |
| Weight | 1.2Kg |
