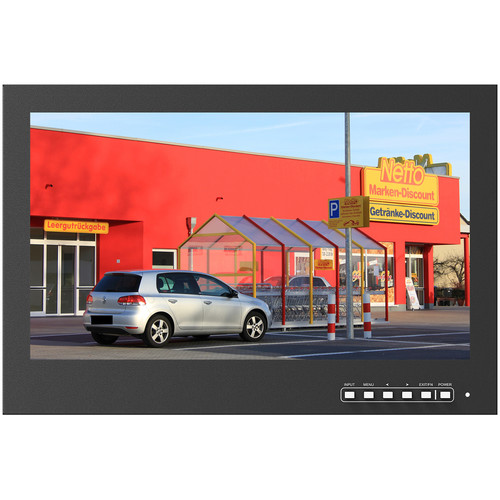

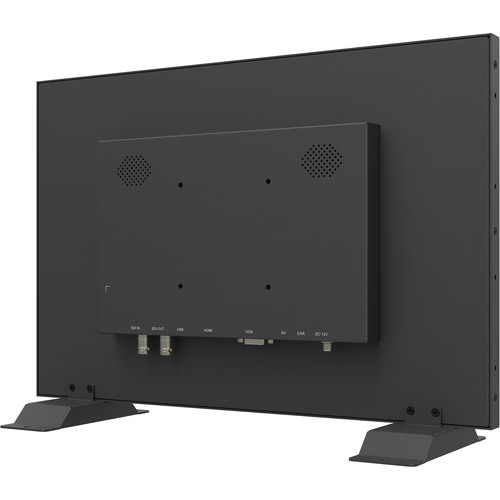

Lilliput PVM150S 15.6″ LCD Surveillance Monitor
Key Features
- 1920 x 1080 Resolution
- 15.6" IPS LCD Display
- 178/178° H/V Viewing Angles
- 16:9 Aspect Ratio
- 1000:1 Contrast Ratio
- Built-In Speakers, Headphone Jack
- HDMI, VGA & AV Inputs
- 3G-SDI Input & Loop Output
General Details
Lilliput PVM150S Overview:
Monitor the feed from your surveillance cameras with the PVM150S 15.6″ Rack-Mountable LCD Surveillance Monitor from Lilliput. This unit displays video at a maximum resolution of 1920 x 1080. It features 178° horizontal and vertical viewing angles and a 16:9 aspect ratio. The monitor is equipped with built-in speakers, an HDMI input, a VGA input, a 3G-SDI input & loop output, an AV input, and a headphone jack.
Brightness of 1000 cd/m²
HDMI 1.4b input supports 4K signals at 30 Hz
HDR support (HDR 10 and HLG)
Metal housing for durability
- Lilliput PVM150S 15.6″ Rack-Mountable 1920 x 1080 LCD Surveillance Monitor
- Power Adapter
- HDMI Cable
- AV Input Cable
- VGA Cable
- Rackmount Bracket
- Desktop Bracket
- Limited 1-Year Manufacturer Warranty
Specification
| Display Size | 15.6″ |
| Panel Type | IPS-Type LCD |
| Native Resolution | 1920 x 1080 |
| Maximum Brightness | 1000 nits / cd/m2 |
| A/V Inputs | VGA / HDMI 1.4 / 3G-SDI / 3.5 mm |
| A/V Outputs | SDI |
| USB I/O | USB-A 2.0 |
Display
| Size | 15.6″ |
| Panel Type | IPS-Type LCD |
| Aspect Ratio | 16:9 |
| Native Resolution | 1920 x 1080 |
| Maximum Brightness | 1000 nits / cd/m2 |
| HDR Support | Yes: HDR10/Hybrid Log Gamma |
| Contrast Ratio | 1000:1 |
| Refresh Rate | 60 Hz |
| Color Support | 16.7 Million Colors (8-Bit) |
| Viewing Angle (H x V) | 178 x 178° |
Surface
| Touchscreen | No |
Connectivity
| A/V Inputs | 1x HDMI 1.4 1x VGA 1x BNC (3G-SDI) 2x 1/8″ / 3.5 mm |
| A/V Outputs | 1x BNC (SDI) |
| HDCP Support | No |
| USB I/O | 1x USB-A 2.0 |
| Multi-Input Support (PIP/PBP) | No |
Speaker
| Built-In Speakers | Yes |
Electrical
| Power Consumption | Typical: 24.0 W |
| Input Power | 10 to 24 VDC at 2 A |
| Power Adapter Type | External |
General
| Operating Conditions | 12 to 92°F / -20 to 60°C |
| Storage Conditions | -22 to 158°F / -30 to 70°C |
| Lock Slot | No |
| Dimensions | 9.9 x 6.2 x 1″ / 251.5 x 157.5 x 25.4 mm |
| Weight | 6.33 lb / 2.87 kg |
Packaging Info
| Package Weight | 11.1 lb |
| Box Dimensions (LxWxH) | 19.1 x 16 x 4″ |
