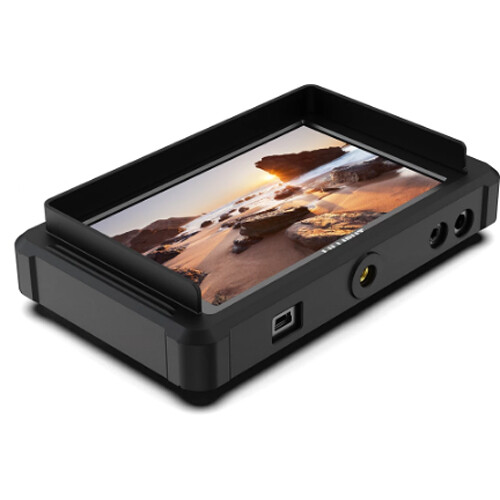

Lilliput FS5-B 5.4″ HDMI 2.0/3G-SDI On-Camera Monitor
Key Features
- 5.4" Monitor with 1920 x 1200 Resolution
- HDMI and 3G-SDI Inputs and Outputs
- 3D-LUT and HDR Support
- DCI-P3, Rec.709, and FS5 Color Space
- Waveform and Vectorscope Monitoring
- Includes NP-F/LP-E6 Battery Plates
Lilliput FS5 Overview
Increased picture density and reduced power consumption are just a few of the advantages of the FS5-B 5.4″ HDMI 2.0/3G-SDI On-Camera Monitor from Lilliput, an LTPS/LCD monitor for the 4K video shooter who can also benefit from having waveform and vectorscope support at the push of a button. Designed with HDMI and 3G-SDI input and output connectivity, the FS5-B offers 3D-LUT and HDR support and has color space options that include DCI-P3, Rec.709, and FS5.
The monitor handles 1920 x 1200 resolution and is capable of displaying up to 4K60 when using the HDMI input, and 1080p60 when opting for 3G-SDI. Plates for both NP-F and LP-E6 batteries are included and easily interchangeable for quick adaptation to your preferred battery. A ball mount shoe adapter, a protective silicone case that fits around the perimeter of the unit, and a sunshade are also part of the accessories that come with the FS5-B.
- 5.4″ LTPS/LCD panel with 1920 x 1200 resolution
- Supports timecode, pixel zoom, and freeze
- Supports Sony SLog2 and SLog3, ARRI Log, Canon C-Log, JVC J-Log, Panasonic V-Log, Nikon N-Log, and six user log options
- Lilliput FS5-B 5.4″ HDMI 2.0/3G-SDI On-Camera Monitor
- 12 VDC Power Adapter
- HDMI Type A to Type C Cable (2.6′)
- NP-F Battery Plate
- LP-E6 Battery Plate
- Silicone Case
- Sunshade
- Hot Shoe Ball Mount
- Limited 1-Year Manufacturer Warranty
| Display Size | 5.4″ / 13.7 cm |
| Native Resolution | 1920 x 1200 |
| Touchscreen | No |
| HDR Support | Yes: Hybrid Log Gamma |
| Video I/O | HDMI / BNC |
| Media/Memory Card Slot | No |
| Video Format | SDI 1080p: 60/50/30/25/24 1080PsF: 30/25/24 1080i: 60/50 720p: 60/50/30/25/24 HDMI DCI 4K: 60/50/30/25/24 1080p: 60/50/30/25/24 1080i: 60/50 720p: 60/50/30/25/24 |
| Battery | 1x L-Series or LP-E6 Mount on Included, Interchangeable Plates |
| Power Consumption | 9 W |
Display
| Panel Type | LCD |
| Display Size | 5.4″ / 13.7 cm |
| Native Resolution | 1920 x 1200 |
| Aspect Ratio | 16:10 |
| Viewing Angle | Horizontal: 160° Vertical: 160° |
| Touchscreen | No |
| Maximum Brightness | 600 nits / cd/m2 |
| Contrast Ratio | 1100:1 |
| HDR Support | Yes: Hybrid Log Gamma |
| Color Gamut | 88% DCI-P3 |
| Image Controls | Check Field, Color Temperature Selection, Customizable Aspect Ratios, False Color, Focus Assist, Focus Peaking, Histogram, Pixel Value Checker, Pixel-to-Pixel Zoom, Vectorscope, Waveform |
Inputs/Outputs

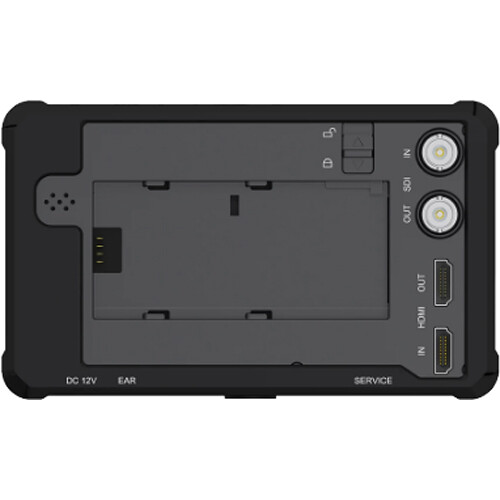

| Video I/O | 1x BNC (3G-SDI) Input 1x BNC (3G-SDI) Output 1x HDMI 2.0 Input 1x HDMI 2.0 Output |
| Audio I/O | 1x 1/8″ / 3.5 mm Headphone Output |
| Built-In Speaker | Mono |
| Power I/O | 1x Barrel (12 VDC) Input |
| Other I/O | 1x Mini-USB 2.0 Input |
| Media/Memory Card Slot | No |
Wireless
| Wi-Fi | No |
| Bluetooth | No |
| Mobile App Compatible | No |
Format Support
| Video Format | SDI 1080p: 60/50/30/25/24 1080PsF: 30/25/24 1080i: 60/50 720p: 60/50/30/25/24 HDMI DCI 4K: 60/50/30/25/24 1080p: 60/50/30/25/24 1080i: 60/50 720p: 60/50/30/25/24 |
Power
| Input Power | 7 to 24 VDC |
| Battery | 1x L-Series or LP-E6 Mount on Included, Interchangeable Plates |
| Power Consumption | 9 W |
Mounting
| Tripod/Accessory Mounting | 1x 1/4″-20 Female |
General
| Environmental Resistance | No |
| Operating Conditions | -4 to 122°F / -20 to 50°C |
| Material of Construction | Metal |
| Dimensions | 6.1 x 3.5 x 0.8″ / 154.5 x 90 x 20 mm |
| Weight | 10.4 oz / 295.00 g |
Packaging Info
| Package Weight | 2.175 lb |
| Box Dimensions (LxWxH) | 6.9 x 5 x 3.9″ |
