FEELWORLD LUT11S 10.1 Inch 2000nit Touchscreen Camera Field Monitor

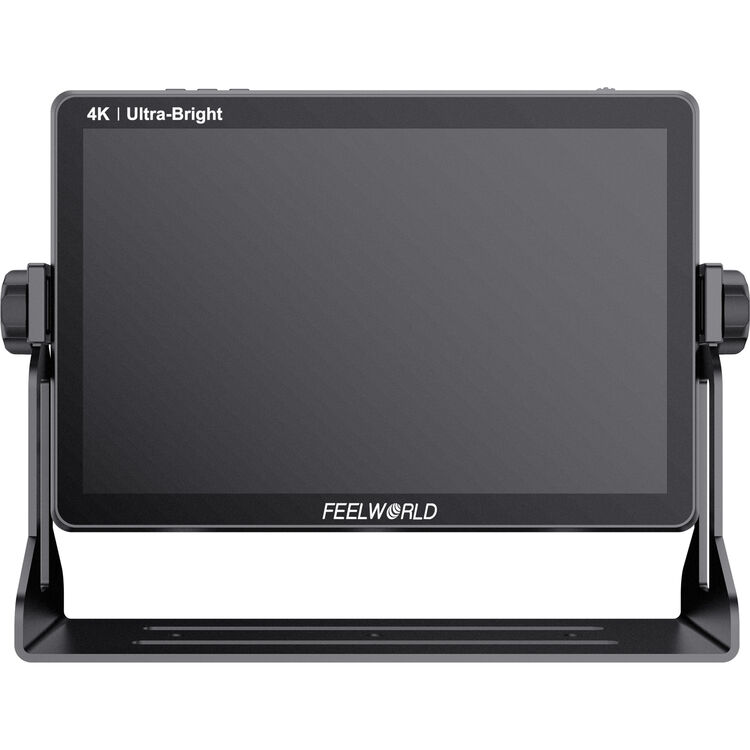

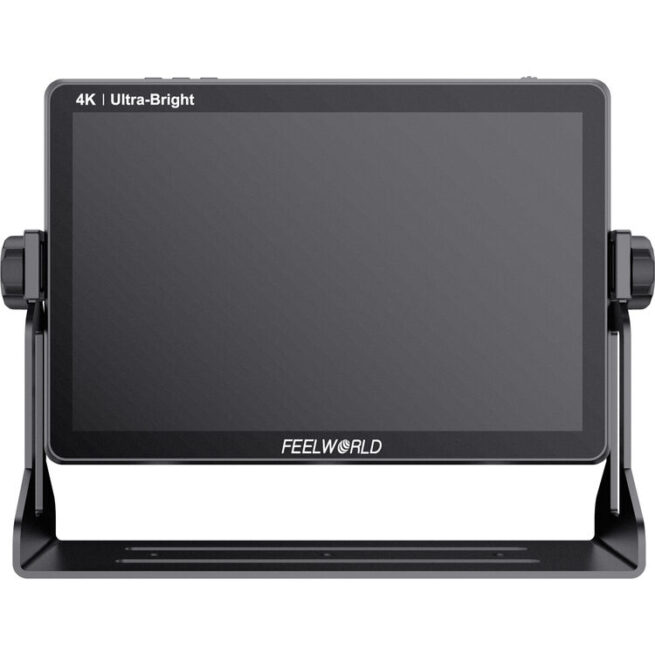

Compatible with a variety of video and mirrorless cameras, the LUT11S 10.1″ 4K Ultra-Bright Touchscreen Monitor from FeelWorld is an IPS LCD panel with both HDMI and 3G-SDI inputs and loop-through outputs. The touchscreen panel boasts a 1920 x 1200 resolution, 16:10 aspect ratio, 800:1 contrast ratio, and a 2000 cd/m² measured brightness for easy viewing outdoors and inside. This IPS LCD supports up to DCI 4K60 HDMI and 2K60 SGI video input and provides 170° viewing, allowing you to see the image without being directly in front of the monitor.

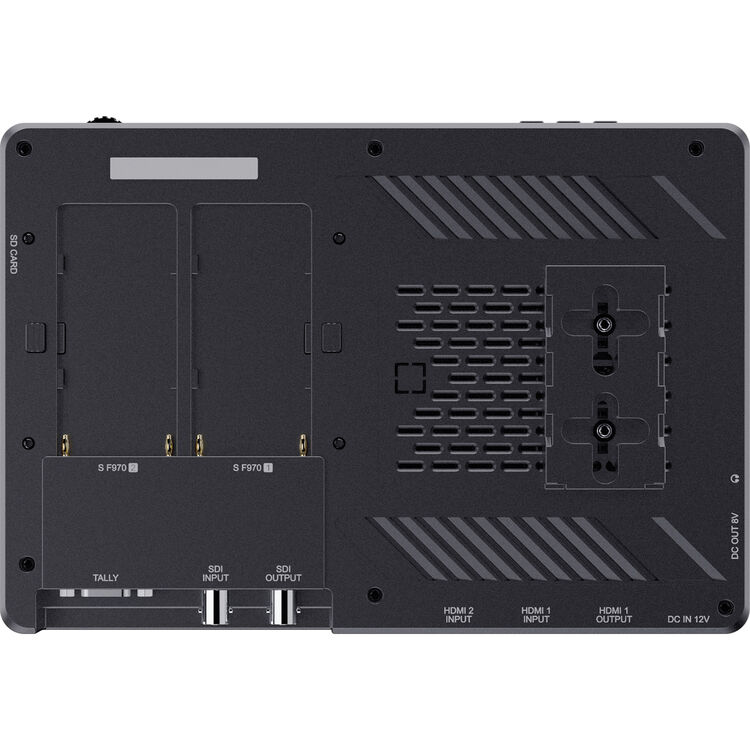

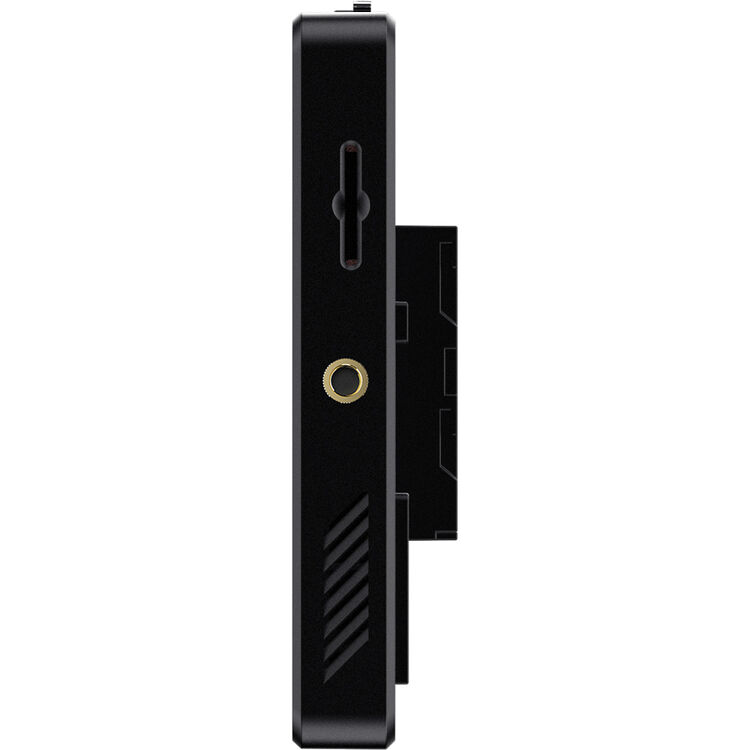

There are control buttons along the top edge of the monitor and three 1/4″-20 mounting threads around the sides. The back of the monitor features a dual L-series battery plate, as well as a removable accessory mounting plate to accommodate wireless gear or other mounts. A variety of image-evaluating tools is built into the monitor, including histogram, false color, and zebra for checking exposure, peaking and magnification for focus, and markers for ensuring correct framing.

SDI + HDMI Interfaces

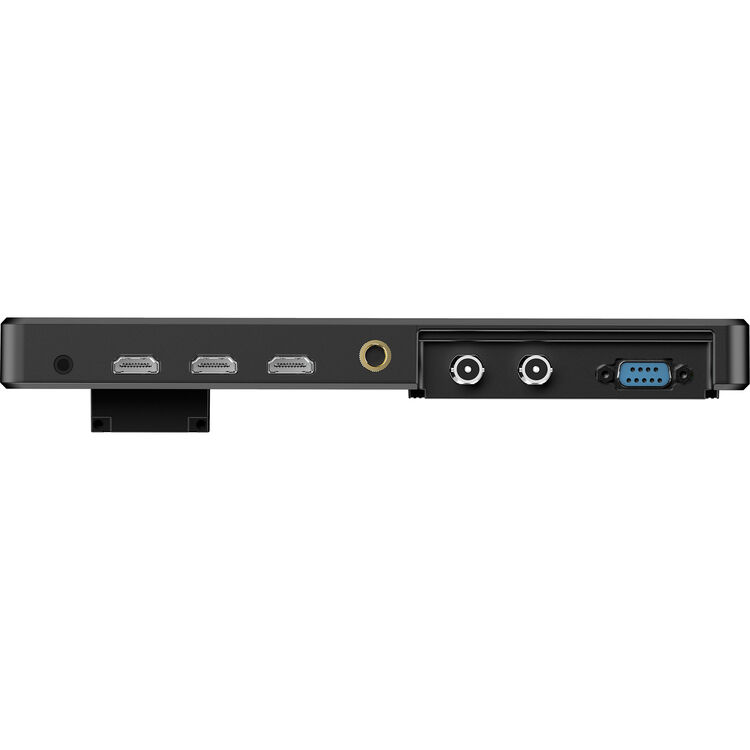

With both 3G-SDI (BNC) and HDMI inputs and loop-through outputs, the LUT 11S is compatible with a variety of cameras and supports up to DCI 4K60 HDMI and DCI 2K60 SDI video input.

10.1″ Professional HDMI Camera Monitor

Use this 10.1″ 1920 x 1200 Full HD panel and multiple color gamuts such as DCIP3 to display your stills and monitoring content at superior color fidelity, providing more space for post color correction. The wide 170º viewing angle makes it easy for multiple members of the crew to watch at the same time.

Multiple Color Gamuts

The monitor supports REC709, DCIP3, and BT2020 color gamuts.

Daylight Viewable

With the support of 2000 cd/m² ultra-high brightness, this monitor can be used for outdoor viewing, enabling you to shoot without a sunshade.

Auto Dimming

An ambient light sensor that can automatically adjust the monitor brightness to match your filming environment.

Intuitive UI

A flexible, updated UI menu with iconized software functions provides convenience and speed.

Custom Shortcut Keys

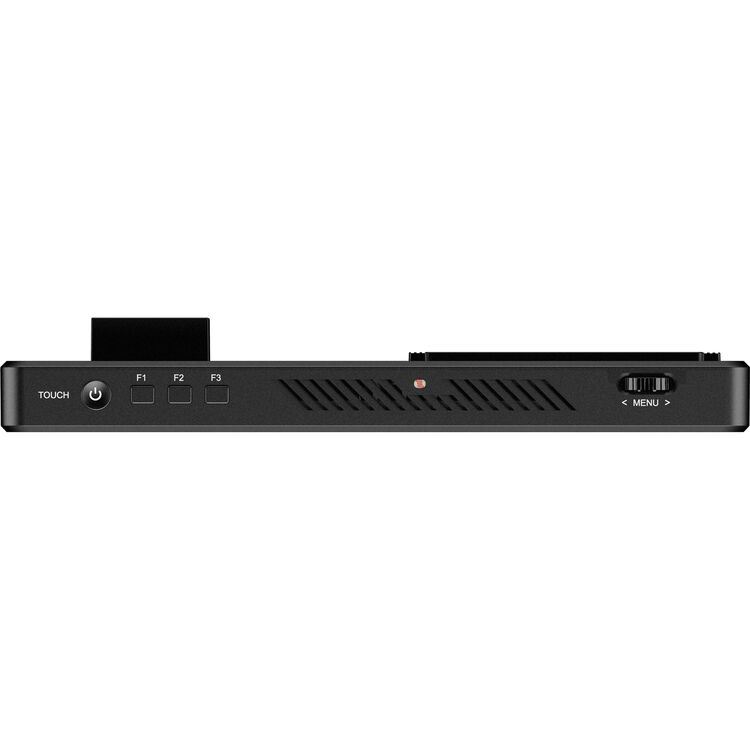

There are three custom shortcut buttons on top of the monitor for shortcut functions to quickly call up functions during the shooting process.

Full Touchscreen Design

The touchscreen LCD user interface provides incredible control. You can use simple tap and swipe gestures for the important monitoring functions without buttons. Plus, you can also operate it via the scroll wheel key.

Mounting Design

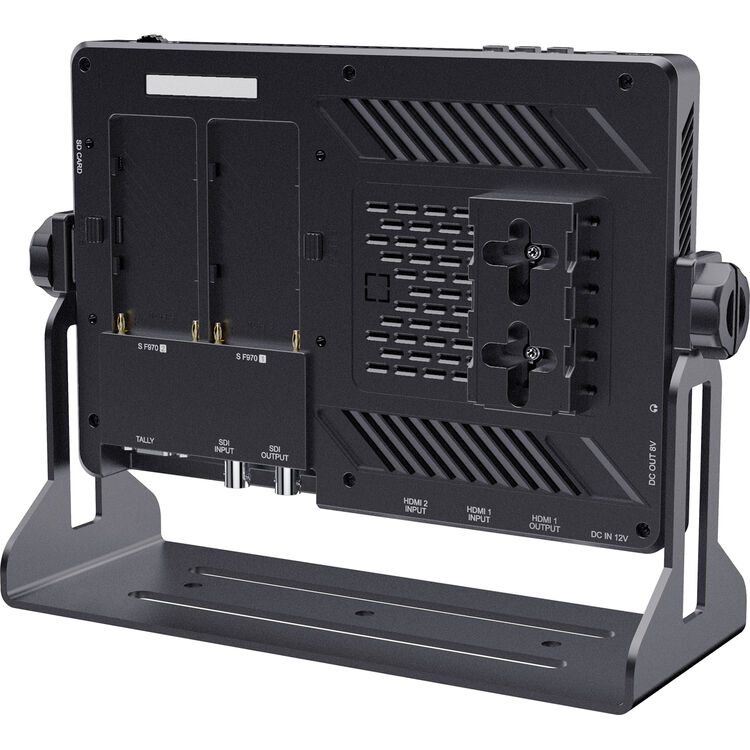

The back features a removable mounting area for external equipment. It has two cross slots, so you can adjust the position of the external device by loosening the screws. When you don’t need the kit, you can loosen the screws to remove it.

Smart Tools

The flexible OS is packed with an extensive suite of scopes, all one touch away and simple to use. The Video OS includes tools for focus, framing, and exposure (waveform, RGB parade, vectorscope, RGB histogram, histogram, embedded audio, focus peaking, zoom, zebra, false color, safe frames, etc.), a flexible 3D LUT implementation (use built-in LOG to Rec.709 video or upload .cube files), and options for anamorphic de-squeeze monitoring.

3D LUT Support

The LUT loading function makes color calibration easier and more intuitive. You could use a built-in LOG or upload .cube files. The monitor allows you to load up to 50 custom LUTs, looks, or profiles at any time via the SD card slot and instantly select between them.

Power Options

Accepts 12 VDC/3A input power and provides an 8VDC auxiliary power output, enabling shooters to power select cameras. With an optional battery adapter cable, you can extend the monitor’s runtime. There is a dual L-series battery plate on the back of the monitor that can run the monitor for up to four hours using two NP-F970 batteries.

Accurate Waveform Monitoring

When you need to analyze image quality more accurately than simply looking at the picture, use the monitor’s built-in waveform monitoring. Choose from waveform (RGB Parade, YUV Parade, Y Parade), vector, histogram, audio phase, and level displays, and get broadcast accurate waveform monitoring that shows everything you need to know technically about your video and audio signals. The functions can be opened separately, and it also supports one button to open all scope modes.

Items Included

• FeelWorld 10.1″ 4K Ultra-Bright Touchscreen Monitor with Loop-Through HDMI & 3G-SDI
• Limited 1-Year Manufacturer Warranty
