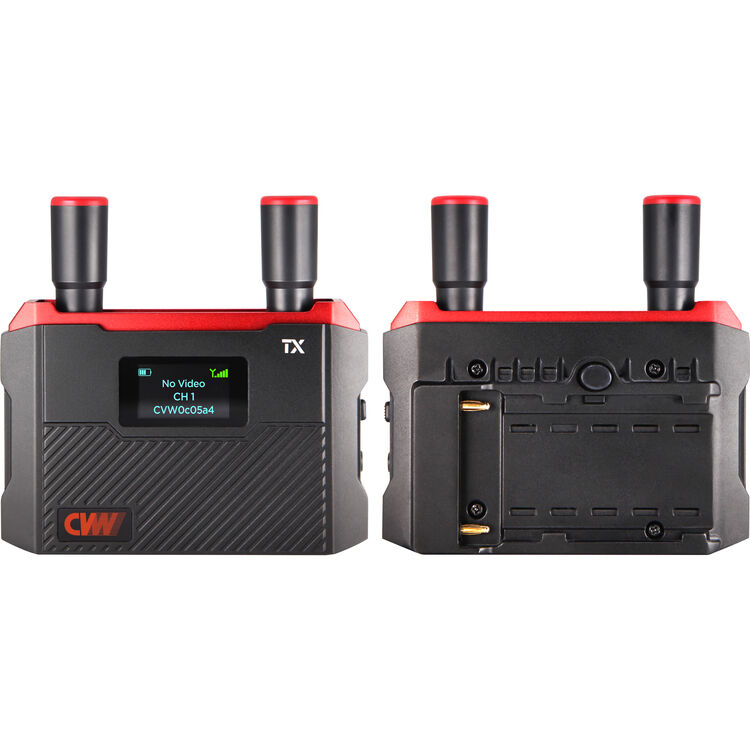

Crystal Video Technology Spectra Full HD HDMI Wireless Video Transmission System
Key Features
- Transmitter and Receiver Set
- 1148' Line-of-Sight Transmission
- Supports up to 1080p60 Video
- USB-C/UVC Output to Stream via Computer
- H.264 Video, 80 ms Latency
- HDMI Input and Output
- 5 GHz Range, Smart Channel Scanning
- L-Series Battery Plate
Monitor your camera’s image from a distance with the Spectra Full HD HDMI Wireless Video Transmission System from Crystal Video Technology. The system includes a transmitter and a receiver that allow you to wirelessly transmit HDMI video from your camera to a monitor up to 1148′ away. It supports up to 1080p60 H.265 compressed video with only 80 ms latency.
Long Wireless Range
A 1150′ coverage range is suitable for many live streaming or shooting scenarios, including outdoor events, sports, concerts, and other situations requiring long distance camera setups.
High Resolution Transmission
The efficient channel scanning function allows you to keep connection with your systems despite any interference with a minimal 80 ms latency over the free 5.1 to 5.8 GHz frequency range.
The set transmits up to 1080p60 full HD video using high-quality, low-latency H.265 codec for crisp, clean imagery on your remote monitor.
HDMI Support

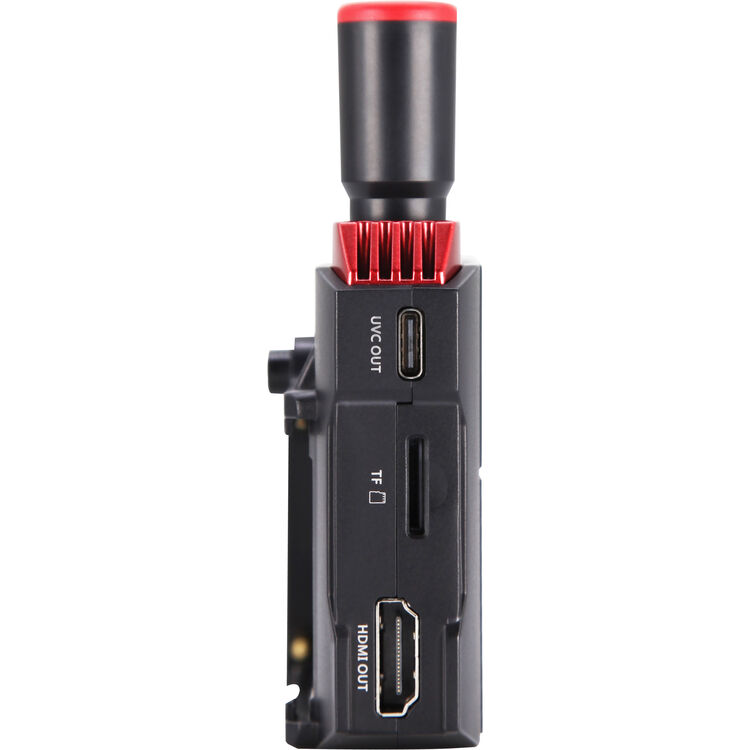

The transmitter features an HDMI input and loop output for local monitoring at your camera, and the receiver features HDMI output and USB-C/UVC output for use with a computer with monitoring or live streaming software. It can stream to popular live streaming/social media sites such as YouTube, TikTok, and other RTMP streaming platforms.
One-Button Recording
You can record .mp4 files during the shoot to save time in post-production, offers valuable backup and quick playback options.
Multiple Receivers
The transmitter can simultaneously transmit to up to two receivers.
Multiple Power Options

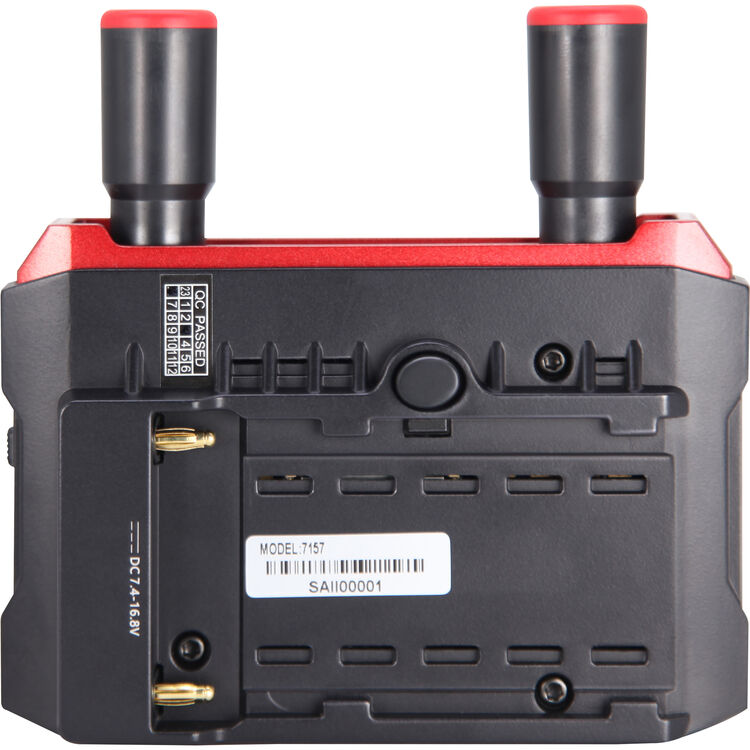

The units can be powered using an optional L-series battery using the built-in battery plate on each. It can also be powered using an optional power adapter or by using a USB-C power source. It can operate for up to 12 hours with an NP-F970-type battery.
Additional Design Features
The compact units feature a fanless design, allowing them to stay cool in warm environments while also staying quiet to prevent disruption with audio. They feature a rugged aluminum chassis to withstand the rigors of production.
Each unit features omnidirectional RP-SMA antennas that provide a strong signal up to 1150′ away. A bright LED display provides clear readout of your channels and settings.
Items Included
- Crystal Video Technology Spectra Full HD HDMI Wireless Video Transmission System (1120′)

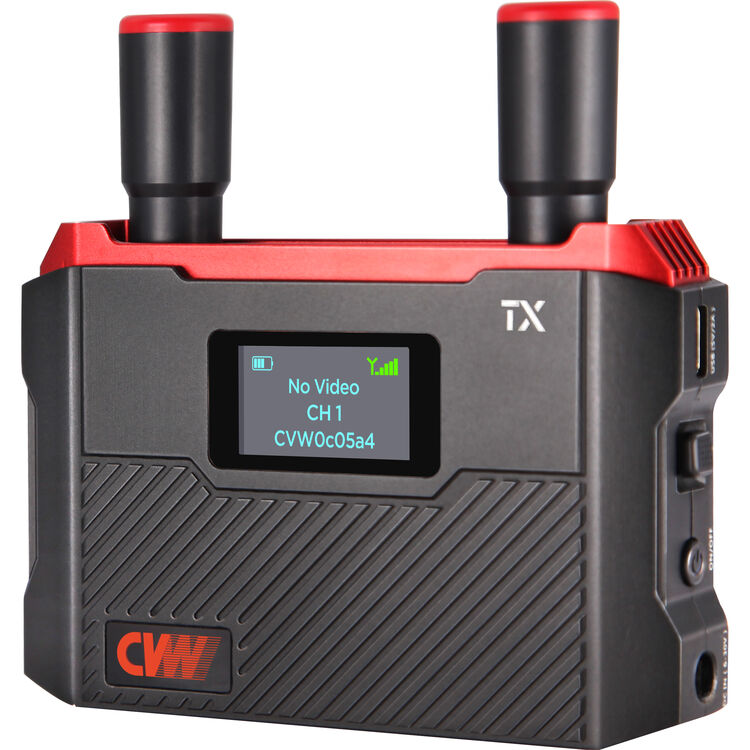

- Transmitter
- Receiver
- Limited 18-Month Manufacturer Warranty
| ITEM | Transmitters: 7157 Receiver: 3157 |
| Frequency | 5.1 – 5.9 GHz |
| Videc Resolution | 1080p 60/59.94, 1080p 50, 1080p 30/29.97, 1080p25, 1080p24/23.98 720p 60/59.94, 720p50 480p, 575P 1024×768, 1280×768, 1366×768, 1920×1080, 1280×720(Computer monitor resolution) |
| Audio Format | PCM |
| HDMl Protocol | HDMI 1.4 |
| Transmission Latency | 80ms |
| Video Codec | H.265 |
| Transmission Distance | 350 meters |
| Ports | Transmitters : HDMI input, HDMI loopout, DC-IN, TYPE-C, NP-F battery Receiver : |
| LCD Display | Channel, Battery Power, SSlD, Video Resolution, Signal Strength |
| Working Voltage | DC 6-30V |
| Power Consumption | TX: 3.5W, RX: 2.5W |
| Temperature | -10-45℃,storage, temperature:-40-60℃ |
| Product Size | 100x65x22mm |
