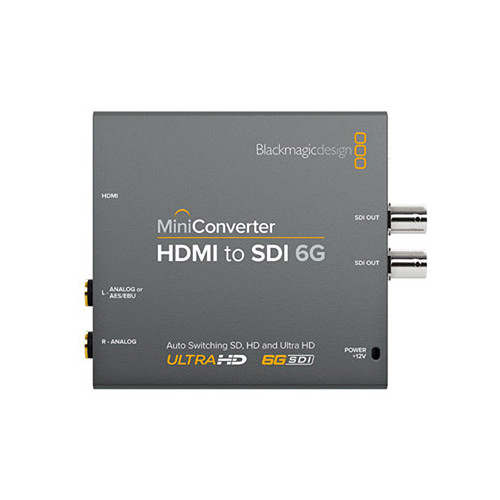

Blackmagic Design Mini Converter HDMI to SDI 6G
Key Features
- 4K HDMI Input
- 2 x 6G-SDI Outputs
- Supports SD, HD, UHD 4K & DCI 4K Signals
- Automatic Input Signal Detection
- 24-Bit, 48 kHz Audio
- Analog & AES-EBU Digital Audio Inputs
- Embeds Audio Into SDI Output
- Settings via Mini Switches or Software
- USB 2.0 Port for Firmware Updates
- 12V Universal Power Supply Included
The Blackmagic Design Mini Converter HDMI to SDI 6G converts HDMI to SD, HD, 3G, or 6G-SDI in resolutions up to DCI 4K (4096 x 2160) at 24p and UHD 4K (3840 x 2160) up to 30p. This is useful for connecting consumer devices that output HDMI signals with professional SDI video equipment. With a compact form factor and easy-to-use controls, the Mini Converter is ideal for a variety of broadcast, post-production, and professional AV applications.
Using 4K HDMI and 6G-SDI technologies, the Mini Converter automatically detects the input video format and instantly changes between SD, HD, and UHD/DCI 4K formats. The two 6G-SDI outputs also support SD and HD-SDI signals for integration into existing workflows. Both 6G-SDI outputs send duplicate signals. Audio is embedded in the SDI output from either the HDMI input or from the two 1/4″ input jacks which support four channels of AES/EBU digital audio or two channels of analog audio.

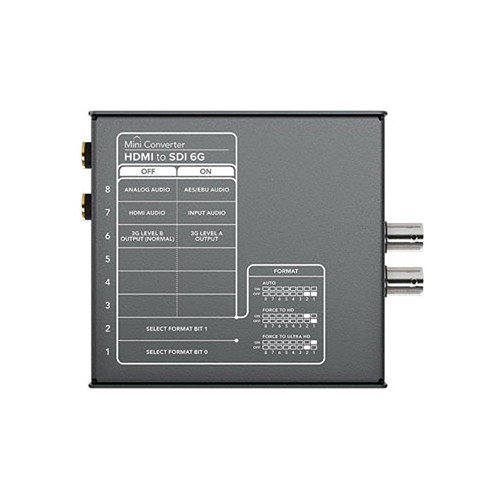

- The Mini Converter’s settings are controlled using the built-in switches or via USB using the control software for Max OS X or Windows computers, which can be downloaded on Blackmagic Design’s website. The USB port also enables the firmware to be updated.
- The device is powered by an included 12V power supply and includes international socket adapters.
Additional Features
- 4:2:2 Sampling and color precision
- HD scaler and SD down-conversion
- 24-bit, 48 kHz audio sampling
- Compliant with SMPTE 259M/292M/296M/372M/424M/425M Level A or B/SMPTE ST-2081, and ITU-R BT.656/BT.601 standards
Items Included
- Blackmagic Design HDMI to SDI 6G Mini Converter
- 12V Power Supply with International Socket Adapters
- Limited 3-Year Manufacturer Warranty
| Video Inputs | 1 x HDMI, Type A | |
| Video Output | 2 x 6G-SDI | |
| Multi-Rate Support | Auto detection of SD, HD, 3G, or 6G-SDI signals | |
| Reclocking | Yes | |
| Audio Input | Analog: 2 channels with 1 x 1/4″ jack per channel AES/EBU: 4 channels with 1 x 1/4″ jack | |
| Format Support | DCI 4K 24p UHD 4K HD SD | |
| SDI Compliance | SMPTE 259M/292M/296M/372M/424M/425M Level A or B/SMPTE ST-2081 ITU-R BT.656 and ITU-R BT.601 | |
| SDI Video Rates | Switchable between SD, HD, Ultra HD and DCI 4K | |
| SDI Video Sampling | 4:2:2 | |
| SDI Color Precision | 4:2:2 | |
| SDI Color Space | YUV | |
| SDI Audio Sampling | 24-bit, 48 kHz | |
| SDI Auto Switching | Automatically detects SD, HD, or 6G-SDI | |
| HDMI Format Support | UHD 4K 3840 x 2160p: 30/29.97/25/24/23.98 HD SD | |
| HDMI Color Space | YUV and RGB | |
| HDMI Color Precision | 4:2:2 4:4:4 | |
| HDCP Compliance | No. HDMI input is unable to capture from copy-protected HDMI sources | |
| Format Conversion | HD down-conversion | |
| Settings Control | Mini switches or USB software | |
| Firmware Upgradeable | Via USB | |
| Power Supply | 12 VDC | |
| Power Consumption | 4.44 W | |
| Operational Voltage Range | 12 to 31 VDC | |
| Operating Temperature | 32 to 104°F / 0 to 40 °C | |
| Storage Temperature | -4 to 113°F / -20 to 45 °C | |
| Relative Humidity | 0 to 90% non-condensing | |
| Dimensions | 4.49 x 3.63 x 0.90″ / 11.40 x 9.22 x 2.29 cm | |
| Weight | 8.6 oz / 243.8 g |
Packaging Info
| Package Weight | 1.015 lb |
| Box Dimensions (LxWxH) | 6.4 x 6.2 x 2.6″ |
