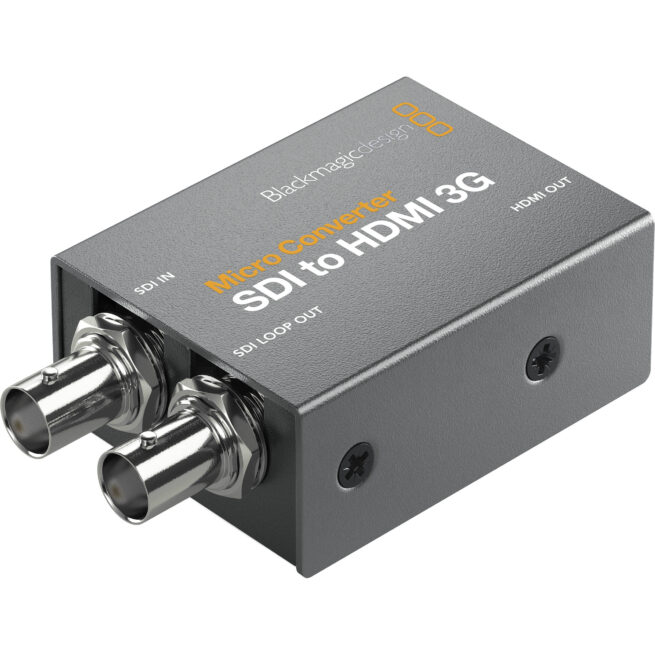

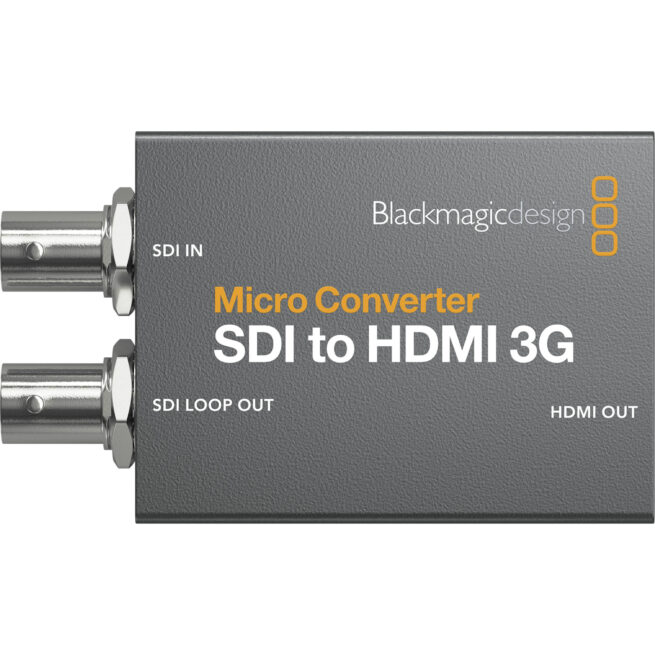

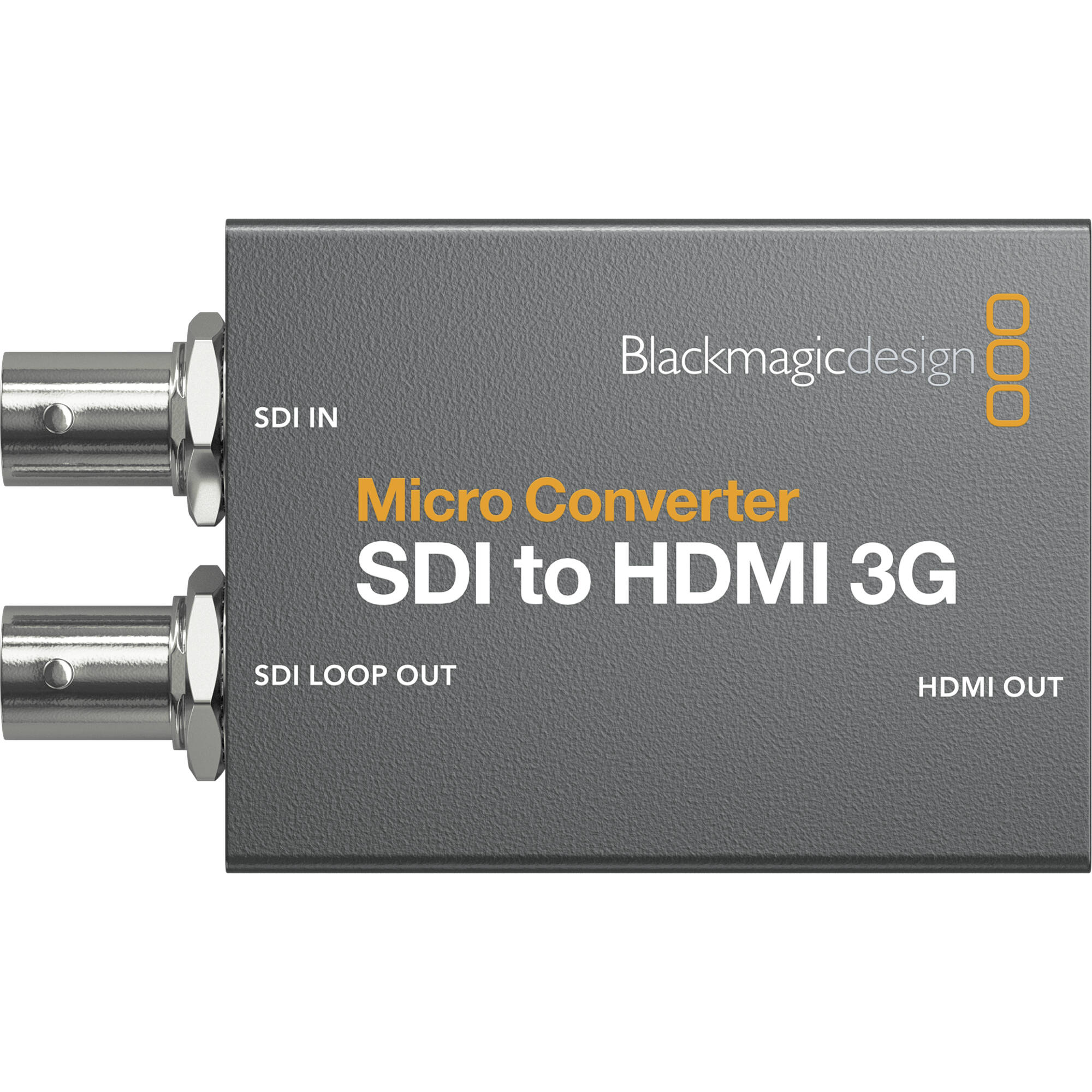

Blackmagic Design Micro Converter SDI to HDMI 3G (with Power Supply)
Key Features
- 1x SD/HD/3G-SDI Input & 1 x Loop Output
- 1 x HDMI Type A Output
- DCI 2K SDI In/Out | 1080p60 HDMI Out
- AC Power Supply & Socket Adapters
- 3D LUT for Calibrating or Loop Output
- SDI A/B Selection | USB Power
- Embedded Audio
- Compact, Rugged Design
- LED Video & Power Signal Indicators
Super compact and rugged, the Micro Converter SDI to HDMI 3G from Blackmagic Design enables you to use HDMI-input monitors and televisions for production monitoring. This compact converter has one SD/HD/3G-SDI input, one HDMI output, and one SD/HD/3G-SDI loop output. It includes a 17-point 3D LUT that can be used to calibrate HDMI- or SDI-input monitors and it can output a LUT for viewing via the SDI loop output. The Micro Converter SDI to HDMI 3G also features automatic SD, HD, and Level A and B SDI detection and support for a wide range of pro broadcast resolutions including cine-style 48 fps.
This pocket-sized converter features a sturdy metal housing with power and signal LED status indicators and rugged connector interfaces. A USB Type-C port enables the SDI to HDMI 3G converter to easily connect to and be powered by large-screen monitors, laptops, desktop computers, or projectors. You can also power this converter using the included 100-240 VAC power supply, complete with four international socket adapters.
Features
HDMI & SDI Outputs
- One SD/HD/3G-SDI input
- One HDMI output and one SD/HD/3G-SDI loop output
Compact, Rugged Design
- Robust metal housing and rugged connectors

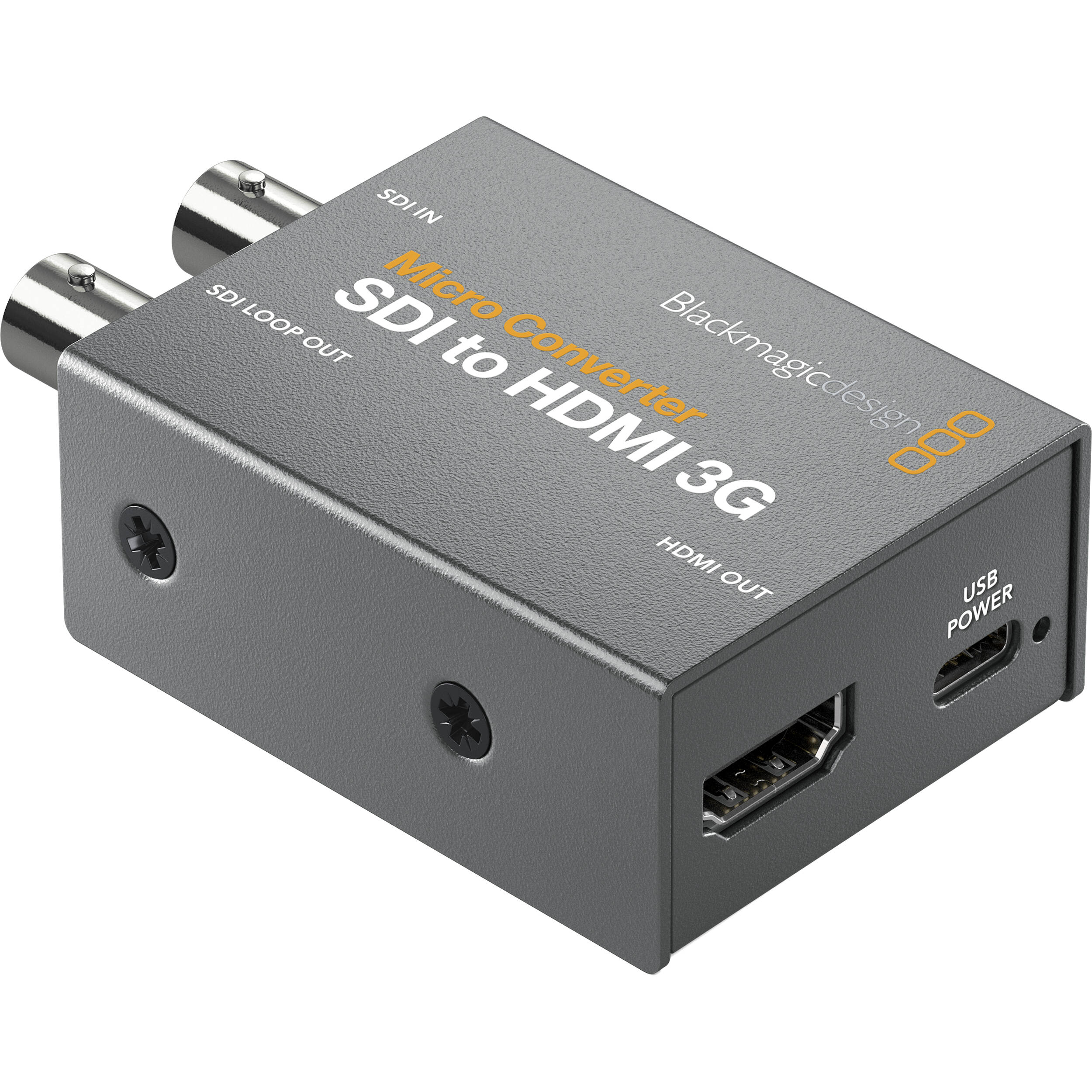

- USB Type-C port for powering via a compatible component like a monitor or laptop
- Updatable via the USB Type-C port and your Mac or PC
3D LUT Support
- Supports a 7-point 3D LUT for color calibrating your monitor, television, or projector
- Outputs LUT for monitoring via SDI loop output
Wider Resolution Support
- SDI support up to DCI 2Kp60
- HDMI support up to 1080p60
Embedded Audio
- Supports embedded HDMI input and embedded SDI output
LED Indicators
- LED indicators for video and power signals
Versatile Power Options
- Power from a monitor, laptop, or other component using the USB Type-C port
- Includes a 100-240 AC power supply with four socket adapters
Items Included
- Blackmagic Design Micro Converter SDI to HDMI 3G (with Power Supply)

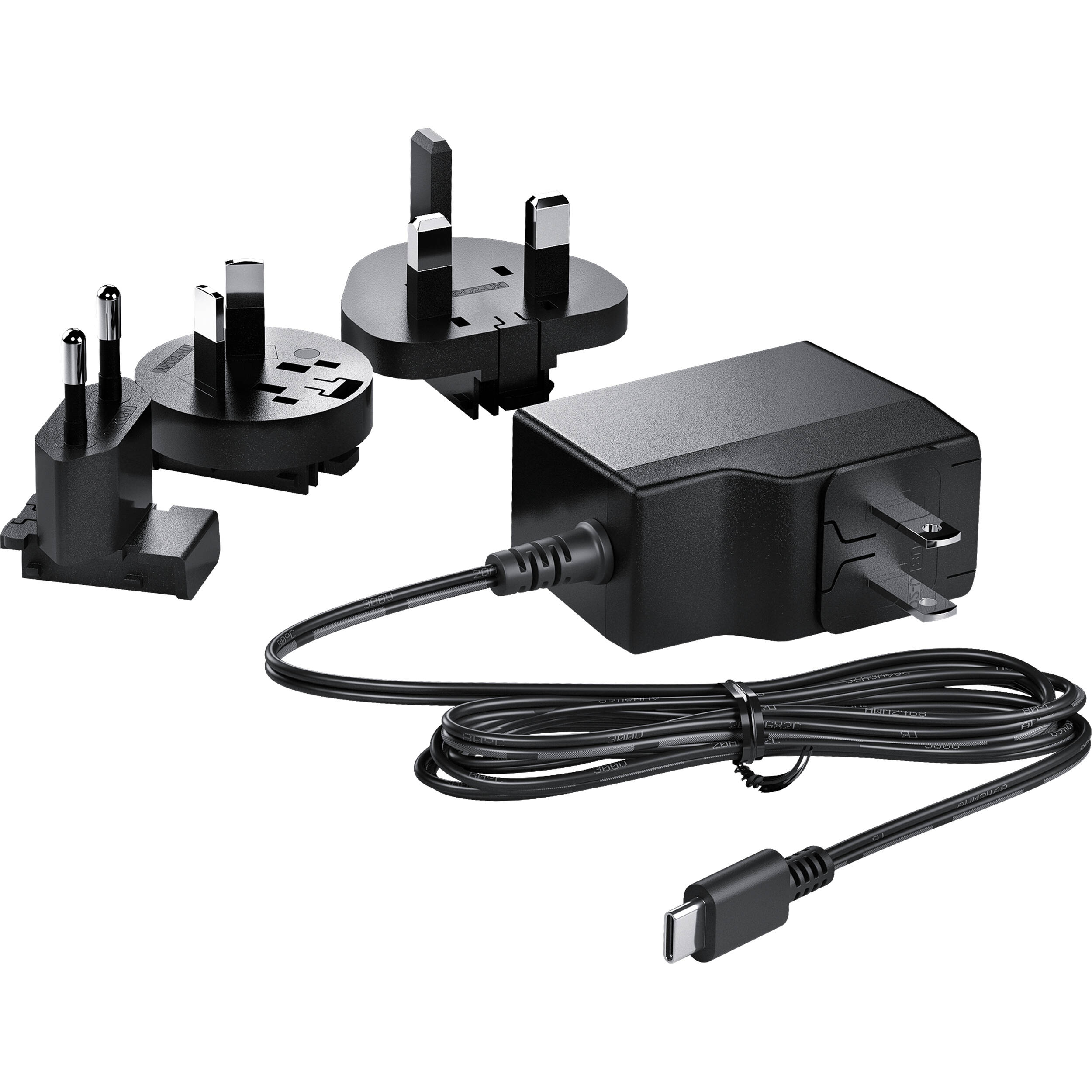

- 100-240 VAC Power Supply
- 4 x Socket Adapter
- Limited 3-Year Warranty
Inputs/Outputs
| Video I/O | Input 1x BNC (3G-SDI) Output 1x BNC (3G-SDI) (Loop Output) 1x HDMI 2.0 |
| Other I/O | Input/Output 1x USB-C |
| Expansion Slots | No |
Format Support
| Video Resolution | BNC Input (8/10-Bit 4:2:2 RGB, YUV) 2048 x 1080 at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 2048 x 1080PsF at 25/29.97/30 fps 1920 x 1080p at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1920 x 1080PsF at 25/29.97/30 fps 1920 x 1080i at 50/59.94/60 fps 1280 x 720 at 50/59.94/60 fps 768 x 576i at 50 fps 720 x 480i at 59.94 fps SDI Output 2048 x 1080 at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 2048 x 1080PsF at 25/29.97/30 fps 1920 x 1080p at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1920 x 1080PsF at 25/29.97/30 fps 1920 x 1080i at 50/59.94/60 fps 1280 x 720 at 50/59.94/60 fps 768 x 576i at 25 fps 720 x 480i at 29.97 fps HDMI Output (4:2:2 YUV) 1920 x 1080p at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1920 x 1080i at 50/59.94/60 fps 1280 x 720 at 50/59.94/60 fps 768 x 576i at 25 fps 720 x 480i at 29.97 fps |
| Embedded Audio | HDMI/SDI |
| Reclocking | No |
Standards
| Video Standard Compliance | SMPTE: 259M/292M/296M/424M/425M-A/425M-B |
| HDCP Support | Yes: Version 2.2 |
| Broadcast System Compatibility | NTSC, PAL |
Hardware
| Wireless | No |
| OS Compatibility | macOS 10.14.15 or Later Windows 10 |
Power
| Power I/O | 1x USB-C (4.4 to 5.2 VDC ) Input |
| Power Consumption | 2.5 W |
General
| Operating Conditions | 32 to 104°F / 0 to 40°C at 0 to 90% Humidity |
| Storage Conditions | -4 to 140°F / -20 to 60°C |
| Dimensions | 3.01 x 1.8 x 0.98″ / 76.45 x 45.7 x 24.89 mm |
| Weight | 5.29 oz / 150 g |
Packaging Info
| Package Weight | 0.84 lb |
| Box Dimensions (LxWxH) | 6.1 x 4.1 x 2.8″ |
