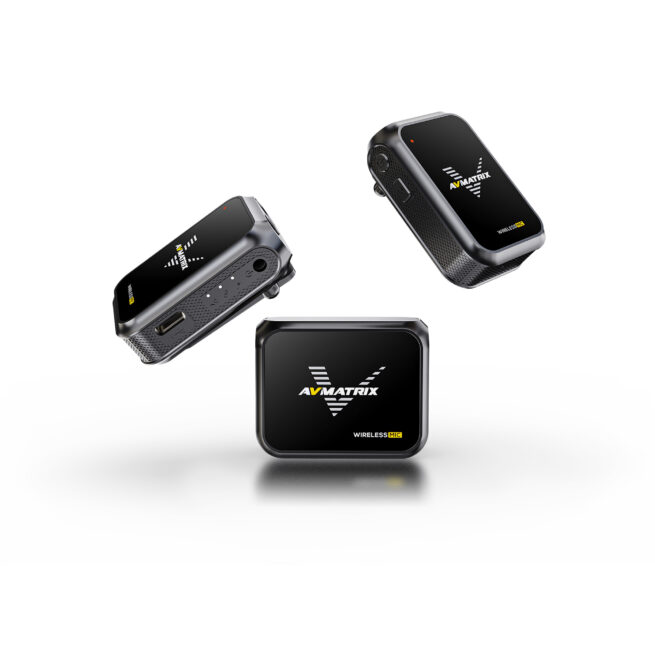

AVMATRIX WM12 2-Person Mini Wireless Microphone System
Key Features
- For Content Creation, Mobile Journalism
- 2-Person Shoots with Camera

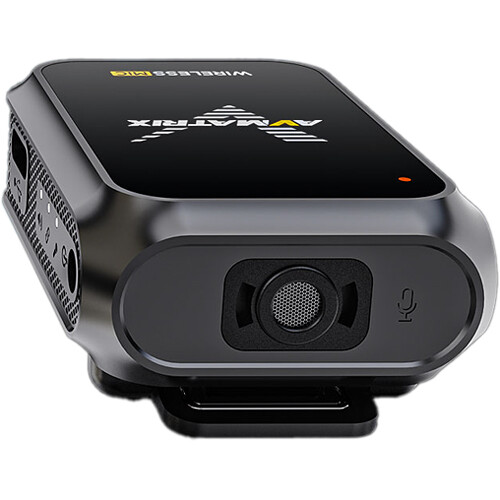

- 2 x Transmitters with Built-In Mics
- Dual-Channel Receiver
- 328.1' Transmission Distance
- Three-Stage Sensitivity Adjustment
- 3.5mm TRS and USB-C Outputs
- Built-In Batteries, 15-Hour Runtime
Record 2-person vlogs or interviews with the AVMATRIX WM12 2-Person Mini Wireless Microphone System using its two clip-on transmitters with built-in microphones and dual-channel receiver with 3.5mm TRS and USB-C connectors. Attach you transmitters to your talent’s lapel and mount your receiver to the cold shoe mount of your camera with the integrated belt clip. Use the included 3.5mm TRS and the 3.5mm TRS to USB-C audio cables to connect the receiver to your camera or your personal computer as a sound card input. Both the receiver and transmitters can communicate from up to 328.1′ away via 2.4 GHz frequency.

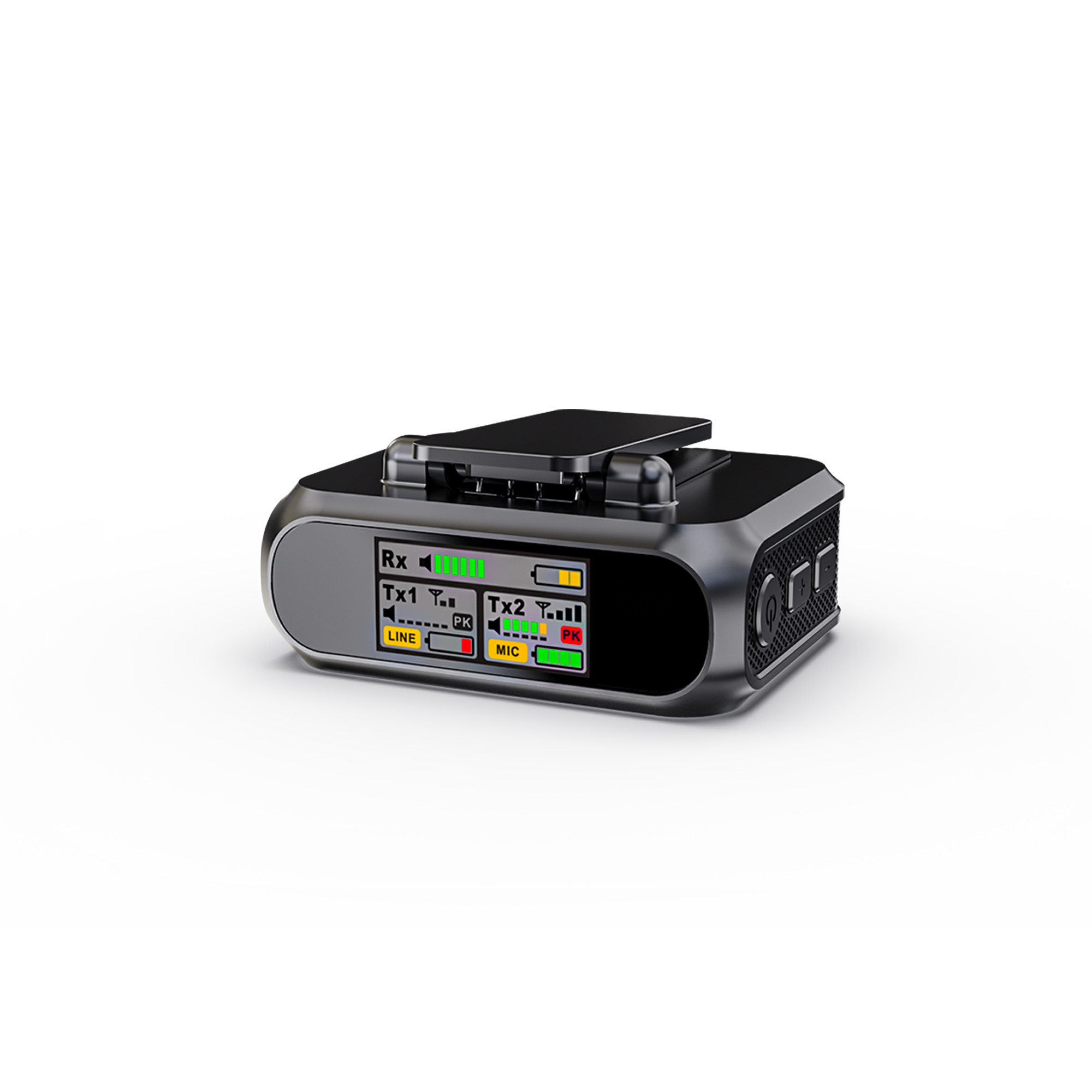

Onboard controls on the transmitter units allow you to toggle quick mute or select between three stages of sensitivity. Choose between low-, medium-, and high-sensitivity settings to tailor your recording to your environment. A 3.5mm TRS port on the transmitter allows you to incorporate a lavalier microphone for low-profile recording. Monitor the status of your transmitters and signal strength using the receiver’s TFT display. You can even insert headphones into a 3.5mm headphone port. Internal rechargeable batteries power the transmitter for 15 hours and the receiver for 4 hours, respectively. Recharge the components using the included 3-in-1 USB-C cable.

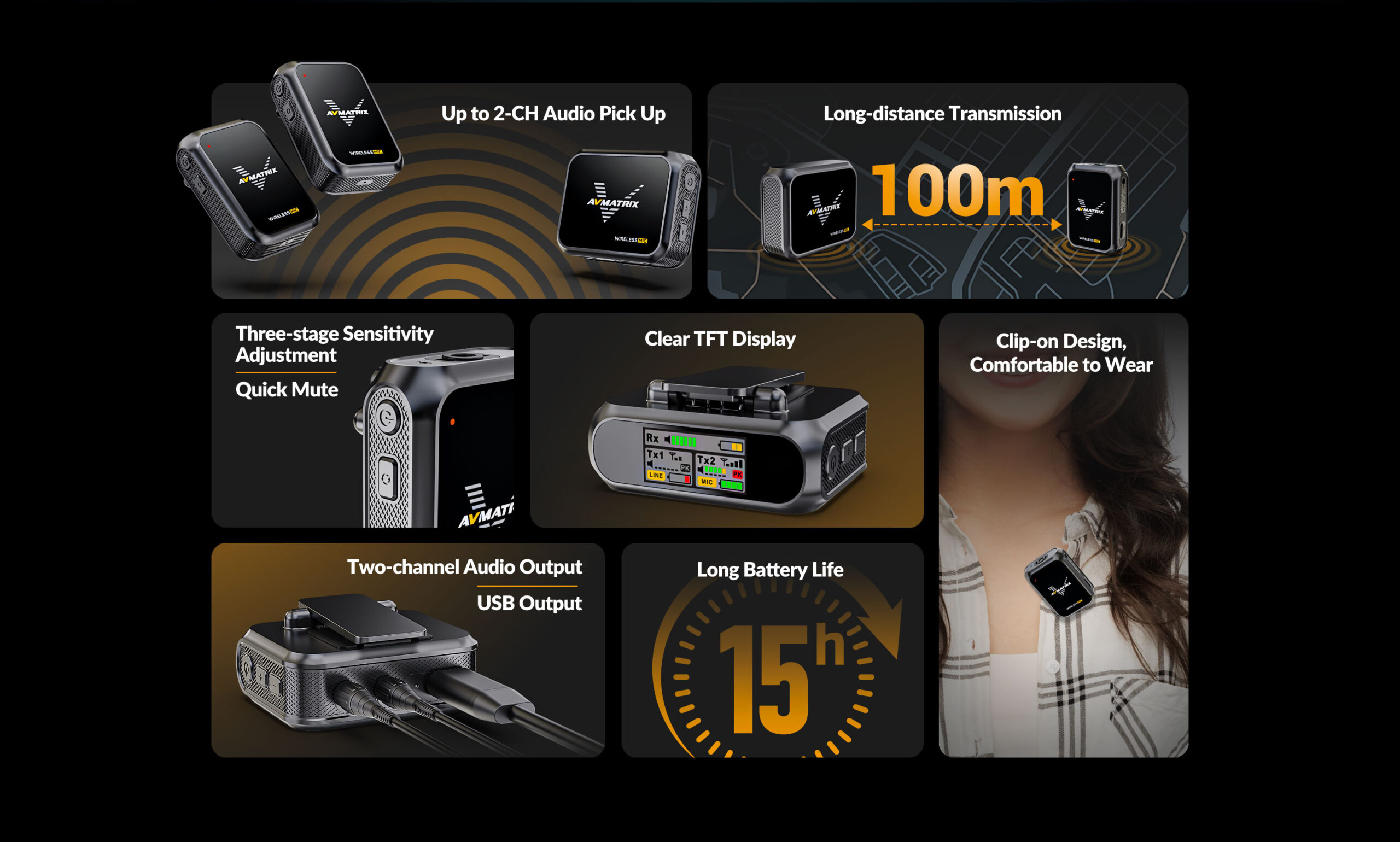

Features at a Glance
- 2.4 GHz frequency, 328.1′ transmission distance
- Dual-channel receiver with mono and stereo recording modes
- Three-stage sensitivity mode
- Onboard controls, TFT display
- 3.5mm TRS audio output port, USB-C port

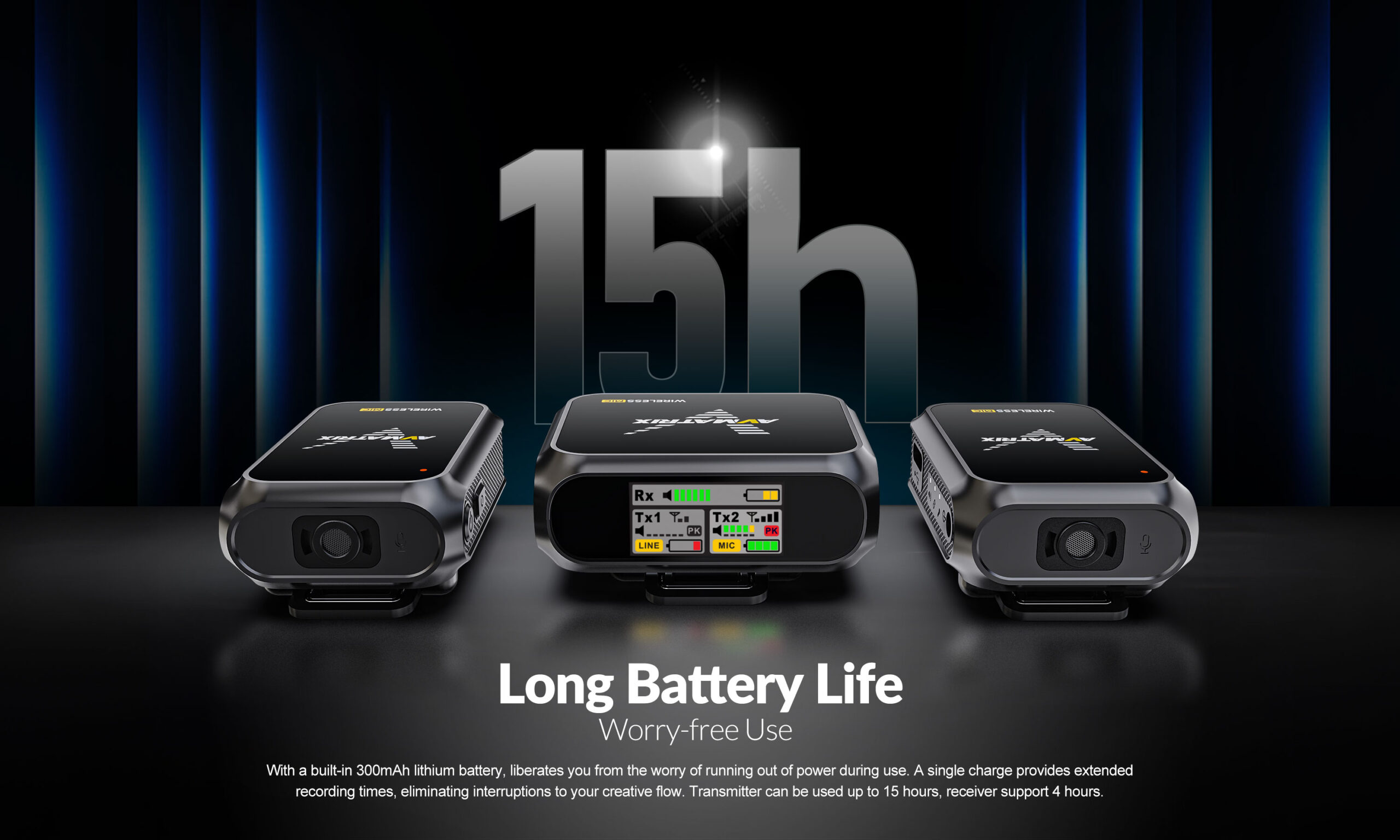

- 300mAh internal batteries, 15-hour transmitter runtime, 4-hour receiver runtime
- 3.5mm TRS cable, 3.5mm TRS to USB-C cable, 3-in-1 USB-C charging cable
Items Included
- AVMATRIX WM12 2-Person Mini Wireless Microphone System (2.4 GHz)
- 2 x Transmitter
- Receiver
- 3-in-1 Charging Cable

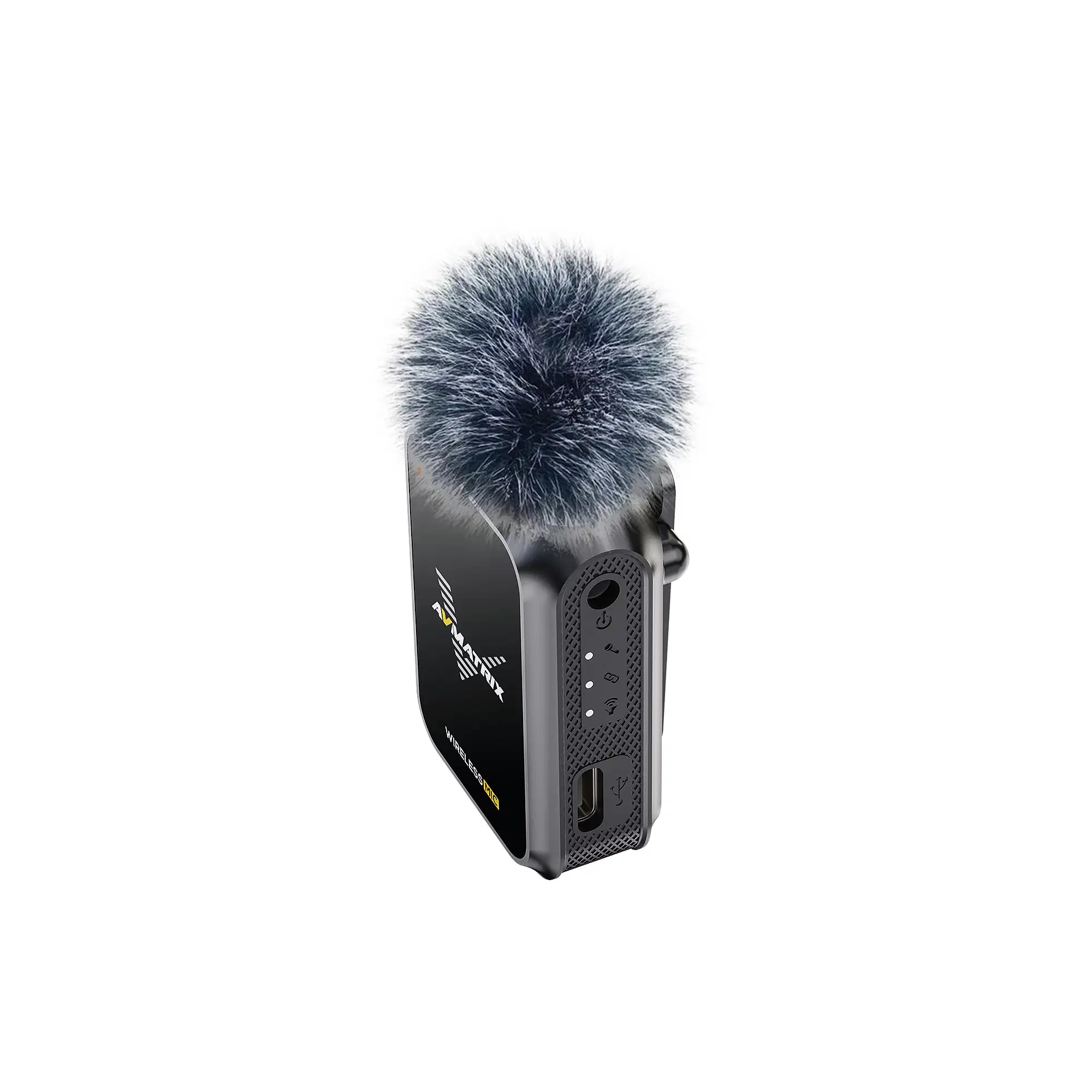

- Furry Windscreen
- 3.5mm TRS to USB-C Cable
- 3.5mm TRS Cable

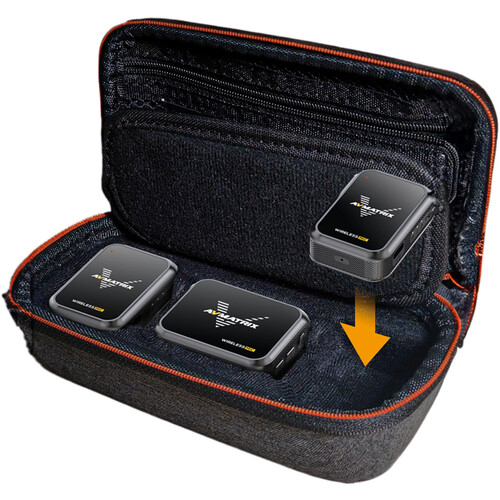

- Storage Bag
- Limited 3-Year Manufacturer Warranty

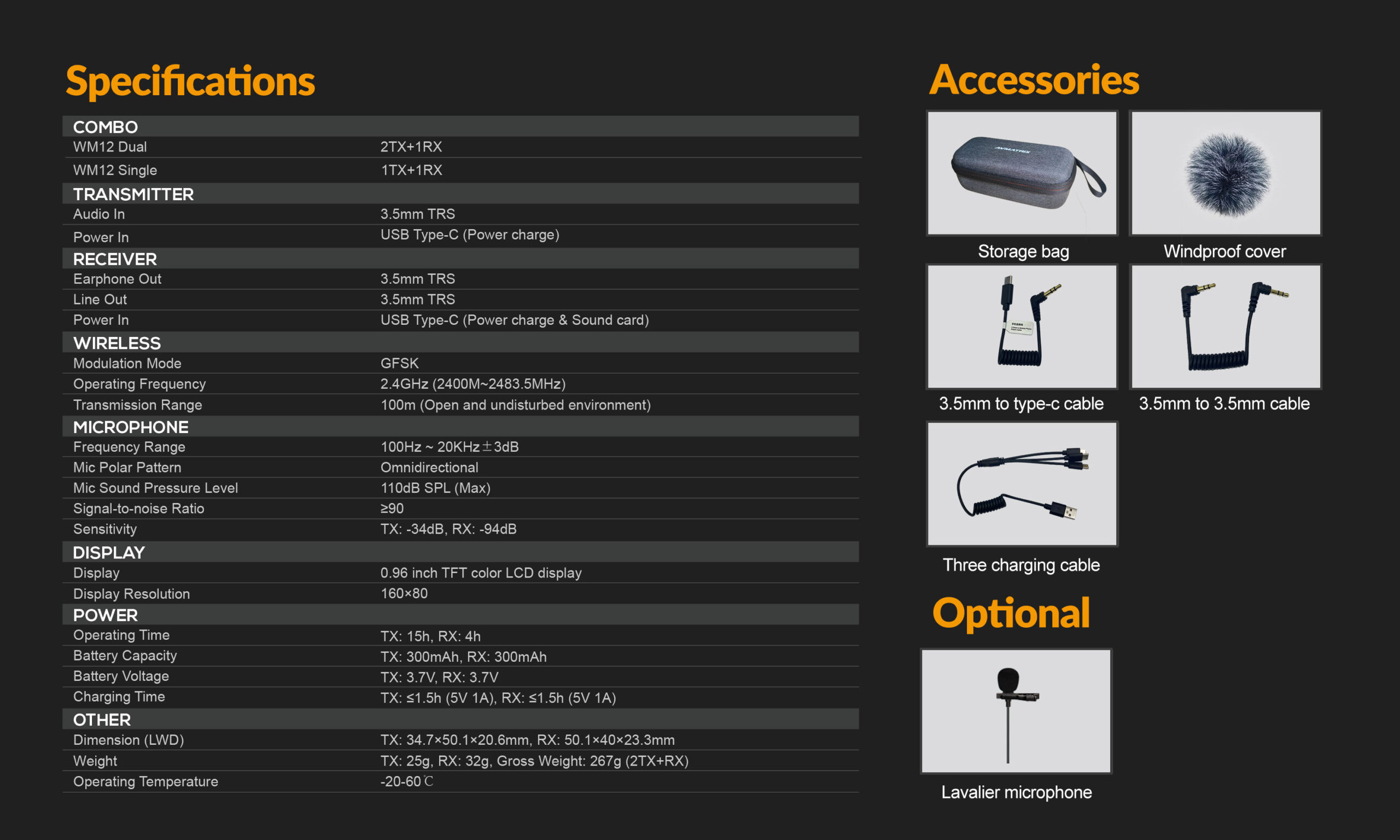

Key Specs
| Wireless Technology | Digital 2.4 GHz |
| Diversity | Non-Diversity |
| Max Operating Range | 328.1′ / 100 m |
| Receiver Type | 1x Bodypack |
| Number of Audio Channels | 2 |
| Included Transmitters | 2x Clip-On |
| Microphone Type | 2x Built-In (Clip-On Transmitter) |
| Included Charging Case | No |
System
| Wireless Technology | Digital 2.4 GHz |
| Diversity | Non-Diversity |
| RF Frequency Band | 2400 to 2483.5 MHz |
| Max Operating Range | 328.1′ / 100 m |
| Max Transmitters per Band | 2 |
| Encryption | No |
| Built-In Recorder | No |
| Timecode Support | No |
| Mobile App Compatible | No |
Receiver
| Receiver Type | 1x Bodypack |
| Mounting Options | Belt Clip (with Included Hardware) |
| Antenna | 1x Internal |
| Number of Audio Channels | 2 |
| Audio I/O | 1x 1/8″ / 3.5 mm TRS Unbalanced Line Output 1x 1/8″ / 3.5 mm TRS Headphone Output |
| Network I/O | No |
| USB/Lightning Connectivity | 1x USB-C Female |
| Frequency Response | 100 Hz to 20 kHz ±3 dB |
| Display | Backlit TFT LCD |
| Power Requirements | Battery |
Transmitters
| Included Transmitters | 2x Clip-On |
| Antenna | Internal |
| Input Level | Microphone |
| Audio I/O | 1x 1/8″ / 3.5 mm TRS Female Input |
| Bias/Plug-In & Phantom Power | Has Bias/Plug-In Power: Voltage is Unspecified No Phantom Support |
| USB I/O | 1x USB-C |
| Muting | Off/On Switch |
| Auto-Level/Gain | Yes |
| Frequency Response | 100 Hz to 20 Hz ±3 dB |
| Sync Method | 2.4 GHz QPSK |
| Display | Single-LED Indicators Only |
Microphones
| Microphone Type | 2x Built-In (Clip-On Transmitter) |
| Polar Pattern | Omnidirectional |
| Frequency Response | 100 Hz to 20 kHz |
| Maximum SPL | 110 dB |
| Sensitivity | -34 dB |
| Color | Black |
Power
| Receiver Battery Type | 1x Built-In Rechargeable – 300 mAh |
| Receiver Battery Life | 4 Hours |
| Transmitter Battery Type | 1x Built-In Rechargeable – 300 mAh |
| Transmitter Battery Life | 15 Hours |
| Battery Charging Time | 1.5 Hours |
| Included Charging Case | No |
| Input Power | 3.7 VDC |
Physical
| Environmental Resistance | No |

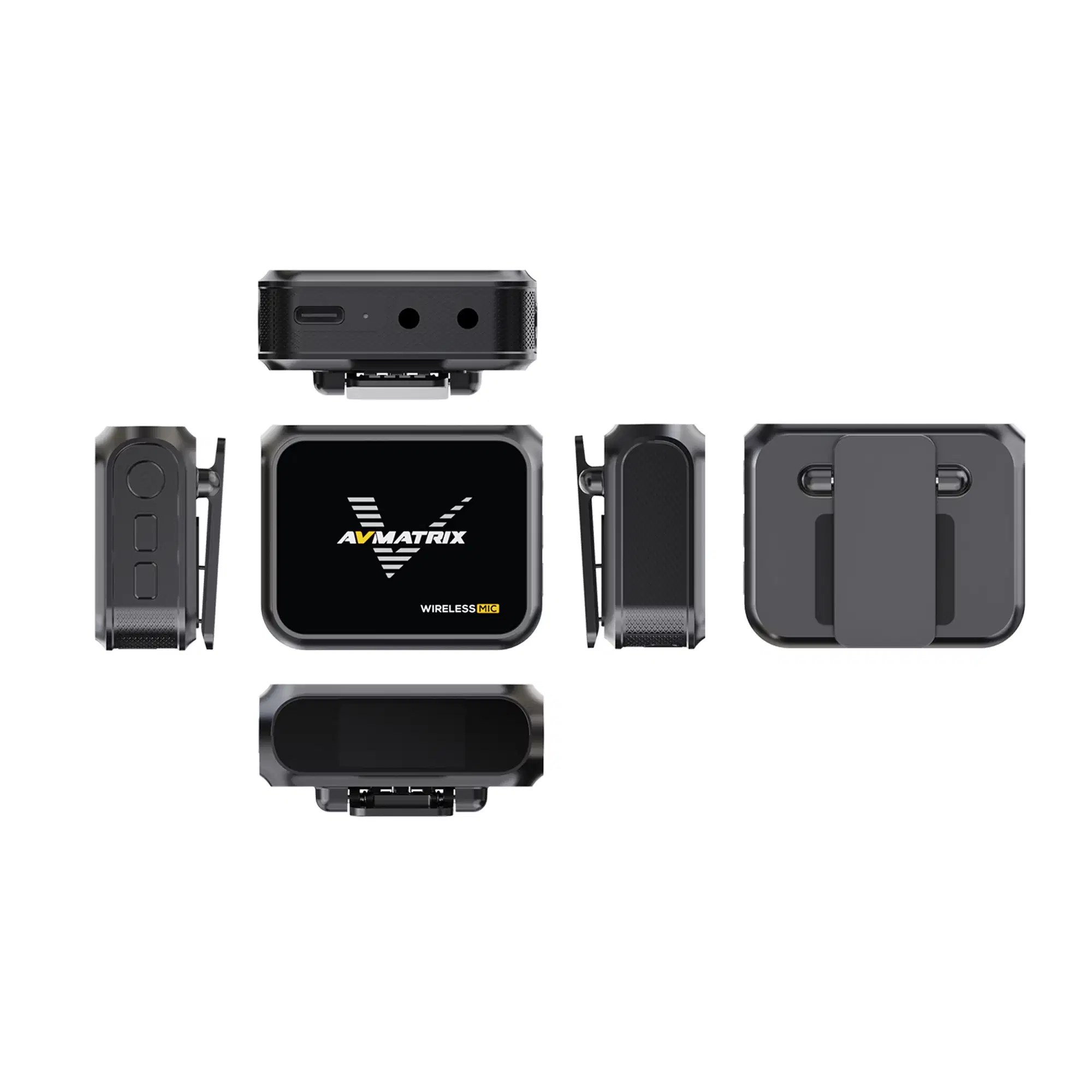

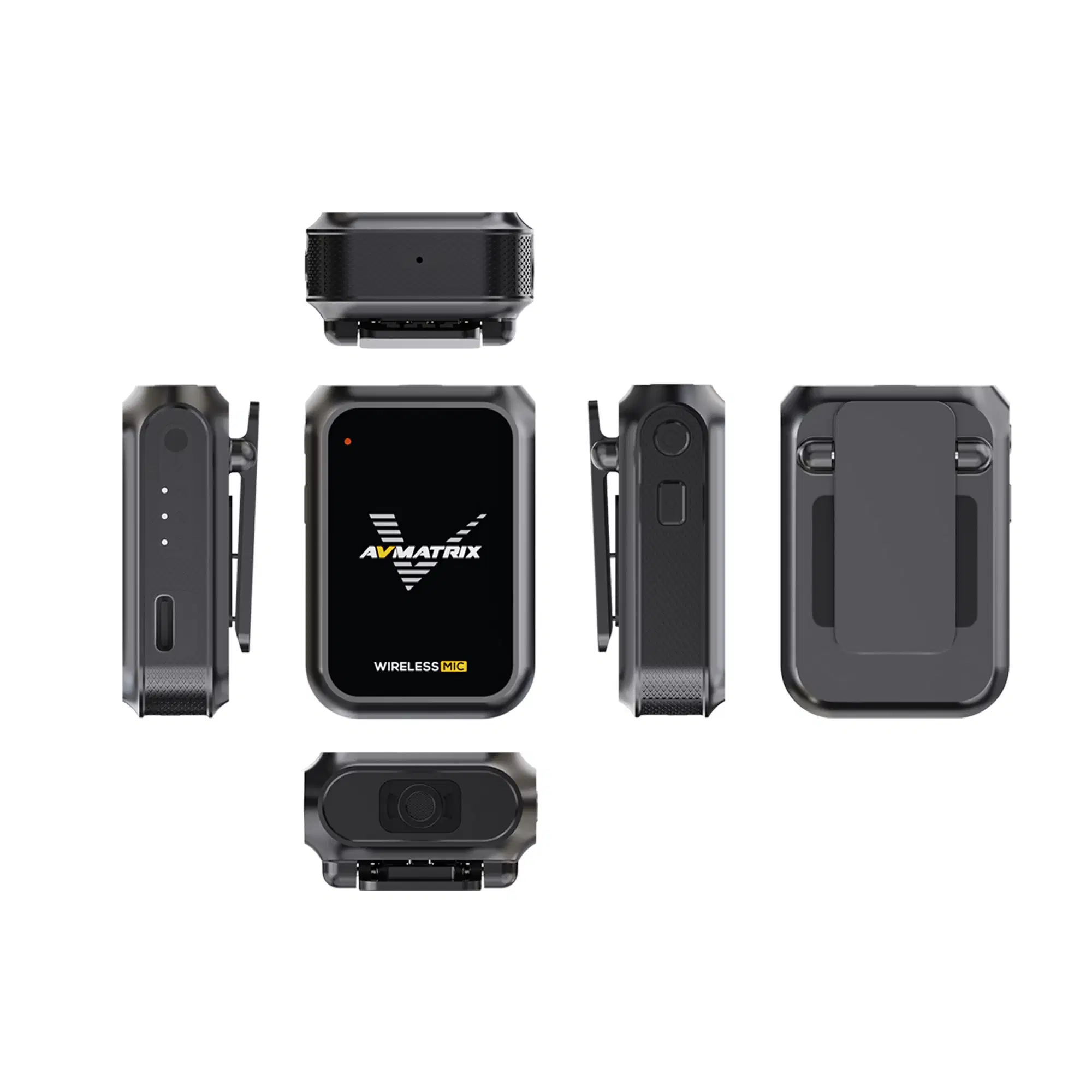

| Dimensions | Receiver: 2 x 1.6 x 0.9″ / 50.1 x 40 x 23.3 mm Transmitter: 2 x 1.4 x 0.8″ / 50.1 x 34.7 x 20.6 mm |
| Weight | Receiver: 1.1 oz / 32 g Transmitter: 0.9 oz / 25 g Microphone: Not Specified |
Packaging Info
| Package Weight | 0.585 lb |
| Box Dimensions (LxWxH) | 8 x 3.4 x 2.5″ |
