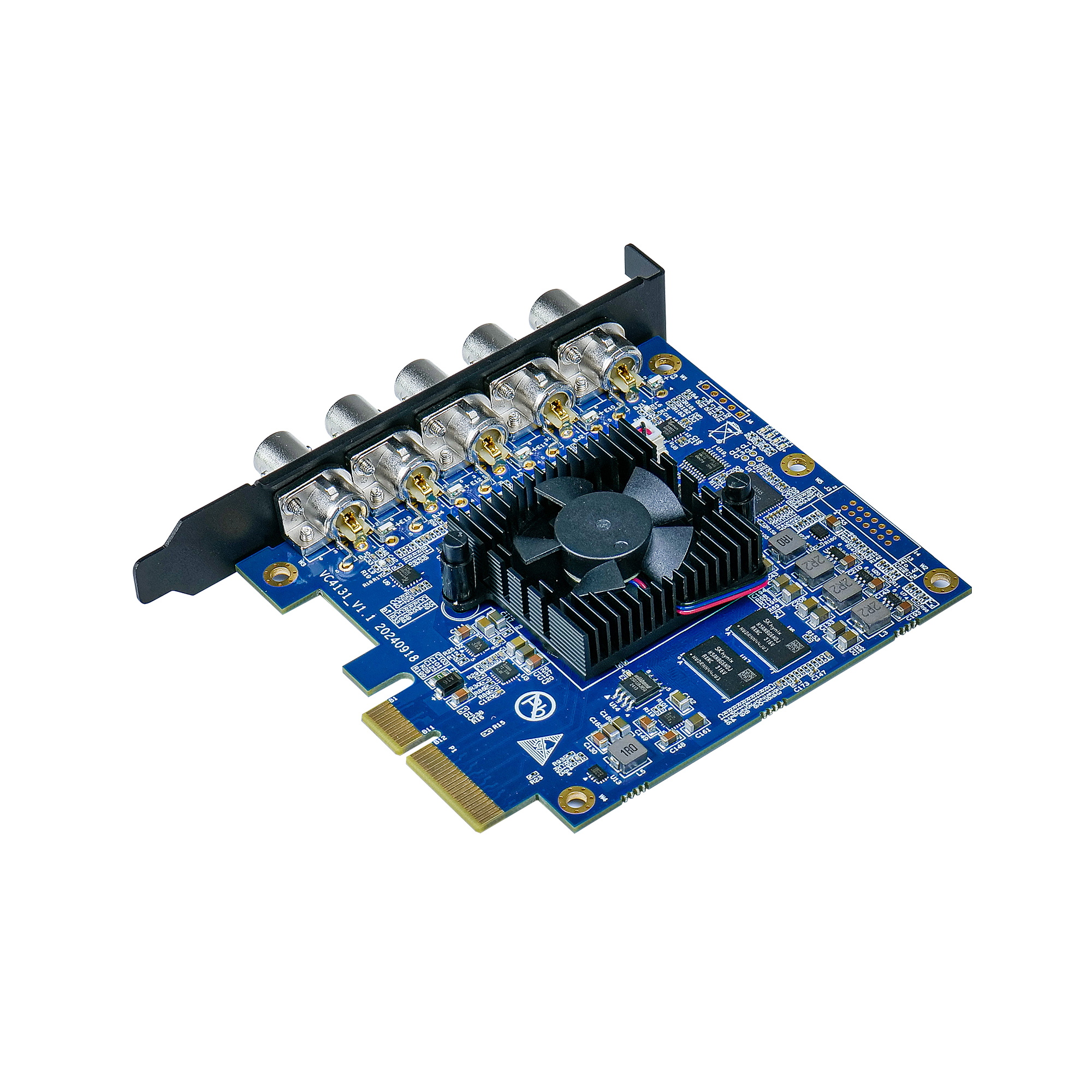

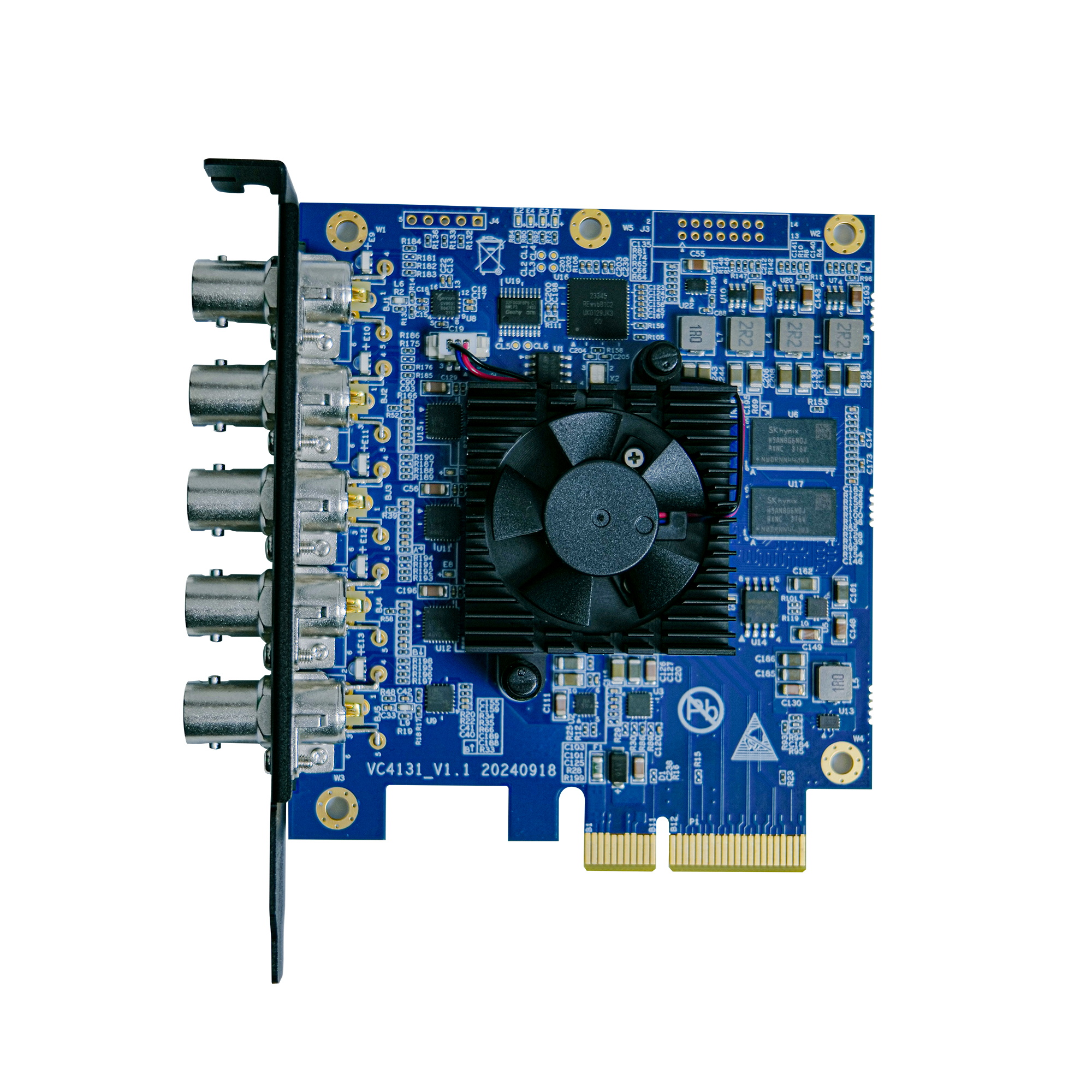

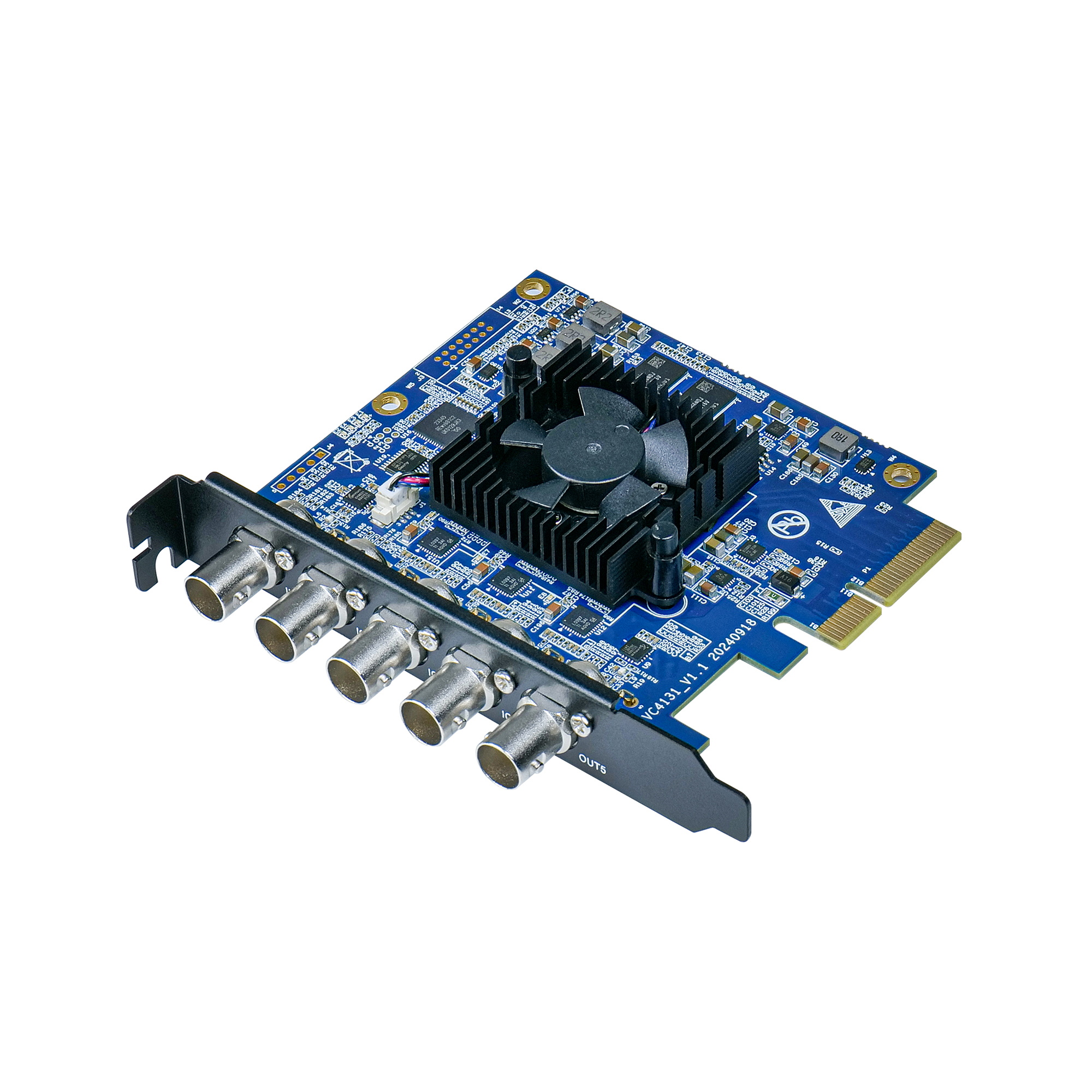

AVMATRIX VP51 5-Channel SDI PCIe Capture and Playback Card
Key Features
- Video Capture & Playback up to 1080p60
- 4-Lane PCIe Gen3 Interface
- Five 3G-SDI Ports for AV Input & Output
- 8-Bit YUV 4:2:2 Color Precision
- Compatible with Windows & Linux Systems
- Works with ZOOM, Teams, Twitch & More
- 24-Hour Continuous Operation
- Use Multiple Cards Simultaneously
AVMATRIX VP51 Overview
The AVMATRIX VP51 is a powerful 5-channel SDI PCIe capture and playback card engineered for high-performance HD video input and output, ensuring crisp visuals and ultralow latency across all major streaming platforms. Supporting resolutions up to 1080p60 and featuring one dedicated 3G-SDI input, one 3G-SDI output, and three 3G-SDI input/outputs, the card delivers broadcast-grade video with 8-bit YUV 4:2:2 color precision. It is compatible with both Windows and Linux systems, and sports a 4-lane PCIe form factor that allows easy installation.
Integrating with popular software like OBS, VMix, and Microsoft Teams, the VP51 supports simultaneous multi-card use, making it scalable for multi-channel workflows. From online livestreaming to professional video conferencing, the VP51 offers continuous 24-hour operation and expansive compatibility for modern AV environments.
AV Capture and Playback
- Five 3G-SDI ports (one dedicated input, one dedicated output, three input/outputs)
- Record and livestream in resolutions up to 1080p60
- 8-bit YUV 4:2:2 color precision
- 24-bit 48 kHz audio output
- Ultralow-latency performance
Compatibility
- Supports Windows 11/10/8/7 and Linux
- Works with OBS, VMix, ZOOM, Teams, Twitch, and more
- Compatible with gaming consoles, including XBOX, PS4, and Switch
- 4-Lane PCIe Generation 3 card for compact integration
- Supports simultaneous use of multiple cards
Items Included
- AVMATRIX VP51 5-Channel SDI PCIe Capture and Playback Card
- Limited 1-Year Manufacturer Warranty
PCIe Interface
| Host Interface | PCIe x4 Gen3 |
| Video Channels | 5-Channel SDI Capture & Playback |
| SDI Ports | 3G-SDI x 5 |
| SDI Configuration | 1 x SDI Input 1 x SDI Output 3 x SDI Input/Output |
Video Formats
| 3G-SDI Format | 1080p 60/59.94/50 |
| HD-SDI Format |
1080p 30/29.97/25/24/23.98 1080PsF 30/29.97/25/24 1080i 60/59.94/50 |
| SD-SDI Format | 525i 59.94 NTSC 625i 50 PAL |
| Maximum Video Resolution | 1920 x 1080 at 60fps |
| SDI Color Precision | YUV 4:2:2, 8-Bit |
| Color Space | REC 601 / REC 709 |
Audio
| Audio | Embedded SDI Audio |
| Audio Sample Rate | 48 kHz |
| Audio Bit Depth | 24-Bit |
Video Performance
| Video Capture | Up to 1080p60 |
| Video Playback | Up to 1080p60 |
| Latency | Ultra-Low Latency |
| Operation | Continuous 24-Hour Operation |
Software & Compatibility
| Operating Systems | Windows 11 / 10 / 8 / 7 Linux |
| Supported Software | OBS / vMix / Zoom / Microsoft Teams / Twitch |
| Multi-Card Support | Multiple VP51 Cards Can Be Used Simultaneously |
General
| PCIe Form Factor | PCIe x4 |
| Interface Type | PCIe Gen3 |
| Video Interface | 3G-SDI |
| Typical Applications | Live Streaming / Video Production / Video Conferencing / Broadcast |
