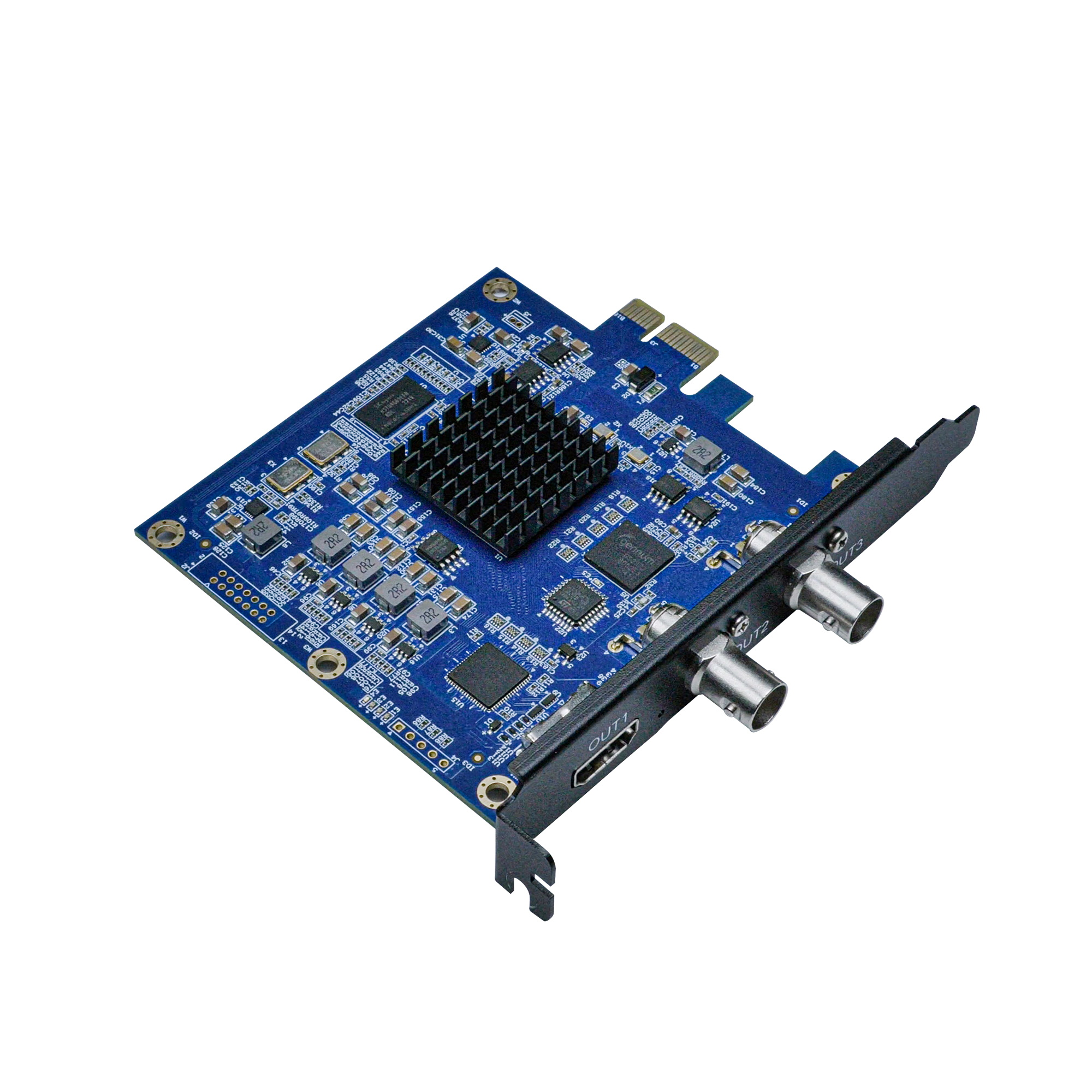

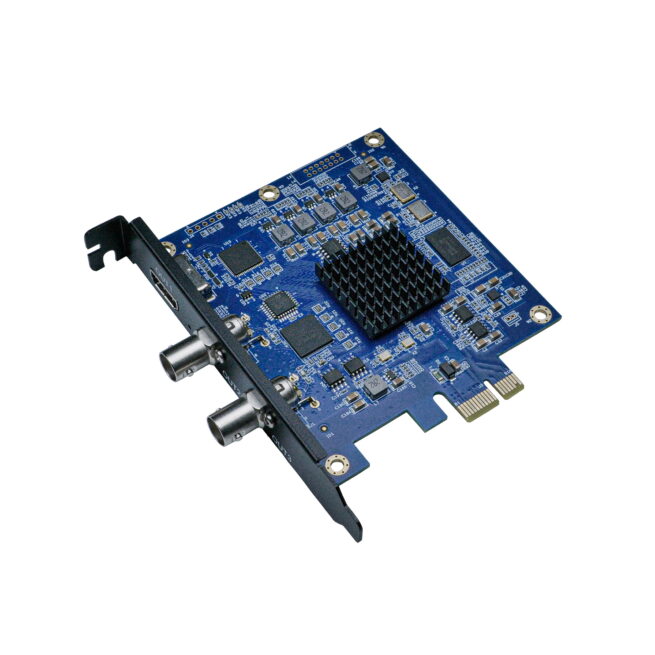

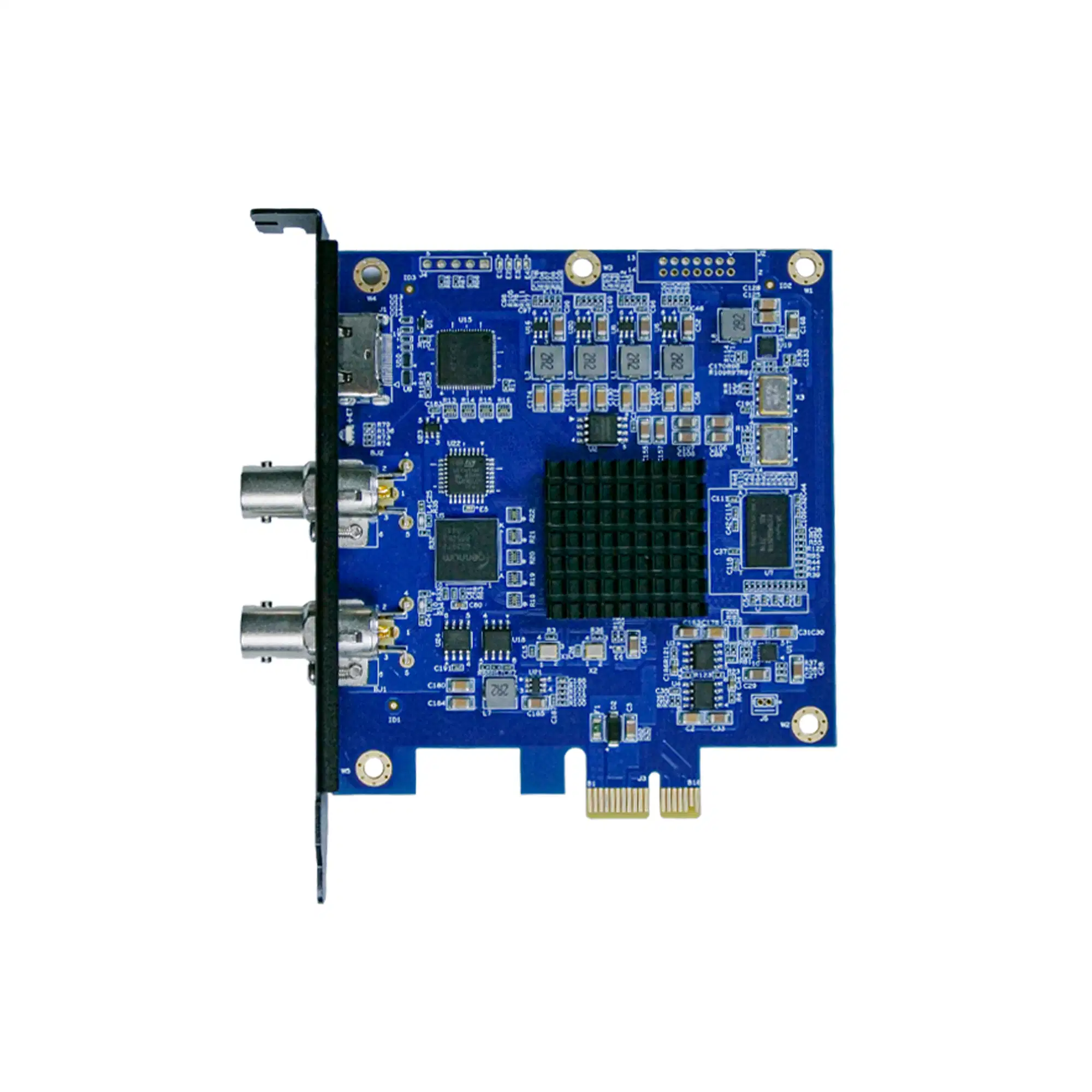

AVMATRIX VP30 3-CH SDI/HDMI PCIE PLAYBACK CARD
Key Features
- Video Playback up to 1080p60
- 1-Lane PCIe Slot Card
- One HDMI 1.4, Two 3G-SDI Video Outputs
- 8-Bit YUV 4:2:2 Color Precision
- Compatible with Windows & Linux Systems
- Works with ZOOM, Teams, Twitch & More
- 24-Hour Continuous Operation
- Use Multiple Cards Simultaneously
The AVMATRIX VP30 is a powerful 3-channel HDMI/SDI PCIe playback card engineered for high-performance HD video output, ensuring crisp visuals and ultralow latency across all major streaming platforms. Supporting resolutions up to 1080p60 and featuring one HDMI 1.4 and two 3G-SDI outputs, the card delivers broadcast-grade video with 8-bit YUV 4:2:2 color precision. It is compatible with both Windows and Linux systems, and sports a 1-lane PCIe form factor that allows easy installation.
Integrating with popular software like OBS, VMix, and Microsoft Teams, the VP30 supports simultaneous multi-card use, making it scalable for multi-channel workflows. From online livestreaming to professional video conferencing, the VP30 offers continuous 24-hour operation and expansive compatibility for modern AV environments.
AV Output
- One HDMI 1.4 and two 3G-SDI outputs
- Supports resolutions up to 1080p60
- 8-bit YUV 4:2:2 color precision
- 24-bit 48 kHz audio output
- Ultralow-latency playback
Compatibility
- Supports Windows 11/10/8/7 and Linux
- Works with OBS, VMix, ZOOM, Teams, Twitch, and more
- Compatible with gaming consoles, including XBOX, PS4, and Switch
- 1-Lane PCIe Generation 2 card for compact integration
- Supports simultaneous use of multiple cards
Items Included
- AVMATRIX VP30 3-Channel HDMI/SDI PCIe Playback Card
- Limited 1-Year Manufacturer Warranty
INTERFACE
| Slot Interface | PClex1 (Gen2) |
| Video Output Interface | 2x3G-SDI 1xHDMI 1.4 |
FORMAT
| 3G Video Format | 1080p60, 1080p59.94, 1080p50, 1080p60 DCI, 1080p59.94 DCI, 1080p50 DCI |
| HD Video Format | 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080p30 DCI, 1080p29.97 DCI, 1080p25 DCI, 1080p24 DCI, 1080p23.98 DCI, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98 1080i60, 1080i59.94, 1080i50 |
| Audio Sampling | 48kHz 24bit |
| HDMI Color Precision | YUV 4:2:2 8bit |
| SDI Color Precision | YUV 4:2:2 8bit |
| Color Space | REC 601, REC 709 |
| SDI Compliance | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE425M, ITU-R BT.656, ITU-R BT.601 |
| Device Support | Support for XBOX, Video Players, TV Boxes, Media Boxes, etc. |
SUPPORT
| System Support | Windows 7/8/10/11, 64-bit Linux |
| Software Compatibility | OBS, XSplit, VLC, VirtualDub, VMix, VidBlaster, Wirecast, Microsoft Media Encoder, Adobe Flash Media Encoder, any other DirectShow/V4L2 |
Physical
| Operating Temperature | 5-40°C |
| Relative Humidity | 0%~90% non-condensing |
| Power Consumption | 8W |
| Dimension | 102.21×89.51mm (PCB) |
| Weights | Net weight: 80g |
