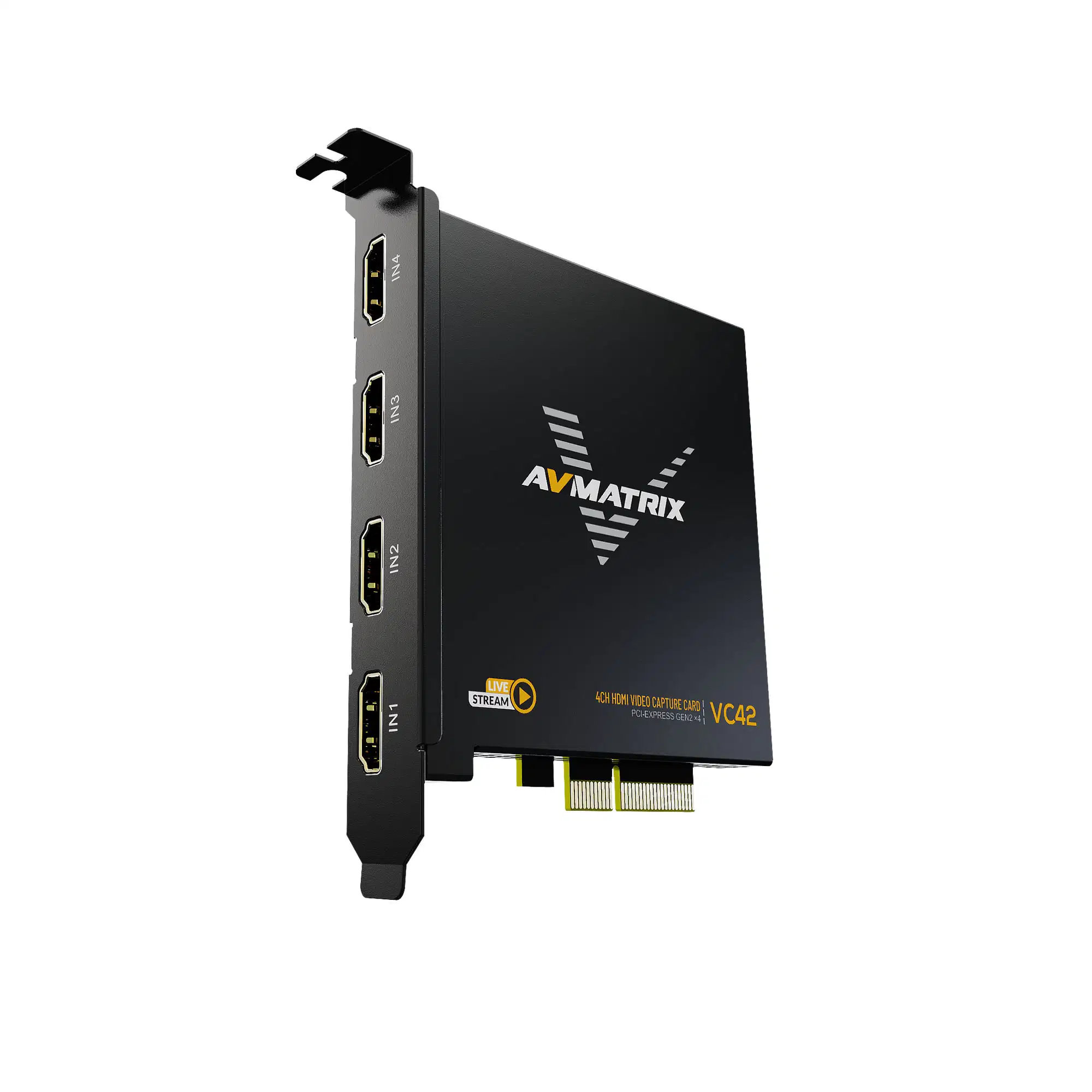

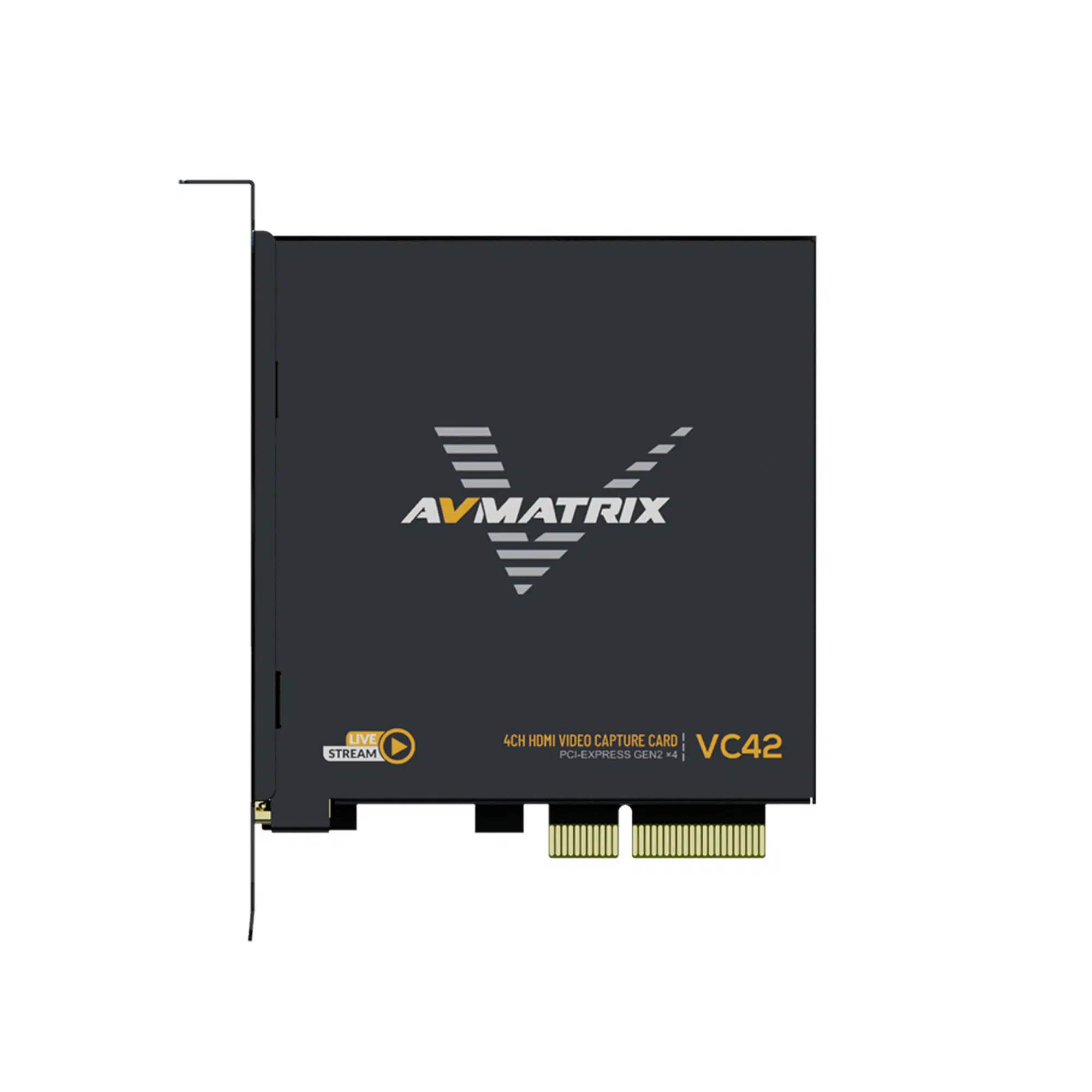

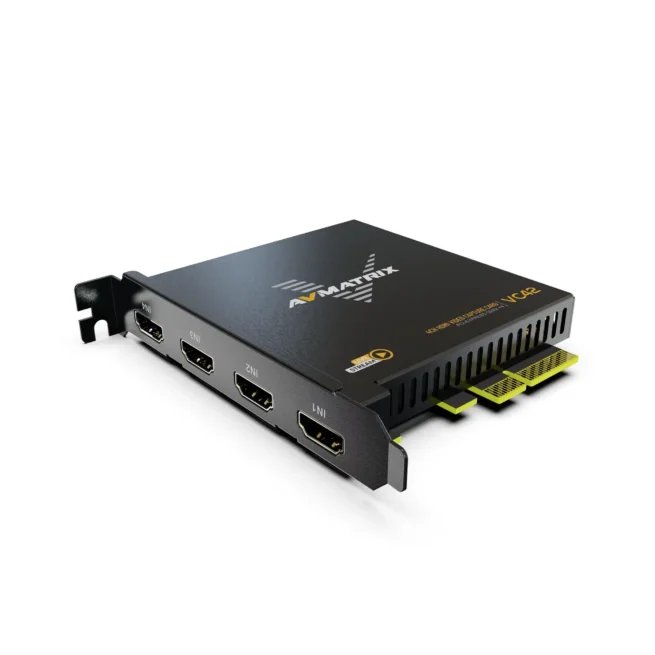

AVMATRIX VC42 4-CH HDMI PCIE Capture Card
Key Features
- 4-channel HDMI 1.4 simultaneous input and capture
- Input and capture up to 1080p60 with bit rates up to 200Mbps
- Support YUY2 uncompressed video
- PCIE GEN2×4, 2.5GB/S transfer bandwidth
- Support portrait and landscape mode
- Compatible with Windows 7 and above, Linux 18.04 and above
- Compatible with OBS/potplayer/XSplit/vMix and other live recording software
- Stable operation, 24 hours non-stop work
- Support one machine with multiple cards working simultaneously
Simultaneously livestream and capture your gameplay or content creation using this VC42 4-CH HDMI PCIE Capture Card from AVMATRIX with its four HDMI inputs. The PCIe 2.0×4 interface supports up to 1080p60 YUY2 uncompressed video for a high-quality picture.
The image integrity is further preserved thanks to the 1080i hardware deinterlacing and 3D noise reduction algorithm. Compatible with Windows and Linux operating systems, the card is capable of recording to applications like OBS and Teams and livestreaming the captured video to major platforms.
High Bandwidth and Ultralow Latency
The PCIe 2.0 interface has 2.5GB/s transmission bandwidth for faster data transfer speed in gaming and livestream applications, bringing uncompressed and ultralow latency to the streaming experience.
24-Hours of Non-Stop Work
The card has a thick gold-plated interface for more stable contact and transmission to work continuously for a long period of time.
Portrait and Landscape Modes
Supports portrait and landscape modes for various social media livestream scenarios.
Compatibility
Windows 7 and Linux 18.04 operating systems and above are supported by the card. Streaming and recording via OBS, Teams, Twitch, and other platforms is also supported for broadcast to major livestreaming platforms like YouTube and Facebook via the network.
Items Included
- AVMATRIX VC42 1080p HDMI PCIe 4-Channel Capture Card
- Limited 3-Year Manufacturer Warranty
Inputs/Outputs
| System Connection | PCIe 2.0 x4 |

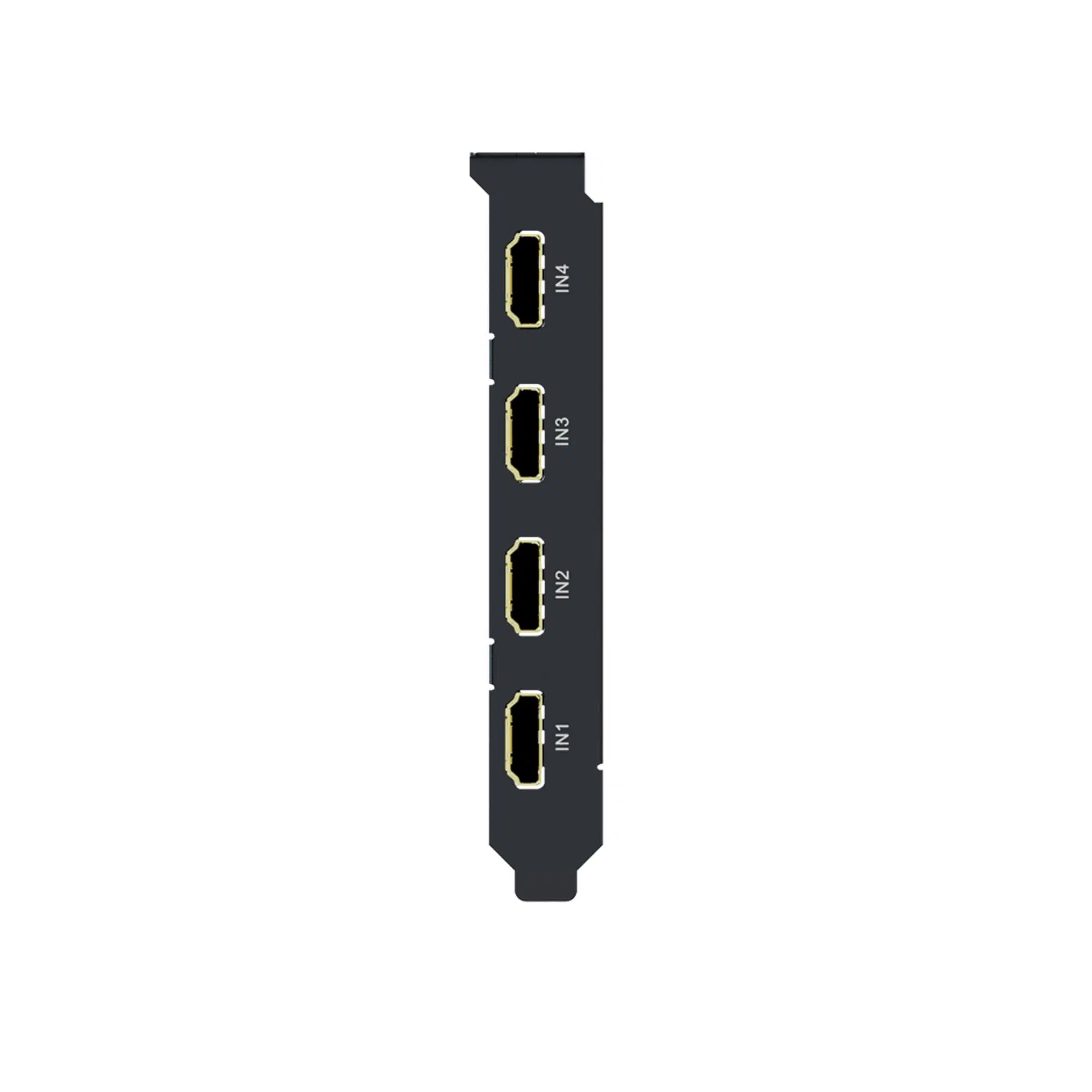

| Video Inputs | 4x HDMI (1.4) Female |
| Audio Inputs | No |
| Simultaneous Multi-Input Support | Yes: 4 Simultaneous Inputs |
Format Support
| Input Video Format | HDMI 1080p 60 fps |
| Input Audio Format | LPCM (Linear Pulse-Code Modulation): 48 kHz / 16-Bit |
| Output Video Format | HDMI 1080p 25/30/50/59.94/60 fps UXGA (1600 x 1200) 60 fps HD+ (1600 x 900) 60 fps WXGA+ (1440 x 900) 60 fps SXGA (1280 x 1024) 60 fps WXGA (1280 x 800) 60 fps 1280 x 720 (Non-Standard WXGA) 25/30/50/59.94/60 fps XGA (1024 x 768) 60 fps SVGA (800 x 600) 30/60 fps 576p 30/60 fps 480p 30/60 fps |
| Output Audio Format | LPCM (Linear Pulse-Code Modulation): 48 kHz / 16-Bit |
| Embedded Audio | HDMI |
Standards
| HDR Support | Not Specified by Manufacturer |
Hardware
| OS Compatibility | Windows 7 or Later Linux 18.4 or Later |
Power
| Power Consumption | Device: 2 W |
Environmental
| Operating Temperature 32 to 140°F / 0 to 60°C | |
| Storage Temperature -4 to 158°F / -20 to 70°C | |
| Operating Humidity | 5 to 90% () |
Physical
| Dimensions | 4.7 x 3.5 x 0.9″ / 120.1 x 88.4 x 21.6 mm |
| Weight | 5.3 oz / 150 g |
Packaging Info
| Package Weight | 0.405 lb Box Dimensions (LxWxH) |
