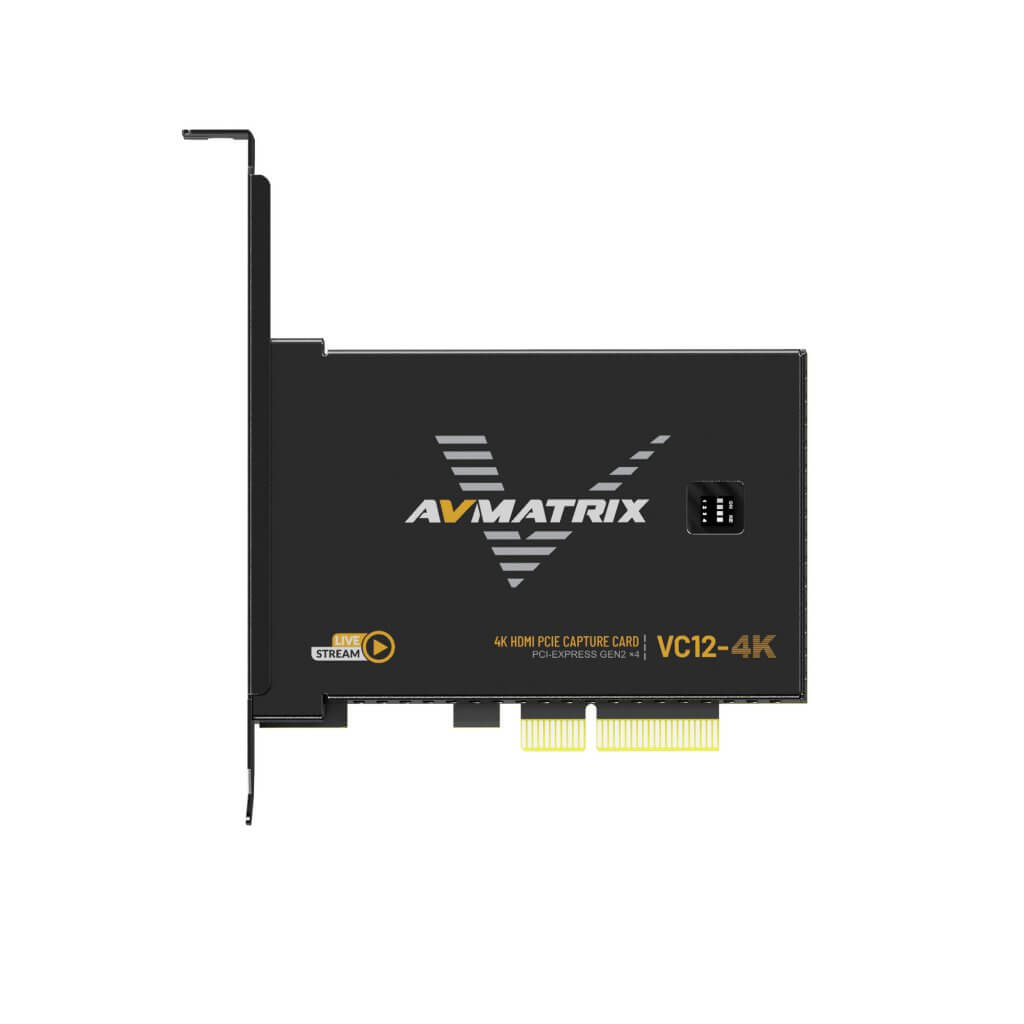

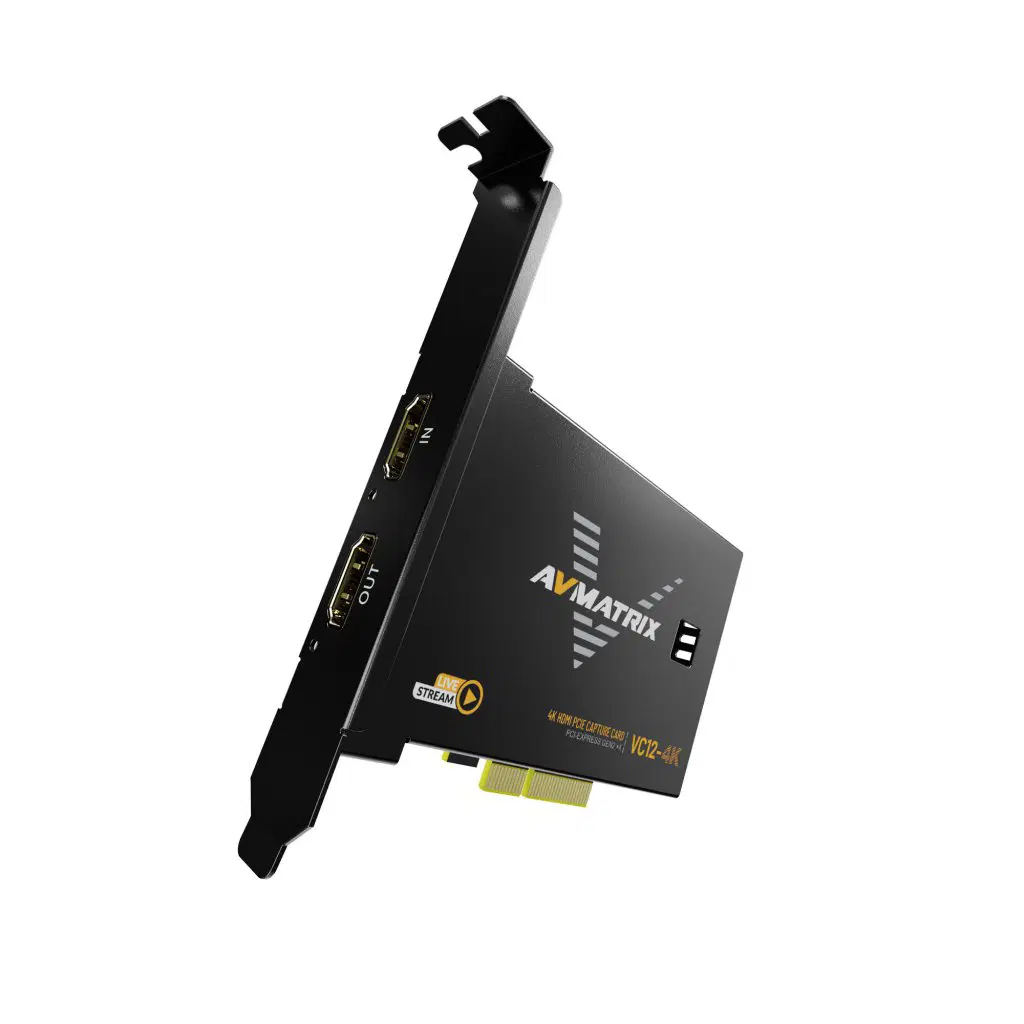

AVMATRIX VC12-4K UHD 4K HDMI PCIe Capture Card
Key Features
- 1-channel HDMI 2.0 input loop-out
- Input and capture support up to 4K60 with bit rates up to 800Mbps
- Support YUY2 uncompressed video
- PCIE GEN2×4, 2.5GB/S transfer bandwidth
- Compatible with Windows 7 and above, Linux 18.04 and above
- Compatible with OBS/potplayer/XSplit/vMix and other live recording software
- Stable operation, 24 hours non-stop work
- Support one machine with multiple cards working simultaneously
Simultaneously stream and display your gameplay or broadcast using this VC12-4K UHD 4K HDMI PCIe Capture Card from AVMATRIX with its HDMI input and loop output. The PCIe 2.0×4 interface supports up to UHD 4K video at 60 fps. It outputs YUY2 uncompressed video for a high-quality picture.
The image integrity is further preserved thanks to the 1080i hardware deinterlacing and 3D noise reduction algorithm. Compatible with Windows and Linux operating systems, the card is capable of recording to applications like OBS and Teams and livestreaming the captured video to major platforms.
High Bandwidth and Ultralow Latency
The PCIe 2.0 interface has 2.5GB/s transmission bandwidth for faster data transfer speed in gaming and livestream applications, bringing uncompressed and ultralow latency to the streaming experience.
24-Hours of Non-Stop Work
The card has a thick gold-plated interface for more stable contact and transmission to work continuously for a long period of time.
Compatibility
Windows 7 and Linux 18.04 operating systems and above are supported by the card. Streaming and recording via OBS, Teams, Twitch, and other platforms is also supported for broadcast to major livestreaming platforms like YouTube and Facebook via the network.
Items Included
- AVMATRIX VC12-4K UHD 4K HDMI PCIe Capture Card
- Limited 3-Year Manufacturer Warranty
Inputs/Outputs
| System Connection | PCIe 2.0 x4 |
| Video Inputs | 1x HDMI (2.0) Female |
| Audio Inputs | No |
| Video Outputs | 1x HDMI (2.0) Female (Loop Output) |
Format Support
| Input Video Format | HDMI UHD 4K 60 fps 1440p 144 fps 1080p 240 fps |
| Input Audio Format | LPCM (Linear Pulse-Code Modulation): 48 kHz / 16-Bit |
| Output Video Format | HDMI UHD 4K 25/30/50/60 fps DCI 4K 25/30/50/60 fps 1440p 60 fps DCI 2K 60 fps 2560 x 1440 25/30/50/60/120/144 fps 1080p Ultrawide (2560 x 1080) 60 fps WUXGA (1920 x 1200) 60 fps 1080p 25/30/50/59.94/60/120/144/240 fps UXGA (1600 x 1200) 60 fps WXGA+ (1440 x 900) 60 fps SXGA (1280 x 1024) 60 fps WXGA (1280 x 800) 60 fps 1280 x 720 (Non-Standard WXGA) 25/30/50/59.94/60/120/144/240 fps XGA (1024 x 768) 60 fps SVGA (800 x 600) 60 fps 576p 60 fps 480p 60 fps |
| Output Audio Format | LPCM (Linear Pulse-Code Modulation): 48 kHz / 16-Bit |
| Embedded Audio | HDMI |
Standards
| HDR Support | Not Specified by Manufacturer |
Hardware
| OS Compatibility | Windows 7 or Later Linux 18.4 or Later |
Power
| Power Consumption | Device: 2 W |
Environmental
| Operating Temperature | 32 to 140°F / 0 to 60°C |
| Storage Temperature | -4 to 158°F / -20 to 70°C |
| Operating Humidity | 5 to 90% () |
Physical
| Dimensions | 4.7 x 3.8 x 0.9″ / 120.1 x 95.7 x 21.6 mm |
| Weight | 3.5 oz / 100 g |
Packaging Info
| Package Weight | 0.35 lb |
| Box Dimensions (LxWxH) | 5.8 x 4.6 x 1.4″ |
