AVMATRIX UC7018 Multi-Signal to USB 3.0 Capture Box
Key Features
- SDI/HDMI/DVI-I/VGA/CVBS/S-Video Inputs
- Supports up to 1080p60 Resolution
- USB-C Port for Capture, Power & Upgrades
- Analog Audio Embedding
- Uncompressed A/V Capture
- UVC & UAC Compliant
- Video & Power Signal LED Indicators
- DIP Switches & Computer Software
- No Drivers or Power Supply Required
- Compatible with Windows, Linux & macOS
AVMATRIX UC7018 Overview

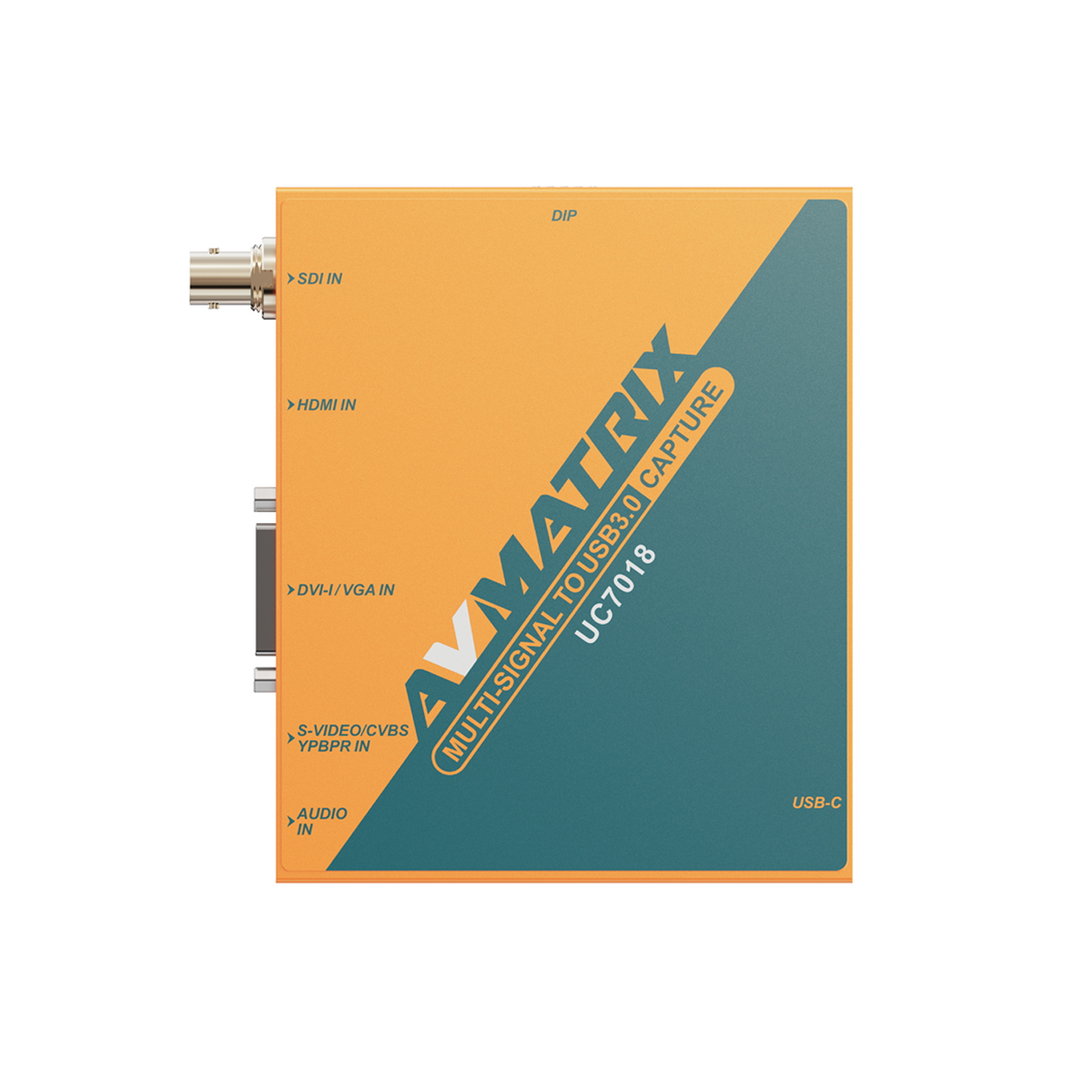

The UC7018 Multi-Signal to USB 3.0 Capture Box from AVMATRIX features SDI, HDMI, DVI-I, VGA, CVBS, S-Video, and YPbPr input connectivity, a USB-C port for capture, power, and firmware upgrades, and a 3.5mm analog audio input that can be embedded into your output signal. The unit offers uncompressed A/V capture and is UVC and UAC compliant. It does not require any drivers for functionality, and power is supplied via the USB-C port using the included USB-C to USB-A cable with an optional USB power connector. Integrated LED indicators provide video and power signal status.
Uncompromised Capture
The UC7018 embraces a wide range of video signal inputs, including SDI, HDMI, DVI-I, VGA, CVBS, S-Video, and YPbPr, with support for resolutions up to 1080p60.
Exceptional Color Fidelity
The UC7018 supports RGB32, YUY2, and NV12 video signals, delivering rich and vibrant colors for a detailed live streaming experience.
Easy Audio Embedding
Easily add audio to your video content via the external analog audio input, embedding it directly into your output.
Plug-and-Play, Driver-Free Functionality
Leverage the convenience of the universal USB-C interface for quick and easy plug-and play, driver-free functionality, enabling seamless data transfer and power supply for effortless connectivity.
Simplified Operation

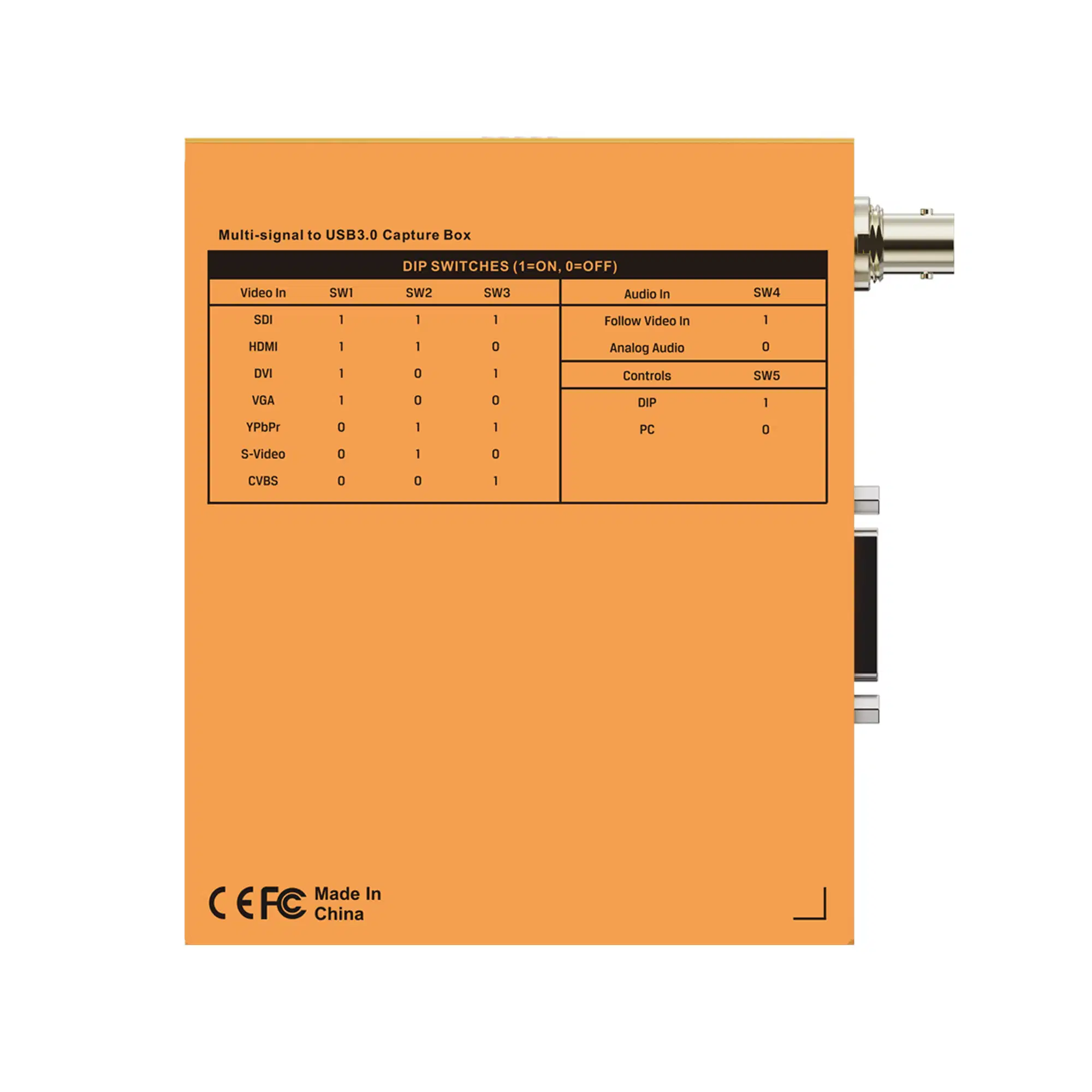

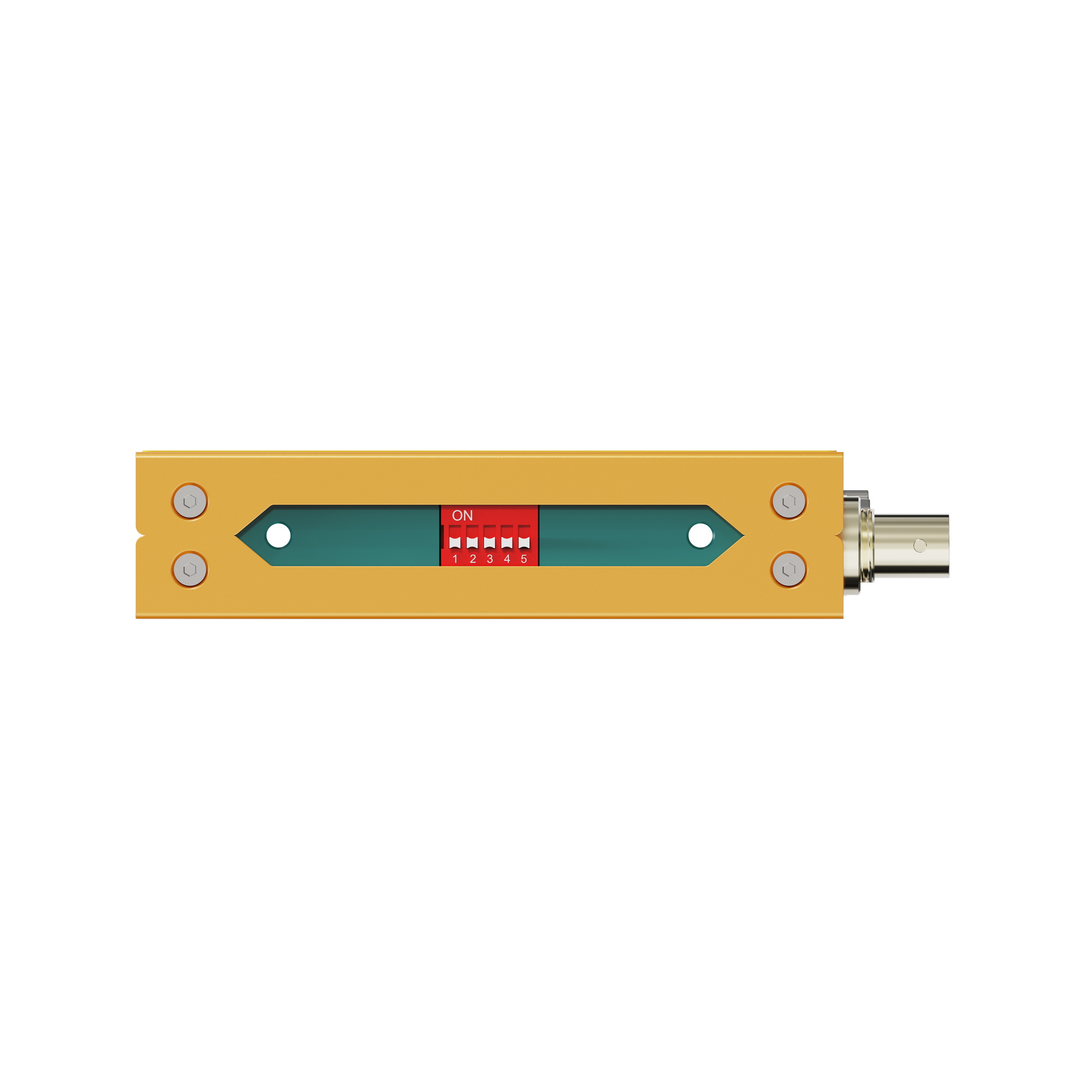

Take control of your device settings with ease, utilizing both integrated DIP switches and intuitive software operation.
Items Included
- AVMATRIX Multi-Signal to USB 3.0 Capture Box
- USB 3.0 Cable (USB-A to USB-C)
- DVI to VGA Adapter
- 3-in-1 Multi-Interface Connector
- Limited 3-Year Manufacturer Warranty

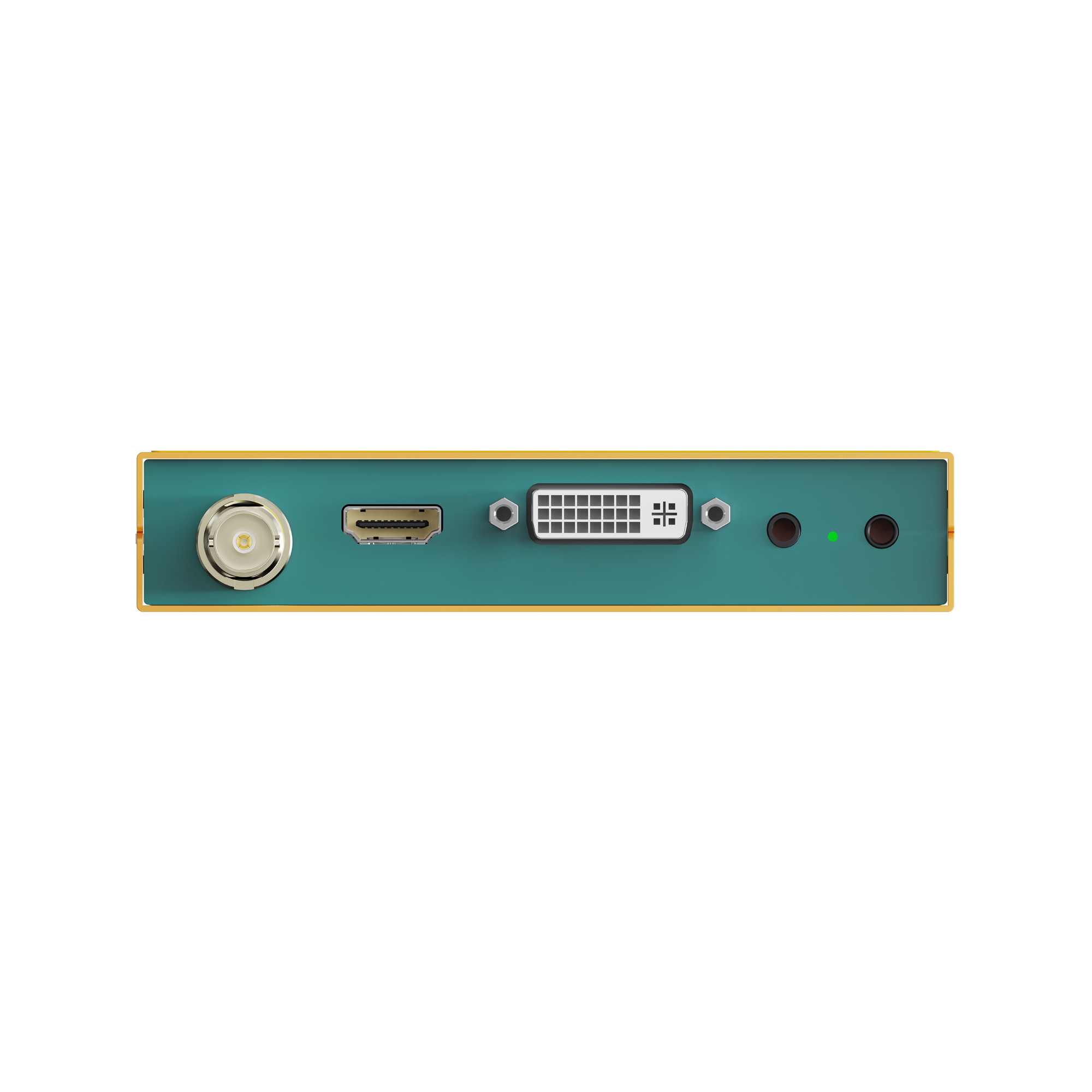

Video Connection
| SDI Input | 3G-SDI BNC x 1 |
| HDMI Input | HDMI x 1 |
| DVI Input | DVI-I Dual-Link x 1 |
| Analog Video Input | VGA / CVBS / S-Video / YPbPr via Multi-Interface Connector |
| USB Output | USB-C 3.0 / USB 3.1 Gen 1 x 1 |
| Audio Input | 3.5mm TRRS Stereo x 1 |
Video Standards
| SDI Input Format |
1920 x 1080p 23.98/24/25/29.97/30/50/59.94/60 1920 x 1080PsF 23.98/24/25/29.97/30 1920 x 1080i 50/59.94/60 1280 x 720p 23.98/24/25/29.97/30/50/59.94/60 |
| HDMI Input Format |
1920 x 1080p 23.98/24/25/29.97/30/50/59.94/60 1920 x 1080i 50/59.94/60 1280 x 720p 23.98/24/25/29.97/30/50/59.94/60 |
| DVI Input Format |
1920 x 1080p 1600 x 1200 1280 x 1024 1280 x 960 1280 x 720 1152 x 900 1152 x 870 1152 x 864 1024 x 768 800 x 600 720 x 400 640 x 480 |
| Composite Input Format |
1920 x 1080p 1920 x 1080i 1280 x 720 1024 x 576p 720 x 576p / 576i 720 x 480p / 480i |
| USB Output Format |
1920 x 1080p 1600 x 900 1440 x 900 1368 x 768 1280 x 960 1280 x 720 1024 x 960 960 x 540 800 x 600 640 x 360 |
| Broadcast System | NTSC / PAL |
Capture & Processing
| Maximum Capture Resolution | Up to 1920 x 1080p at 60fps |
| Capture Type | Uncompressed Video and Audio Capture |
| Video Formats | RGB32 / YUY2 / NV12 |
| USB Interface | USB 3.0 / USB 3.1 Gen 1 |
| USB Standard | UVC / UAC Compliant |
| Driver | Driver-Free Plug-and-Play |
Audio
| Audio Input | 3.5mm TRRS Stereo Analog |
| Audio Embedding | HDMI / SDI / USB / 3.5mm TRRS / DVI |
| Digital Audio Output | 48 kHz / 16-Bit |
Control & Indicators
| Control | DIP Switches / Software Operation |
| Video Status Indicator | LED Indicator |
| Power Indicator | LED Indicator |
Compatibility
| Operating System | Windows / macOS / Linux |
| Compatible Applications | OBS / Zoom / Microsoft Teams / Twitch |
| Wireless | Not Supported |
Power
| Power Input | USB-C |
| Power Requirement | 5V DC / 1A |
| Power Consumption | 5W |
General
| Operating Temperature | -20°C to 60°C |
| Operating Humidity | 20% to 90% |
| Storage Temperature | -30°C to 70°C |
| Storage Humidity | 20% to 90% |
| Dimensions (LWD) | 125.5 x 104 x 24.5 mm |
| Weight | 473 g |
