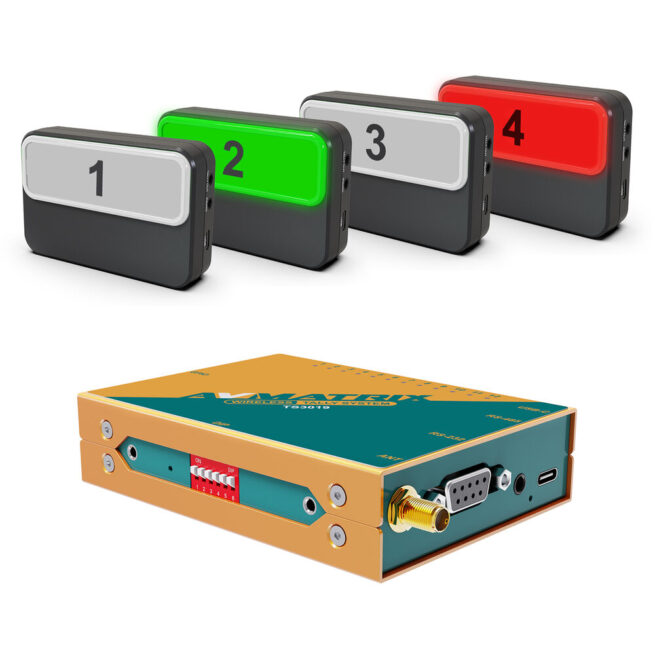

AVMATRIX TS3019-4 Wireless Multi-Camera Tally System (4 x Tally Lamps)
Key Features
- Support 433Mhz wireless or wired tally connection
- Up to 200m wireless connection distance (line-of-sight)
- The tally box with multiple interfaces including GPIO/USB/RS-485/RS-232
- GPIO compatible with AVMATRIX and other video switchers
- Compatible with VMix via USB type-c
- Wireless PTZ camera control via RS-232/RS-485 pass through
- Up to 16 tally lamps can be supported
- Both front and rear indicators on the lamps with 4-level adjustable brightness
- Visible signal strength and battery status on the tally lamp
- Tally lamp can be powered by USB type-c or 18650 li-ion battery
- 1/4 inch hot shoe for tally lamp installation

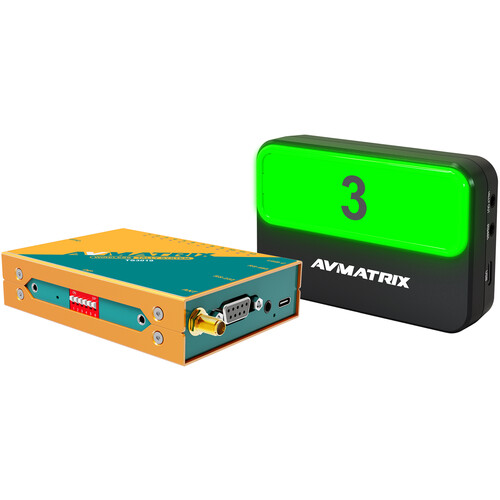

Display the on-air status of each camera in your set configuration with the AVMATRIX TS3019-4 Wireless Multi-Camera Tally Light System with four tally lamps. The system can wirelessly communicate from up to 656.2′ away. Multiple interface connections on the tally box—from GPIO and USB Type-C to RS-232 and RS-485—create wide compatibility with various switchers and vMix software for integration with your preexisting gear setup. An included antenna can attach to the box to improve its signal.
Each tally light has a front and rear indicator light for its on-air status, as well as indicators to display the wireless signal strength and battery level. They can be powered via USB Type-C input or with a separately available 18650 lithium-ion battery. The bottom of each lamp has a 1/4″-20 thread for installation with a hot shoe to the top of a camera. Five USB Type-C cords, a GPIO connector, a power adapter, and a carrying case complete the system’s accessories.
Connectivity
- Supports 433 MHz wireless or wired tally connection
- Up to 656.2′ line-of-sight wireless connection distance

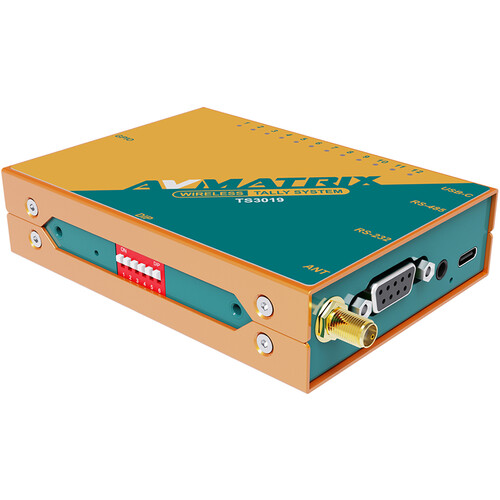

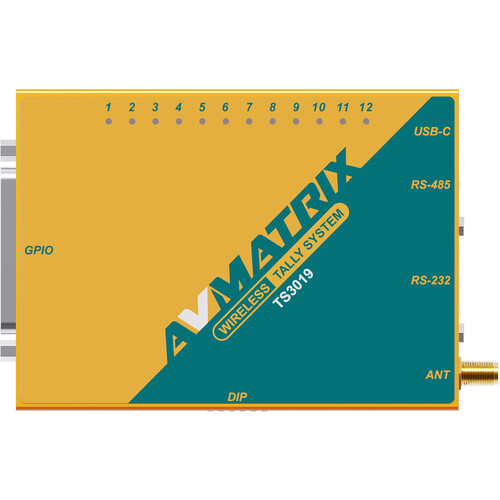

Tally Box
- GPIO, USB Type-C, RS-485, and RS-232 interfaces
- 1-pin antenna input
- GPIO compatible with AVMATRIX, Roland, Sony, NewTek, Panasonic, Datavideo, or other tally converter boxes
- PTZ remote control via RS-232/RS-485 pass through
- USB Type-C input compatible with vMix software
- Can support up to 16 tally lamps

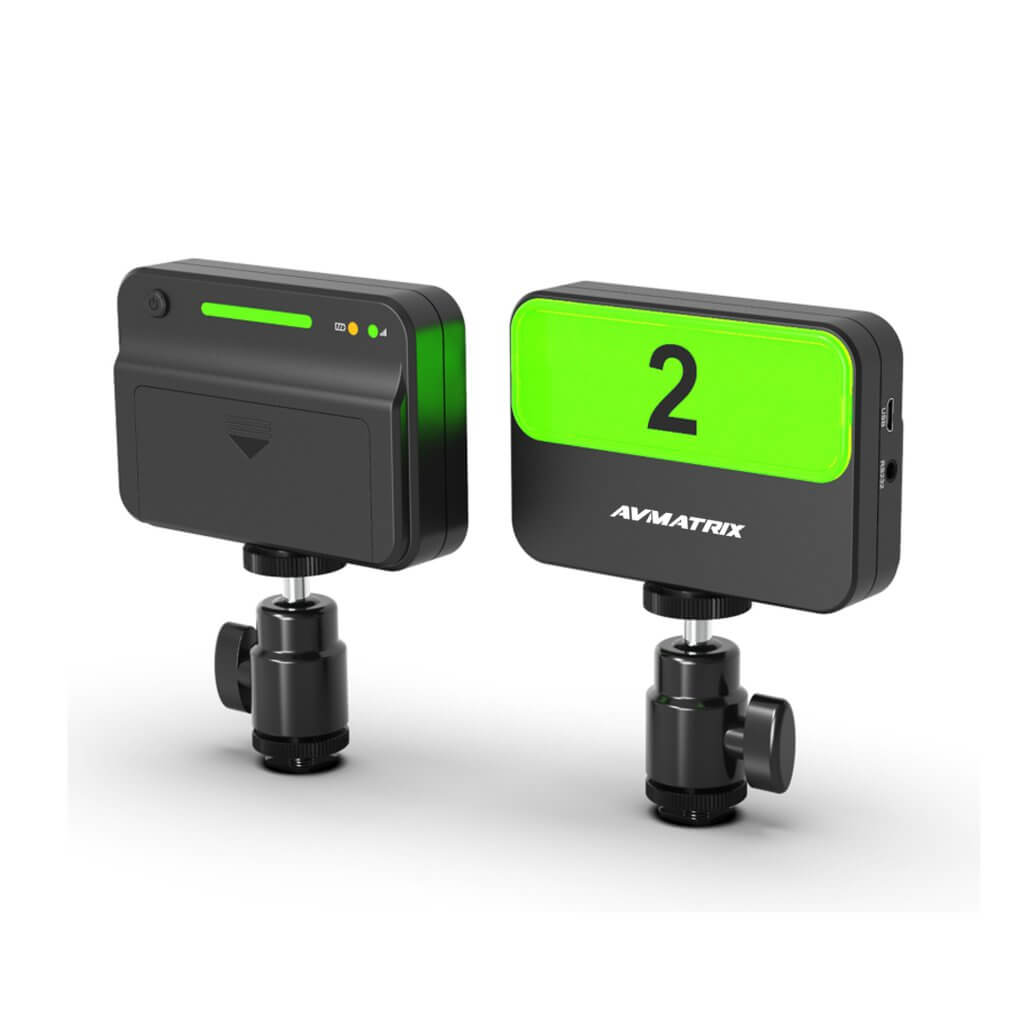

Tally Lamp
- PTZ camera connection via RS-485 input
- Front and rear indicators with four-level brightness adjustment
- Signal strength and battery status indicators
- Powered via USB Type-C input or with separately available 18650 lithium-ion battery
- 1/4″-20 thread for installation of hot shoe
Items Included
- AVMATRIX Wireless Multi-Camera Tally Light System (4 x Tally Lamps)
- Tally Box
- 4 x Tally Lamp
- Power Adapter
- Antenna
- GPIO Connector
- 5 x USB Type-C Cable
- Carrying Case
- Limited 2-Year Manufacturer Warranty
TALLY BOX PARAMETERS

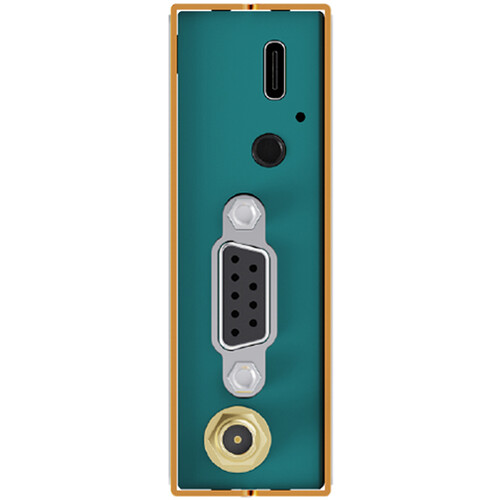

| Connections | 1×GPIO, 1×RS-232 terminal, 1xRS-485 terminal, 1xUSB type-c |
| Number of Lamps | Support up to 16 tally lamps(12 LED indicator) |
| Wireless Distance | Transmission up to 200m (line-of-sight) |
| Wireless Frequency | 433MHz |
| Wireless Connectivity | RS-485 serial connection |
| Application Support | Vmix, Video switchers with GPIO-tally interface such as AVMATRIX,Roland, SONY, NewTek, Panasonic, DataVideo, or tally converter box with GPIO such as BMD’s GPI and tally interface |
| Power | Working Voltage: 5V, Power Consumption: ≤ 0.2W |
TALLY LAMP PARAMETERS

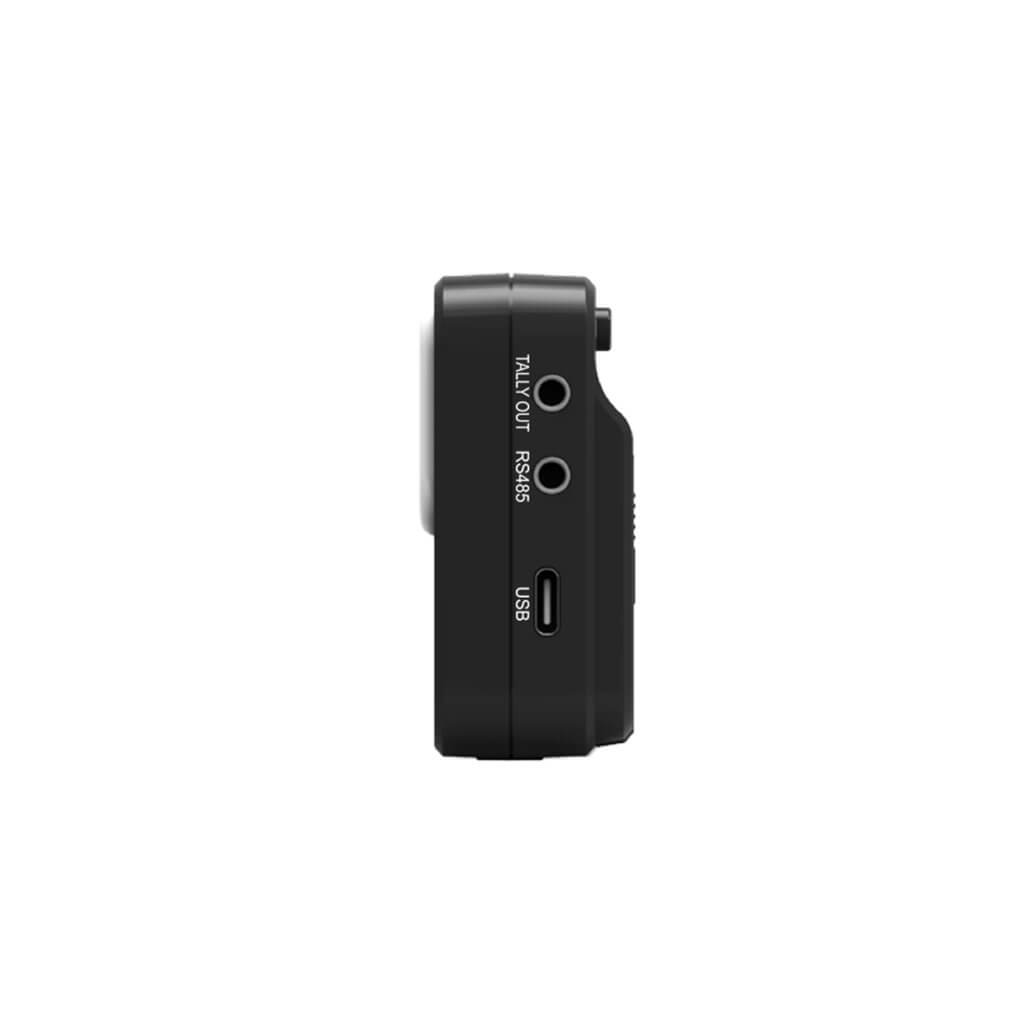

| Connections | 1×USB Type-C,1xRS-485,TALLY OUT |
| Power supply | 5V USB power supply or 18650 li-ion battery (optional) power supply |
| Brightness | Support 4-level brightness |
| Battery Operating Time | up to 9 hours (depending on battery capacity & lamp brightness & usage environment) |
| Power | Working Voltage: 5V; Power Consumption: ≤2.5W; Battery Charging Current: 5V 1A |
| Mouting Hole | 1/4 inch hotshoe hole |
Physical
| Dimension (LWD) | Tally box: 10475.524.5mm; tally lamp: 98.56526.5 mm |
| Weight | Tally box: 327g; tally lamp: 90g (without battery) |
| Temperature | Working temperature: -20 °C~60 C; storage temperature: -30 C-70 C |
| Accessories | TS3019-4(4 Lamp Suits): 1xTally Box, 4xTally Lamps, 1xSuitcases, 1xPower Supply(5V 1A), 5×USB2.0 Type-C Cables, 1xAntenna, 1×GPIO Connector |
