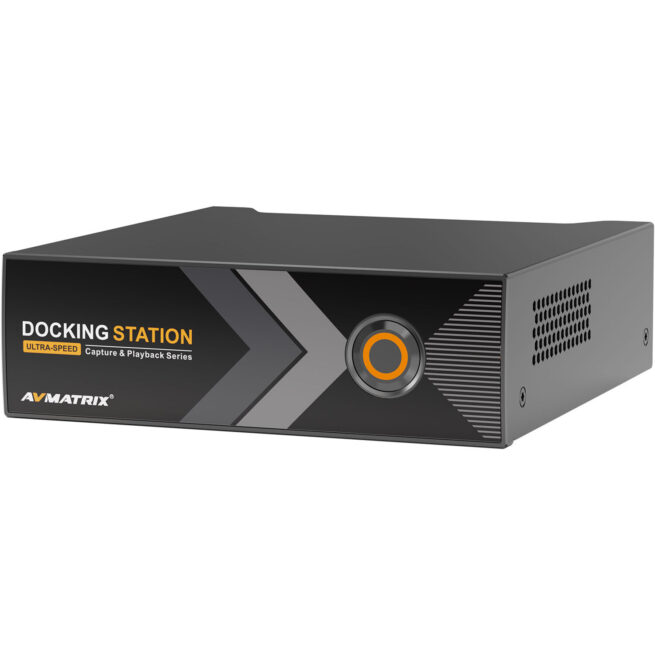

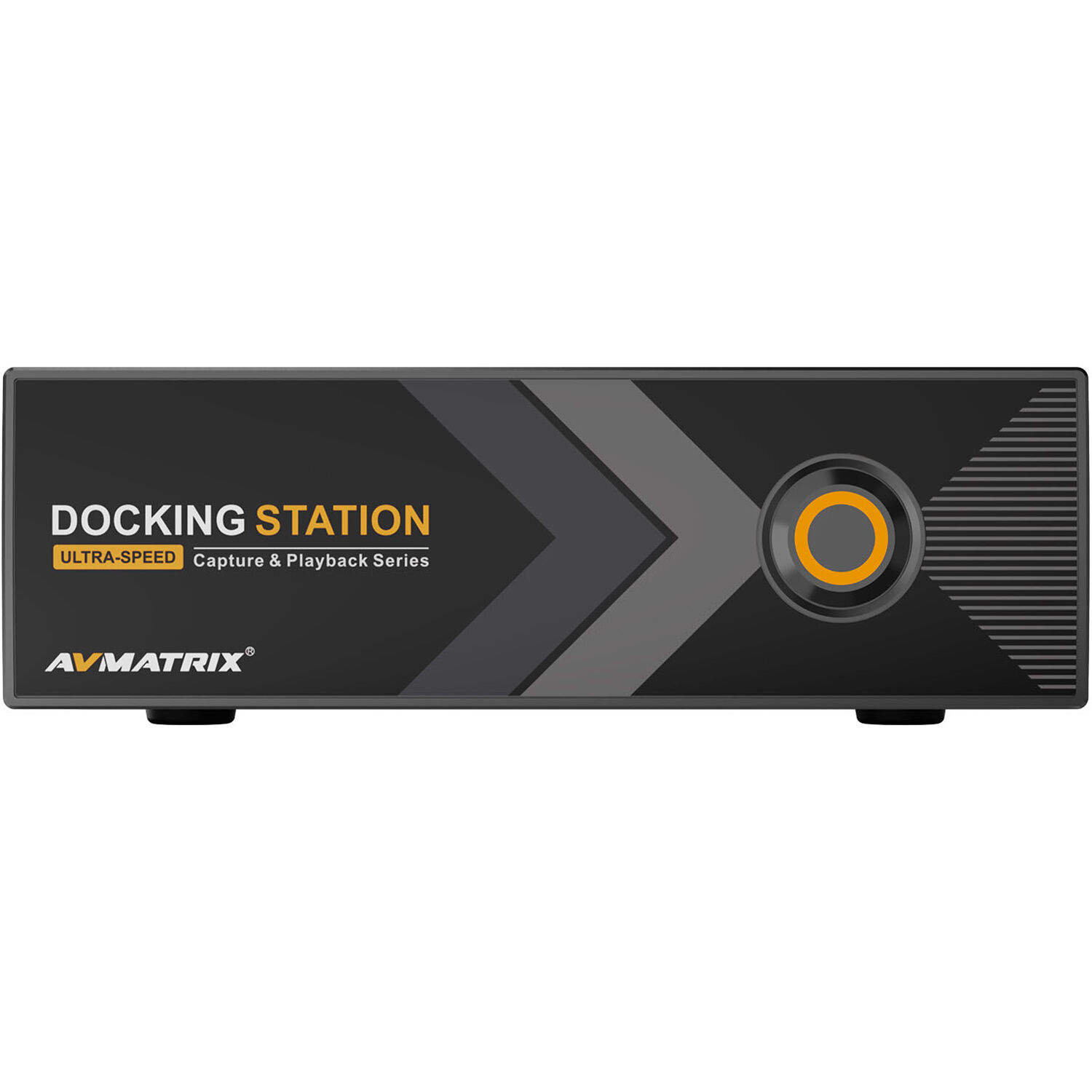

AVMATRIX TB-Box Thunderbolt Box Series Docking Station
Key Features
- Ultra-Speed Docking Station
- Maximum Data Rate of 40 Gb/s
- USB-C and DisplayPort Connectivity
- One Internal PCIe 3.0 x4 Slot
- Active Heat Dissipation System
General Details
The TB-Box Thunderbolt Box Series Docking Station from AVMatrix is a powerful ultra-speed docking station with USB-C, DisplayPort 1.4, and USB 3.0 via USB-A connectivity. It offers a maximum data rate of 40 Gb/s and features one internal PCIe 3.0 x4 slot. Boasting an active heat dissipation system, the device can reliably operate 24/7 in long-term, high-load applications, and it comes with a 12 VDC, 3A power adapter.
Items Included
- AVMATRIX TB-Box Thunderbolt Box Series Docking Station
- Power Adapter (12 VDC, 3A)
- USB-C to USB-C High-Speed Cable
- Limited 2-Year Manufacturer Warranty
Specification
Key Specs
| Video I/O | Input 1x USB-C Female Output 1x USB-C Female |
| Video Resolution | USB-C Input/Output 7680 x 4320 up to 60 fps 3840 x 2160 up to 120 fps |
| Wireless | No |
Inputs/Outputs
| Video I/O | Input 1x USB-C Female Output 1x USB-C Female |
| Other I/O | Input 1x USB-A 3.0 / 3.1/3.2 Gen 1 |
| Expansion Slots | No |
| Latency | No |
Format Support
| Video Resolution | USB-C Input/Output 7680 x 4320 up to 60 fps 3840 x 2160 up to 120 fps |
Standards
| HDCP Support | No |
| HDR Support | No |
| HDMI CEC | Yes |
Hardware
| Wireless | No |
Power
| Power I/O | 1x Barrel (12 VDC at 3 A) Input |
| Power Consumption | 60 W |
General
| Operating Conditions | 32 to 104°F / 0 to 40°C at 0 to 90% Humidity |
| Storage Conditions | -4 to 140°F / -20 to 60°C at 0 to 90% Humidity |
| Dimensions | 5.5 x 5.4 x 1.7″ / 139.8 x 138 x 42.6 mm |
| Weight | 3.02 lb / 1.37 kg |
Packaging Info
| Package Weight | 3.035 lb |
| Box Dimensions (LxWxH) | 11.1 x 8 x 3.5″ |
