AVMATRIX SHARK H4 PLUS 4-Channel HDMI Video Switcher with 10.1″ IPS Display
Key Features
- Compact 4-Channel Video Switcher
- Folding 10.1" IPS LCD Display
- 4 x HDMI Inputs, USB-A Recording Output
- 1 x HDMI Multiview & 2 x HDMI PGM Out
- 1 x USB-C Out for Capture & Streaming
- Supports up to 1080p60 Video In/Out
- 1 x LAN for Control Input & Streaming
- SD Card Slot, 2 x Mic Inputs
- T-Bar, Auto & Cut Transitions
- Audio Mixing, Multiview Output
AVMATRIX SHARK H4 PLUS Overview
Switch up to four HDMI video inputs while monitoring the program feed with the portable SHARK H4 PLUS 4-Channel HDMI Video Switcher with 10.1″ IPS Display from AVMATRIX. This model features a folding design with a 10.1″ IPS LCD screen on the lid. Use the USB-C output together with your computer for capture and live streaming using your computer, and record directly from the unit using the USB-A output or SD card slot.
This compact switcher supports up to 1080p60 video input and output with embedded audio, and it offers audio mixing using the two analog stereo 3.5mm mic/line inputs and embedded audio. Switcher control options include push buttons, a T-bar, and IP control via the LAN port.
USB Capture & Streaming
Built-in USB-C port can be used to connect the switcher to a computer for USB capture and streaming using software like OBS, Skype, Teams, VLC, Zoom, or vMix.

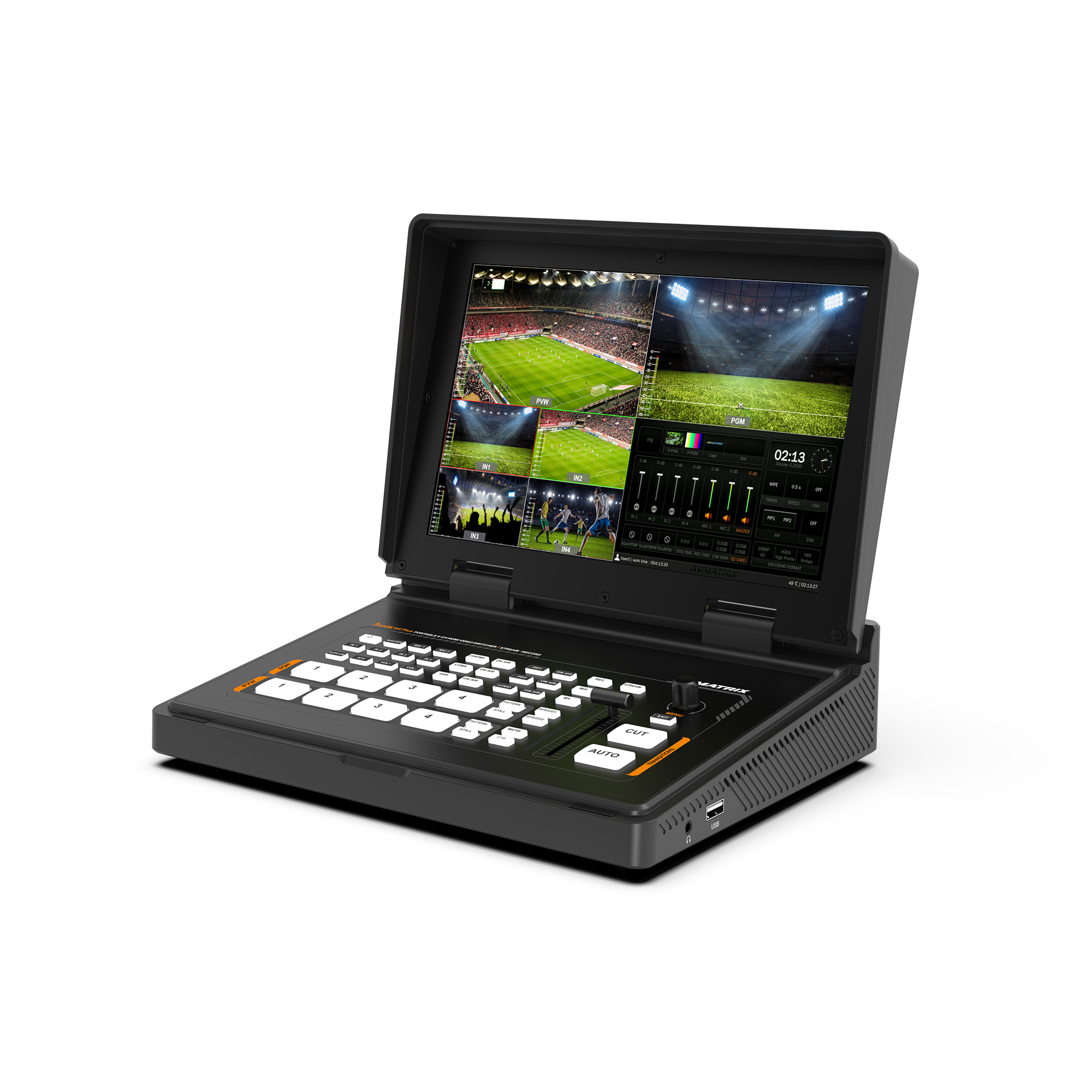

10.1″ Full HD IPS Display
The switcher features a 10.1″ 1920 x 1080 IPS LCD display that provides multiview, preview, program, audio meters, time clock, and menu configuration.
USB and SD Card Recording
Record your program to an SSD or flash drive in MP4 format using the USB-A recording output, or utilize an optional SD card for in the built-in SD card recording slot.
Live Stream via Ethernet
The LAN port supports IP streaming via RTMP or SRT protocols, allowing you to easily live stream to popular platforms such as YouTube, Skype, Facebook, Twitch, and more.
Software Remote Control
Offers easy control of all settings and operations through the control software, including transitions, audio configurations, media management, and more.
Multiple Interfaces
Multiple interfaces include four HDMI inputs, Program outputs, multiview output, audio inputs, streaming, and recording ports. The outputs can all be configured to pass input, preview, program, clean program, and color bars.
Other Features
- Enhanced chroma key
- Professional audio mixer with embedded and analog audio inputs
- Import up to 39 default patterns, 16 imported images, 16 captured images, and two color generators via USB
- PiP, PoP, logo overlay, transition effects
Applications
- Broadcast
- Education
- Conference
- Social media/vlogging
- Live sports
- House of worship
- Live events
Items Included
- AVMATRIX Shark H4 PLUS 4-Channel HDMI Video Switcher with 10.1″ IPS Display
- 12V Power Supply
- USB-A to USB-C Cable
- Tally Connector
- Limited 3-Year Manufacturer Warranty

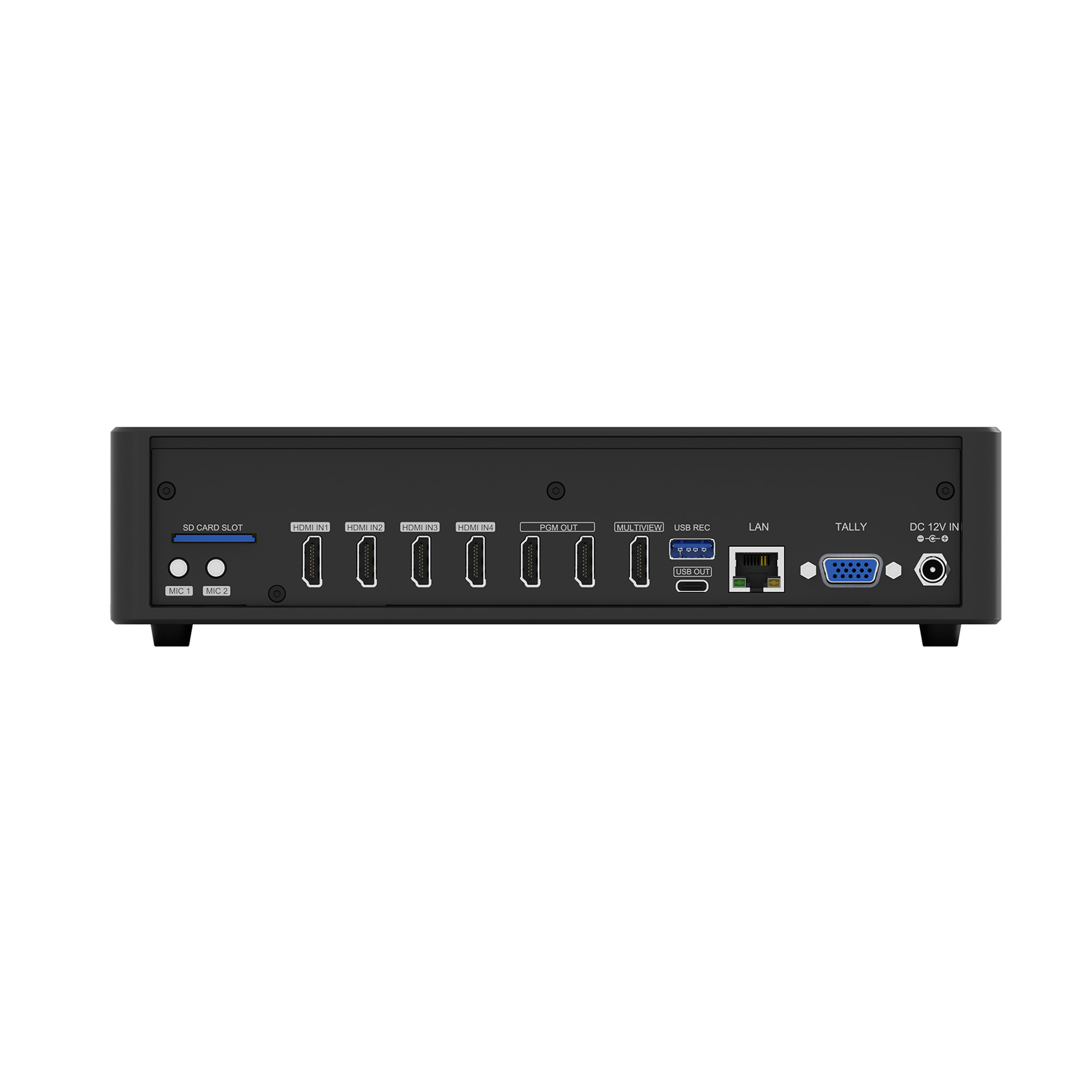

Video Connection
| Video In | HDMI Type-A x 4 |
| Video Out | HDMI PGM x 2 HDMI Multiview x 1 USB Type-C x 1 (Capture) |
| LAN Port | LAN x 1 (Streaming, PC Control and Upgrade) |
| Media Library | USB Type-A x 1 (Image Import and Firmware Upgrade) |
| Tally Port | DB-15 x 1 |
| Audio Input | MIC/Line Level 3.5mm Stereo x 2 |
| Power In | DC 12V x 1 |
Video Standards
| HDMI Input Format |
1080p 60/59.94/50/30/29.97/25/24/23.98 1080i 60/59.94/50 |
| HDMI Output Format |
1080p 60/50/30/25/24 1080i 60/50 |
| USB Capture Output | 1080p 60 |
| Color Processing | RGB / YCbCr |
Video Function
| Switching | T-Bar / AUTO / CUT |
| Transitions | Wipe (11 x 3 Patterns) / Mix / DIP / Pattern / Still (Freeze) / MUTE / FTB |
| Multiview | 2 Multiview Layout Styles with 6 Windows and Status Information |
| Upstream Key | Luma Key x 1 / Chroma Key x 1 / PIP x 2 / POP |
| Downstream Key | DSK x 1 / Logo x 1 |
| Media |
39 Preset Patterns Up to 16 Imported Images Up to 16 Captured Images |
| Generators | Pattern Generator x 1 Color Generators x 2 |
Streaming & Recording
| Streaming Protocols | RTMP / RTMPS / SRT |
| Bitrate | 2 / 4 / 8 / 12 / 16 / 24 / 32 Mbps |
| Rate Control | CBR / VBR |
| Recording Media | SD Card / USB Disk |
| SD Card Format | FAT32 / exFAT / NTFS |
| USB Disk Format | FAT32 / exFAT / NTFS |
| Recording File Segment | 1 / 5 / 10 / 20 / 30 / 60 / 90 / 120 Minutes |
| Recording Format | MP4 |
Audio Function
| Audio Mixer | HDMI x 4 and MIC/Line Level x 2 |
| Audio Delay | 0-500ms |
| Audio Input | Embedded HDMI Audio / 3.5mm Analog Stereo Audio |
| Audio Mixing | 2-Channel Mixing |
| Audio Output | Embedded Audio via HDMI / USB-C |
Display
| Display Type | 10.1-inch IPS FHD Display |
| Display Resolution | 1920 x 1080 |
| Multiview Monitoring | Built-in Multiview / Preview / Program / Audio Meter / Clock / Menu |
Control & Connectivity

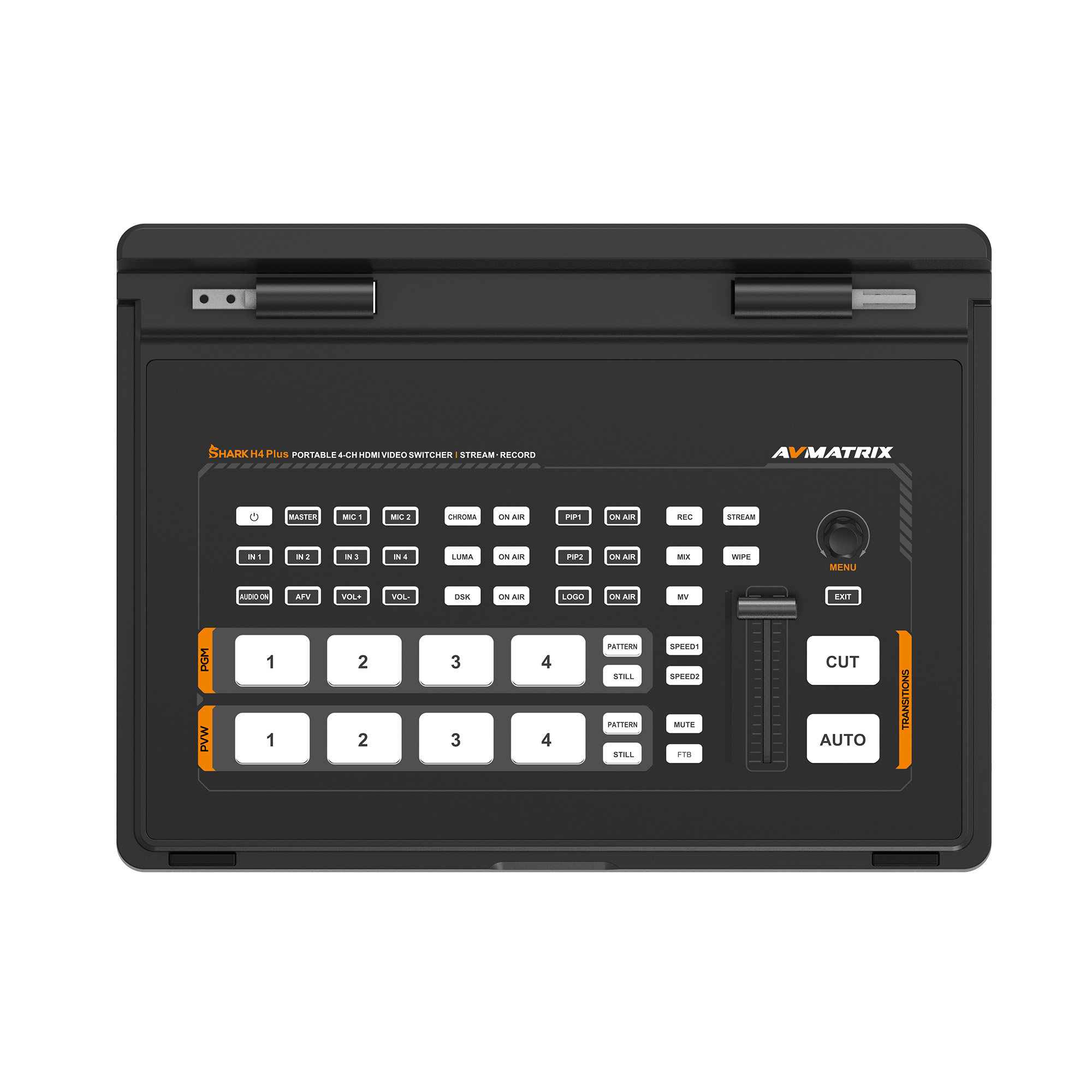

| Control | Push Buttons / T-Bar / Software Control |
| LAN Control | RJ45 Ethernet |
| USB | USB Type-A x 1 |
| Tally | DB-15 x 1 |
| HDCP | Not Supported |
General
| Power Input | DC 12V / 1.7A |
| Power Consumption | 20.4W |
| Operating Temperature | -20°C to 50°C |
| Dimensions (LWD) | 261.4 x 193.9 x 58 mm |
| Weight | 1.73 kg |
