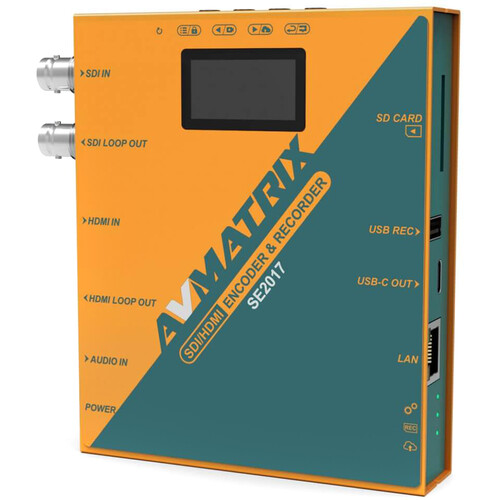

AVMATRIX SE2017 3G-SDI/HDMI Streaming Encoder/Recorder
Key Features
- Video Encoder and Recorder
- Supports up to 1080p60 Video
- HDMI and SDI Inputs, 3.5mm Audio Input
- HDMI and SDI Loop Outputs
- USB-C Video Capture Output
- USB-A and SD Card Recording Slots
- PoE RJ45 Port, DC Power Supply
- Onboard Controls, OLED Screen
Stream and record up to 1080p60 video to various media platforms or devices using this SE2017 3G-SDI/HDMI Streaming Encoder/Recorder from AVMATRIX. The SE2017 features HDMI and 3G-SDI input and output ports capable of supporting up to 1080p60 video. A USB-C capture output can function as a webcam with your Linux or macOS computer to livestream to services like Twitch, YouTube, Facebook, or Zoom. An RJ45 LAN port provides additional streaming support and PoE for flexible connectivity.
Connect a line audio source via 3.5mm input and the included DC power adapter via barrel input. RTSP, RTMP, SRT, HTTP-FLV, unicast, and multicast protocols deliver video to up to six platforms simultaneously. You can even record your stream directly to an SD card or USB disk using the SD card slot and USB-A port. Onboard button controls and an OLED screen make for intuitive control and real-time status information.
Items Included
- AVMATRIX SE2017 3G-SDI/HDMI Streaming Encoder/Recorder
- Power Supply (12V, 2A)
- Limited 3-Year Manufacturer Warranty
Inputs/Outputs
| Video Inputs | 1x HDMI Female 1x BNC (3G-SDI) Female |
| Audio Inputs | 1x 1/8″ / 3.5 mm TRS Line Female |
| Video Outputs | 1x HDMI Female (Loop Output) 1x BNC (3G-SDI) Female (Loop Output) 1x USB-C |
| Audio Outputs | No |
| Other I/O | 1x RJ45 LAN Input/Output 1x USB-A Input |
| Expansion Slots | No |
Format Support
| Input Video Format | HDMI 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080i at 50/59.94/60 fps 720p at 23.98/24/25/29.97/30/50/59.94/60 fps 576i / 625 lines at 50 fps 576p at 50 fps 480p at 59.94/60 fps 480i / 525 lines at 59.94/60 fps BNC 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080i at 50/59.94/60 fps 720p at 23.98/24/25/29.97/30/50/59.94/60 fps 480i / 525 lines at 59.94 fps 576i / 625 lines at 50 fps |
| Output Video Format | USB-A 1080p up to 60 fps |
Standards
| HDR Support | Not Specified by Manufacturer |
IP Streaming
| Video IP Encoding | RTMP, RTP, RTSP, SRT, UDP: 720 x 480 to 1920 x 1080 at 24p, 25p, 30p, 50p, 60p (2 to 32 Mb/s) RTMP, RTP, RTSP, SRT, UDP: 720 x 480 to 1280 x 720 at 24p, 25p, 30p, 50p, 60p (2 to 32 Mb/s) |
| Audio IP Encoding | AAC: 64.00 to 320.00 Kb/s |
Hardware
| Media Card Reader | 1x SD (Unspecified Type) |
| Wireless | Yes |
Power
| Power I/O | 1x Barrel (12 VDC at 0.3 A) Input |
| Power Consumption | Device: 4.5 W |
Environmental
| Operating Temperature | -4 to 140°F / -20 to 60°C |
| Storage Temperature | -22 to 158°F / -30 to 70°C |
General
| Dimensions | 4.9 x 4.1 x 1″ / 125.5 x 104 x 24.5 mm |
| Weight | 19.4 oz / 550 g |
Packaging Info
| Package Weight | 1.97 lb |
| Box Dimensions (LxWxH) | 6.7 x 5.6 x 3.6″ |
