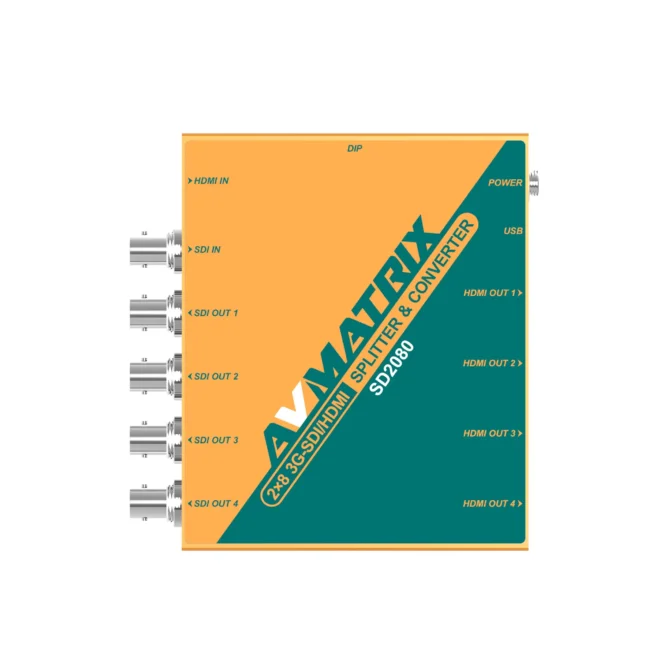

AVMATRIX SD2080 2×8 SDI/ HDMI SPLITTER & CONVERTER
Key Features
- 2 x 8 Distribution & SDI/HDMI Conversion
- HDMI & 3G-SDI Autodetecting Inputs
- 8 x HDMI & 3G-SDI Pass-Through Outputs
- Up to 1080p60 Input/Output Resolution
- SDI Cable Equalization & Reclocking

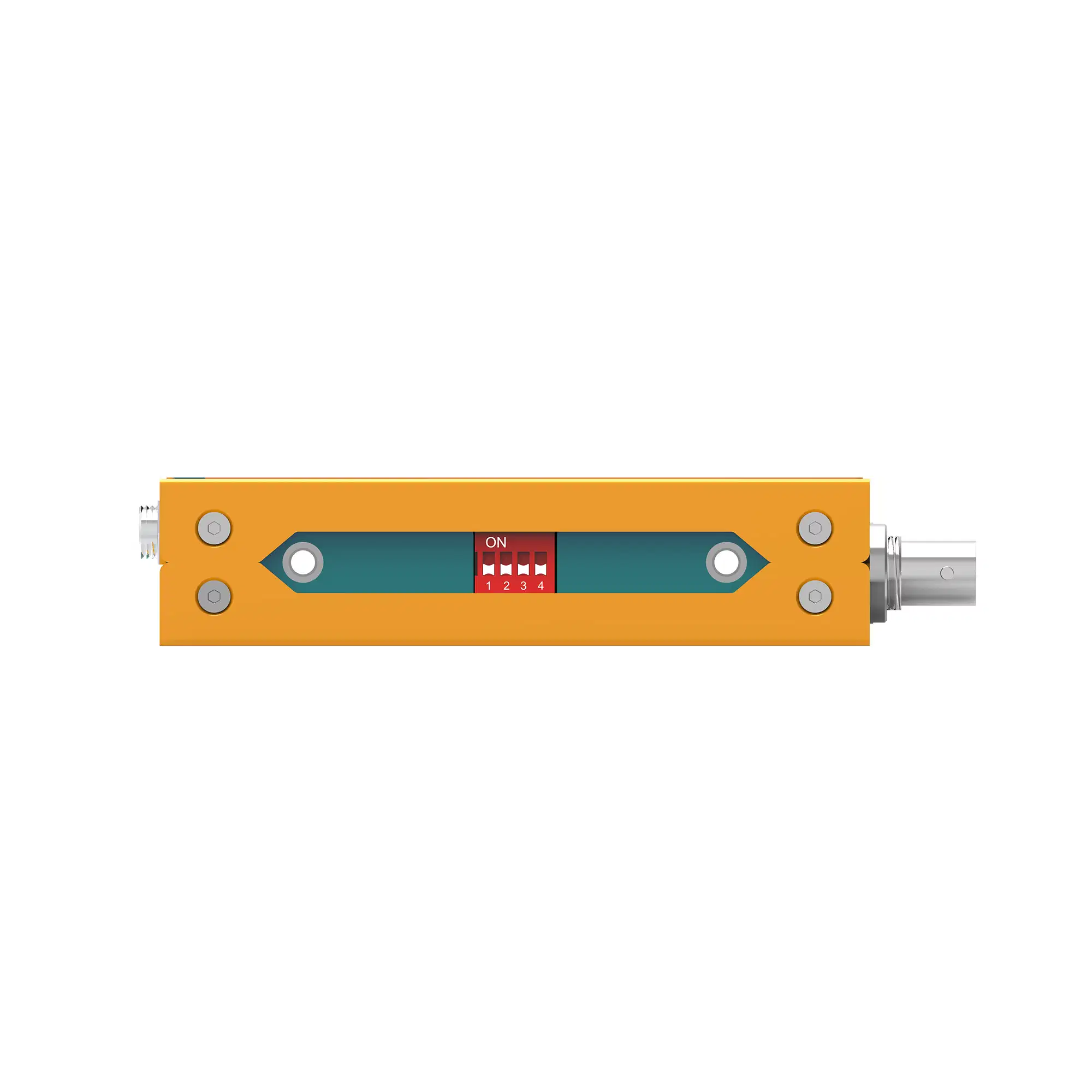

- Input Dip Switches
- Locking Power Supply

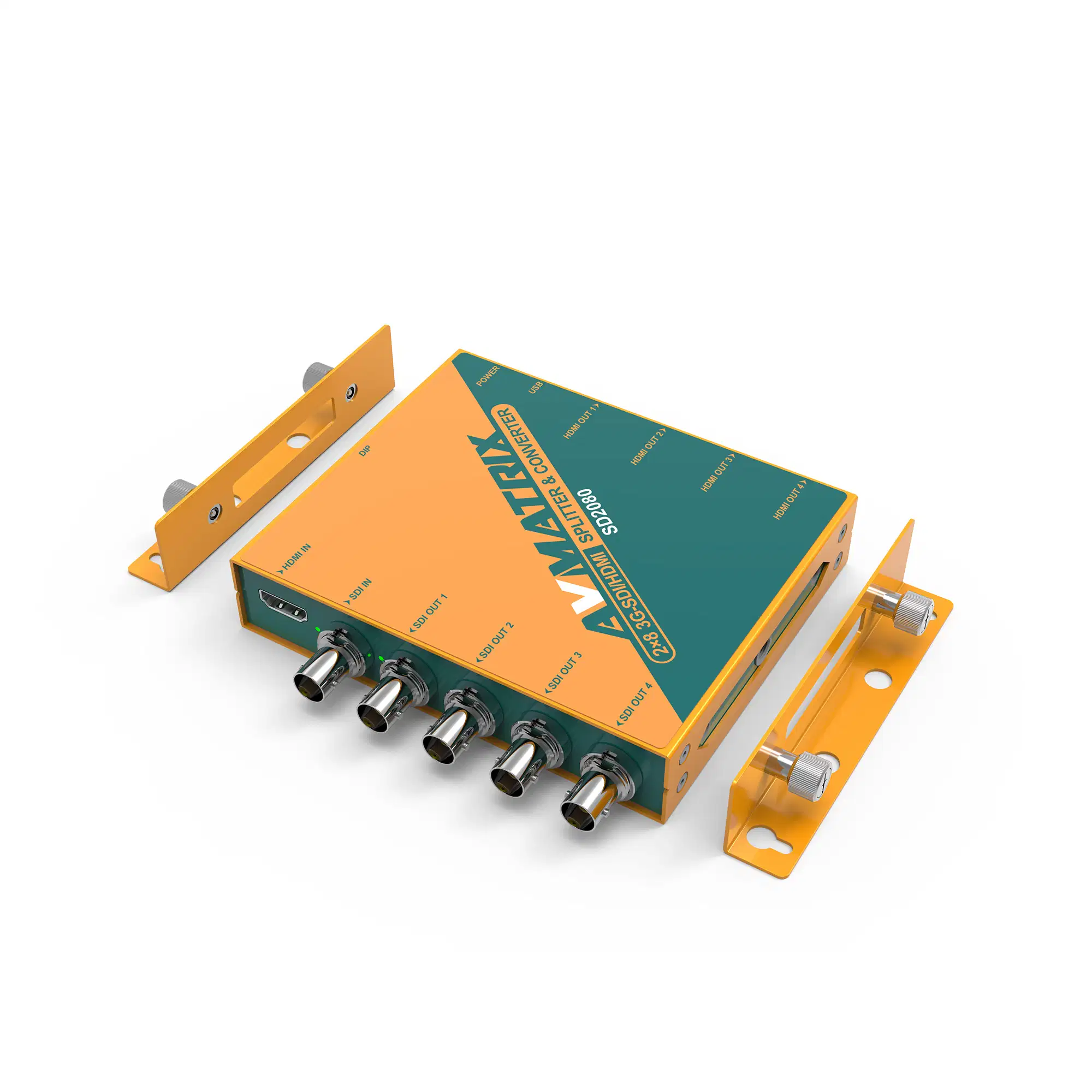

- Mounting Brackets
General Details
The 2 x 8 SDI/HDMI Splitter and Converter from AVMATRIX offers 2 x 8 distribution as well as SDI/HDMI conversion. It features HDMI and 3G-SDI autodetecting inputs, four 3G-SDI outputs, and four HDMI outputs. All the connections support up to 1080p60 signals. The SDI ports support cable equalization and reclocking. Input signals can easily be switched via dip switches on the side. Two mounting brackets are included for mounting the splitter in various ways.
Items Included
- AVMATRIX 2 x 8 SDI/HDMI Splitter and Converter
- 12V Locking Power Supply
- 2 x Mounting Bracket
- Limited 1-Year Manufacturer Warranty
Specification
Key Specs
| Inputs | 1 x BNC (3G-SDI) 1 x HDMI |
| Outputs | 4x BNC (3G-SDI) 4x HDMI |
| Video Format | SDI Input (4:2:2 YUV) 1920 x 1080p: 24/25/23.98/29.97/30/59.94/60/50 fps 1920 x 1080PsF: 24/25/23.98/29.97/30 fps 1920 x 1080i: 59.94/60/50 fps 1280 x 720p: 25/29.97/30/59.94/60/50 fps SDI Output (4:2:2 YUV) 1920 x 1080p: 24/25/23.98/29.97/30/59.94/60/50 fps 1920 x 1080i: 59.94/60/50 fps 1280 x 720p: 59.94/60/50 fps HDMI 1920 x 1080p: 24/25/23.98/29.97/30/59.94/60/50 fps 1920 x 1080i: 59.94/60/50 fps 1280 x 720p: 25/29.97/30/59.94/60/50 fps |
Interfaces

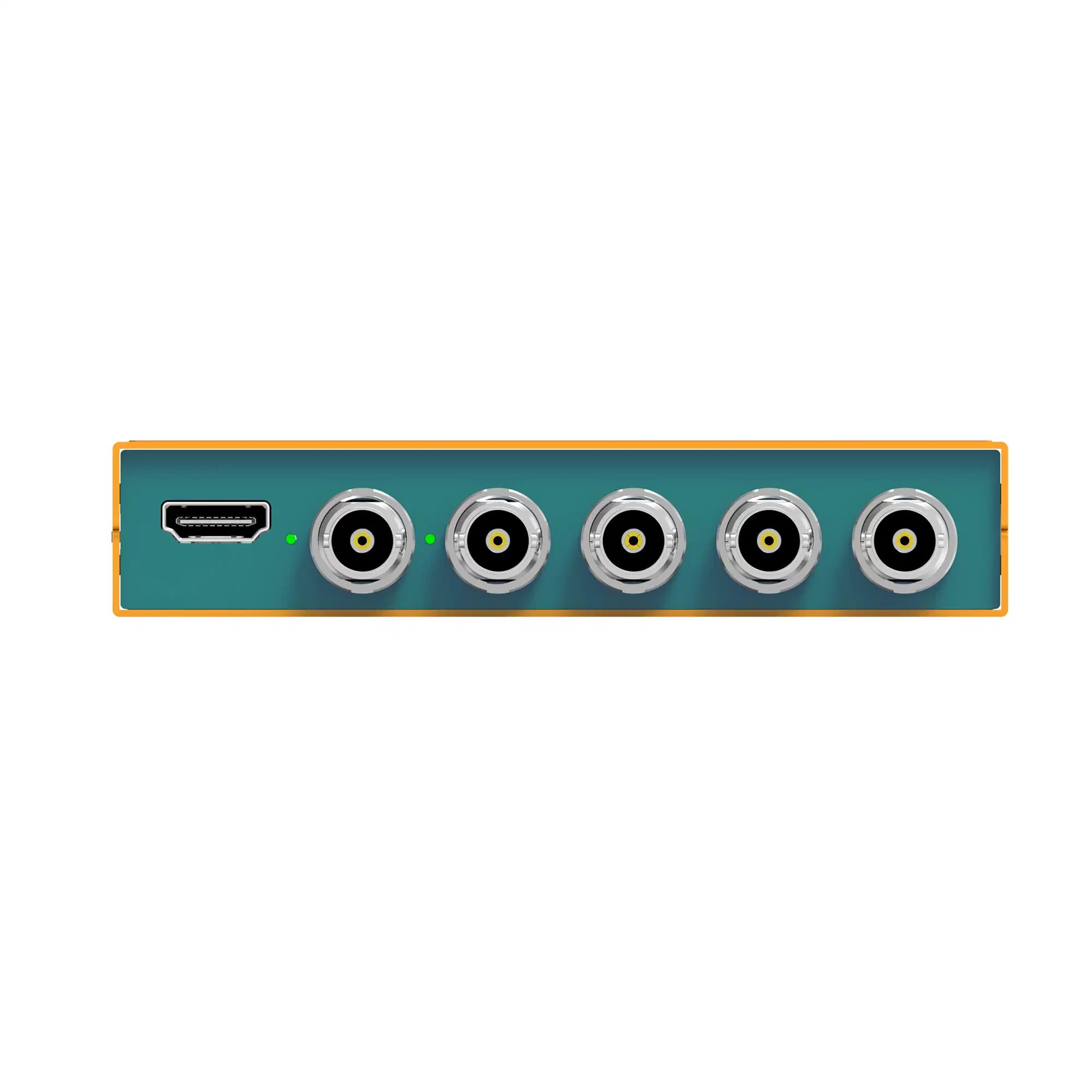

| Inputs | 1 x BNC (3G-SDI) 1 x HDMI |

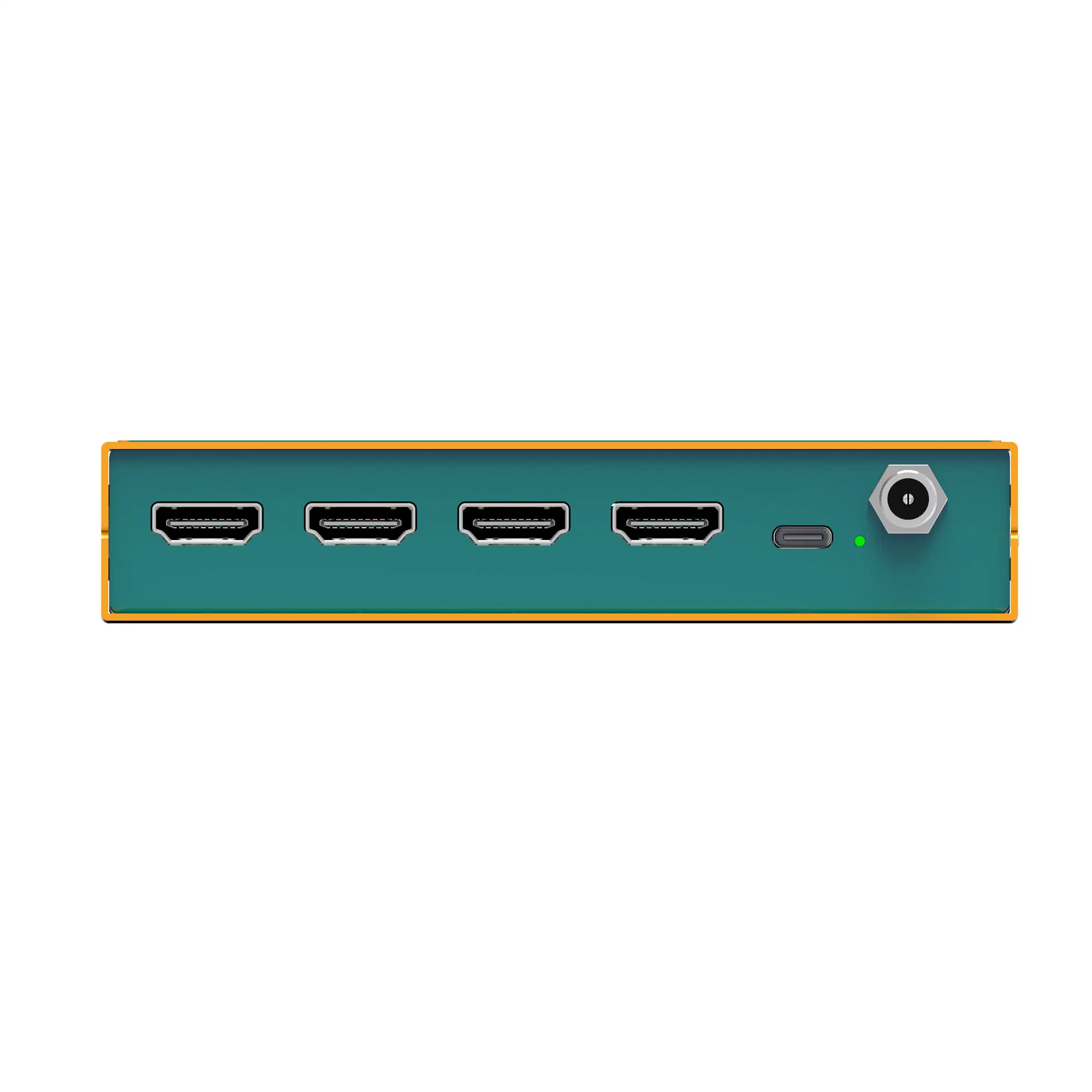

| Outputs | 4x BNC (3G-SDI) 4x HDMI |
| Other I/O | 1x Micro-USB |
Standards
| Video Standard Compliance | SMPTE 259M/292M/424M |
| Reclocking | Yes |
| HDR Support | No |
| HDCP Support | No |
| EDID Support | No |
Transmission
| Video Format | SDI Input (4:2:2 YUV) 1920 x 1080p: 24/25/23.98/29.97/30/59.94/60/50 fps 1920 x 1080PsF: 24/25/23.98/29.97/30 fps 1920 x 1080i: 59.94/60/50 fps 1280 x 720p: 25/29.97/30/59.94/60/50 fps SDI Output (4:2:2 YUV) 1920 x 1080p: 24/25/23.98/29.97/30/59.94/60/50 fps 1920 x 1080i: 59.94/60/50 fps 1280 x 720p: 59.94/60/50 fps HDMI 1920 x 1080p: 24/25/23.98/29.97/30/59.94/60/50 fps 1920 x 1080i: 59.94/60/50 fps 1280 x 720p: 25/29.97/30/59.94/60/50 fps |
Power
| Power I/O | 1x Barrel (12 VDC) Input |
| Power Consumption | (6.6 W) |
| ESD Protection | No |
Physical
| Operating Conditions | 12 to 92°F / -20 to 60°C up to 90% Humidity |
| Storage Conditions | -22 to 158°F / -30 to 70°C |
| Dimensions | 4.9 x 4.1 x 1.0″ / 125.5 x 104.0 x 24.5 mm |
| Weight | 17.1 oz / 485 g |
Packaging Info
| Package Weight | 2.48 lb |
| Box Dimensions (LxWxH) | 7 x 7 x 3.6″ |
