AVMATRIX SD1191 1×9 3G-SDI Reclocking Distribution Amplifier
Key Features
- Auto-Detects up to 1080p60 SDI Input
- 9 x Buffered and Reclocked Outputs
- 3G-SDI Cable Lengths up to 394'
- RGB 4:4:4 & YUV 4:2:2/4:4:4 10-/12-Bit
- Ancillary Data Passed to the Outputs
- DVB-ASI Compatibility
- Locking Power Supply
- Mounting Ears Included
General Details

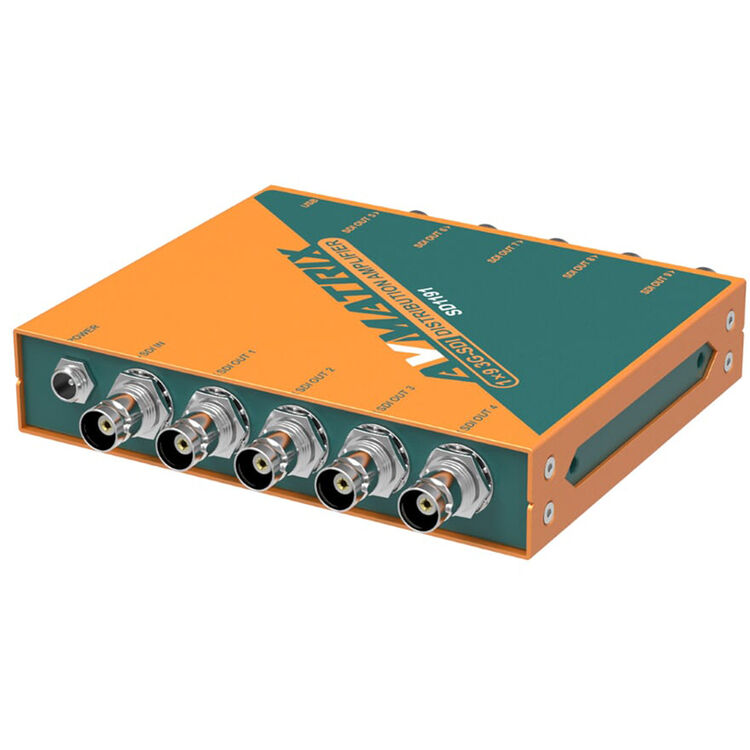

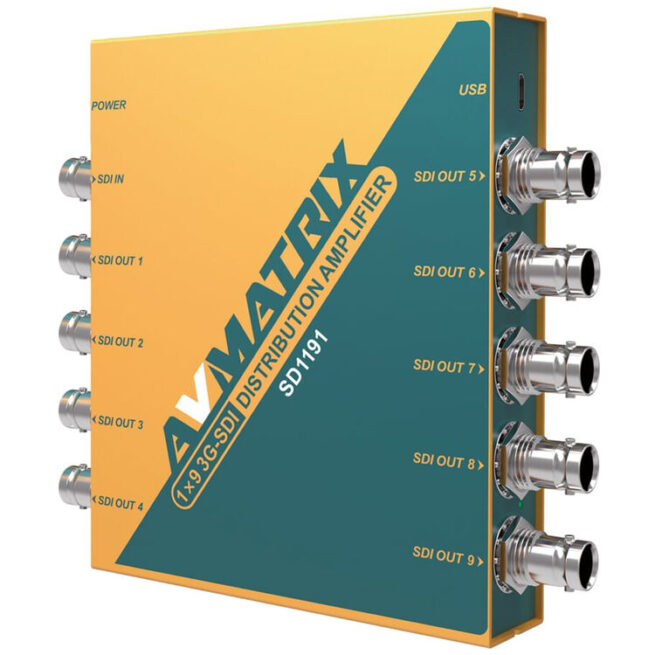

The SD1191 1×9 3G-SDI Reclocking Distribution Amplifier from AVMATRIX features a compact, all-metal design that can be mounted on a wall or attached to the bottom of a desktop. It employs reclocking and cable equalization that allow cable lengths up to 394′ for 3G-SDI signals, 656′ for HD-SDI, and 1312′ for SD-SDI. The automatic reclocking and equalization process regenerates the input, reduces jitter, and improves the SDI eye pattern, allowing for the longer cable runs.
The single input auto-detects 3G/HD/SD signals, and you get nine automatically buffered and reclocked outputs in up to 1080p60 resolution. The input and all outputs also offer DVB-ASI compatibility.
- 3G/HD/SD-SDI input and 9 buffered and reclocked outputs all supporting DVB-ASI signals
- RGB 4:4:4 10-bit/12-bit
- YUV 4:2:2/4:4:4 10-bit/12-bit
- Automatic cable equalization and signal retiming
- All ancillary data is passed to the outputs
- LED indicators for power and signal lock
- Threaded locking power connector
Items Included
- AVMATRIX 1×9 3G-SDI Reclocking Distribution Amplifier
- Locking Power Supply

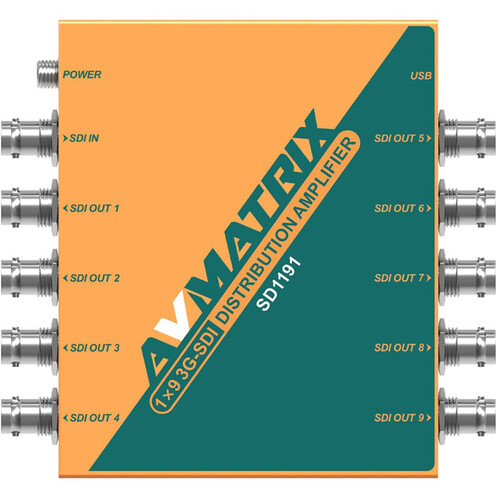

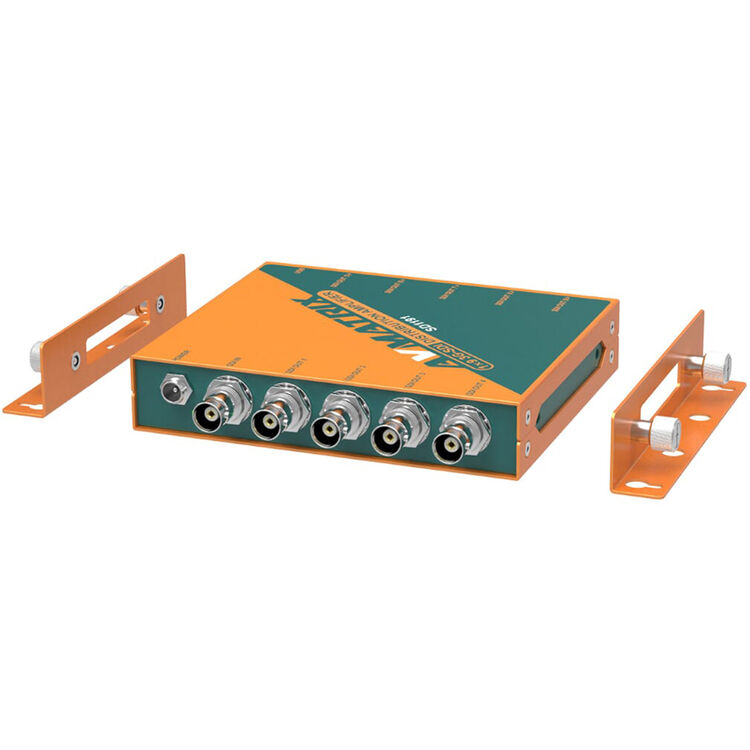

- 2 x Mounting Ear
- Limited 3-Year Manufacturer Warranty
Specification
Interfaces

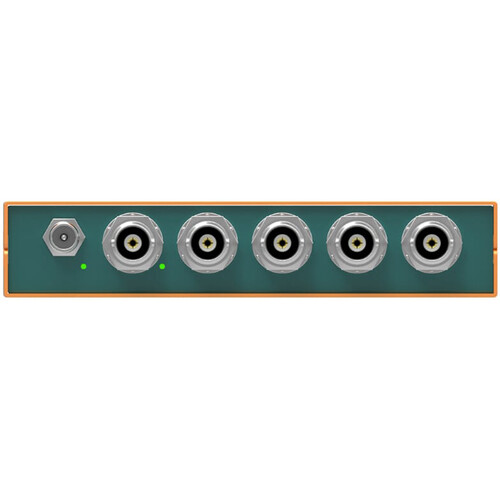

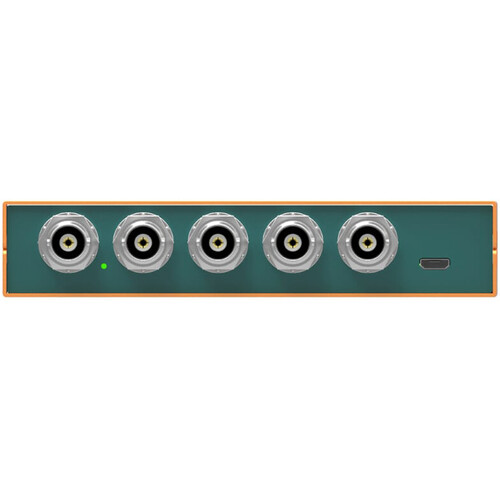

| Inputs | 1 x BNC (3G-SDI / HD-SDI / SD-SDI / DVB-ASI) |
| Embedded Audio | HDMI |
| Outputs | 9x BNC (3G-SDI / HD-SDI / SD-SDI / DVB-ASI) |
| Other I/O | 1x Micro-USB |
Standards
| Video Standard Compliance | SMPTE 259M/292M/296M/372M/424M/425M-A/425M-B |
| Reclocking | Yes |
| HDR Support | No |
| HDCP Support | No |
| EDID Support | No |
Transmission
| Video Format | SDI (10/12-Bit 4:4:4/4:2:2 YUV, RGB) 1920 x 1080p: 24/25/23.98/29.97/30/59.94/60/50 fps 1920 x 1080i: 59.94/60/50 fps 1920 x 1080PsF: 24/25/23.98/29.97/30 fps 1280 x 720p: 24/25/23.98/29.97/30/59.94/60/50 fps |
Power
| Power I/O | 1x Barrel (5 to 17 VDC) Input |
| Power Consumption | (1 W) |
| ESD Protection | No |
General
| Operating Conditions | 12 to 92°F / -20 to 60°C up to 90% Humidity |
| Storage Conditions | -22 to 158°F / -30 to 70°C |
| Dimensions | 5.0 x 1.0 x 5.0″ / 126.0 x 26.0 x 126.0 mm |
| Weight | 1.3 lb / 600 g |
Packaging Info
| Package Weight | 2.62 lb |
| Box Dimensions (LxWxH) | 6.8 x 6.7 x 3.7″ |
