AVMATRIX SC2030 3G-SDI/HDMI Scaling Cross Converter
Key Features
- HDMI & 3G-SDI Input, 3.5mm Audio Input
- Converts HDMI to SDI & SDI to HDMI
- Upscales/Downscales, Converts Frame Rate
- 1 x HDMI & 2 x SDI Outputs

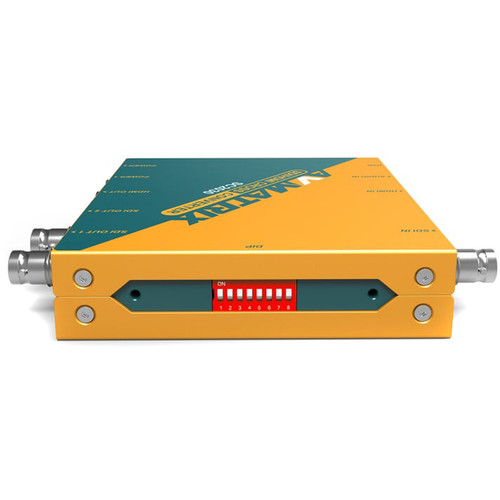

- DIP Switches Set Conversion Modes
- USB Port for Power and Control
- Dual Threaded Locking Power Connector
Combining capabilities usually reserved for a computer controlled converter the SC2030 3G-SDI/HDMI Scaling Cross Converter from AVMATRIX is a compact device that features a video cross converter and scaler all in one. The SC2030 features both an HDMI and a 3G-SDI input, and can cross convert either signal to the other. It also features a 3.5mm analog audio input which can be embedded into your output signal. The built-in scaler and frame rate converter each allow you to convert the input signal to your required output standard.
The SC2030 features one HDMI output and two 3G-SDI outputs, controllable via selectable conversion modes accessed by DIP switches, providing you with a variety of modes to fit your needs. It can also be controlled using a Windows computer with AVMATRIX software via the micro-USB port, which is also used to power the unit. Dual threaded locking connectors allow you to power the unit with external power supplies for redundancy.
Key Features
- The HDMI or SDI input can be scaled and/or frame-rate converted to the required standard
- One HDMI and two SD/HD/3G-SDI outputs
- One 3.5mm analog audio input can be embedded in output

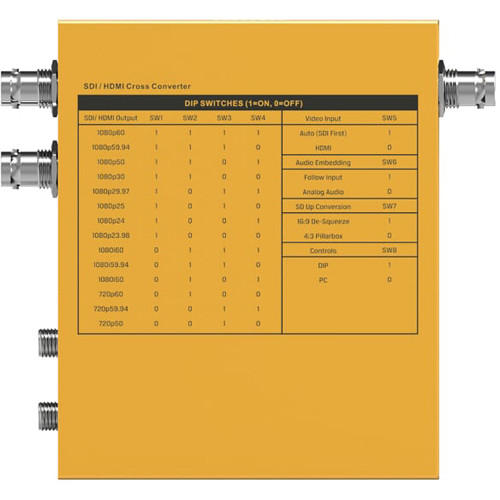

- Use the DIP switches or a computer to change settings
- The embedded audio pairs in the SDI and HDMI outputs can be rearranged as required
- The unit incorporates a USB port for control, power, and firmware updates
- Dual threaded locking connectors can provide redundant power
Items Included
- AVMATRIX SC2030 3G-SDI/HDMI Scaling Cross Converter
- 2 x Mounting Bracket
- 12 VDC Power Supply
- International Plug Adapters
- Limited 3-Year Manufacturer Warranty

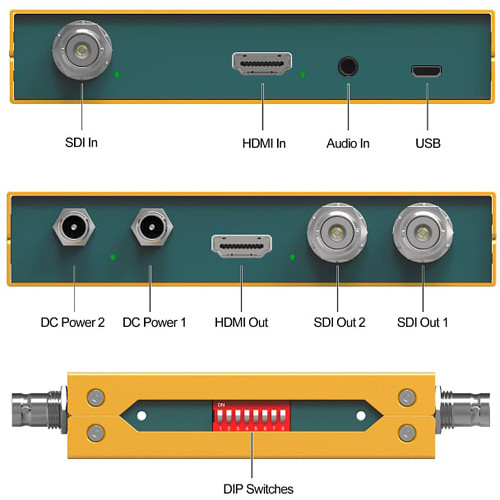

Inputs/Outputs
| Video Inputs | 1x HDMI Female 1x BNC (3G-SDI) Female |
| Audio Inputs | 1x 1/8″ / 3.5 mm TRS Stereo Analog Female |
| Video Outputs | 1x HDMI Female 2x BNC (3G-SDI) Female |
| Audio Outputs | No |
| Other I/O | 1x Micro-USB Control, Firmware Input (Shared With Power I/O) |
| Expansion Slots | No |
Format Support
| Input Video Format | SDI (4:4:4/4:2:2 RGB, YUV) 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080PsF at 23.98/24/25/29.97/30 fps 720p at 23.98/24/25/29.97/30/50/59.94/60 fps 576i / 625 lines at 50 fps 480i / 525 lines at 59.94 fps HDMI (4:4:4/4:2:2 RGB, YUV) 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080i at 50/59.94/60 fps 720p at 23.98/24/25/29.97/30/50/59.94/60 fps 576p at 50 fps 576i / 625 lines at 50 fps 480i / 525 lines at 59.94/60 fps |
| Output Video Format | HDMI / SDI (4:4:4/4:2:2 RGB, YUV) 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080i 50/59.94/60 fps 720p 50/59.94/60 fps |
| Embedded Audio | HDMI/SDI: 2-Channel |
Standards
| Video Standard Compliance | SMPTE 259M/292M/424M |
| HDR Support | Not Specified by Manufacturer |
Hardware
| Wireless | No |
Power
| Power I/O | 2x Barrel (6 to 23 VDC ) Input 1x Micro-USB (3.3 to 5 VDC ) Input |
| Power Consumption | 4 W |
Environmental
| Operating Temperature | -4 to 140°F / -20 to 60°C |
| Storage Temperature | -22 to 158°F / -30 to 70°C |
| Operating Humidity | 0 to 90% |
Physical
| Rack Form Factor | No |
| Dimensions | 4.94 x 4.09 x 0.96″ / 125.5 x 104 x 24.5 mm |
| Weight | 17.11 oz / 485 g |
Packaging Info
| Package Weight | 2.425 lb |
| Box Dimensions (LxWxH) | 6.8 x 6.7 x 3.7″ |
