AVMATRIX PKC3500 IP PTZ Camera Controller
Key Features
- Pan/Tilt/Zoom/Lock PTZ Controls
- Control up to 255 PTZ Cameras via IP
- ONVIF/VISCA-over-IP/Pelco-P & D Support
- Bright 5" Color Display
- Power-over-Ethernet (PoE) Support
- Simultaneous Multi-Brand Camera Control
- Includes 12 VDC Power Supply
AVMATRIX PKC3500 Overview
Control up to 255 PTZ cameras with a single operator over IP with the PKC3500 IP PTZ Camera Controller from AVMATRIX. The controller offers joystick and button control for up to 255 PTZ cameras over IP and it can store up to 255 presets.

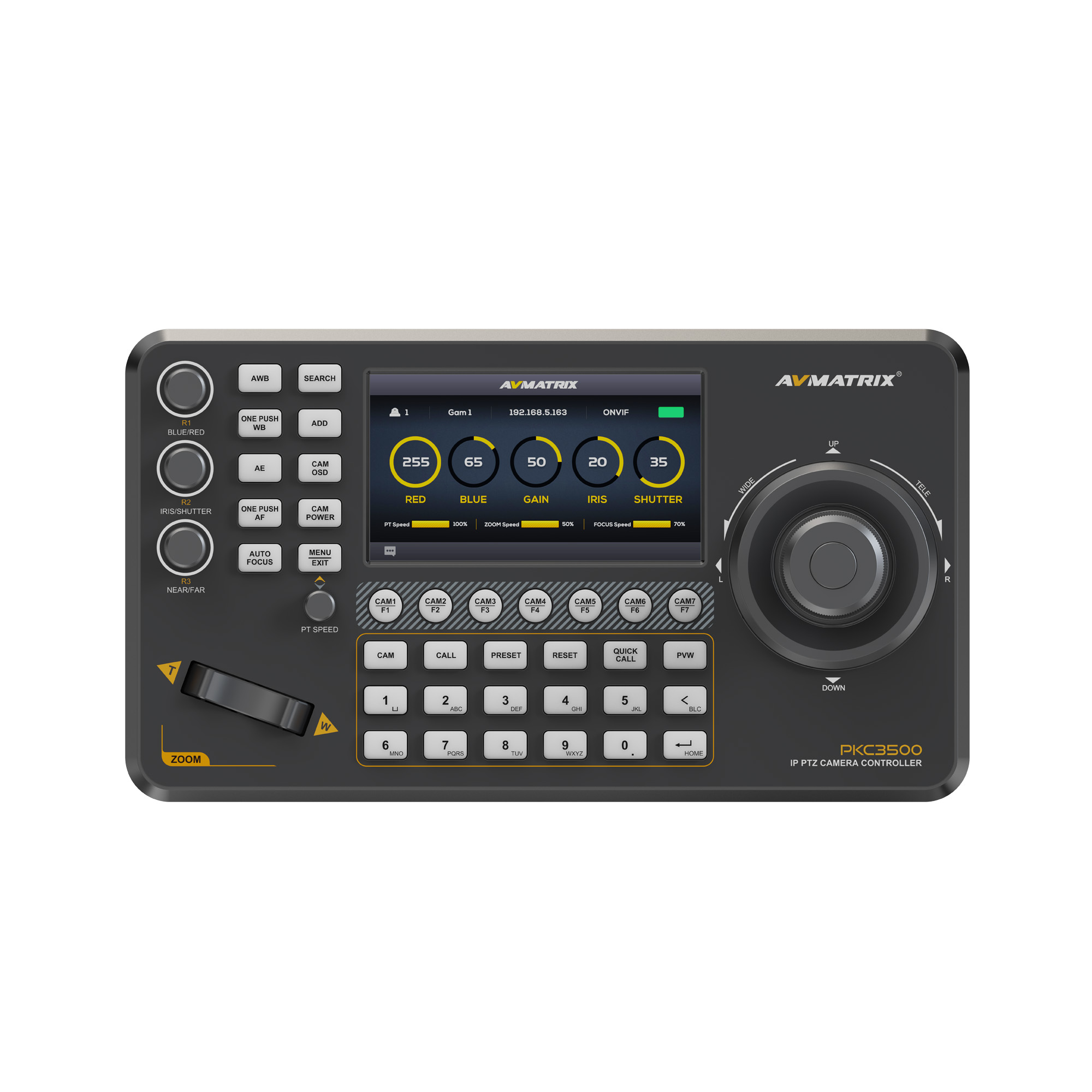

Buttons and Joystick
Physical control features include glowing buttons for working in the dark, 7 user-assignable camera keys for quick access, a 4D joystick, a rocker for smooth in/out zooms, 255 programmable camera presets, 255 camera addresses, and numerous knobs and buttons.
Control Protocol Options
PTZ control protocol support includes VISCA-over-IP, ONVIF, Pelco-P, and Pelco-D protocols over IP that enable you to control the speed of your pan, tilt, zoom, and lock moves and incorporates an LCD screen. The controller also offers the ability to control iris, focus, white balance, exposure, and on-the-fly speed control to control the finer camera settings on the PTZ cameras.
Bright 5″ Touchscreen
The PTZ controller features a bright touchscreen that allows you to control settings and camera movements directly on the screen. You can also monitor camera previews in real time.
Power Options
You can power the controller using the included power adapter or via PoE on supported networks.
Real-Time Previews
The controller allows decoding via RTSP and ONVIF, which allow simultaneous real-time previews of your camera video streams on the controller’s 5″ display.
Items Included
- AVMATRIX PKC3500 IP PTZ Camera Controller
- Power Adapter
- Limited 3-Year Manufacturer Warranty
Camera Control
| Supported Cameras | Up to 255 IP PTZ Cameras |
| Camera Addresses | Up to 255 |
| Camera Presets | Up to 255 |
| PTZ Control | Pan / Tilt / Zoom |
| Camera Functions | Focus / Iris / Shutter Speed / Gain / Auto Exposure / White Balance |
| Control Interface | 4D Joystick / Zoom Rocker / Knobs / Function Buttons |

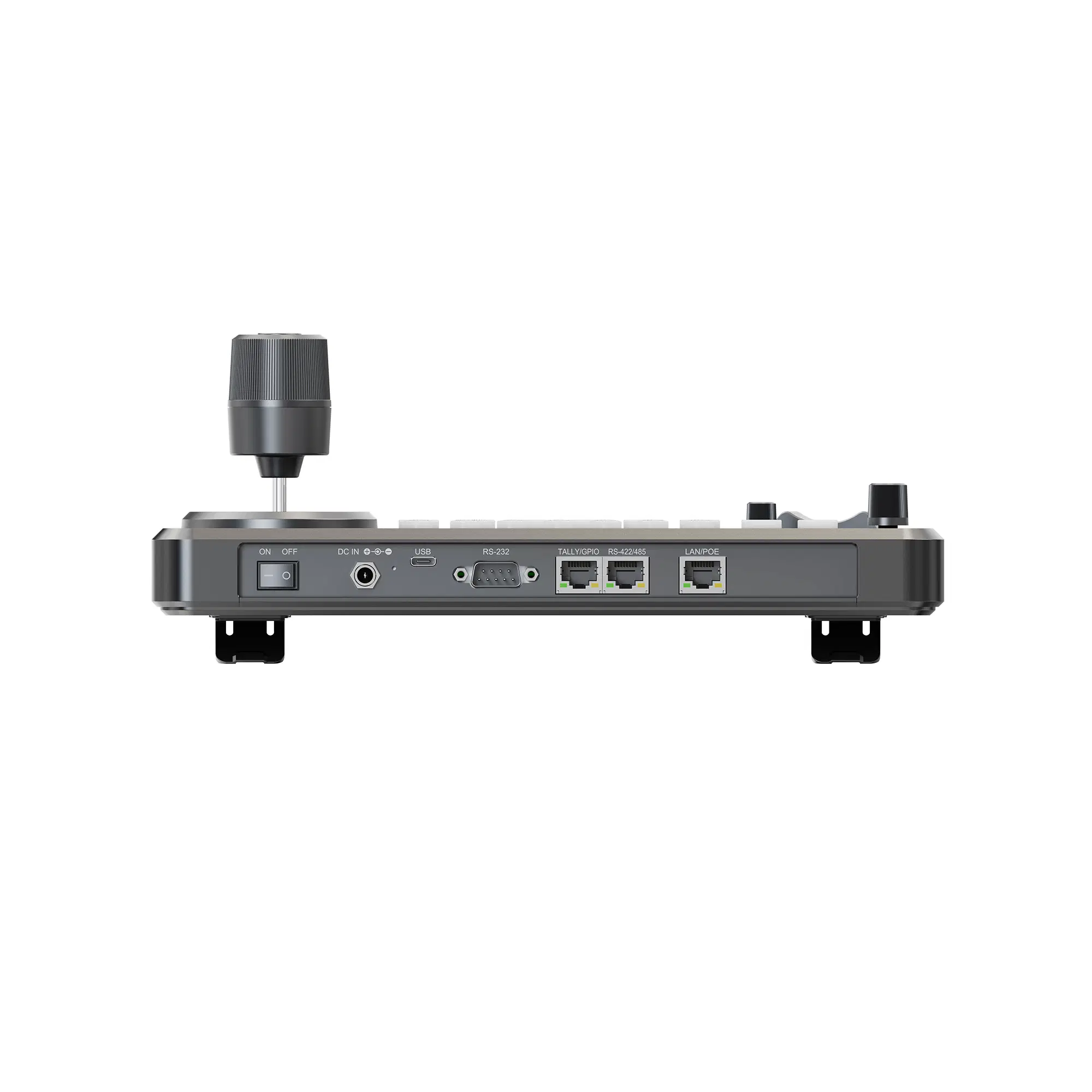

Control Interfaces
| IP Control | RJ45 x 1 |
| Serial Control | RS-232 x 1 RS-422 / RS-485 x 1 |
| Tally | GPIO Tally x 1 |
| USB | USB 2.0 x 1 (Firmware Upgrade) |
| LAN Speed | 1000 Mbps |
Supported Protocols
| IP Protocols | ONVIF / VISCA-IP / VISCA-SONY |
| Serial Protocols | VISCA / Pelco-P / Pelco-D |
| Serial Baud Rate | 2400 / 4800 / 9600 / 19200 / 38400 / 115200 bps |
Video Monitoring
| Display | 5-inch LCD Display |
| Video Preview | Real-Time Camera Preview via ONVIF / IP Streaming |
| Video Input | IP via RJ45 |
| Video Interface | RJ45 (IP Video / Control) |
Control Functions
| Joystick | 3-Axis Pan / Tilt / Zoom Joystick |
| Zoom Control | Zoom Rocker |
| Knobs | Iris / Shutter Speed / Gain / Auto Exposure / White Balance |
| Function Buttons | 28 Buttons |
| Camera Selection | 7 Assignable Camera Selection Keys |
| Track Function | Camera Track Recording and Playback |
Power
| Power Input | DC 7-24V |
| PoE | PoE / PoE+ (IEEE 802.3af/at) |
| Power Consumption | <8W |
General
| Operating Temperature | -20°C to 60°C |
| Storage Temperature | -20°C to 70°C |
| Dimensions (LWD) | 282 x 158 x 47 mm 282 x 158 x 100.5 mm (with Joystick) |
| Weight | Approx. 1.09 kg |
