AVMATRIX MSS0811 8 x 8 3G-SDI Matrix Switcher (1 RU)
Key Features
- 8 x 3G-SDI Inputs / 8 x 3G-SDI Outputs
- YUV Color Space
- Level A & B Signals Supported
- DVB-ASI Interface Compatible
- PC Software Control
- Front-Panel Button Controls
- RJ45, RS-232 & USB for Remote Control
- SDI Input Auto Detection & Equalization
- Redundant Power Design
General Details

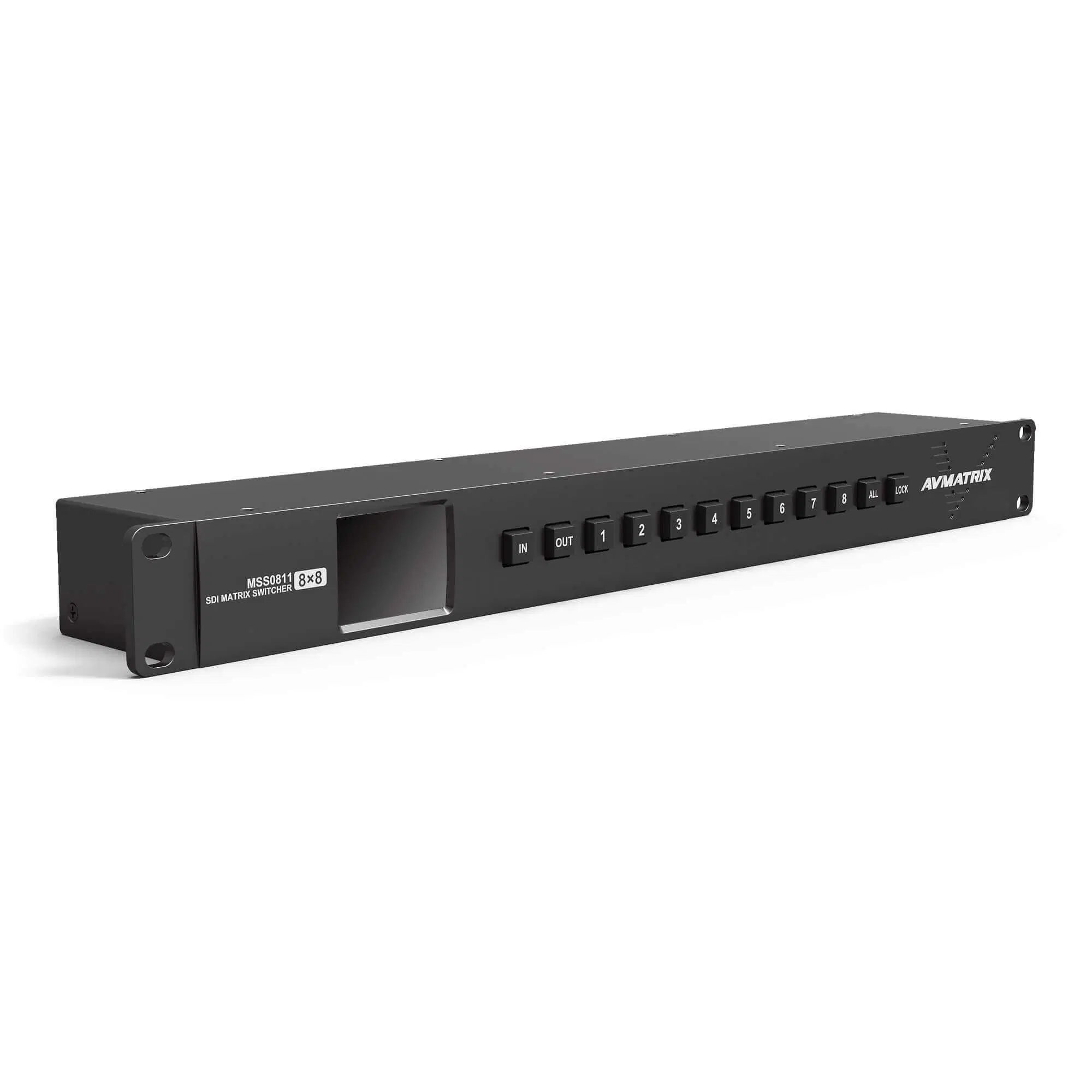

AVMATRIX MSS0811 Overview
The 1 RU MSS0811 8 x 8 3G-SDI Matrix Switcher from AVMATRIX accepts eight channels of input, and can drive them to eight separate output feeds. It includes a multi-format technology that detects multiple video format sources of SD/HD/3G-SDI (level A&B) and DVB-ASI signals at the same time, and routes the multiple video destinations in 1080, 720, SD, NTSC, and PAL. It is controlled by manual switches on the front of the device and via RJ45 and RS-232 ports for software control as well as a USB Type-A port for keyboard control. Two 12 VDC power adapters are included to provide redundant power.
- Multi-format technology can auto detect multiple video format sources of SD/HD/3G-SDI (level A & B) and DVB-ASI signals at the same time and route the multiple video destinations in NTSC and PAL SD, 720p, 1080 at any frame rate.
- Full control from the front panel
- Current channel status can be viewed visually from the 2.2″ LCD screen
- Lock button
- PC control software allows you to connect a computer via Ethernet or via the RS-232 serial port
- USB keyboard
- Redundant power supply
- Compact design
Items Included
- AVMATRIX 8 x 8 3G-SDI Matrix Switcher (1 RU)
- 2 x 12 VDC, 2 A Power Adapters
- Limited 3-Year Manufacturer Warranty
Specification

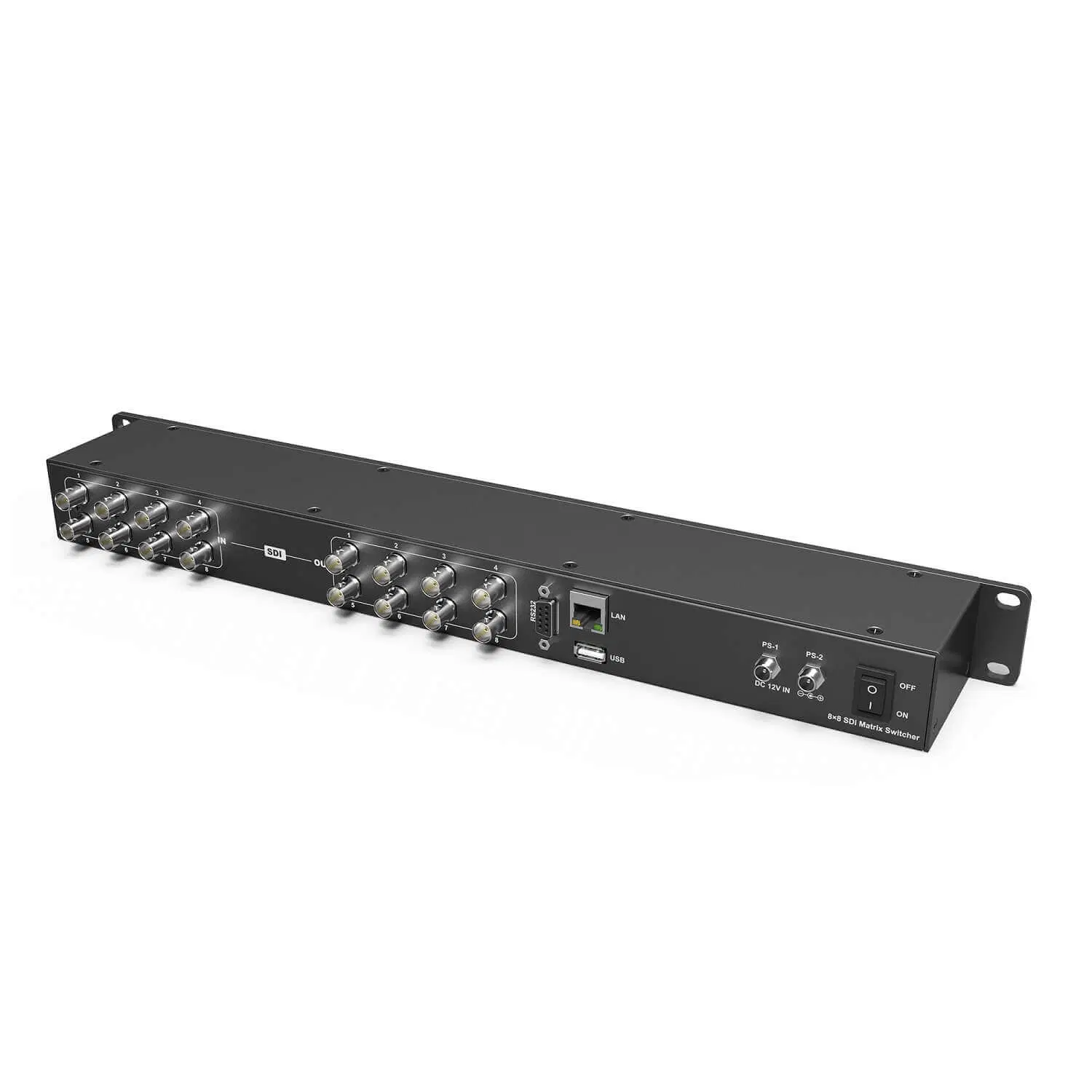

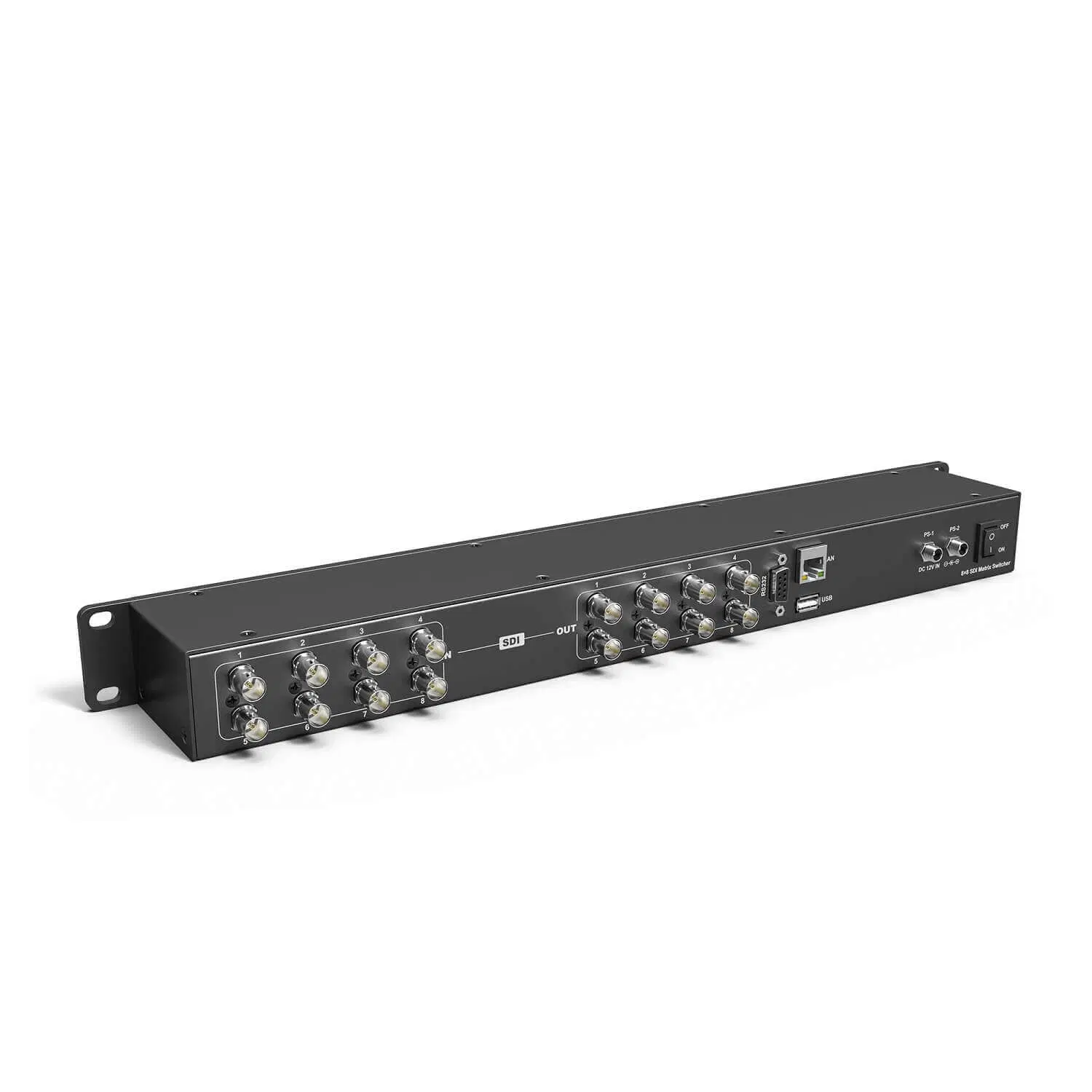

Video Connection
| Video Inputs | 8 x BNC, SD/HD/3G-SDI/DVB-ASI |
| Video Outputs | 8 x BNC, SD/HD/3G-SDI/DVB-ASI |
| SDI Video Rates | SD/HD/3G-SDI |
| SDI Auto Switching | Auto Selects SD, HD and 3G-SDI on Input |
| SDI Signal Support | Level A & Level B |
Video Standards
| SDI Input Format Support |
2048 x 1080p 30/29.97/25/24/23.98 2048 x 1080PsF 30/29.97/25/24/23.98 1920 x 1080p 60/59.94/50/30/29.97/25/24/23.98 1920 x 1080PsF 30/29.97/25/24/23.98 1920 x 1080i 60/59.94/50 1280 x 720p 60/59.94/50/30/29.97/25/24/23.98 625i 50 PAL 525i 59.94 NTSC |
| SDI Compliance |
SMPTE 259M / SMPTE 292M / SMPTE 296M / SMPTE 372M SMPTE 424M / SMPTE 425M / DVB-ASI |
| SDI Color Space & Precision |
RGB 4:4:4 10/12-Bit YUV 4:2:2 10/12-Bit YUV 4:4:4 10/12-Bit XYZ 4:4:4 12-Bit |
| Embedded Data | SDI Embedded Audio and Ancillary Data |

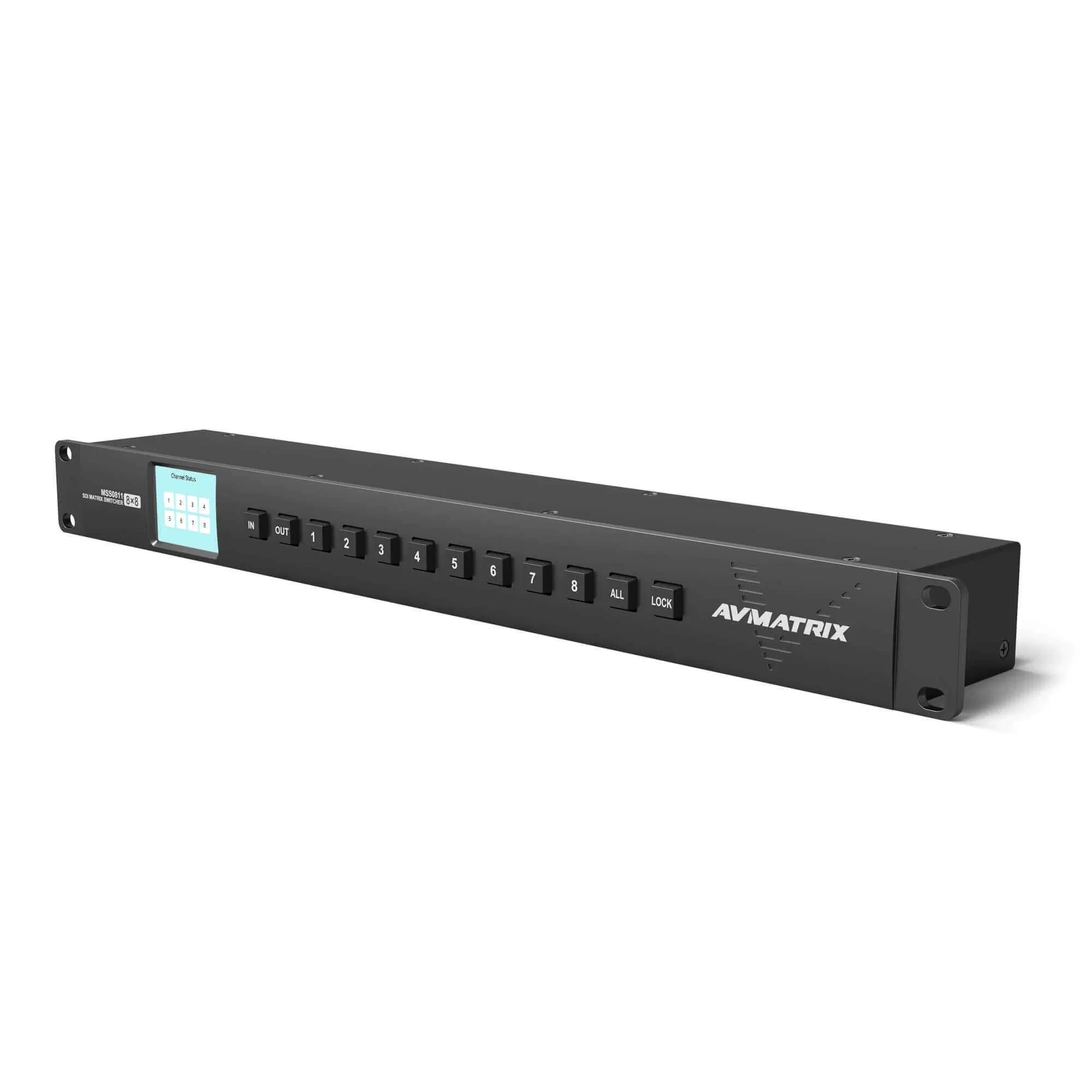

Control
| Front Panel Control | Front Panel Buttons |
| LCD Display | 2.2-inch LCD Screen |
| LAN Control | RJ45 Ethernet Port |
| Serial Control | RS-232 |
| USB Control | USB Type-A for Keyboard Control |
| Software Control | PC Control via LAN / RS-232 |
| Panel Lock | Lock Button |
Power
| Power Input | Threaded Locking DC Connector |
| Voltage Range | 6-24 VDC |
| Power Supply | PS-1 / PS-2, Power Redundancy |
| Power Consumption | 7W |
General
| Rackmount | 1 RU |
| Operating Temperature | -20°C to 60°C |
| Storage Temperature | -30°C to 70°C |
| Relative Humidity | 0 to 90% Non-Condensing |

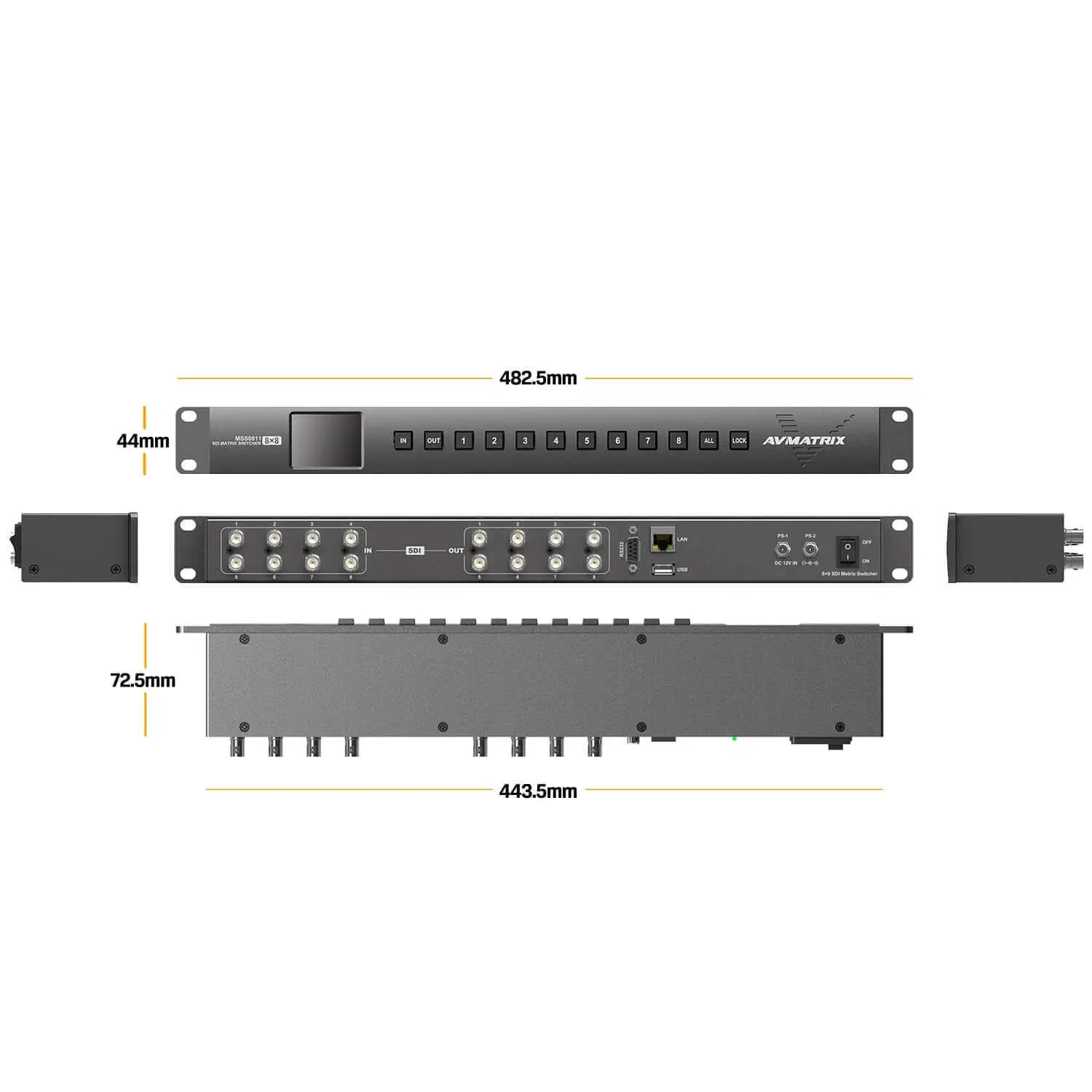

| Dimensions (LWD) | 482.5 x 44.0 x 72.5 mm |
| Weight | 1.1 kg |
