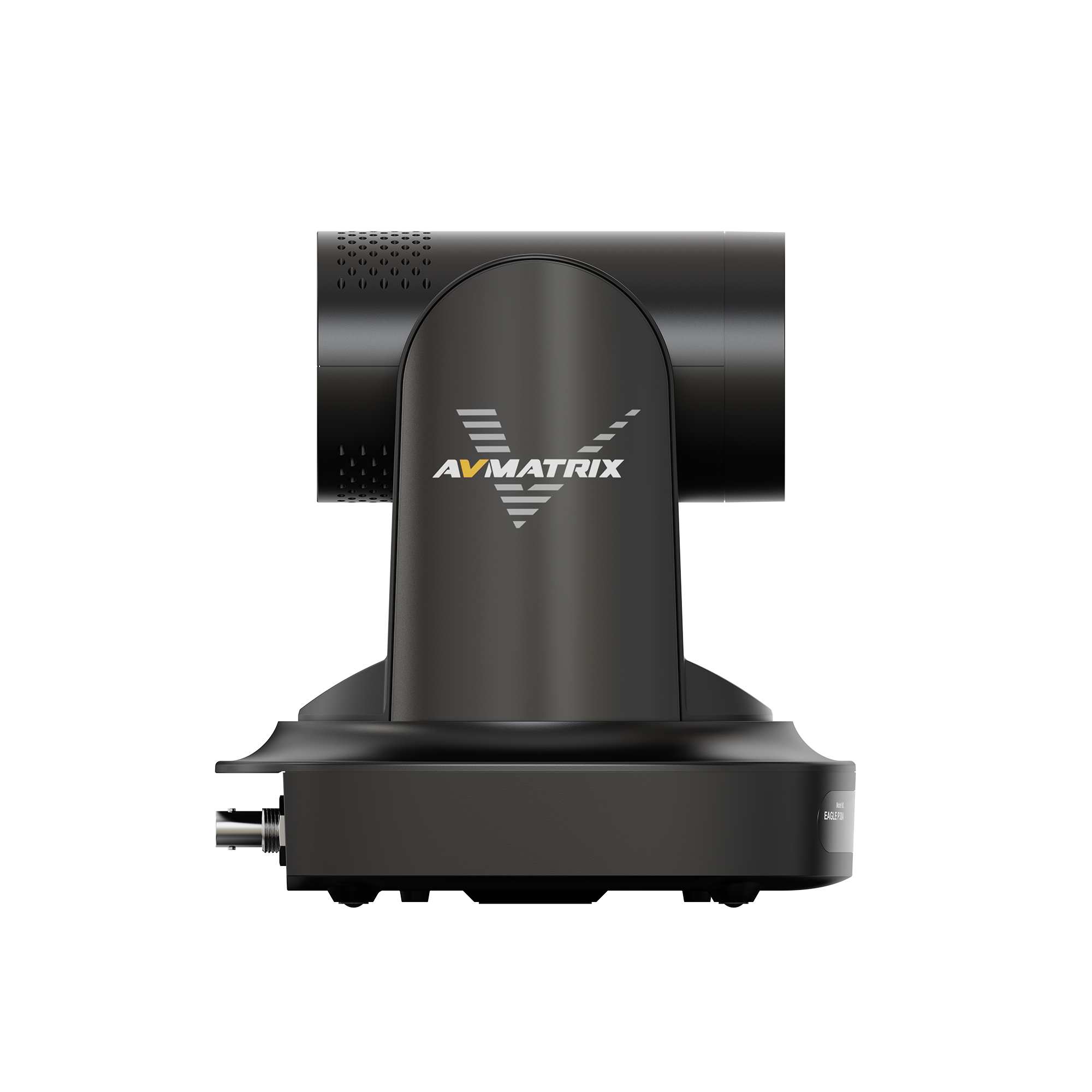

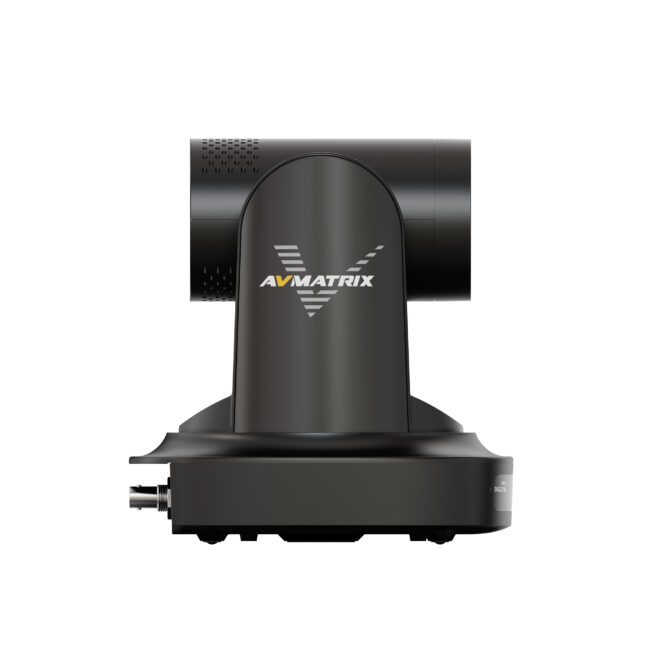

AVMATRIX EAGLE P20A AI Tracking FHD PTZ Camera
Key Features
- Up to 1080p60 Video via HDMI/SDI/USB
- LAN Port for RTMP/RTSP/ONVIF Streams
- 20x Optical/16x Digital Zoom
- AI Auto-Tracking to Follow Subject
- UVC, VISCA, Pelco-D, Pelco-P Control
- 3.5mm Stereo Audio Line-Level In
- Autofocus, up to 255 Presets
- DC Adapter or PoE+ Power
AVMATRIX EAGLE P20A Overview
Add a powerful PTZ camera with 1080p60 video capture and auto-tracking to your professional broadcasts with this EAGLE P20A AI Tracking FHD PTZ Camera with 20x Zoom from AVMATRIX. The camera offers precision control and multiple output ports, and is designed for broadcast, security, and teleconferencing needs. It also supports IP, UVC, VISCA, Pelco-D, and Pelco-P control protocols. This camera supports video output via IP, USB, HDMI, and 3G-SDI and has a LAN port for IP streaming via RTMP/S, SRT, RTSP, or ONVIF.
1080p Capture
The EAGLE features a high-resolution 2.07MP 1/2.8″ CMOS sensor that can capture up to 1080p60 video.
AI Auto-Tracking and Autoframing
The EAGLE features intelligent AI tracking with four selectable modes that can be utilized to follow subjects around a stage or room during live events, lectures, or conferences from up to 59′ away:
- Real-time
- Stage tracking
- Area tracking
- Intelligent view
The AI technology also supports auto-framing to reframe and reposition your subject in the frame when you’re in real-time mode, and in stage tracking mode you can adjust the size of the frame.
Optical Zoom Lens
The camera features a 20x optical zoom lens that maintains a crisp image throughout the zoom range. It also features a wide horizontal field of view and an additional 16x digital zoom to get even closer to your subjects with little image quality loss.
Versatile Interfaces
Output your video in multiple ways using the HDMI, 3G-SDI, USB-A 3.0, and LAN streaming ports. All of the ports can output video up to 1080p60, and you can control the camera simultaneously via UVC, serial, or IP.
FreeD Support for AR/VR
Add green screen shots to your productions using FreeD protocols, which are supported by the camera without additional sensors. This enables easy integration into virtual and augmented reality productions.
Control Protocols
In addition to UVC control over the USB port, the camera can be controlled via VISCA-over-IP, UDP, and ONVIF protocols via the LAN port, or it can be controlled via RS-485 or RS-232 serial using VISCA, Pelco-P, or Pelco-D protocols.
Presets
The camera supports saving up to 255 presets via optional IP/serial controllers, and it can save up to 10 presets on the included IR remote. The preset freeze function allows you to “freeze” actions for free switching between preset configurations.
Other Notable Features
- Manual or autofocus
- ±175° panning range
- -30/+90° tilting range
- ONVIF, RTSP, RTMP/S, SRT streaming protocols
- H.265/H.264/MJPEG compression format support
- 3.5mm line audio input
- 100 Mb/s Ethernet
- Powered via included power supply or via PoE+
Items Included
- AVMATRIX EAGLE AI Tracking 1080p PTZ Camera with 20x Zoom
- 12V Power Adapter
- IR Remote Control
- USB-A 3.0 Cable
- RS-232 Serial Cable
- RS-485 Terminal Connector
- Limited 3-Year Manufacturer Warranty
Camera
| Image Sensor | 1/2.8″ CMOS |
| Effective Resolution | 2.07 Megapixel |
| Video Resolution | Up to 1920 x 1080p at 60fps |
| Signal-to-Noise Ratio | 50 dB |
| Minimum Illumination | 0.5 Lux at f/1.8 |
| Focus | Auto Focus / Manual Focus |
| White Balance | Auto / Manual / One-Touch 2400K to 7100K |
| Image Flip | Supported |
Lens
| Focal Length | 5.1 to 94.49mm |
| Optical Zoom | 20x |
| Digital Zoom | 16x |
| Horizontal Field of View | 60.04° to 3.45° |
| Vertical Field of View | 35.31° to 1.97° |
| Diagonal Field of View | 67.45° to 3.94° |
AI Tracking
| AI Tracking Modes | Real-Time / Stage Tracking / Area Tracking / Intelligent View |
| AI Auto-Framing | Supported |
| Tracking Distance | Up to 59 ft / 18 m |
Video Output
| HDMI Output | HDMI x 1 |
| SDI Output | 3G-SDI BNC x 1 |
| USB Output | USB-A x 1 |
| IP Video Output | RJ45 LAN x 1 |
| HDMI/SDI Output Formats |
1920 x 1080p 25/29.97/30/50/59.94/60 1920 x 1080i 50/59.94/60 1280 x 720p 50/59.94/60 |
| USB Output Formats |
1920 x 1080p 10/15/20/25/30/50/60 1280 x 720p 10/15/20/25/30/50/60 800 x 600p 10/15/20/25/30/50/60 1024 x 576p 10/15/20/25/30/50/60 640 x 480p 10/15/20/25/30/50/60 800 x 448p 10/15/20/25/30/50/60 480 x 270p 10/15/20/25/30/50/60 320 x 180p 10/15/20/25/30/50/60 |
IP Streaming
| Streaming Protocols | HTTP / RTMP / RTMPS / SRT / RTSP / ONVIF |
| IP Video Codec | H.264 / H.265 / MJPEG |
| Main Stream | 640 x 480 to 1920 x 1080 10/15/20/25/30/50/60fps 64 to 40,000 Kb/s |
| Sub Stream | 320 x 180 to 1280 x 720 10/15/20/25/30/50/60fps 64 to 40,000 Kb/s |
| Ethernet | 100 Mb/s |
PTZ Control
| Pan Range | 340° (-170° to +170°) |
| Tilt Range | 120° (-90° to +30°) |
| Pan Speed | 0.1° to 100°/s |
| Tilt Speed | 0.1° to 45°/s |
| Presets | 255 via IP/Serial/UVC/VISCA/Pelco 10 via IR Remote |
Control & Protocols
| IP Control | VISCA-over-IP / UDP / ONVIF |
| Serial Control | RS-232 / RS-485 |
| Serial Protocols | VISCA / Pelco-P / Pelco-D |
| USB Control | UVC |
| AR/VR Protocol | FreeD |
Audio
| Audio Input | 3.5mm Stereo Line Input |
| Embedded Audio | HDMI / IP / SDI / USB |
| Built-in Microphone | No |

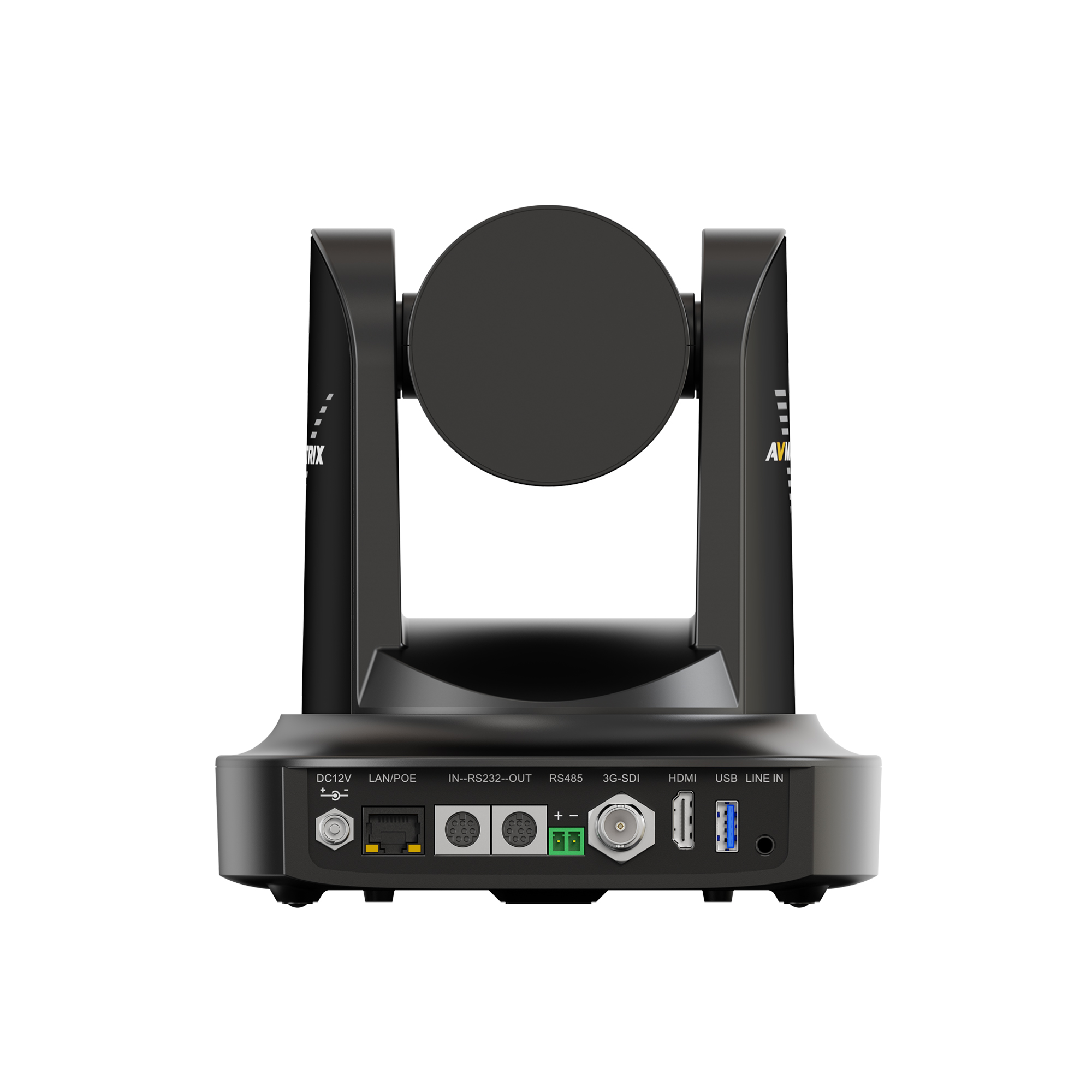

Interfaces
| Video Interfaces | HDMI x 1 3G-SDI BNC x 1 USB-A x 1 RJ45 LAN x 1 |
| RS-232 | DIN 8-Pin Control Input / Output |
| RS-485 | 2-Pin Block Control Input / Output |
Power
| Power Input | 12V DC / 1.2A |
| PoE | PoE+ IEEE 802.3at |
| Power Consumption | 13.8W |
General
| Mounting | 1/4″-20 Female Mount |
| Operating Temperature | -10°C to 50°C |
| Operating Humidity | 20% to 80% |
| Storage Temperature | -10°C to 70°C |
| Storage Humidity | 20% to 95% |
| Dimensions (WHD) | 180 x 170 x 170 mm |
| Weight | 1.26 kg |
